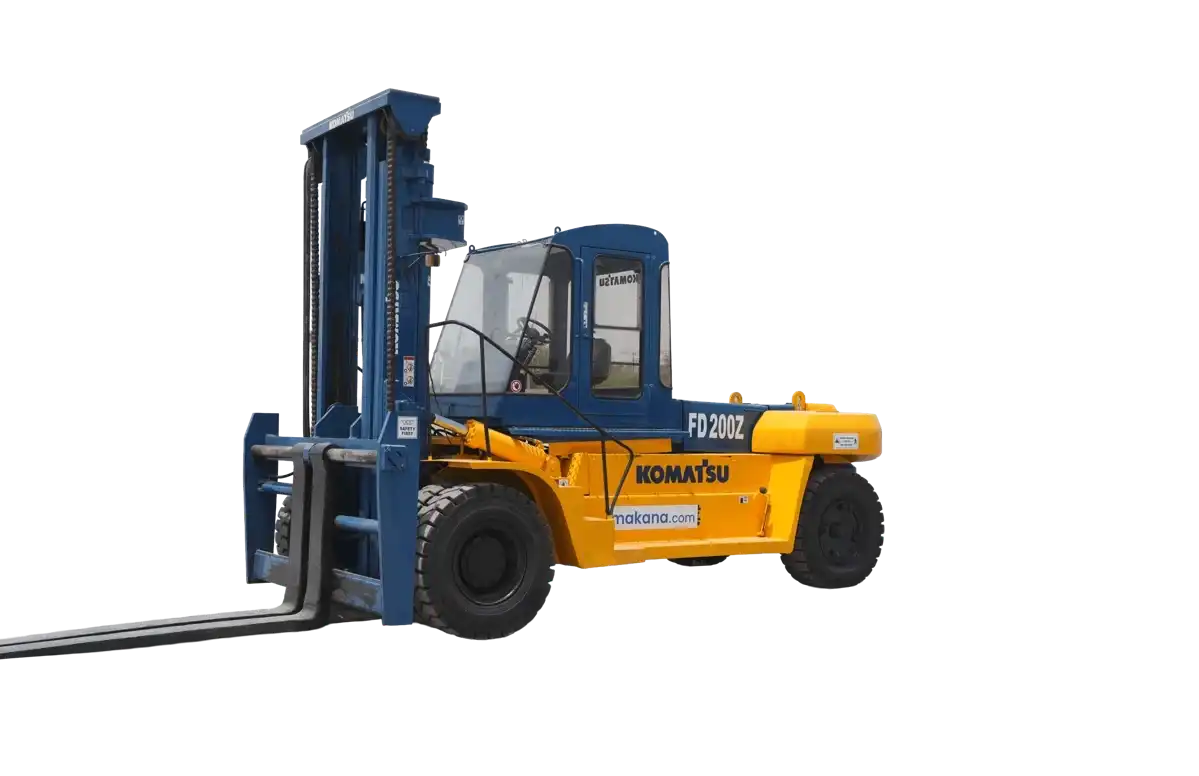

Komatsu FD200 Forklifts tech specs
:quality(50)/69984/conversions/6fdd116d-4d55-4e7a-96d9-5dc6512398f0-webp.webp)
:quality(50)/69976/conversions/9d610c2d-45ad-424b-bb98-28ca00bd778f-webp.webp)
:quality(50)/69978/conversions/cff6b07f-a491-4dc0-9d8c-5534946964d7-webp.webp)
:quality(50)/69982/conversions/342559a0-7362-479f-9990-8dc01b29e6a1-webp.webp)
The Komatsu FD200 is a heavy-duty industrial lifting machine designed for extreme load handling in ports, yards, steel plants, and large logistics operations. With a massive 20,000 kg lifting capacity, powerful Isuzu diesel engine, and robust chassis, it’s built for nonstop, high-stress material handling.
lifting capacity 20,000 kg
Isuzu 6BG1-T diesel engine, 117.82 kW
High torque output at 588 Nm
Pneumatic tires for yard and port use
Strong drawbar pull at 90 kN
operating weight 26,880 kg
Komatsu FD200 Technical specifications
Engine
Displacement
6494 cu cm
Gross power
117.82 kw
Max torque
588 Nm
Number of cylinders
6
Power measured @
2,200 rpm
Torque measured @
1,600 rpm
Undercarriage
Drawbar Pull
90 kN
General
Engine model
Isuzu 6BG1-T
Lifting capacity
20000 kg
Max speed forward
29 kph
Operating weight
26,880 kg
Service refill capacities
Fuel cap
400 liter
Hydraulic fluid cap
324 liter
Dimensions
Height - top of cab
3.36 m
Length to Fork Face
5.385 m
Overall Width
3.095 m
Turning radius
5.85 m
Mast
Lift Speed
21.6 m/min
Load Center
90 cm
Operating specifications
Number of Front Wheels
4
Number of Rear Wheels
2
Tire Type
Pneumatic
Hydraulic system
Relief valve pressure
156.85 bar
Komatsu FD200 expert review
:quality(50)/60951/b376c375-391e-4221-936c-4c863ae106c1.jpeg)
Overview
The Komatsu FD200 is a heavy-duty industrial lifting machine designed for high-load handling in ports and large industrial yards.
Efficiency
The FD200 focuses on torque-driven efficiency for repetitive heavy lifts rather than speed.
Operator Area
Controls are simple and durable, prioritizing uptime and ease of maintenance.
In Comparison
It offers greater raw lifting capability than the Toyota 7FGCU25 and simpler mechanics than the Toyota 8FGCU25.
Verdict
Rated 5 stars, the Komatsu FD200 is a reliable solution for heavy industrial material handling.
Komatsu FD200 owner rating
2009-2019
Overall rating
Based on 3 ratings
4.7
4.3
4.7
5.0
4.3
33 %
67 %
0 %
0 %
0 %
5.0
4.0
4.0
5.0
4.0
4.0
4.0
5.0
5.0
4.0
Komatsu FD200 similar models
:quality(50)/59662/84986bd7-5b2e-4562-b6a3-a177e863e61f.png)
:quality(50)/59673/b63f9deb-216b-4435-8379-0e7720ebf308.png)

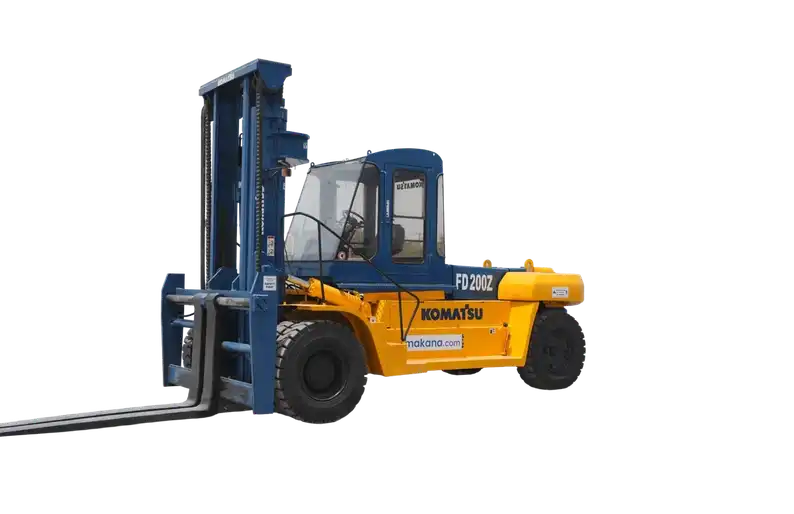

Komatsu FD200 gallery
