Toyota

Toyota 8FGCU25 Forklifts

100K+ machines in details.

Toyota 8FGCU25 Forklifts tech specs

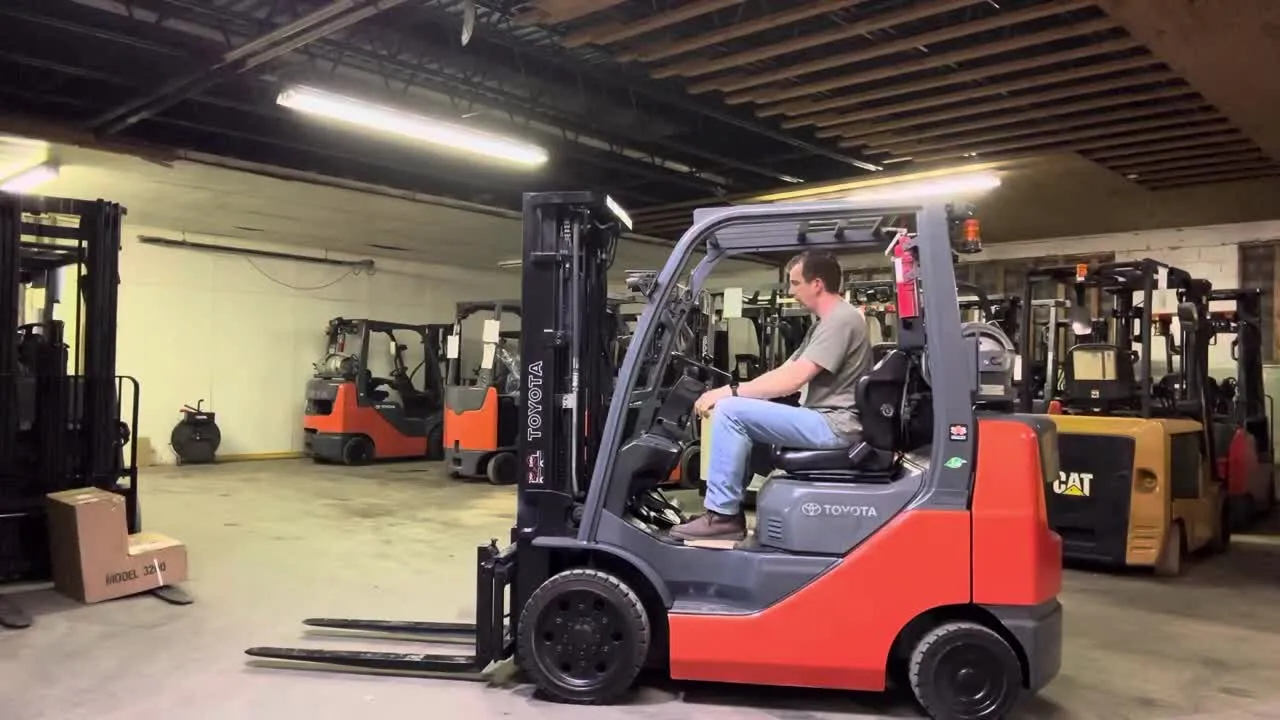

Video[1]

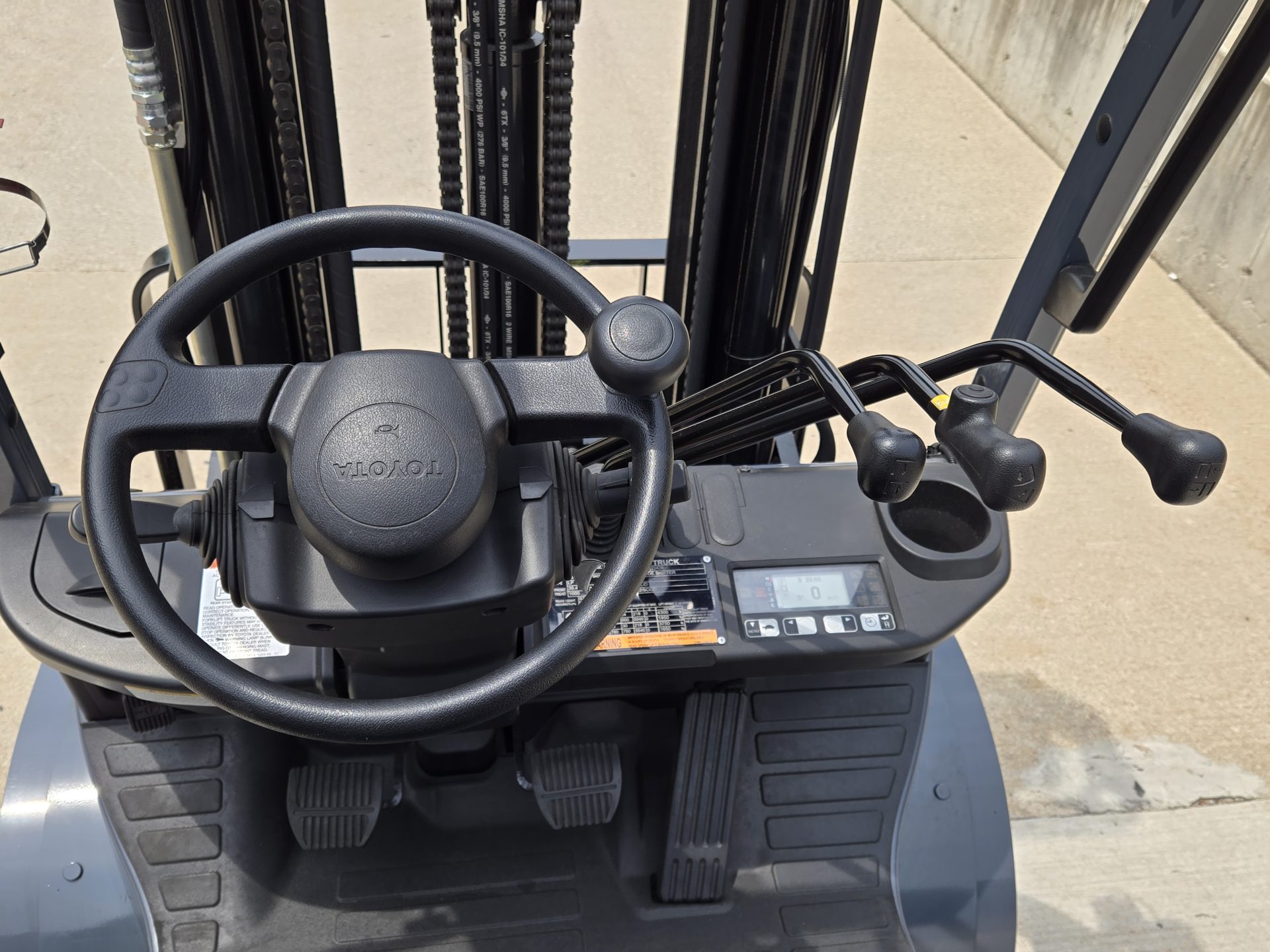

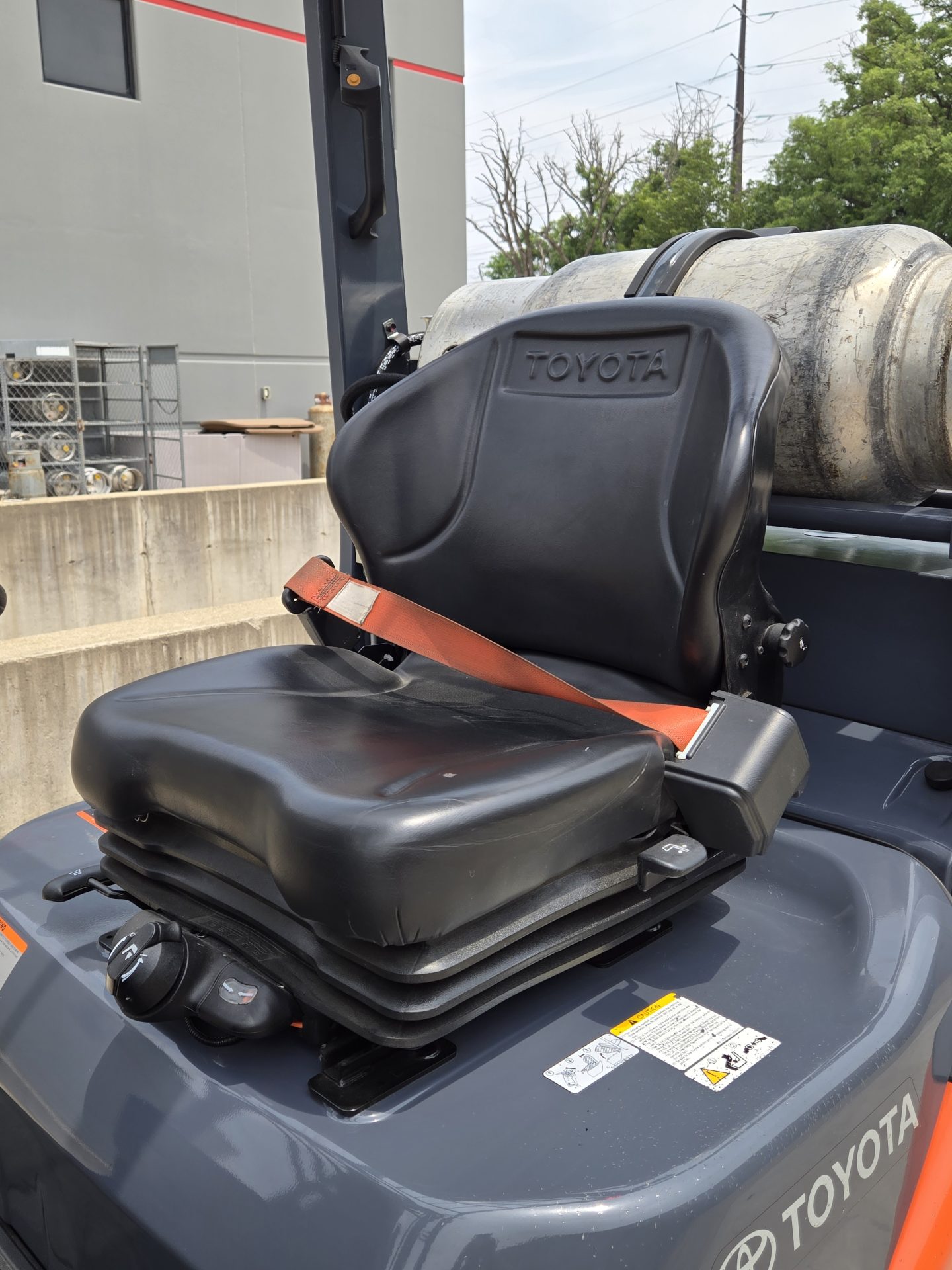

Interior [2]

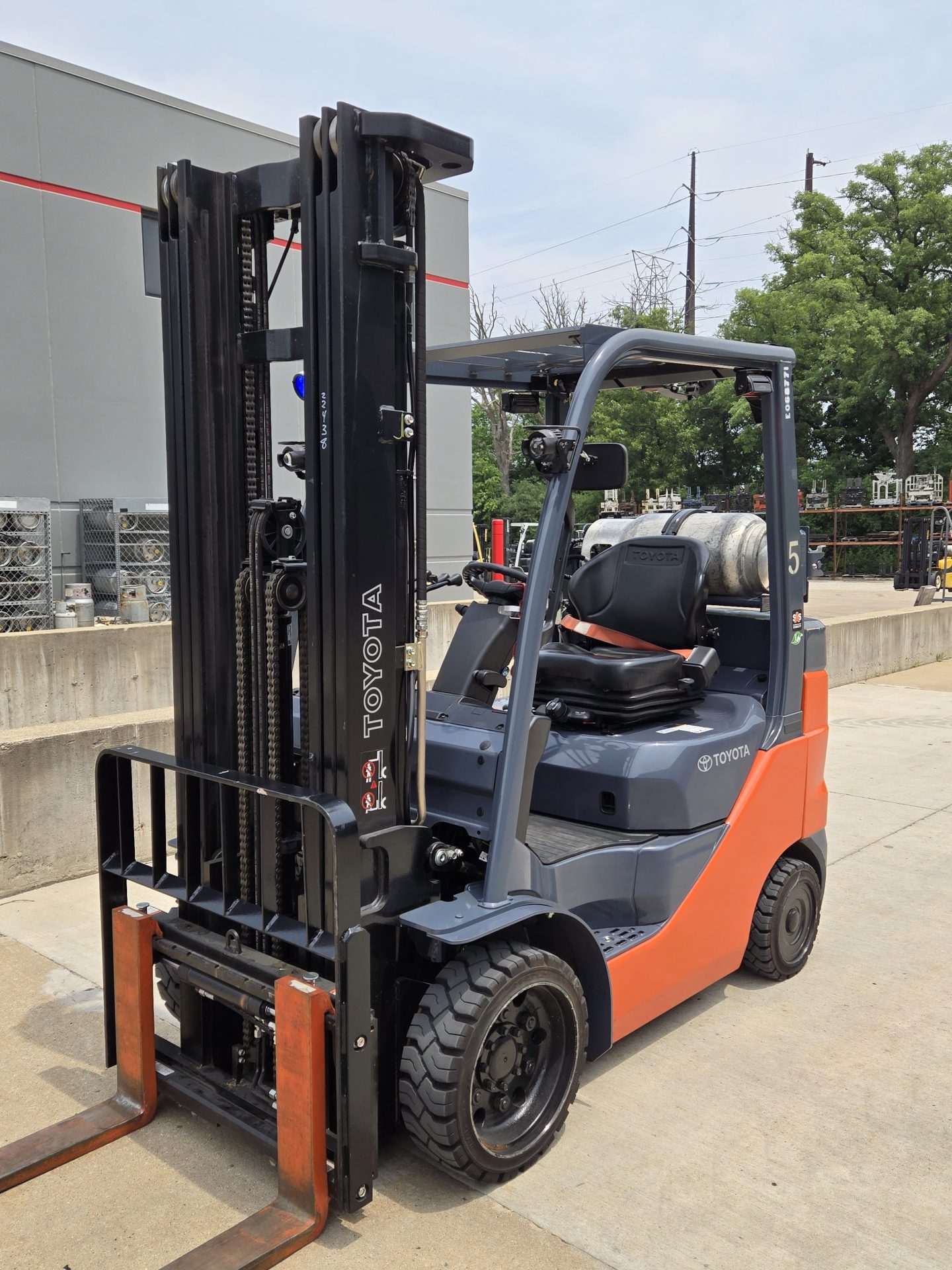

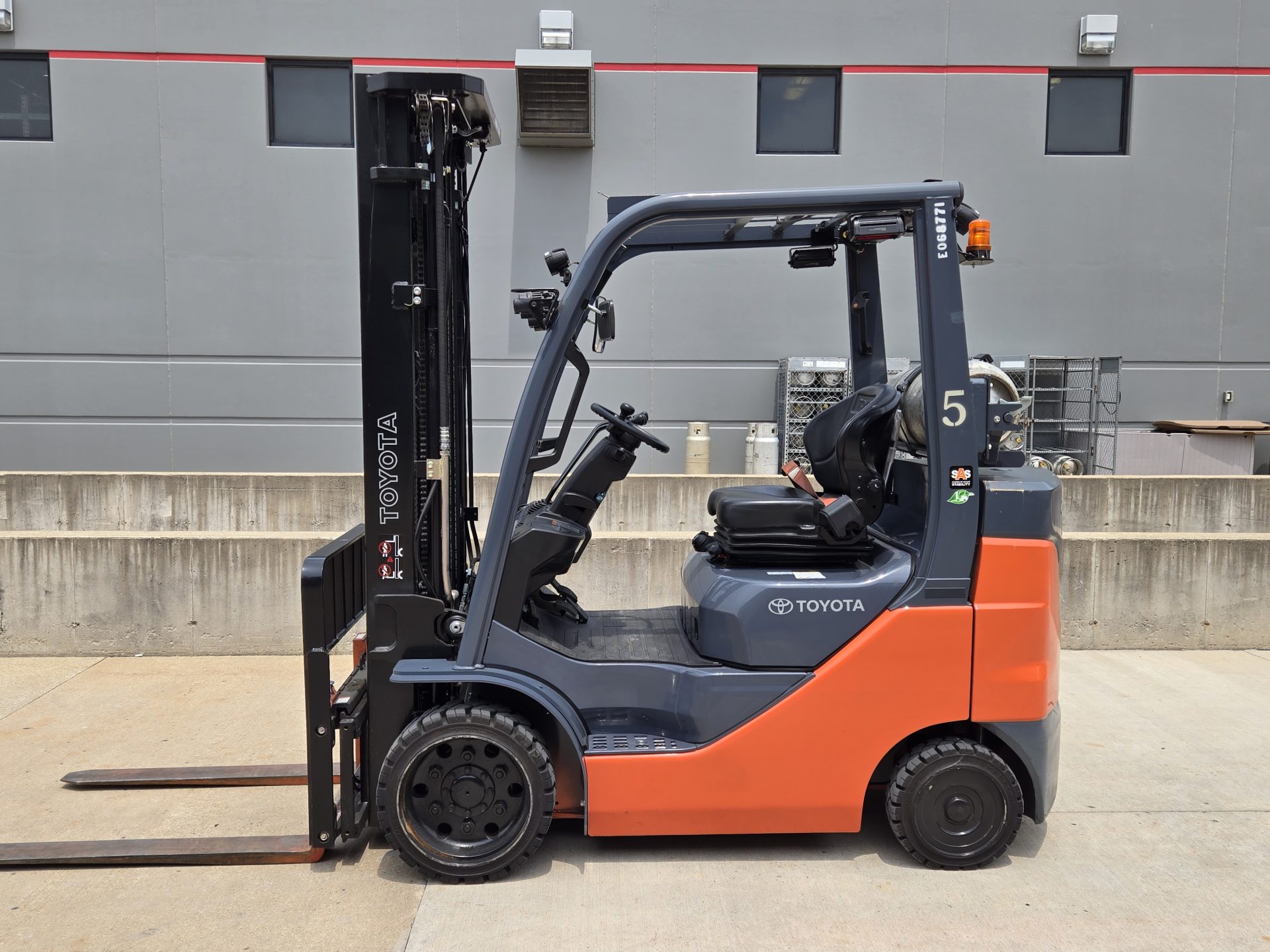

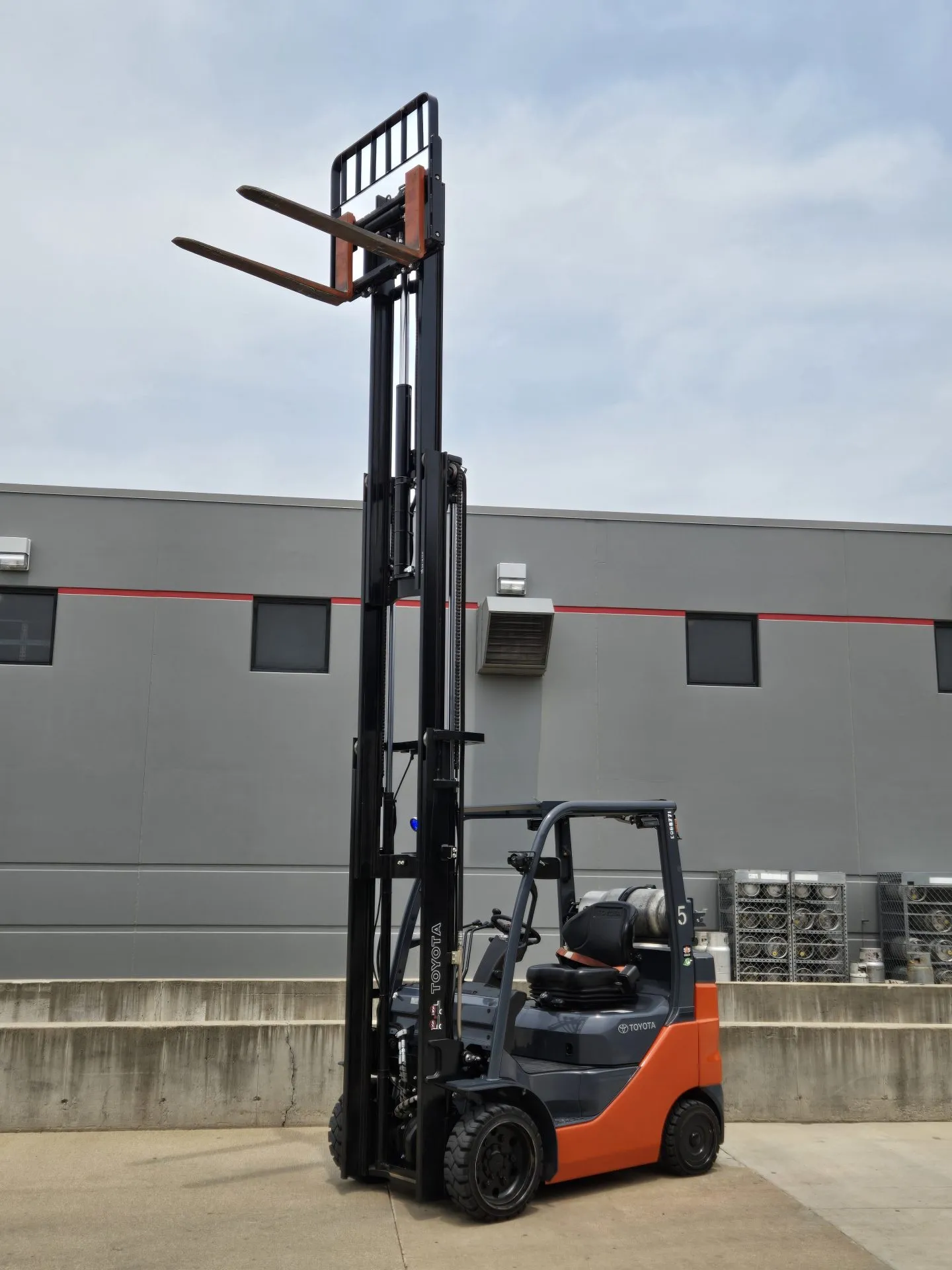

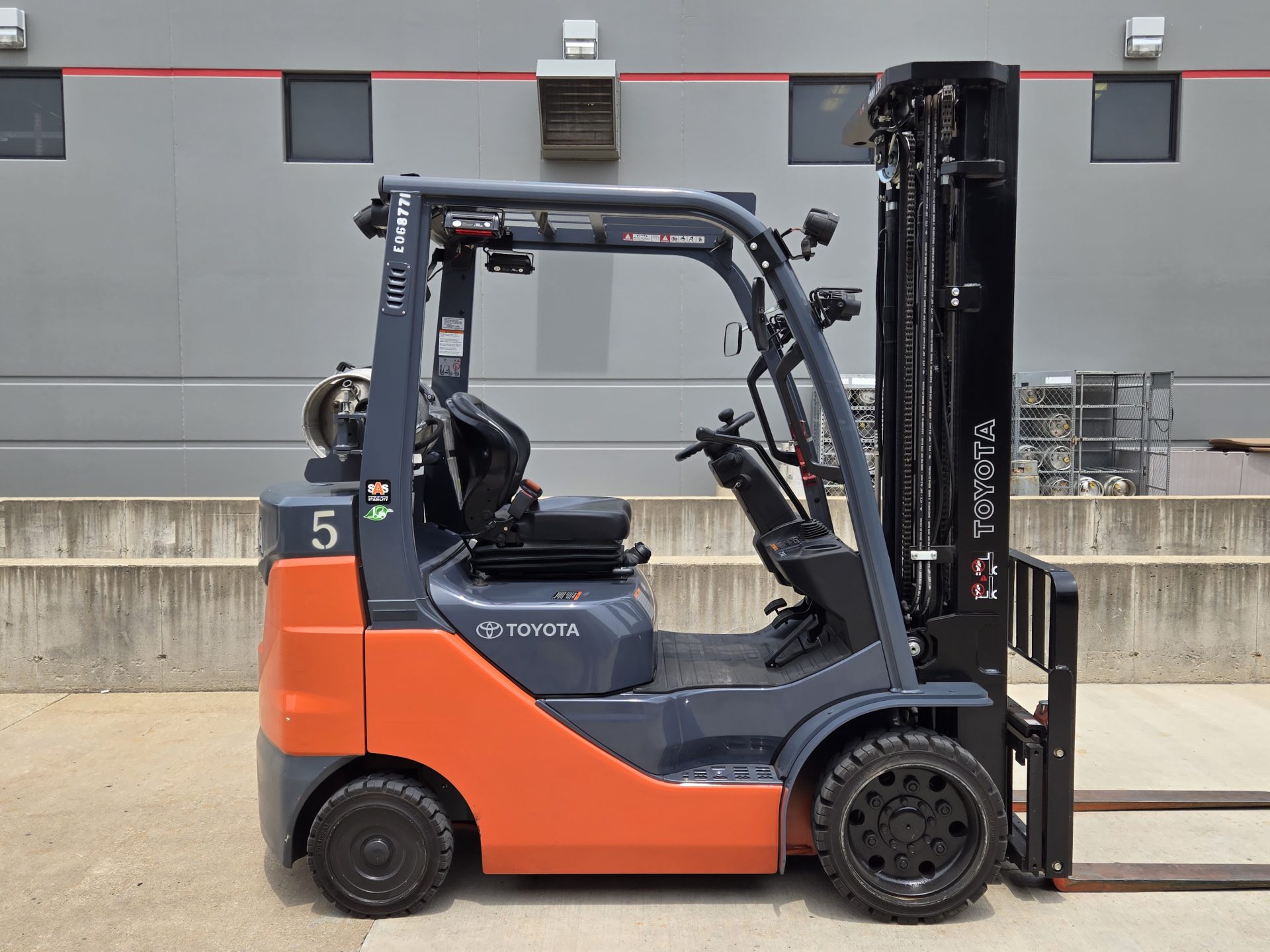

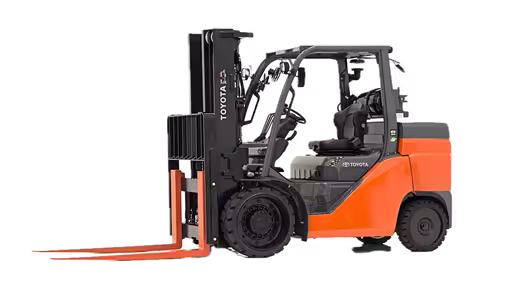

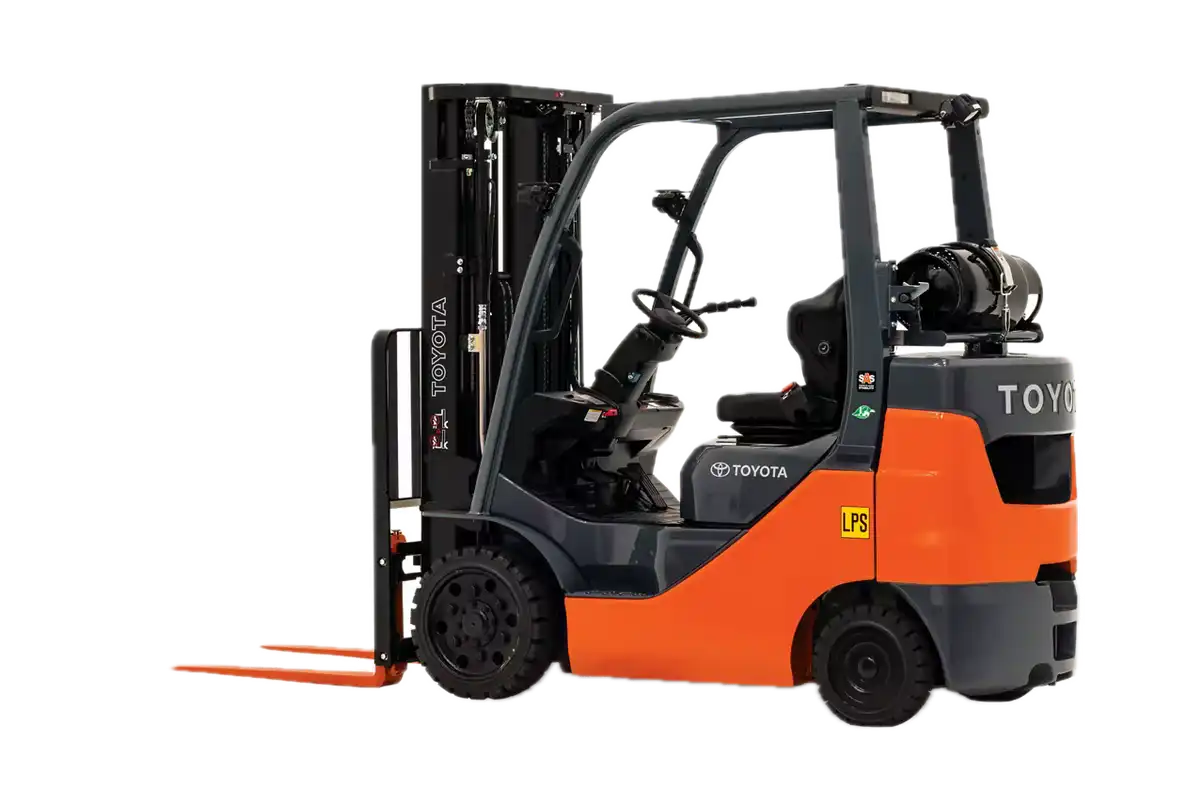

Exterior [4]

Attachments [1]

2024-2025

2 m Length to Fork Face

38 kw Gross power

2,268 kg Lifting capacity

60 cm Load Center

3,630 kg Operating weight

Cushion Tire Type

The 8FGCU25 packs a 2.25 t (5,000 lb) lift into a compact cushion-tire layout. It maneuvers tight aisles while offering Toyota’s proven reliability and system of active stability.

2.25 t capacity in narrow chassis

Cushioned ride keeps loads steady indoors

Toyota SAS stability system helps avoid tip-overs

Simple LP engine, parts are easy to find

Show features

Makana rating

Owner rating

| 1

Market average

AED 106,500

Starting from

AED 91,000

Toyota 8FGCU25 Technical specifications

Dimensions

Height - top of cab

2.07 m

Length to Fork Face

2.41 m

Overall Width

1.07 m

Turning radius

1.98 m

Engine

Displacement

2228.65 cu cm

Number of cylinders

Gross power

38.03 kw

Power measured @

2,570 rpm

Max torque

160.12 Nm

Torque measured @

2,100 rpm

General

Engine model

TOYOTA 4Y-ECS

Lifting capacity

2267.96 kg

Max speed forward

17.06 kph

Operating weight

3,630 kg

Mast

Lift Speed

37.8 m/min

Load Center

60.2 cm

Service refill capacities

Fuel cap

45.04 liter

Hydraulic fluid cap

75.7 liter

Hydraulic system

Relief valve pressure

156.85 bar

Operating specifications

Number of Front Wheels

Number of Rear Wheels

Tire Type

Cushion

Undercarriage

Drawbar Pull

76.44 kN

Download datasheets

OEM product brochure

Toyota 8FGCU25 expert review

Reviewed by Rizwan R. on September 2, 2025

The 8FGCU25 packs a 2.25 t (5,000 lb) lift into a compact cushion-tire layout. It maneuvers tight aisles while offering Toyota’s proven reliability and system of active stability.

2.25 t capacity in narrow chassis
Cushioned ride keeps loads steady indoors
Toyota SAS stability system helps avoid tip-overs
Simple LP engine, parts are easy to find

Overview

The 8FGCU25 is a 2.25 t (5,000 lb) cushion-tire forklift with standard 24 in (610 mm) load center. It is powered by a 4-cylinder Toyota 4Y-ECS LP engine (48 hp), and packages tight turning, compact dimensions, and build-in safety systems.

Pros High capacity in a tight 1.065 m (41.9 in) wide chassis.
System of Active Stability and OPSS improve safety indoors.

Cons At 3,240 kg (~8,000 lb), floor loading needs checking.
LP engine needs fuel setup and safety checks, not as simple as electric.

Performance & Efficiency

Reaches ~17 km/h (10.6 mph) loaded, lift speed around 38 m/min (124 ft/min). Strong uptime with Toyota telematics and long service intervals.

In Comparison

Compared to the 8FGCU20 (1.8 t) or 8FGCU15, you get 25 % more payload. It trades space and power against the 8FGCU30 (3 t), but stays compact.

Verdict

Versatile, steady, and familiar—the 8FGCU25 is a solid choice for warehouses needing a reliable 2.25 t LP cushion-tire forklift. Skip it if moving to electric fleets or ultra-narrow aisles.
