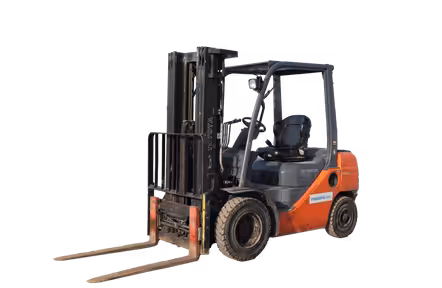

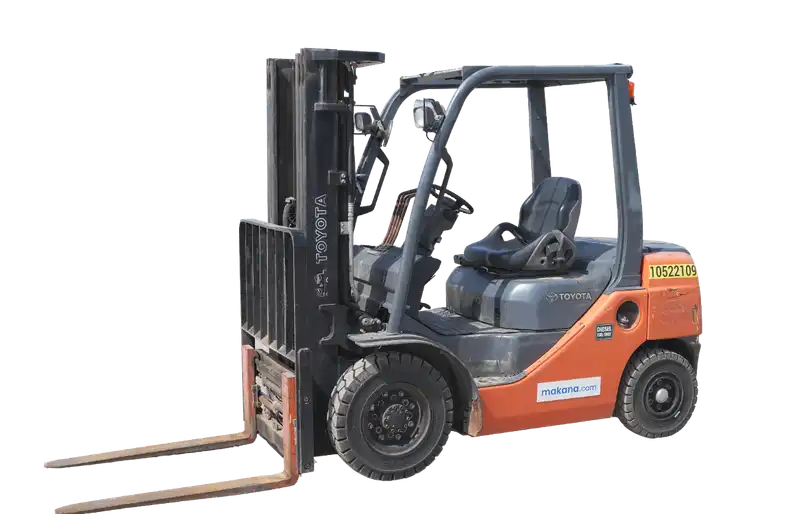

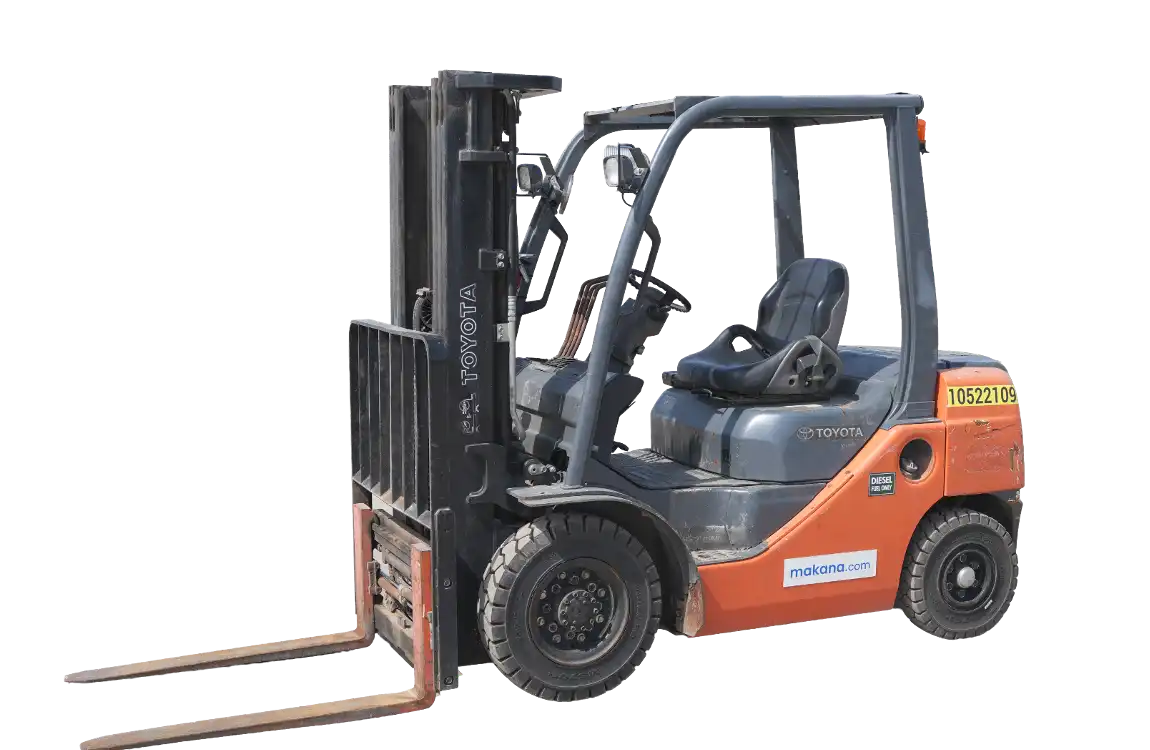

Toyota 8FDU Forklifts tech specs
:quality(50)/108683/8ab97065-3565-4005-a575-2a42a31f7e84.png)
:quality(50)/108693/conversions/eac5d860-8f27-480b-8825-860233c53021-thumb.webp)

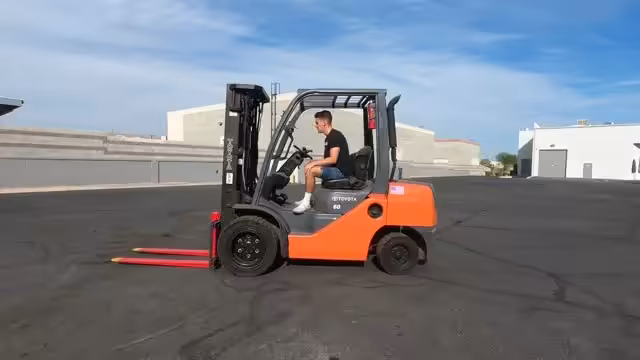

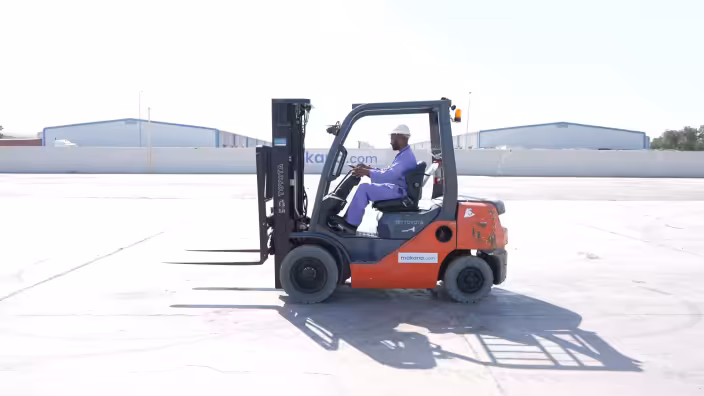

Video[1]
:quality(50)/108685/conversions/f34869bb-edab-4865-ac38-9a25c120c304-thumb.webp)

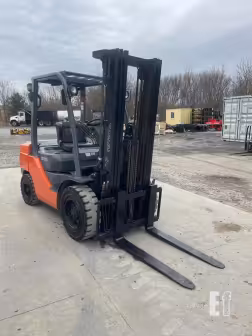

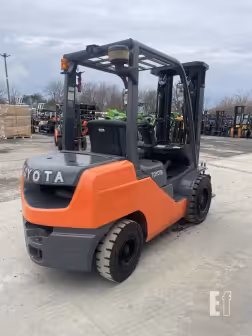

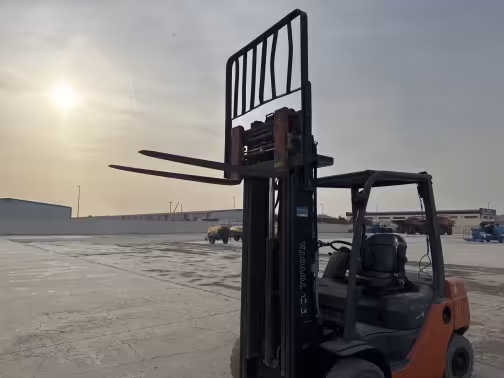

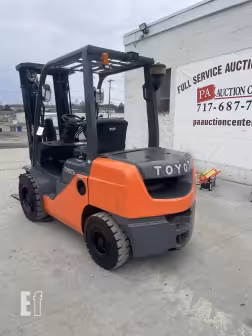

Exterior [4]
:quality(50)/108689/conversions/bbcd659b-e6e5-4d76-93f1-f57070e9eab2-thumb.webp)

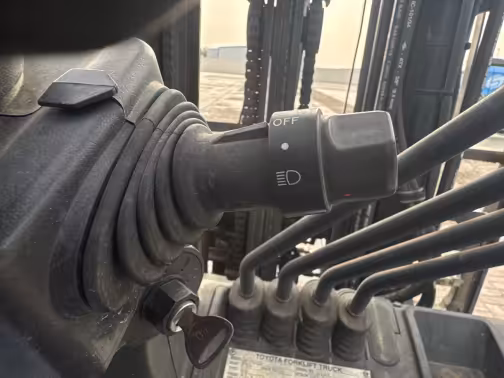

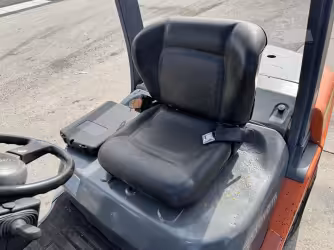

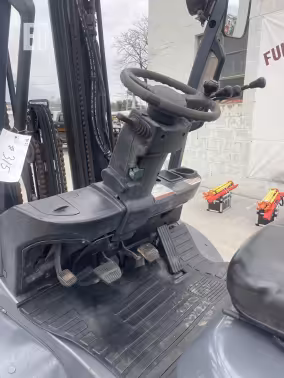

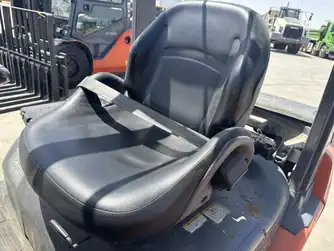

Interior [2]
:quality(50)/108691/conversions/e3ca89b0-bfae-4936-a323-9aeb7bb87339-thumb.webp)

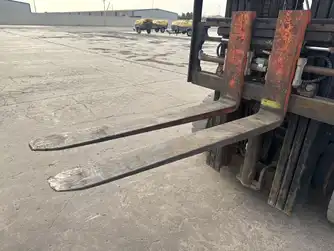

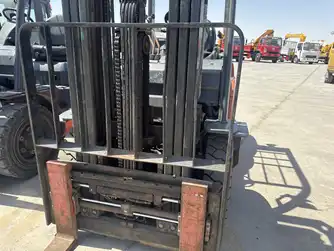

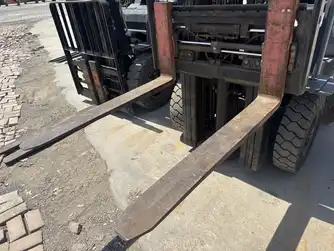

Attachments [2]

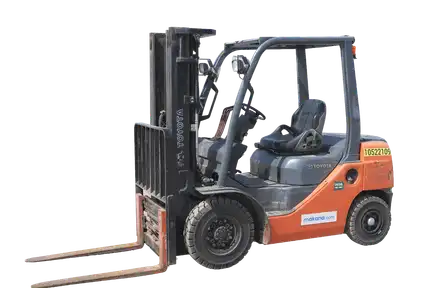

Toyota 8FDU technical specifications
Highlight differences
:quality(50)/108684/8f26211a-9624-4c4e-bfd8-db6c2e84101d.png)
:quality(50)/108661/32befa62-2f06-4a36-b973-9241902ab9f8.png)
:quality(50)/108662/eb8b733b-84f4-42fd-b4c0-392648187529.png)
Engine model
Engine model Toyota 1ZS
Engine model Toyota JTIEL03.01KD
Engine model Toyota 1DZ-III
Operating weight
Operating weight 3,630 kg
Operating weight 8,710 kg
Operating weight 4,210 kg
Lifting capacity
Lifting capacity 2,250 kg
Lifting capacity 5,000 kg
Lifting capacity 2,700 kg
Displacement
Displacement 1,803 cu cm
Displacement 2,982 cu cm
Displacement 2,229 cu cm
Max torque
Max torque 201 Nm
Max torque 300 Nm
Max torque 160 Nm
Max speed forward
Max speed forward 19 kph
Max speed forward 21.1 kph
Max speed forward 18.5 kph
Turning radius
Turning radius 2.22 m
Turning radius 2.81 m
Turning radius 2.35 m
No. of cylinders
No. of cylinders -
No. of cylinders 4
No. of cylinders 4
Years
Years 2016-2025
Years 2016-2025
Years 2016-2025
Market Average
Market Average AED 85,000
Market Average AED 85,000
Market Average AED 85,000
Price
Price AED 66,200
Price AED 66,200
Price AED 66,200
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @
Torque measured @ 1,600 rpm
Torque measured @ 1,500 rpm
Torque measured @ 2,200 rpm
Gross power
Gross power 41 kw
Gross power 55 kw
Gross power 41 kw
Number of cylinders
Number of cylinders 3
Number of cylinders -
Number of cylinders -
Drawbar Pull
Drawbar Pull 19.3 kN
Drawbar Pull 41.8 kN
Drawbar Pull 19.6 kN
Height - top of cab
Height - top of cab 2.11 m
Height - top of cab 2.32 m
Height - top of cab 2.17 m
Overall Width
Overall Width 1.15 m
Overall Width 1.45 m
Overall Width 1.24 m
Length to Fork Face
Length to Fork Face 2.64 m
Length to Fork Face 3.2 m
Length to Fork Face 2.78 m
Relief valve pressure
Relief valve pressure 157 bar
Relief valve pressure 183 bar
Relief valve pressure 157 bar
Fuel cap
Fuel cap 60 liter
Fuel cap 120 liter
Fuel cap 60 liter
Hydraulic fluid cap
Hydraulic fluid cap 72 liter
Hydraulic fluid cap 75.7 liter
Hydraulic fluid cap 33 liter
Number of Front Wheels
Number of Front Wheels 2
Number of Front Wheels 2
Number of Front Wheels 2
Number of Rear Wheels
Number of Rear Wheels 2
Number of Rear Wheels 2
Number of Rear Wheels 2
Tire Type
Tire Type Pneumatic
Tire Type Pneumatic
Tire Type Pneumatic
Lift Speed
Lift Speed 37 m/min
Lift Speed 28.7 m/min
Lift Speed 31.7 m/min
Load Center
Load Center 61 cm
Load Center 61 cm
Load Center 61 cm
Download datasheets
Toyota 8FDU expert review
:quality(50)/55273/41b09ad1-b53b-4b46-b674-2d9366e34cba.webp)
Overview
The Toyota 8FDU (2016–2025) is engineered for consistent performance in outdoor and mixed-use conditions. With a 2,250 kg lifting capacity, pneumatic tires, and a robust diesel drivetrain, it handles uneven surfaces, ramps, and yard traffic more confidently than cushion-tire warehouse forklifts.
Expert rating: 5 stars
Pros: Strong outdoor traction, durable diesel engine, proven Toyota reliability.
Cons: Louder than electric models, higher fuel and routine service costs.
Performance & Efficiency
The Toyota 1ZS delivers steady low-RPM torque for ramp starts and loaded yard moves. A 19 km/h top speed keeps material flow efficient across larger sites, and pneumatic tires improve control on rougher ground.
In Comparison
Toyota 8FGCU25: Similar capacity, more warehouse-oriented.
Toyota 8FBCU: Electric and cleaner, best for indoor-only use.
Toyota 8FDU: Better suited for outdoor and mixed environments.
Final Verdict
Rated 5 stars, the Toyota 8FDU (2016–2025) is a dependable buy in the AED 66,200–85,000 range for operations that need a tough, outdoor-capable forklift with long-term reliability.
Toyota 8FDU owner rating
Toyota 8FDU Forklifts [2016-2025]
2016-2025
Overall rating
Based on 3 ratings
4.0
performance
4.3
comfort
4.7
fuel efficiency
4.3
safety
4.7
features
4.3
5 stars
0 %
4 stars
100 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Toyota 8FDU similar models
Highlight differences

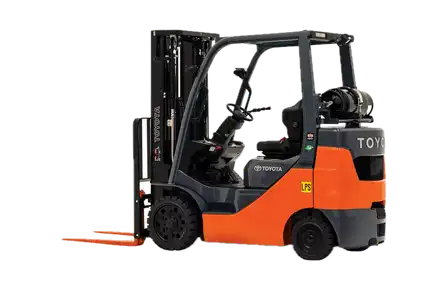

:quality(50)/59673/b63f9deb-216b-4435-8379-0e7720ebf308.png)
:quality(50)/72955/68d60c87-fb07-49d3-ac80-cb535464d6d8.png)
Engine model
Engine model Toyota 1ZS
Engine model TOYOTA 4Y-ECS
Engine model -
Operating weight
Operating weight 3,630 kg
Operating weight 3,630 kg
Operating weight -
Lifting capacity
Lifting capacity 2,250 kg
Lifting capacity 2,267.96 kg
Lifting capacity 2,268 kg
Displacement
Displacement 1,803 cu cm
Displacement 2,228.65 cu cm
Displacement -
Max torque
Max torque 201 Nm
Max torque 160.12 Nm
Max torque -
Max speed forward
Max speed forward 19 kph
Max speed forward 17.06 kph
Max speed forward 18.5 kph
Turning radius
Turning radius 2.22 m
Turning radius 1.98 m
Turning radius 1.8 m
Years
Years 2016-2025
Years 2024-2025
Years 2010-2025
Market Average
Market Average AED 85,000
Market Average AED 106,500
Market Average AED 92,000
Price
Price AED 66,200
Price AED 91,000
Price AED 66,500
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,570 rpm
Power measured @ -
Torque measured @
Torque measured @ 1,600 rpm
Torque measured @ 2,100 rpm
Torque measured @ -
Gross power
Gross power 41 kw
Gross power 38.03 kw
Gross power -
Number of cylinders
Number of cylinders 3
Number of cylinders 4
Number of cylinders -
Drawbar Pull
Drawbar Pull 19.3 kN
Drawbar Pull 76.44 kN
Drawbar Pull -
Height - top of cab
Height - top of cab 2.11 m
Height - top of cab 2.07 m
Height - top of cab 2.126 m
Overall Width
Overall Width 1.15 m
Overall Width 1.07 m
Overall Width 1.06 m
Length to Fork Face
Length to Fork Face 2.64 m
Length to Fork Face 2.41 m
Length to Fork Face 2.14 m
Right Angle Stack
Right Angle Stack -
Right Angle Stack -
Right Angle Stack 2.405 m
Relief valve pressure
Relief valve pressure 157 bar
Relief valve pressure 156.85 bar
Relief valve pressure -
Fuel cap
Fuel cap 60 liter
Fuel cap 45.04 liter
Fuel cap -
Hydraulic fluid cap
Hydraulic fluid cap 72 liter
Hydraulic fluid cap 75.7 liter
Hydraulic fluid cap -
Number of Front Wheels
Number of Front Wheels 2
Number of Front Wheels 2
Number of Front Wheels 2
Number of Rear Wheels
Number of Rear Wheels 2
Number of Rear Wheels 2
Number of Rear Wheels 2
Tire Type
Tire Type Pneumatic
Tire Type Cushion
Tire Type Cushion
Lift Speed
Lift Speed 37 m/min
Lift Speed 37.8 m/min
Lift Speed 0.35 m/min
Load Center
Load Center 61 cm
Load Center 60.2 cm
Load Center 61 cm
