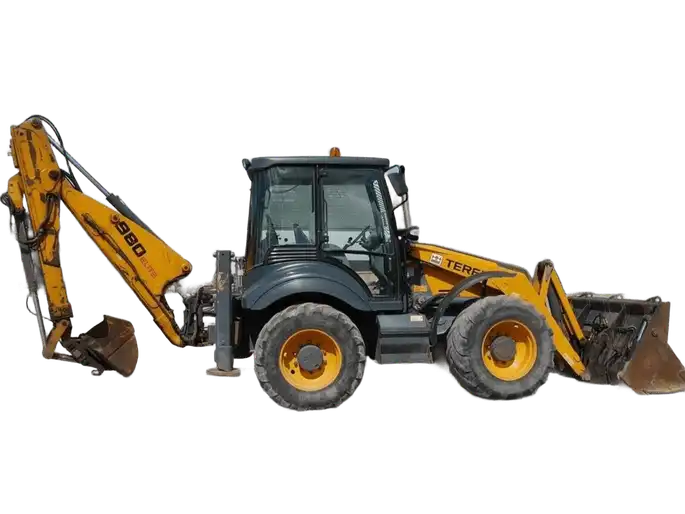

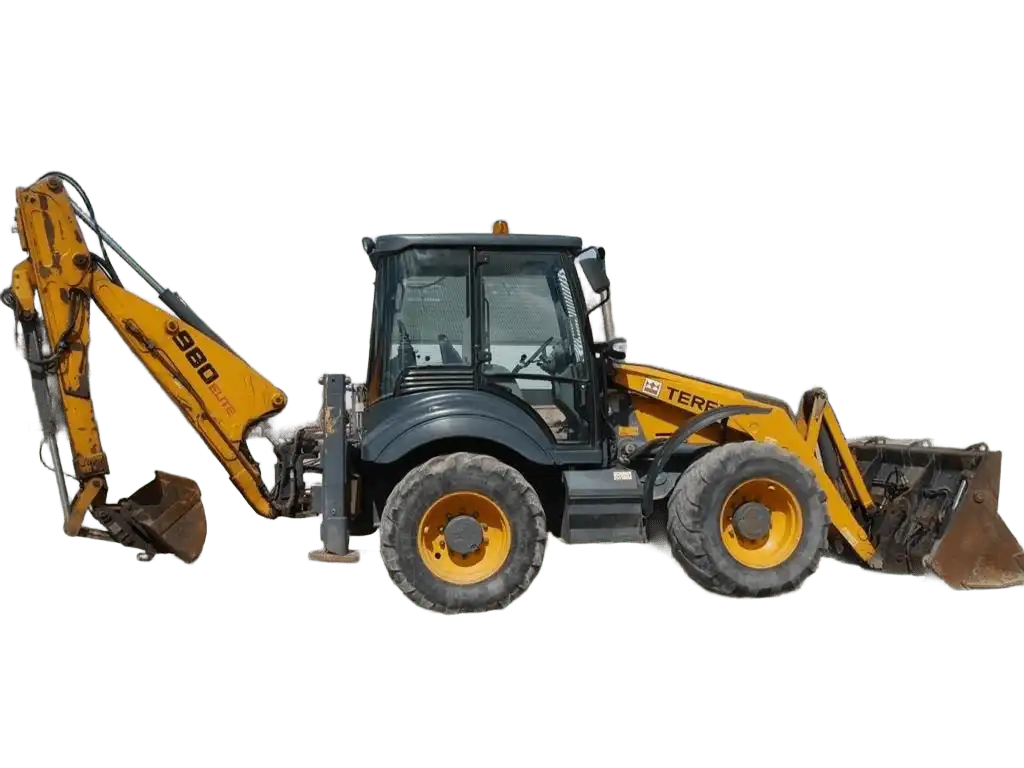

Terex 980E Backhoe loaders tech specs

Alternator supplied amperage

75 Amh

Displacement

4408.13 cu cm

Gross power

74.57 kw

Max torque

562.66 Nm

Net power

70.1 kw

Power measured @

2,200 rpm

Torque measured @

1,400 rpm

Backhoe digging depth

4.45 m

Backhoe reach from swivel

5.73 m

Breakout force

5559.23 kg

Loader digging depth

11.68 cm

Loader dump height

2.68 m

Loader dump reach

0.67 m

Bucket capacity

1.22 cu m

Bucket width

238 cm

Engine model

1104C-44T

Max speed forward

41.68 kph

Operating voltage

12 V

Operating weight

7,521 kg

Transmission type

full powershift

Bucket digging force

5260.05 kg

Cooling fluid cap

16.28 liter

Front axle fluid capacity

12.11 liter

Fuel cap

130.2 liter

Hydraulic fluid cap

143.07 liter

Rear axle fluid capacity

13.25 liter

Transmission fluid cap

23.09 liter

Engine oil cap

8.71 liter

Extended backhoe digging depth

5.79 m

Extended backhoe dump height

4.57 m

Extended backhoe dump reach

2.93 m

Extended backhoe reach from swivel

7.04 m

Front tires size (2WD)

16.9x24

Rear tires size

16.9x24

Ground clearance

0.49 m

Height - top of cab

2.83 m

Overall Length

7.35 m

Overall Width

2.41 m

Turning radius

5.73 m

Wheelbase

2.1 m

Max speed reverse

13.04 kph

Number of forward gears

4

Number of reverse gears

2

Pump flow cap

160.11 lpm

Pump type

Tandem gear

Relief valve pressure

224.08 bar
