Terex

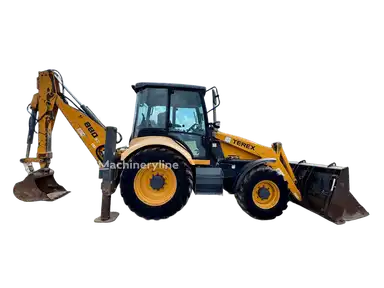

Terex 880 Backhoe loaders tech specs
:quality(50)/66583/conversions/44fd9a6f-6a19-49a3-b220-9dbaba0d4c43-webp.webp)
Video[1]
:quality(50)/66575/conversions/6499079f-1f51-480d-9c43-ab4e33b846ac-webp.webp)
Interior [2]
:quality(50)/66577/conversions/c200fc92-b102-487f-8117-ba751adf9a9e-webp.webp)

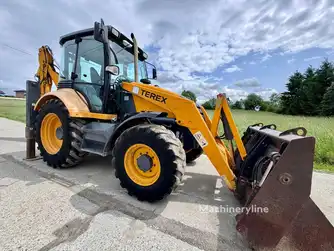

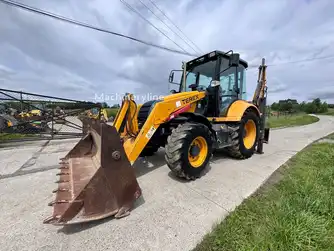

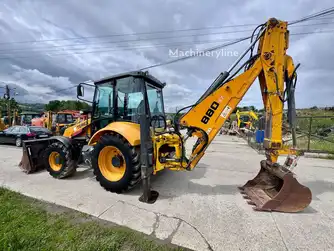

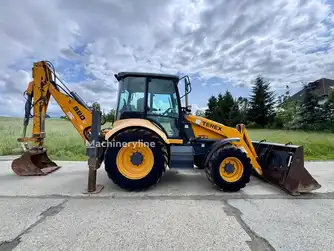

Exterior [4]
:quality(50)/66581/conversions/a6405916-b27d-4896-a8f0-5146fc3e4459-webp.webp)

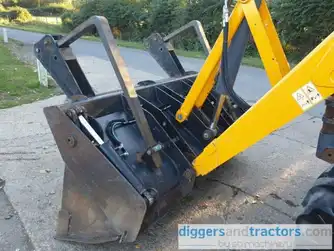

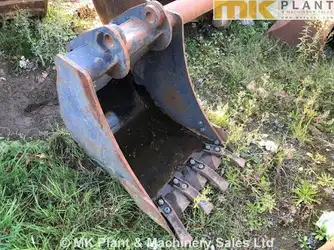

Attachments [2]
2004-2013
4.45 m Backhoe digging depth
5,575.11 kg Breakout force
4.57 m Extended backhoe dump height
2.93 m Extended backhoe dump reach
74.57 kw Gross power
7,514 kg Operating weight
A stronger step up from the 860, the Terex 880 delivers 74.57 kW of gross power with 5,575 kg breakout force and 4.45 m digging depth. With 7,514 kg operating weight and extended dump reach, it fits utility trenching, foundation work, and general construction where extra muscle makes daily cycles easier.
Gross power 74.57 kW
Backhoe digging depth 4.45 m
Breakout force ~5,575 kg
Extended dump height 4.57 m
Operating weight ~7,514 kg
Practical mid-heavy backhoe layout
Price range AED 115K–162K
Makana rating
Owner rating
Market average
AED 162,000Starting from
AED 115,000Terex 880 technical specifications
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 75 Amh
Alternator supplied amperage 75 Amh
Displacement
Displacement 4,408.13 cu cm
Displacement 4,408.13 cu cm
Gross power
Gross power 74.57 kw
Gross power 74.57 kw
Max torque
Max torque 413.52 Nm
Max torque 413.52 Nm
Net power
Net power 70.1 kw
Net power 70.1 kw
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Years
Years 2004-2013
Years 2004-2013
Market Average
Market Average AED 162,000
Market Average AED 162,000
Price
Price AED 115,000
Price AED 115,000
Backhoe digging depth
Backhoe digging depth 4.45 m
Backhoe digging depth 4.45 m
Backhoe reach from swivel
Backhoe reach from swivel 5.73 m
Backhoe reach from swivel 5.73 m
Breakout force
Breakout force 5,575.11 kg
Breakout force 5,575.11 kg
Loader digging depth
Loader digging depth 12.45 cm
Loader digging depth 12.45 cm
Loader dump height
Loader dump height 2.68 m
Loader dump height 2.68 m
Loader dump reach
Loader dump reach 0.67 m
Loader dump reach 0.67 m
Bucket capacity
Bucket capacity 1.22 cu m
Bucket capacity 1.07 cu m
Bucket width
Bucket width 238 cm
Bucket width 231 cm
Engine model
Engine model 1104C-44T
Engine model 1104C-44T
Max speed forward
Max speed forward 41.04 kph
Max speed forward 40.07 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 7,514 kg
Operating weight 7,354 kg
Transmission type
Transmission type full powershift
Transmission type Syncrho shuttle gearbox
Bucket digging force
Bucket digging force 5,260.05 kg
Bucket digging force 5,260.05 kg
Cooling fluid cap
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Front axle fluid capacity
Front axle fluid capacity 12.87 liter
Front axle fluid capacity 12.87 liter
Fuel cap
Fuel cap 130.2 liter
Fuel cap 130.2 liter
Hydraulic fluid cap
Hydraulic fluid cap 143.07 liter
Hydraulic fluid cap 143.07 liter
Rear axle fluid capacity
Rear axle fluid capacity 17.79 liter
Rear axle fluid capacity 17.79 liter
Transmission fluid cap
Transmission fluid cap 23.09 liter
Transmission fluid cap 15.14 liter
Engine oil cap
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.79 m
Extended backhoe digging depth 5.79 m
Extended backhoe dump height
Extended backhoe dump height 4.57 m
Extended backhoe dump height 4.57 m
Extended backhoe dump reach
Extended backhoe dump reach 2.93 m
Extended backhoe dump reach 2.93 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 7.04 m
Extended backhoe reach from swivel 7.04 m
Front tires size (2WD)
Front tires size (2WD) 16/70x20
Front tires size (2WD) 16/70x20
Rear tires size
Rear tires size 18.4x26
Rear tires size 18.4x26
Ground clearance
Ground clearance 0.46 m
Ground clearance 0.46 m
Height - top of cab
Height - top of cab 2.77 m
Height - top of cab 2.77 m
Overall Length
Overall Length 7.35 m
Overall Length 7.35 m
Overall Width
Overall Width 2.32 m
Overall Width 2.32 m
Turning radius
Turning radius 3.96 m
Turning radius 3.96 m
Wheelbase
Wheelbase 2.13 m
Wheelbase 2.13 m
Max speed reverse
Max speed reverse 41.2 kph
Max speed reverse 41.52 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 160.11 lpm
Pump flow cap 160.11 lpm
Pump type
Pump type Tandem gear
Pump type Tandem gear
Relief valve pressure
Relief valve pressure 224.08 bar
Relief valve pressure 224.08 bar
Download datasheets

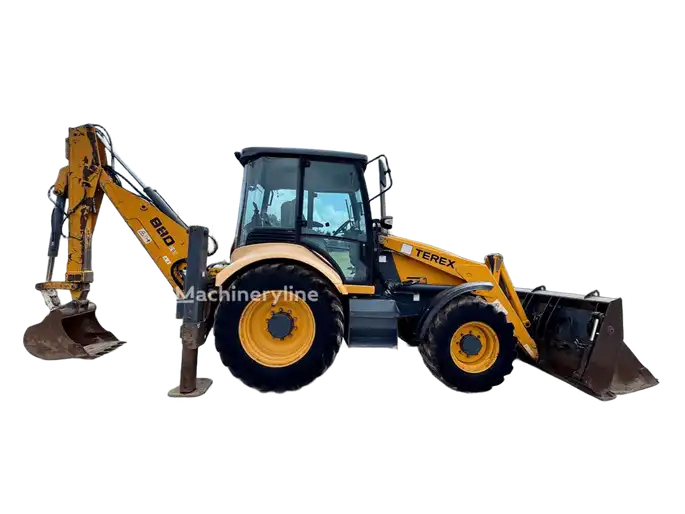

Terex 880 expert review
:quality(50)/60955/11289297-4fd3-4db8-aa77-83a15321cf02.jpeg)
Overview
The Terex 880 delivers 74.57 kW of gross power with 4.45 m digging depth and 7,514 kg operating weight for mid-heavy backhoe loader work.
Pros Strong breakout, useful extended reach, stable platform.
Cons Dated interior, smaller parts and resale network.
Efficiency
Extended dump reach improves trench backfill and loading efficiency on medium projects.
In Cabin
Functional cab with straightforward controls and acceptable visibility.
In Comparison
Above the Terex 860 and alongside the 820, the 880 offers extra stability without major size increase.
Final Verdict
Rated 4 stars, the Terex 880 fits utilities and general construction in the AED 115,000–162,000 range.
Terex 880 owner rating
Terex 880 Backhoe loaders [2004-2013]
2004-2013
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.7
fuel efficiency
5.0
safety
4.3
features
4.7
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Pros
Feels more planted than the 860 when loading heavy spoil.
Cons
Cab layout shows its age on long workdays.
performance
4.0
comfort
4.0
fuel efficiency
5.0
safety
4.0
features
4.0
