Terex
Terex 860 Backhoe loaders tech specs
:quality(50)/66559/conversions/7b21658d-73cb-4e77-9b34-8364e1b7da3a-webp.webp)

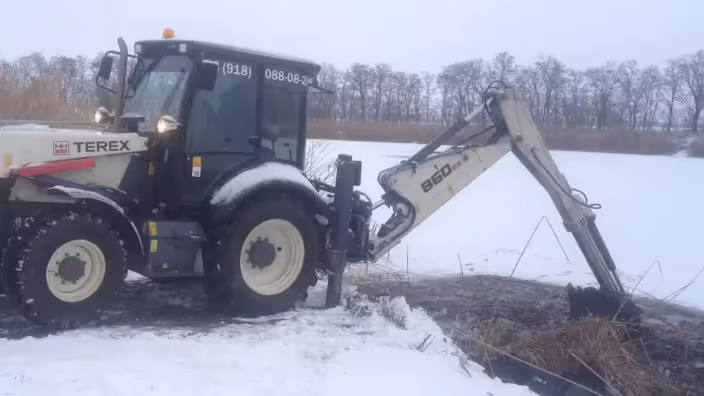

Video[1]
:quality(50)/66551/conversions/00d3306c-7591-40f7-bd89-98e3483e83c4-webp.webp)

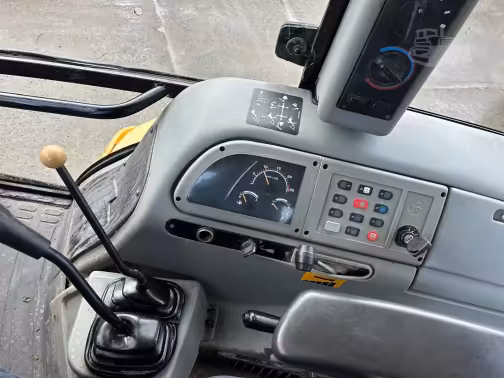

Interior [2]
:quality(50)/66553/conversions/b550dc01-3fd8-4403-ac24-0b8d3c5b4c08-webp.webp)

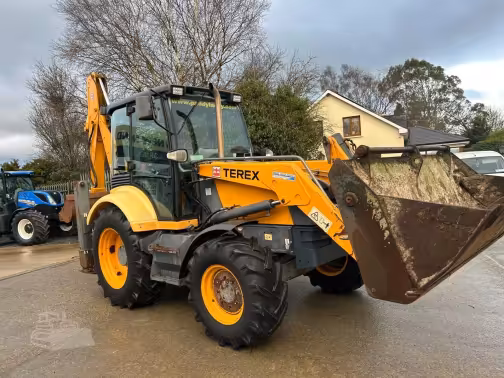

Exterior [4]
:quality(50)/66557/conversions/ba6feb08-3a7b-46c2-a8e3-2bae71f5f0bf-webp.webp)

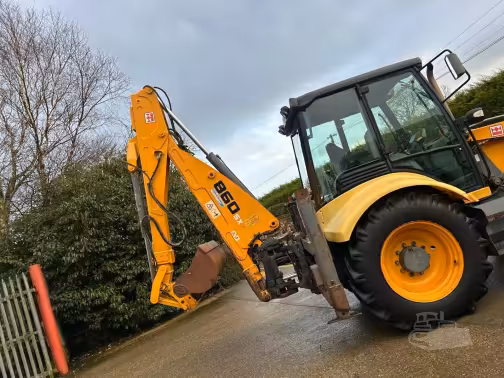

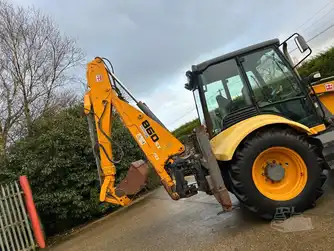

Attachments [2]
2001-2013
4.45 m Backhoe digging depth
5,575.11 kg Breakout force
4.57 m Extended backhoe dump height
2.93 m Extended backhoe dump reach
74.57 kw Gross power
7,514 kg Operating weight
A mid-size backhoe loader focused on reach and breakout strength, the Terex 860 delivers 74.57 kW of gross power with 5,575 kg breakout force and up to 4.45 m digging depth. With 7,514 kg operating weight and extended dump reach, it suits utility trenching, site prep, and general construction where balance matters more than brand flash.
Gross power 74.57 kW
Backhoe digging depth 4.45 m
Breakout force ~5,575 kg
Extended dump height 4.57 m
Operating weight ~7,514 kg
Practical mid-size backhoe layout
Price range AED 122K–141K
Makana rating
Owner rating
Market average
AED 141,000Starting from
AED 122,000Terex 860 technical specifications
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 75 Amh
Alternator supplied amperage 75 Amh
Displacement
Displacement 4,408.13 cu cm
Displacement 4,408.13 cu cm
Gross power
Gross power 74.57 kw
Gross power 74.57 kw
Max torque
Max torque 413.52 Nm
Max torque 413.52 Nm
Net power
Net power 70.1 kw
Net power 70.1 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Years
Years 2001-2013
Years 2001-2013
Market Average
Market Average AED 141,000
Market Average AED 141,000
Price
Price AED 122,000
Price AED 122,000
Backhoe digging depth
Backhoe digging depth 4.45 m
Backhoe digging depth 4.45 m
Backhoe reach from swivel
Backhoe reach from swivel 5.73 m
Backhoe reach from swivel 5.73 m
Breakout force
Breakout force 5,575.11 kg
Breakout force 5,575.11 kg
Loader digging depth
Loader digging depth 12.45 cm
Loader digging depth 12.45 cm
Loader dump height
Loader dump height 2.68 m
Loader dump height 2.68 m
Loader dump reach
Loader dump reach 0.67 m
Loader dump reach 0.67 m
Bucket capacity
Bucket capacity 1.22 cu m
Bucket capacity 1.07 cu m
Bucket width
Bucket width 238 cm
Bucket width 231 cm
Engine model
Engine model 1104C-44T
Engine model 1104C-44T
Max speed forward
Max speed forward 41.04 kph
Max speed forward 40.07 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 7,514 kg
Operating weight 7,354 kg
Transmission type
Transmission type full powershift
Transmission type Syncrho shuttle gearbox
Bucket digging force
Bucket digging force 5,260.05 kg
Bucket digging force 5,260.05 kg
Cooling fluid cap
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Front axle fluid capacity
Front axle fluid capacity 12.87 liter
Front axle fluid capacity 12.87 liter
Fuel cap
Fuel cap 130.2 liter
Fuel cap 130.2 liter
Hydraulic fluid cap
Hydraulic fluid cap 143.07 liter
Hydraulic fluid cap 143.07 liter
Rear axle fluid capacity
Rear axle fluid capacity 17.79 liter
Rear axle fluid capacity 17.79 liter
Transmission fluid cap
Transmission fluid cap 23.09 liter
Transmission fluid cap 15.14 liter
Engine oil cap
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.79 m
Extended backhoe digging depth 5.79 m
Extended backhoe dump height
Extended backhoe dump height 4.57 m
Extended backhoe dump height 4.57 m
Extended backhoe dump reach
Extended backhoe dump reach 2.93 m
Extended backhoe dump reach 2.93 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 7.04 m
Extended backhoe reach from swivel 7.04 m
Front tires size (2WD)
Front tires size (2WD) 16/70x20
Front tires size (2WD) 16/70x20
Rear tires size
Rear tires size 18.4x26
Rear tires size 18.4x26
Ground clearance
Ground clearance 0.46 m
Ground clearance 0.46 m
Height - top of cab
Height - top of cab 2.77 m
Height - top of cab 2.77 m
Overall Length
Overall Length 7.35 m
Overall Length 7.35 m
Overall Width
Overall Width 2.32 m
Overall Width 2.32 m
Turning radius
Turning radius 3.96 m
Turning radius 3.96 m
Wheelbase
Wheelbase 2.13 m
Wheelbase 2.13 m
Max speed reverse
Max speed reverse 41.2 kph
Max speed reverse 41.52 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Pump flow cap
Pump flow cap 160.11 lpm
Pump flow cap 160.11 lpm
Pump type
Pump type Tandem gear
Pump type Tandem gear
Relief valve pressure
Relief valve pressure 224.08 bar
Relief valve pressure 224.08 bar
Download datasheets
Terex 860 expert review
:quality(50)/60957/29d1cdd1-536a-473f-acd1-59aa581d5497.jpeg)
Overview
The Terex 860 delivers 74.57 kW of gross power with 4.45 m digging depth and 7,514 kg operating weight for mid-size backhoe loader applications.
Pros Strong breakout for class, useful extended reach, balanced size.
Cons Dated interior, smaller parts and resale network.
Efficiency
Extended dump reach improves trench backfill and loading efficiency on medium sites.
In Cabin
Functional cab with straightforward controls and acceptable visibility.
In Comparison
Between the Terex 820 and Case 780, the 860 offers a value-focused middle ground.
Final Verdict
Rated 3 stars, the Terex 860 fits utilities and general construction in the AED 122,000–141,000 range.
Terex 860 owner rating
Terex 860 Backhoe loaders [2001-2013]
2001-2013
Overall rating
Based on 3 ratings
4.0
performance
4.0
comfort
4.0
fuel efficiency
4.7
safety
4.7
features
4.3
5 stars
0 %
4 stars
100 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Pros
Good digging reach and breakout make utility trenches straightforward.
Cons
Cabin refinement lags behind newer premium backhoes.
performance
4.0
comfort
4.0
fuel efficiency
5.0
safety
5.0
features
4.0
Pros
Durable and simple mechanics make it easy to keep running over years.
Cons
Steering and hydraulics can feel sluggish compared to newer loaders.
performance
4.0
comfort
4.0
fuel efficiency
5.0
safety
5.0
features
5.0
Terex 860 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 75 Amh
Alternator supplied amperage 95 Amh
Alternator supplied amperage 75 Amh
Displacement
Displacement 4,408.13 cu cm
Displacement 5,506.07 cu cm
Displacement 4,408.13 cu cm
Gross power
Gross power 74.57 kw
Gross power 89.49 kw
Gross power 68.61 kw
Max torque
Max torque 413.52 Nm
Max torque 386.4 Nm
Max torque 394.54 Nm
Net power
Net power 70.1 kw
Net power 82.77 kw
Net power 64.13 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 2,200 rpm
Torque measured @ 1,400 rpm
Bore
Bore -
Bore 11.94 cm
Bore -
Engine make
Engine make -
Engine make Case
Engine make -
Stroke
Stroke -
Stroke 12.7 cm
Stroke -
Years
Years 2001-2013
Years 1988-2015
Years 2005-2010
Market Average
Market Average AED 141,000
Market Average AED 650,000
Market Average AED 147,000
Price
Price AED 122,000
Price AED 280,000
Price AED 57,500
Backhoe digging depth
Backhoe digging depth 4.45 m
Backhoe digging depth 5.61 m
Backhoe digging depth 4.48 m
Backhoe reach from swivel
Backhoe reach from swivel 5.73 m
Backhoe reach from swivel 6.89 m
Backhoe reach from swivel 5.73 m
Breakout force
Breakout force 5,575.11 kg
Breakout force 7,257.49 kg
Breakout force 4,849.78 kg
Loader digging depth
Loader digging depth 12.45 cm
Loader digging depth -
Loader digging depth 15.75 cm
Loader dump height
Loader dump height 2.68 m
Loader dump height 2.71 m
Loader dump height 2.65 m
Loader dump reach
Loader dump reach 0.67 m
Loader dump reach 1.74 m
Loader dump reach 0.67 m
Bucket capacity
Bucket capacity 1.22 cu m
Bucket capacity 1.15 cu m
Bucket capacity 1.07 cu m
Bucket width
Bucket width 238 cm
Bucket width 241 cm
Bucket width 231 cm
Engine model
Engine model 1104C-44T
Engine model A336 BDT
Engine model 1104C-44T
Max speed forward
Max speed forward 41.04 kph
Max speed forward 28 kph
Max speed forward 40.07 kph
Operating voltage
Operating voltage 12 V
Operating voltage 24 V
Operating voltage 12 V
Operating weight
Operating weight 7,514 kg
Operating weight 7,711 kg
Operating weight 7,149 kg
Transmission type
Transmission type full powershift
Transmission type Full powershift
Transmission type 4 speed synchro gearbox
Bucket digging force
Bucket digging force 5,260.05 kg
Bucket digging force 6,047.3 kg
Bucket digging force 5,260.05 kg
Cooling fluid cap
Cooling fluid cap 16.28 liter
Cooling fluid cap 24.6 liter
Cooling fluid cap 16.28 liter
Front axle fluid capacity
Front axle fluid capacity 12.87 liter
Front axle fluid capacity -
Front axle fluid capacity 12.87 liter
Fuel cap
Fuel cap 130.2 liter
Fuel cap 132.48 liter
Fuel cap 130.2 liter
Hydraulic fluid cap
Hydraulic fluid cap 143.07 liter
Hydraulic fluid cap -
Hydraulic fluid cap 143.07 liter
Rear axle fluid capacity
Rear axle fluid capacity 17.79 liter
Rear axle fluid capacity 15.14 liter
Rear axle fluid capacity 17.79 liter
Transmission fluid cap
Transmission fluid cap 23.09 liter
Transmission fluid cap 18.93 liter
Transmission fluid cap 15.14 liter
Engine oil cap
Engine oil cap 8.71 liter
Engine oil cap 9.46 liter
Engine oil cap 8.71 liter
Extended backhoe digging depth
Extended backhoe digging depth 5.79 m
Extended backhoe digging depth -
Extended backhoe digging depth 5.82 m
Extended backhoe dump height
Extended backhoe dump height 4.57 m
Extended backhoe dump height -
Extended backhoe dump height 4.54 m
Extended backhoe dump reach
Extended backhoe dump reach 2.93 m
Extended backhoe dump reach -
Extended backhoe dump reach 2.93 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 7.04 m
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 7.04 m
Front tires size (2WD)
Front tires size (2WD) 16/70x20
Front tires size (2WD) 9.00 * 20 , 10PR
Front tires size (2WD) 12.5x18
Rear tires size
Rear tires size 18.4x26
Rear tires size 18.4 * 24 , 12PR , R4
Rear tires size 16.9x28
Ground clearance
Ground clearance 0.46 m
Ground clearance 0.4 m
Ground clearance 0.4 m
Height - top of cab
Height - top of cab 2.77 m
Height - top of cab -
Height - top of cab 2.77 m
Overall Length
Overall Length 7.35 m
Overall Length 7.5 m
Overall Length 7.35 m
Overall Width
Overall Width 2.32 m
Overall Width 2.44 m
Overall Width 2.32 m
Turning radius
Turning radius 3.96 m
Turning radius -
Turning radius 3.87 m
Wheelbase
Wheelbase 2.13 m
Wheelbase 2.23 m
Wheelbase 2.13 m
Max speed reverse
Max speed reverse 41.2 kph
Max speed reverse 28 kph
Max speed reverse 41.04 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 2
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 2
Number of reverse gears 4
Pump flow cap
Pump flow cap 160.11 lpm
Pump flow cap 87.06 lpm
Pump flow cap 142.32 lpm
Pump type
Pump type Tandem gear
Pump type -
Pump type Tandem gear
Relief valve pressure
Relief valve pressure 224.08 bar
Relief valve pressure 141.34 bar
Relief valve pressure 224.08 bar

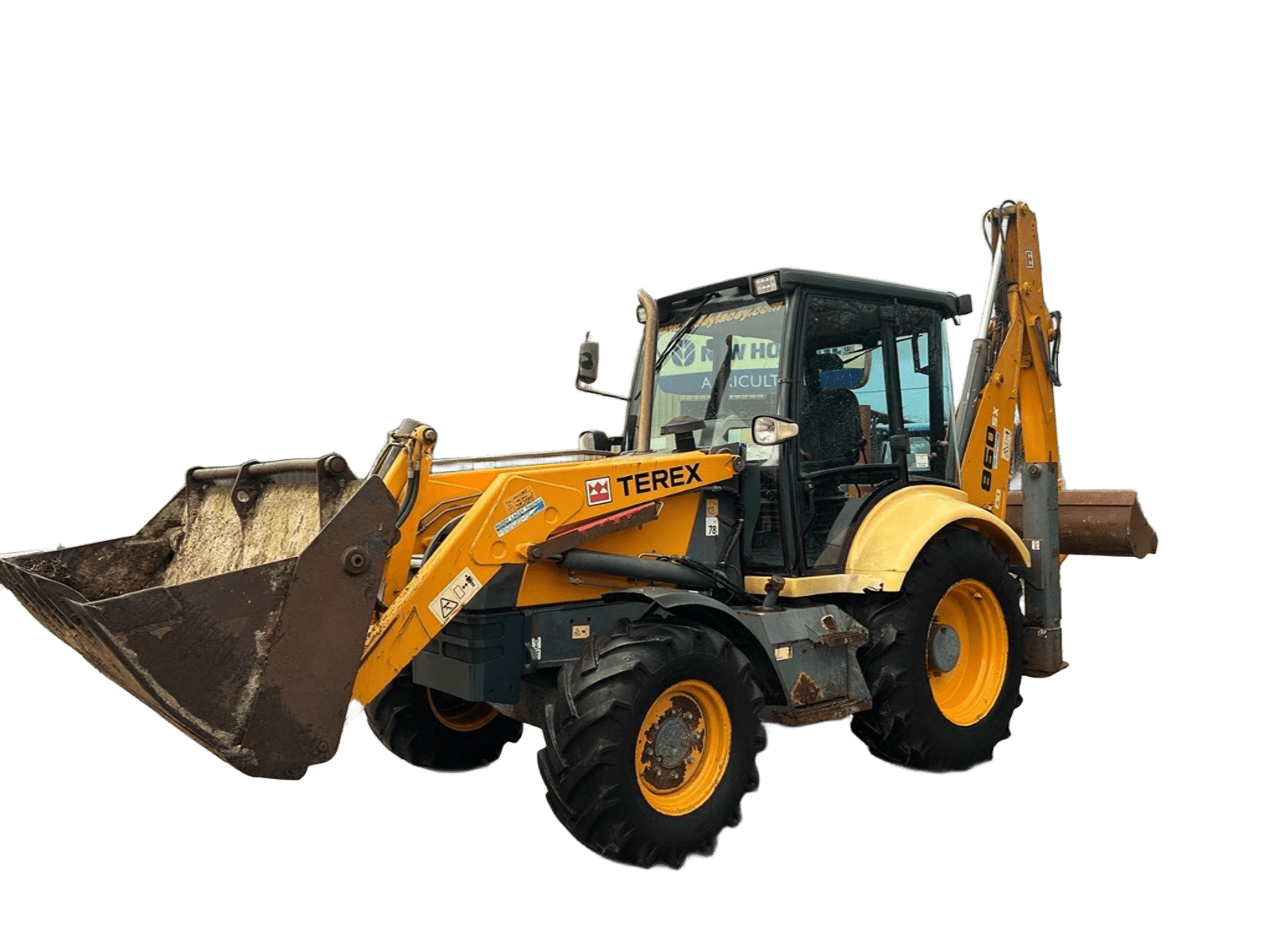

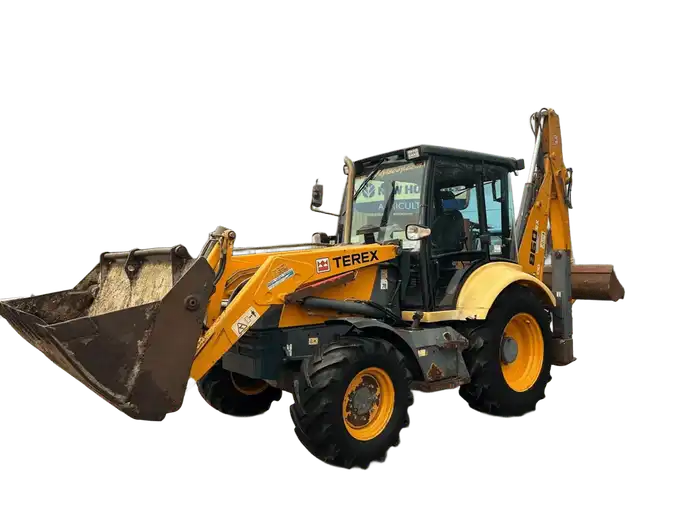

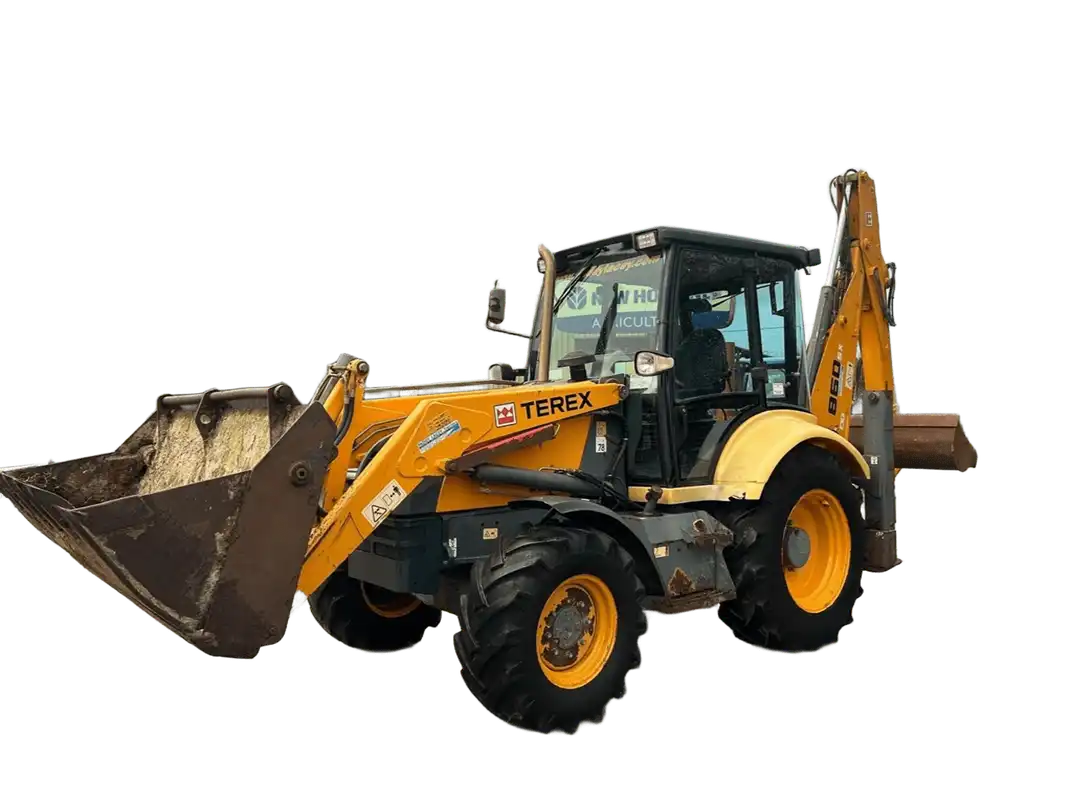

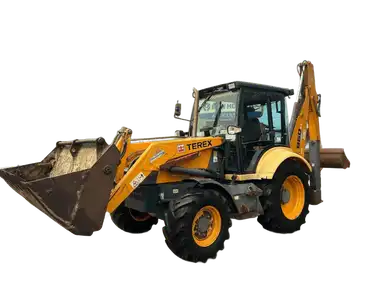

Terex 860 gallery
:quality(50)/66559/conversions/7b21658d-73cb-4e77-9b34-8364e1b7da3a-thumb.webp)
Customs paid:quality(75)/products/10077/view_360/748f9164-0b67-49d4-aa7f-0550dacb5ac7.png "Cat 426F2 backhoe loader")
BHL-001
Great deal
Cat 426F2 backhoe loader
:quality(75)/products/10078/view_360/242622af-fd6d-4f8c-84eb-9871c9e2ff4f.png "Cat 428 backhoe loader")
:quality(75)/products/10123/view_360/bbb4e853-cbf8-4ea4-832e-deee377b5adb.png "JCB 3DX Plus backhoe loader")
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
