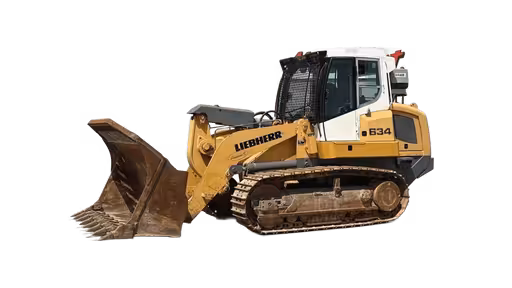

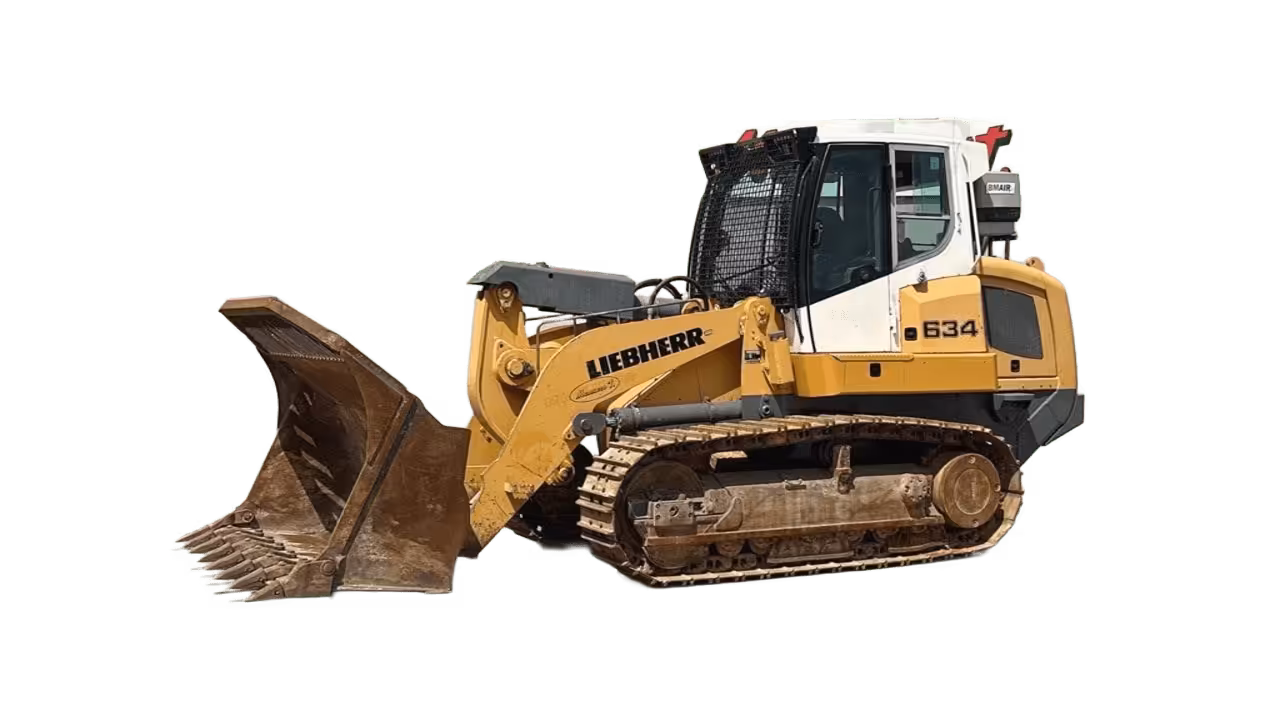

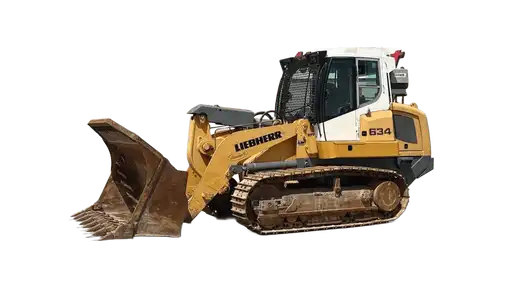

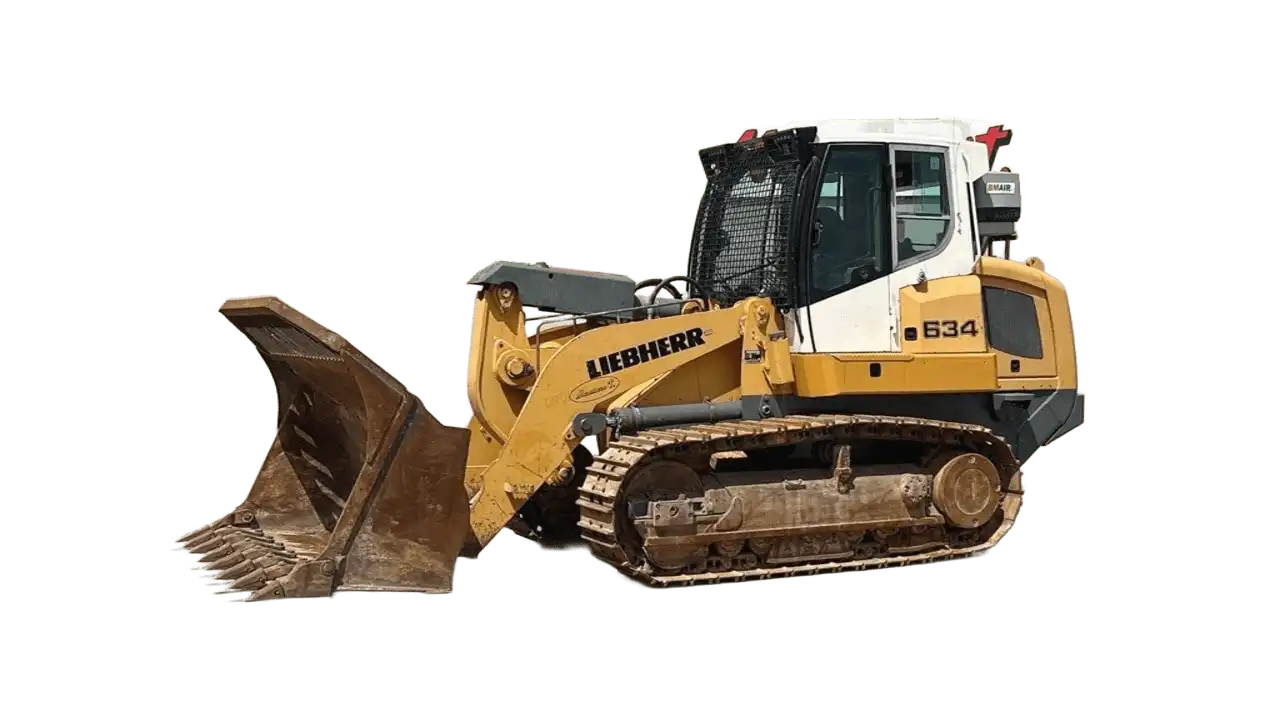

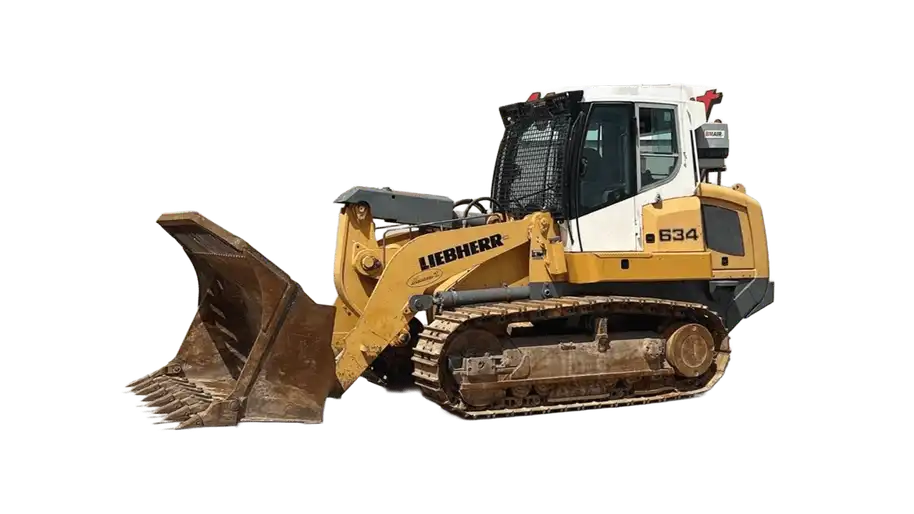

Liebherr LR634 Crawler loaders tech specs
:quality(50)/74644/conversions/320696e4-ffbd-4187-93da-c6d4f6f01293-thumb.webp)
Video[1]
:quality(50)/74635/conversions/d0306b3b-ddd8-426f-9bbc-85314c0e68c6-thumb.webp)

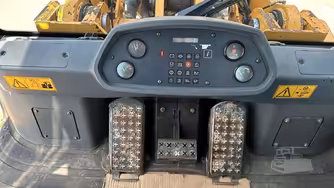

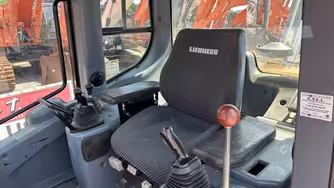

Interior [3]
:quality(50)/74638/conversions/87abcf9b-537c-491c-8a6a-1a7b6fd5f346-thumb.webp)

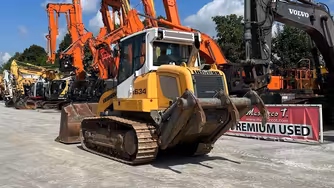

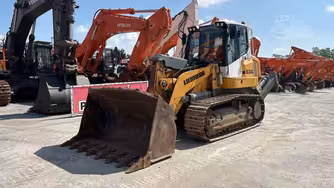

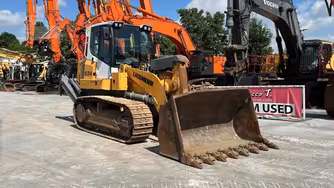

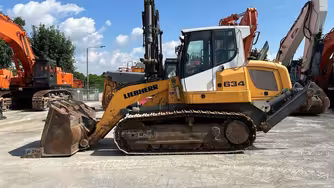

Exterior [4]
:quality(50)/74642/conversions/31a640c5-f0f5-447a-943e-0673896dd766-thumb.webp)

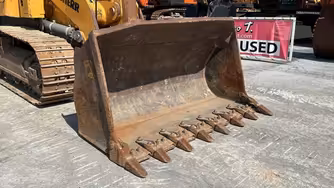

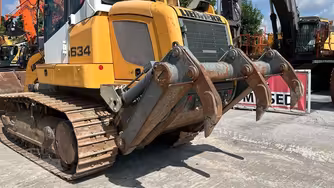

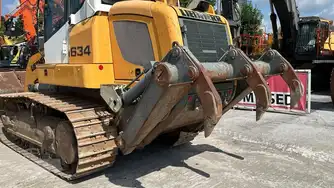

Attachments [2]
2006-2015
2.52 cu m Bucket capacity
6,997.29 cu cm Displacement
D934 L A6 Engine model
3.08 m Loader dump height
134.97 kw Net power
20,794 kg Operating weight
Makana rating
Market average
AED 326,000Starting from
AED 143,000Liebherr LR634 Technical specifications
Engine
Alternator supplied amperage
80 Amh
Aspiration
Turbocharged, aftercooled
Displacement
6997.29 cu cm
Net power
134.97 kw
Number of cylinders
4
Power measured @
1,800 rpm
General
Bucket capacity
2.52 cu m
Engine model
D934 L A6
Max speed forward
9.98 kph
Operating voltage
24 V
Operating weight
20,794 kg
Tipping load
14,268 kg
Service refill capacities
Cooling fluid cap
36.34 liter
Fuel cap
360.33 liter
Hydraulic fluid cap
86.3 liter
Operating specifications
Raise time
6 s
Lower time
3 s
Refill capacities
Engine oil cap
30.28 liter
Final drives fluid cap
20.06 liter
Dimensions
Ground clearance
0.49 m
Height - top of cab
3.32 m
Length with bucket
6.98 m
Width over tracks
2.32 m
Undercarriage
Ground pressure
0.71 bar
Number of shoes per side
38
Number of track rollers per side
6
Track gauge
1.8 m
Track length
2.59 m
Track width
50.8 cm
Loader
Loader dump height
3.08 m
Loader dump reach
1.22 m
Hydraulic system
Pump flow cap
209.31 lpm
Relief valve pressure
259.93 bar
Download datasheets
Liebherr LR634 similar models
Highlight differences
Liebherr LR634
Cat 963D
Cat 973C
Alternator supplied amperage
Alternator supplied amperage 80 Amh
Alternator supplied amperage 50 Amh
Alternator supplied amperage -
Aspiration
Aspiration Turbocharged, aftercooled
Aspiration -
Aspiration -
Displacement
Displacement 6,997.29 cu cm
Displacement 7,000.57 cu cm
Displacement 10,500.85 cu cm
Net power
Net power 134.97 kw
Net power 111.86 kw
Net power 156.6 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Power measured @
Power measured @ 1,800 rpm
Power measured @ 2,200 rpm
Power measured @ -
Years
Years 2006-2015
Years 2007-2025
Years 1986-2025
Market Average
Market Average AED 326,000
Market Average AED 920,000
Market Average AED 397,000
Price
Price AED 143,000
Price AED 512,000
Price AED 78,000
Bucket capacity
Bucket capacity 2.52 cu m
Bucket capacity 2.06 cu m
Bucket capacity -
Engine model
Engine model D934 L A6
Engine model 3304
Engine model 3306
Max speed forward
Max speed forward 9.98 kph
Max speed forward 10.14 kph
Max speed forward 10.46 kph
Operating voltage
Operating voltage 24 V
Operating voltage 24 V
Operating voltage -
Operating weight
Operating weight 20,794 kg
Operating weight 18,366 kg
Operating weight 24,902 kg
Tipping load
Tipping load 14,268 kg
Tipping load 12,322 kg
Tipping load 16,788 kg
Cooling fluid cap
Cooling fluid cap 36.34 liter
Cooling fluid cap 45.04 liter
Cooling fluid cap -
Fuel cap
Fuel cap 360.33 liter
Fuel cap 261.17 liter
Fuel cap 356.17 liter
Hydraulic fluid cap
Hydraulic fluid cap 86.3 liter
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 60.18 liter
Raise time
Raise time 6 s
Raise time 6 s
Raise time 7 s
Lower time
Lower time 3 s
Lower time 2 s
Lower time 3 s
Engine oil cap
Engine oil cap 30.28 liter
Engine oil cap 19.3 liter
Engine oil cap -
Final drives fluid cap
Final drives fluid cap 20.06 liter
Final drives fluid cap 14 liter
Final drives fluid cap -
Ground clearance
Ground clearance 0.49 m
Ground clearance 0.46 m
Ground clearance 0.46 m
Height - top of cab
Height - top of cab 3.32 m
Height - top of cab 3.32 m
Height - top of cab -
Length with bucket
Length with bucket 6.98 m
Length with bucket -
Length with bucket 7.13 m
Width over tracks
Width over tracks 2.32 m
Width over tracks 2.32 m
Width over tracks 2.59 m
Ground pressure
Ground pressure 0.71 bar
Ground pressure 0.81 bar
Ground pressure 0.83 bar
Number of shoes per side
Number of shoes per side 38
Number of shoes per side 37
Number of shoes per side -
Number of track rollers per side
Number of track rollers per side 6
Number of track rollers per side 6
Number of track rollers per side 7
Track gauge
Track gauge 1.8 m
Track gauge 1.85 m
Track gauge 2.08 m
Track length
Track length 2.59 m
Track length 2.47 m
Track length 2.93 m
Track width
Track width 50.8 cm
Track width 45.21 cm
Track width 50.04 cm
Ground contact area
Ground contact area -
Ground contact area 56,135.65 cu cm
Ground contact area 74,169.65 cu cm
Loader dump height
Loader dump height 3.08 m
Loader dump height 3.14 m
Loader dump height 3.35 m
Loader dump reach
Loader dump reach 1.22 m
Loader dump reach 1.19 m
Loader dump reach 1.34 m
Breakout force
Breakout force -
Breakout force 17,339.5 kg
Breakout force 21,763.84 kg
Pump flow cap
Pump flow cap 209.31 lpm
Pump flow cap 204.01 lpm
Pump flow cap -
Relief valve pressure
Relief valve pressure 259.93 bar
Relief valve pressure 189.6 bar
Relief valve pressure -
Pump type
Pump type -
Pump type Vane-type pump
Pump type -
