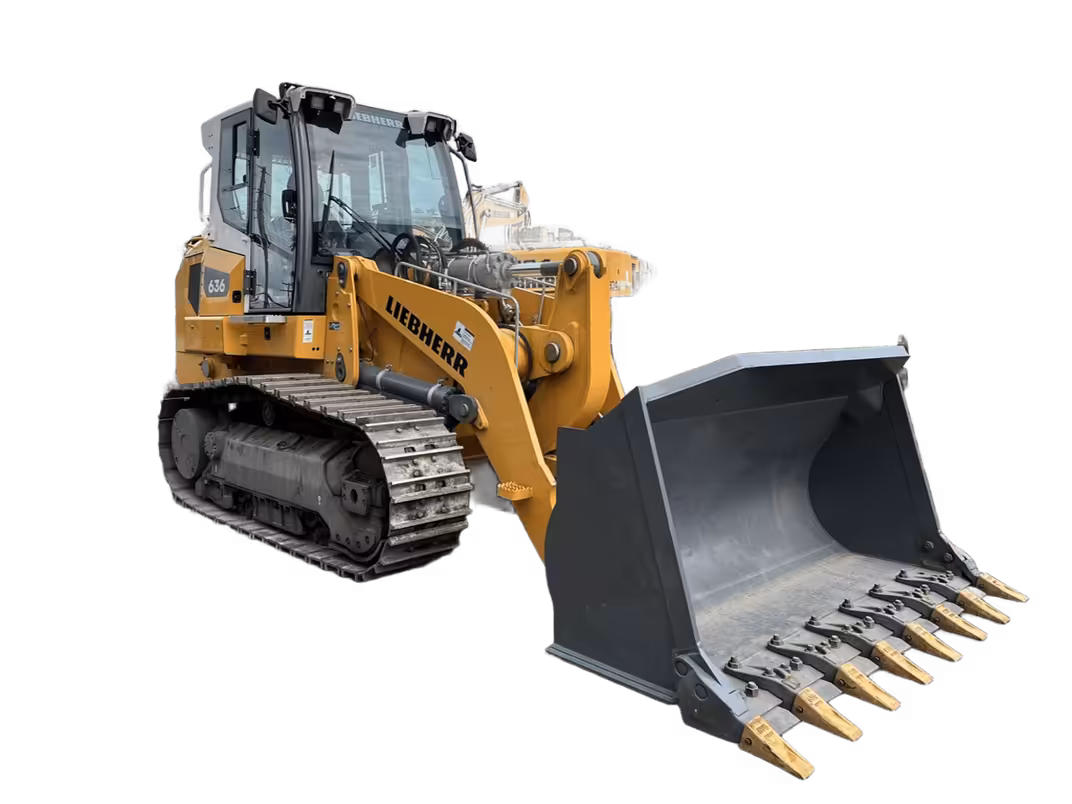

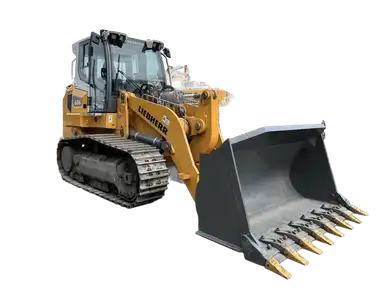

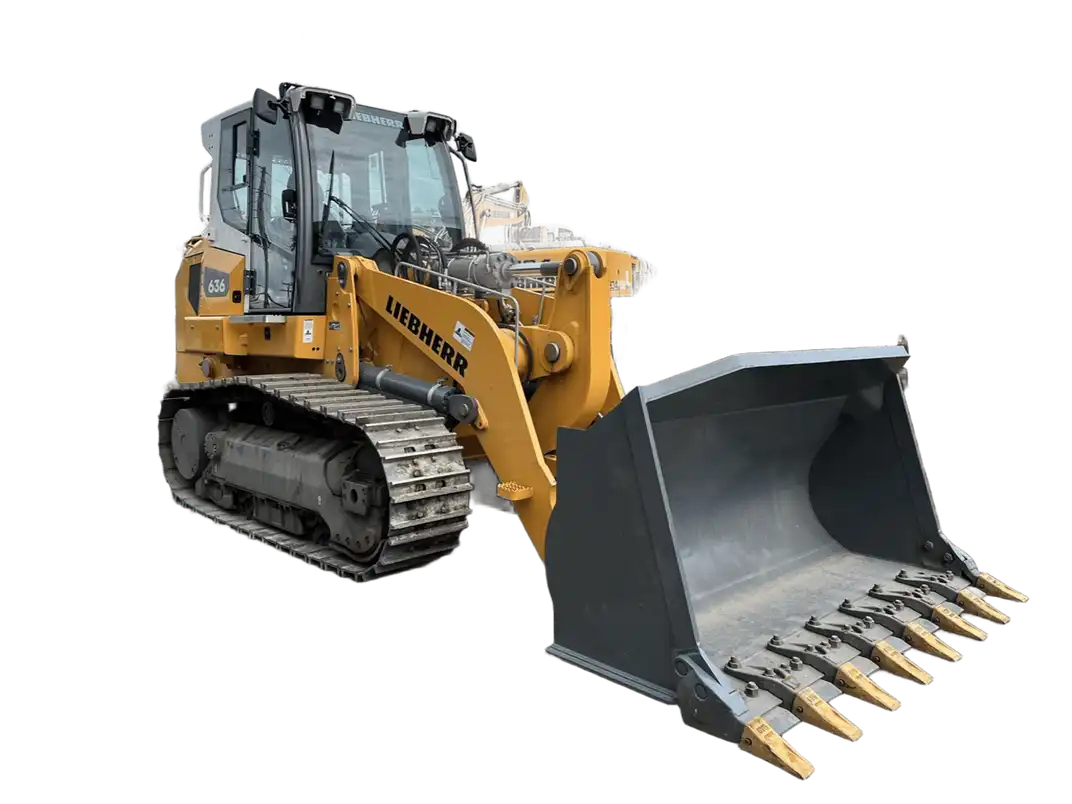

Liebherr LR636 Crawler loaders tech specs
:quality(50)/74656/conversions/d0a9765a-09f0-4055-a8f9-098e517940c6-thumb.webp)
Video[1]
:quality(50)/74648/conversions/b9e3db8b-0404-4f3e-b032-443ba05e5ab2-thumb.webp)

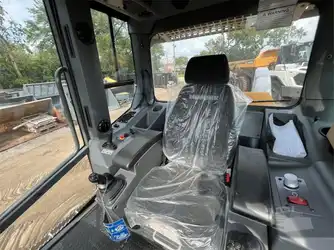

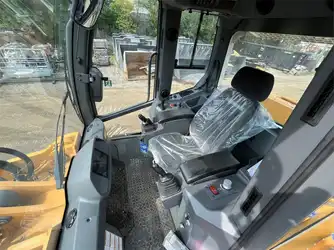

Interior [2]
:quality(50)/74650/conversions/58e21b00-5104-46e2-8034-a2f042214f6d-thumb.webp)

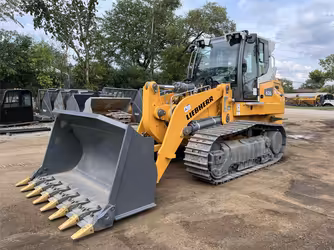

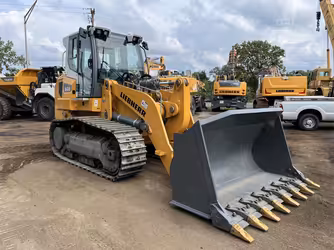

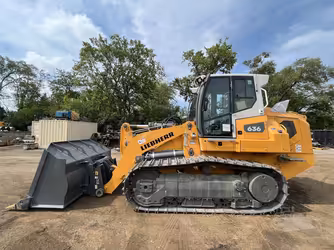

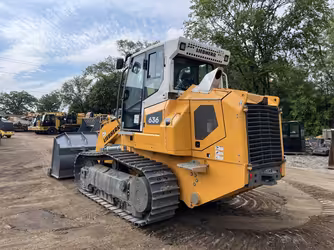

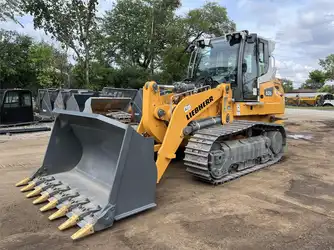

Exterior [4]
:quality(50)/74654/conversions/71e7cfdf-d77b-488d-b656-5664ddf5642b-thumb.webp)

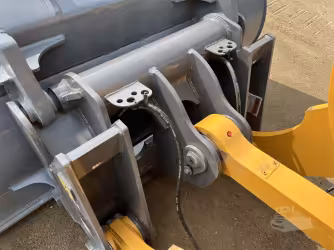

Attachments [2]
2022-2025
D 934 A7 Engine model
135.05 kw Net power
Makana rating
Market average
AED 910,000Starting from
AED 532,000Liebherr LR636 Technical specifications
General
Engine model
D 934 A7
Dimensions
Ground clearance
0.49 m
Engine
Net power
135.05 kw
Number of cylinders
4
Power measured @
1,800 rpm
Undercarriage
Number of track rollers per side
6
Track width
56.13 cm
Hydraulic system
Pump flow cap
209.31 lpm
Pump type
Variable displacement pump
Download datasheets
Liebherr LR636 similar models
Highlight differences
Liebherr LR636 LITRONIC
Cat 963D
Cat 973C
Engine model
Engine model D 934 A7
Engine model 3304
Engine model 3306
Bucket capacity
Bucket capacity -
Bucket capacity 2.06 cu m
Bucket capacity -
Max speed forward
Max speed forward -
Max speed forward 10.14 kph
Max speed forward 10.46 kph
Operating voltage
Operating voltage -
Operating voltage 24 V
Operating voltage -
Operating weight
Operating weight -
Operating weight 18,366 kg
Operating weight 24,902 kg
Tipping load
Tipping load -
Tipping load 12,322 kg
Tipping load 16,788 kg
Years
Years 2022-2025
Years 2007-2025
Years 1986-2025
Market Average
Market Average AED 910,000
Market Average AED 920,000
Market Average AED 397,000
Price
Price AED 532,000
Price AED 512,000
Price AED 78,000
Ground clearance
Ground clearance 0.49 m
Ground clearance 0.46 m
Ground clearance 0.46 m
Height - top of cab
Height - top of cab -
Height - top of cab 3.32 m
Height - top of cab -
Width over tracks
Width over tracks -
Width over tracks 2.32 m
Width over tracks 2.59 m
Length with bucket
Length with bucket -
Length with bucket -
Length with bucket 7.13 m
Net power
Net power 135.05 kw
Net power 111.86 kw
Net power 156.6 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Power measured @
Power measured @ 1,800 rpm
Power measured @ 2,200 rpm
Power measured @ -
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 50 Amh
Alternator supplied amperage -
Displacement
Displacement -
Displacement 7,000.57 cu cm
Displacement 10,500.85 cu cm
Number of track rollers per side
Number of track rollers per side 6
Number of track rollers per side 6
Number of track rollers per side 7
Track width
Track width 56.13 cm
Track width 45.21 cm
Track width 50.04 cm
Ground contact area
Ground contact area -
Ground contact area 56,135.65 cu cm
Ground contact area 74,169.65 cu cm
Ground pressure
Ground pressure -
Ground pressure 0.81 bar
Ground pressure 0.83 bar
Number of shoes per side
Number of shoes per side -
Number of shoes per side 37
Number of shoes per side -
Track gauge
Track gauge -
Track gauge 1.85 m
Track gauge 2.08 m
Track length
Track length -
Track length 2.47 m
Track length 2.93 m
Pump flow cap
Pump flow cap 209.31 lpm
Pump flow cap 204.01 lpm
Pump flow cap -
Pump type
Pump type Variable displacement pump
Pump type Vane-type pump
Pump type -
Relief valve pressure
Relief valve pressure -
Relief valve pressure 189.6 bar
Relief valve pressure -
Breakout force
Breakout force -
Breakout force 17,339.5 kg
Breakout force 21,763.84 kg
Loader dump height
Loader dump height -
Loader dump height 3.14 m
Loader dump height 3.35 m
Loader dump reach
Loader dump reach -
Loader dump reach 1.19 m
Loader dump reach 1.34 m
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 45.04 liter
Cooling fluid cap -
Fuel cap
Fuel cap -
Fuel cap 261.17 liter
Fuel cap 356.17 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 60.18 liter
Raise time
Raise time -
Raise time 6 s
Raise time 7 s
Lower time
Lower time -
Lower time 2 s
Lower time 3 s
Engine oil cap
Engine oil cap -
Engine oil cap 19.3 liter
Engine oil cap -
Final drives fluid cap
Final drives fluid cap -
Final drives fluid cap 14 liter
Final drives fluid cap -

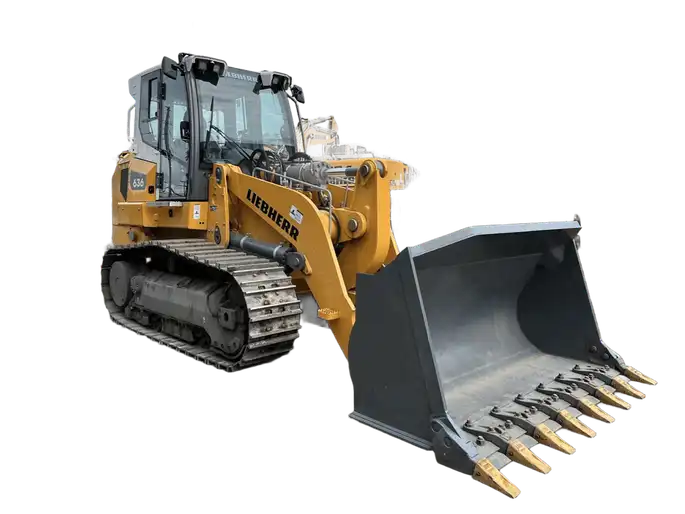

Liebherr LR636 gallery
