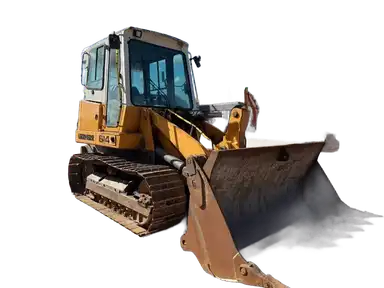

Liebherr LR614 Crawler loaders tech specs
:quality(50)/74583/conversions/c4eb306d-9147-49cd-8084-1b0f7e2e1054-thumb.webp)
Video[1]
:quality(50)/74575/conversions/d7639a72-541b-4282-8b3b-6456987cc4b2-thumb.webp)

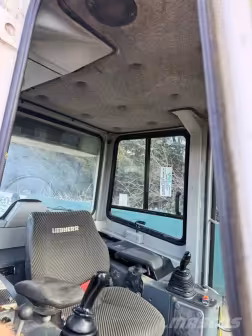

Interior [2]
:quality(50)/74577/conversions/00d2dfb7-5170-48a7-848d-b8cf758c46cb-thumb.webp)

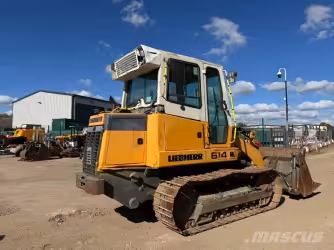

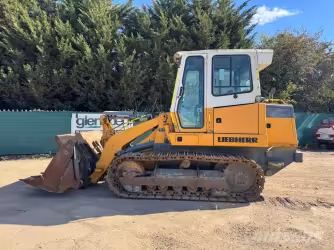

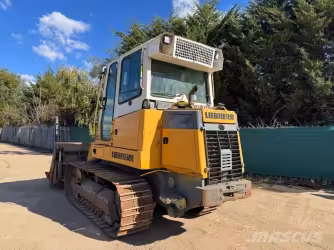

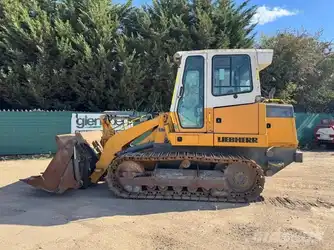

Exterior [4]
:quality(50)/74581/conversions/b47057c6-fc85-4bf0-949a-f2d80497e672-thumb.webp)

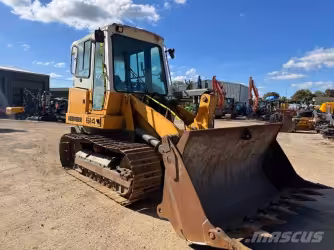

Attachments [2]
2007-2014
1.38 cu m Bucket capacity
4045HF289 Engine model
0.43 m Ground clearance
2.62 m Loader dump height
72.33 kw Net power
11,180 kg Operating weight
Makana rating
Market average
AED 290,000Starting from
AED 198,000Liebherr LR614 Technical specifications
Engine
Alternator supplied amperage
55 Amh
Aspiration
Turbocharged
Displacement
4501.54 cu cm
Net power
72.33 kw
Number of cylinders
4
Power measured @
2,200 rpm
General
Bucket capacity
1.38 cu m
Engine model
4045HF289
Max speed forward
9.5 kph
Operating voltage
24 V
Operating weight
11,180 kg
Tipping load
7,337 kg
Service refill capacities
Cooling fluid cap
24.22 liter
Fuel cap
210.07 liter
Hydraulic fluid cap
163.13 liter
Operating specifications
Raise time
6 s
Lower time
3 s
Refill capacities
Engine oil cap
12.11 liter
Final drives fluid cap
9.08 liter
Dimensions
Ground clearance
0.43 m
Height - top of cab
3.02 m
Length with bucket
5.73 m
Width over tracks
2.07 m
Undercarriage
Ground pressure
0.55 bar
Number of shoes per side
38
Number of track rollers per side
6
Track gauge
1.6 m
Track length
2.19 m
Track width
45.72 cm
Loader
Loader dump height
2.62 m
Loader dump reach
0.94 m
Hydraulic system
Pump flow cap
115.06 lpm
Pump type
Gear
Relief valve pressure
229.94 bar
Download datasheets
Liebherr LR614 similar models
Highlight differences
Liebherr LR614

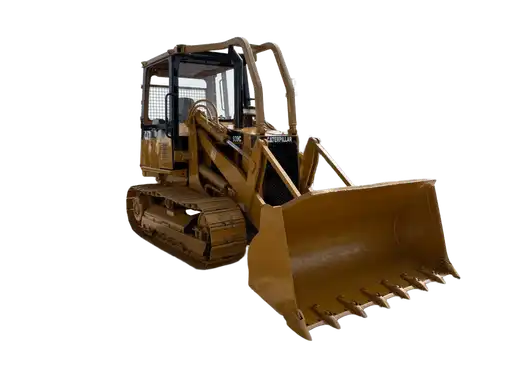

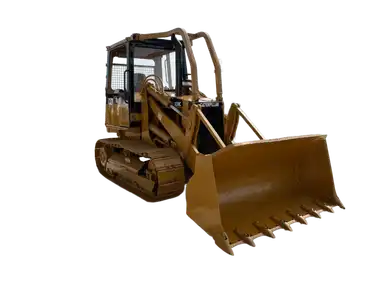

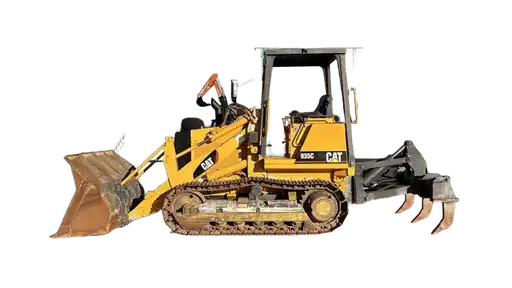

Cat 935C Series II
Cat 939C
Alternator supplied amperage
Alternator supplied amperage 55 Amh
Alternator supplied amperage -
Alternator supplied amperage 55 Amh
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration Turbocharged
Displacement
Displacement 4,501.54 cu cm
Displacement 5,201.27 cu cm
Displacement 4,998.07 cu cm
Net power
Net power 72.33 kw
Net power 59.66 kw
Net power 67.11 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 6
Power measured @
Power measured @ 2,200 rpm
Power measured @ -
Power measured @ 2,400 rpm
Years
Years 2007-2014
Years 1988-2025
Years 1994-2025
Market Average
Market Average AED 290,000
Market Average AED 415,000
Market Average AED 432,000
Price
Price AED 198,000
Price AED 197,000
Price AED 210,000
Bucket capacity
Bucket capacity 1.38 cu m
Bucket capacity 1.07 cu m
Bucket capacity 1.15 cu m
Engine model
Engine model 4045HF289
Engine model 3204
Engine model 3046T
Max speed forward
Max speed forward 9.5 kph
Max speed forward 10.62 kph
Max speed forward -
Operating voltage
Operating voltage 24 V
Operating voltage -
Operating voltage 12 V
Operating weight
Operating weight 11,180 kg
Operating weight 8,759 kg
Operating weight 9,483 kg
Tipping load
Tipping load 7,337 kg
Tipping load 5,804 kg
Tipping load 6,606 kg
Cooling fluid cap
Cooling fluid cap 24.22 liter
Cooling fluid cap -
Cooling fluid cap 20.82 liter
Fuel cap
Fuel cap 210.07 liter
Fuel cap 116.2 liter
Fuel cap 156.7 liter
Hydraulic fluid cap
Hydraulic fluid cap 163.13 liter
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap 56.78 liter
Raise time
Raise time 6 s
Raise time 6 s
Raise time 6 s
Lower time
Lower time 3 s
Lower time 4 s
Lower time 3 s
Engine oil cap
Engine oil cap 12.11 liter
Engine oil cap -
Engine oil cap 12.87 liter
Final drives fluid cap
Final drives fluid cap 9.08 liter
Final drives fluid cap -
Final drives fluid cap 14.76 liter
Ground clearance
Ground clearance 0.43 m
Ground clearance 0.34 m
Ground clearance 0.4 m
Height - top of cab
Height - top of cab 3.02 m
Height - top of cab 2.68 m
Height - top of cab 2.77 m
Length with bucket
Length with bucket 5.73 m
Length with bucket 4.33 m
Length with bucket 4.36 m
Width over tracks
Width over tracks 2.07 m
Width over tracks 1.8 m
Width over tracks 1.98 m
Ground pressure
Ground pressure 0.55 bar
Ground pressure 0.59 bar
Ground pressure 0.54 bar
Number of shoes per side
Number of shoes per side 38
Number of shoes per side -
Number of shoes per side 37
Number of track rollers per side
Number of track rollers per side 6
Number of track rollers per side 5
Number of track rollers per side 6
Track gauge
Track gauge 1.6 m
Track gauge 1.42 m
Track gauge 1.55 m
Track length
Track length 2.19 m
Track length 1.92 m
Track length 2.16 m
Track width
Track width 45.72 cm
Track width 35.56 cm
Track width 40.64 cm
Ground contact area
Ground contact area -
Ground contact area 34,291.65 cu cm
Ground contact area 44,245.17 cu cm
Loader dump height
Loader dump height 2.62 m
Loader dump height 2.59 m
Loader dump height 2.68 m
Loader dump reach
Loader dump reach 0.94 m
Loader dump reach 0.88 m
Loader dump reach 0.88 m
Breakout force
Breakout force -
Breakout force 6,848.35 kg
Breakout force 9,162.58 kg
Pump flow cap
Pump flow cap 115.06 lpm
Pump flow cap -
Pump flow cap 132.48 lpm
Pump type
Pump type Gear
Pump type -
Pump type Gear
Relief valve pressure
Relief valve pressure 229.94 bar
Relief valve pressure -
Relief valve pressure 198.22 bar

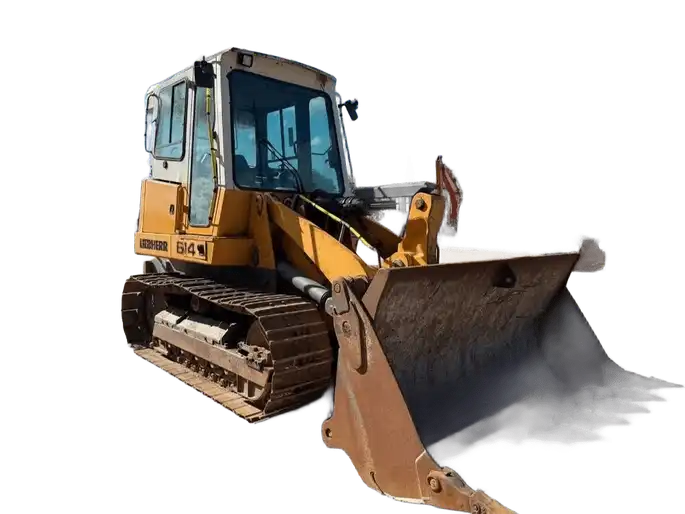

Liebherr LR614 gallery
