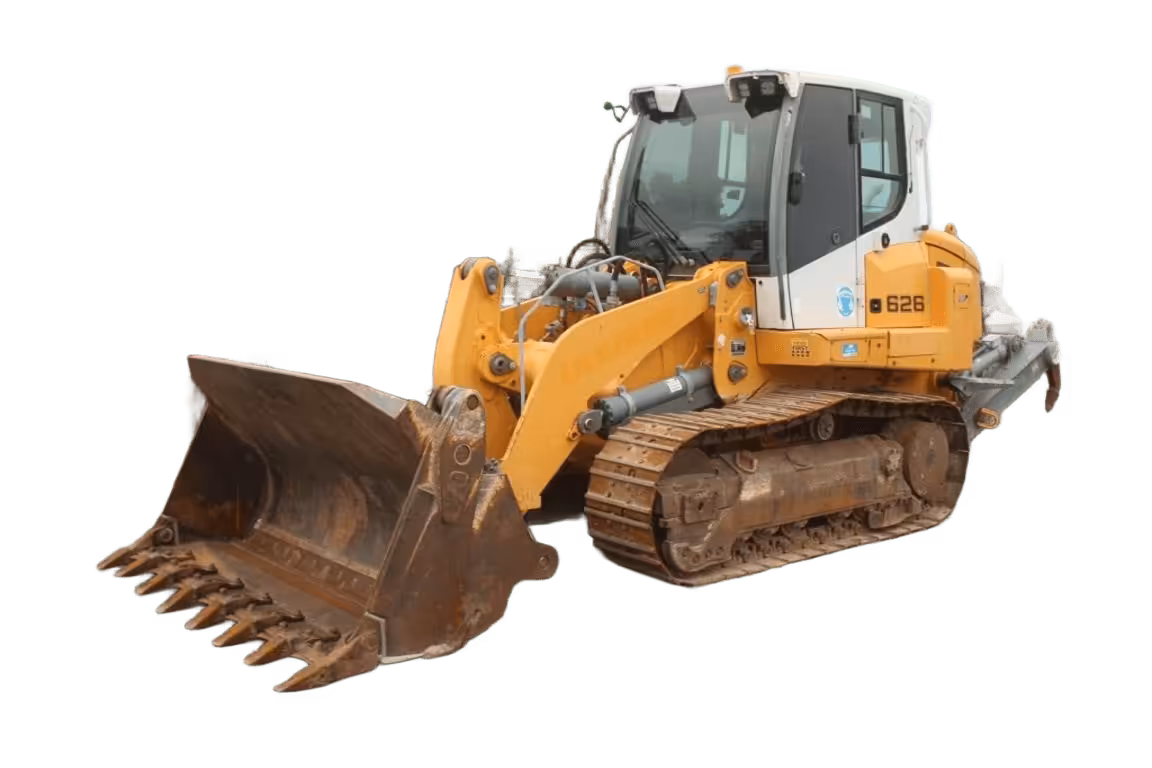

Liebherr LR626 Crawler loaders tech specs
:quality(50)/74619/conversions/b8f7910e-69fe-4b22-887c-64f8d10e4bde-thumb.webp)
Video[1]
:quality(50)/74611/conversions/da880d12-567e-408e-b3ca-d8e6a15b9b0c-thumb.webp)
Interior [2]
:quality(50)/74613/conversions/29cfcbe4-a0b6-409d-b02a-7646c6158e07-thumb.webp)
Exterior [4]
:quality(50)/74617/conversions/628f689a-b0b9-424b-bef6-9f5929c0ec61-thumb.webp)

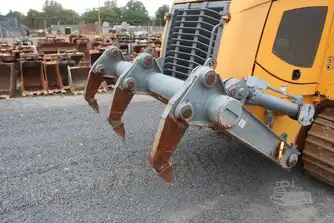

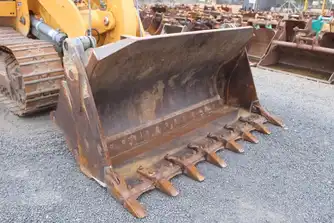

Attachments [2]
2017-2021
4,501.54 cu cm Displacement
D 924-A7-04 Engine model
0.43 m Ground clearance
105.07 kw Net power
155.19 lpm Pump flow cap
50.8 cm Track width
Makana rating
Market average
AED 940,000Starting from
AED 352,000Liebherr LR626 Technical specifications
Engine
Displacement
4501.54 cu cm
Net power
105.07 kw
Number of cylinders
4
Power measured @
2,100 rpm
General
Engine model
D 924-A7-04
Dimensions
Ground clearance
0.43 m
Undercarriage
Number of track rollers per side
6
Track width
50.8 cm
Hydraulic system
Pump flow cap
155.19 lpm
Pump type
Variable displacement pump
Download datasheets
Liebherr LR626 similar models
Highlight differences
Liebherr LR626 LITRONIC

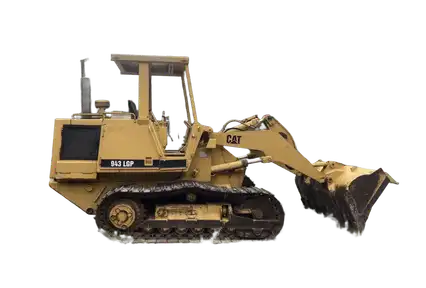

Cat 943 LGP
Cat 951C
Displacement
Displacement 4,501.54 cu cm
Displacement 5,201.27 cu cm
Displacement 7,000.57 cu cm
Net power
Net power 105.07 kw
Net power 59.66 kw
Net power 70.84 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ 2,100 rpm
Power measured @ -
Power measured @ 2,200 rpm
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage -
Alternator supplied amperage 19 Amh
Years
Years 2017-2021
Years 1985-2025
Years 1982-2025
Market Average
Market Average AED 940,000
Market Average AED 298,000
Market Average AED 384,000
Price
Price AED 352,000
Price AED 152,000
Price AED 289,000
Engine model
Engine model D 924-A7-04
Engine model 3204
Engine model 3304
Bucket capacity
Bucket capacity -
Bucket capacity 1.22 cu m
Bucket capacity 1.38 cu m
Max speed forward
Max speed forward -
Max speed forward 9.66 kph
Max speed forward 11.59 kph
Operating weight
Operating weight -
Operating weight 11,888 kg
Operating weight 12,733 kg
Tipping load
Tipping load -
Tipping load 8,032 kg
Tipping load 8,558 kg
Operating voltage
Operating voltage -
Operating voltage -
Operating voltage 24 V
Ground clearance
Ground clearance 0.43 m
Ground clearance 0.37 m
Ground clearance 0.43 m
Height - top of cab
Height - top of cab -
Height - top of cab 3.05 m
Height - top of cab 2.9 m
Length with bucket
Length with bucket -
Length with bucket 5.46 m
Length with bucket 4.79 m
Width over tracks
Width over tracks -
Width over tracks 2.07 m
Width over tracks 1.98 m
Number of track rollers per side
Number of track rollers per side 6
Number of track rollers per side 6
Number of track rollers per side 5
Track width
Track width 50.8 cm
Track width 46.23 cm
Track width 35.56 cm
Ground contact area
Ground contact area -
Ground contact area 50,293.65 cu cm
Ground contact area 38,609.65 cu cm
Ground pressure
Ground pressure -
Ground pressure 0.59 bar
Ground pressure -
Track gauge
Track gauge -
Track gauge 1.7 m
Track gauge 1.53 m
Track length
Track length -
Track length 2.16 m
Track length 2.16 m
Number of shoes per side
Number of shoes per side -
Number of shoes per side -
Number of shoes per side 39
Pump flow cap
Pump flow cap 155.19 lpm
Pump flow cap -
Pump flow cap 126.04 lpm
Pump type
Pump type Variable displacement pump
Pump type -
Pump type Vane-type pump
Relief valve pressure
Relief valve pressure -
Relief valve pressure -
Relief valve pressure 172.37 bar
Breakout force
Breakout force -
Breakout force 9,588.5 kg
Breakout force 7,125.94 kg
Loader dump height
Loader dump height -
Loader dump height 2.68 m
Loader dump height 2.77 m
Loader dump reach
Loader dump reach -
Loader dump reach 0.88 m
Loader dump reach 1.07 m
Raise time
Raise time -
Raise time 7 s
Raise time 7 s
Lower time
Lower time -
Lower time 2 s
Lower time 2 s
Fuel cap
Fuel cap -
Fuel cap 159.35 liter
Fuel cap 197.2 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 58.29 liter
Hydraulic fluid cap 73.81 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap 24.6 liter
Engine oil cap
Engine oil cap -
Engine oil cap -
Engine oil cap 18.93 liter
Final drives fluid cap
Final drives fluid cap -
Final drives fluid cap -
Final drives fluid cap 9.84 liter

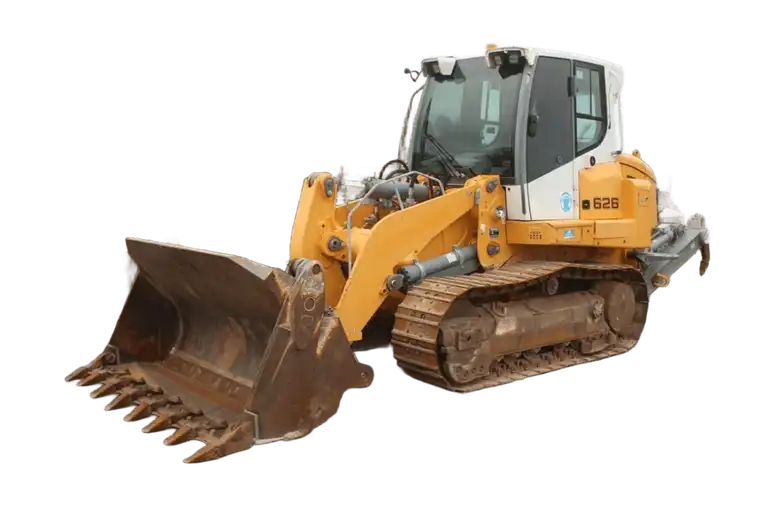

Liebherr LR626 gallery
