Cat
Cat 951 Crawler loaders
Cat 951 Crawler loaders tech specs
:quality(50)/https://www.makana.com/66672/conversions/52b03e40-3e35-42aa-a2b1-1b4eb92e8e24-webp.webp)

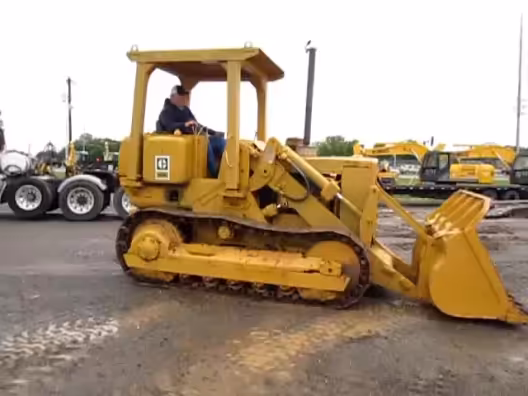

Video[1]
:quality(50)/https://www.makana.com/66664/conversions/141c0999-dd2e-4d83-b2dc-1e65601e3ec6-webp.webp)

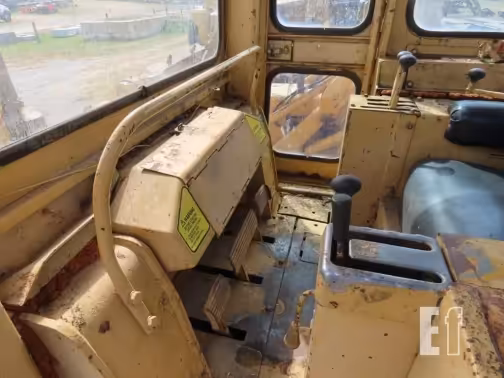

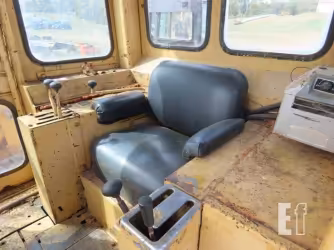

Interior [2]
:quality(50)/https://www.makana.com/66666/conversions/1eb6c13a-79b5-4318-9412-defb1e581c6e-webp.webp)
Exterior [4]
:quality(50)/https://www.makana.com/66670/conversions/2f996d1b-c59d-492f-a040-d27ee15c726a-webp.webp)

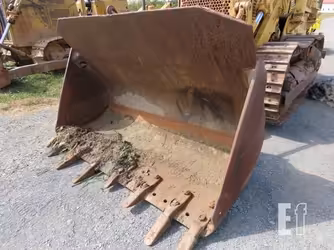

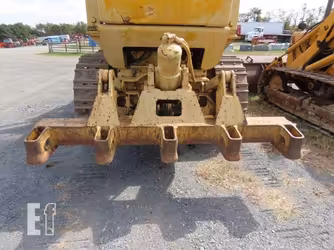

Attachments [2]
Cat 951 Technical specifications
Engine
Alternator supplied amperage
19 Amh
Displacement
7000.57 cu cm
Net power
70.84 kw
Number of cylinders
4
Power measured @
2,200 rpm
Loader
Breakout force
7125.94 kg
Loader dump height
2.77 m
Loader dump reach
1.07 m
General
Bucket capacity
1.38 cu m
Engine model
3304
Max speed forward
11.59 kph
Operating voltage
24 V
Operating weight
12,733 kg
Tipping load
8,558 kg
Service refill capacities
Cooling fluid cap
24.6 liter
Fuel cap
197.2 liter
Hydraulic fluid cap
73.81 liter
Operating specifications
Raise time
7 s
Lower time
2 s
Refill capacities
Engine oil cap
18.93 liter
Final drives fluid cap
9.84 liter
Dimensions
Ground clearance
0.43 m
Height - top of cab
2.9 m
Length with bucket
4.79 m
Width over tracks
1.98 m
Undercarriage
Ground contact area
38609.65 cu cm
Number of shoes per side
39
Number of track rollers per side
5
Track gauge
1.53 m
Track length
2.16 m
Track width
35.56 cm
Hydraulic system
Pump flow cap
126.04 lpm
Pump type
Vane-type pump
Relief valve pressure
172.37 bar
Download datasheets
Cat 951 expert review
Cat 951 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 19 Amh
Alternator supplied amperage 19 Amh
Alternator supplied amperage -
Displacement
Displacement 7,000.57 cu cm
Displacement 7,000.57 cu cm
Displacement 5,201.27 cu cm
Net power
Net power 70.84 kw
Net power 59.66 kw
Net power 59.66 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,000 rpm
Power measured @ -
Years
Years 1982-2025
Years 1989-2025
Years 1985-2025
Market Average
Market Average AED 384,000
Market Average AED 345,000
Market Average AED 298,000
Price
Price AED 289,000
Price AED 176,000
Price AED 152,000
Breakout force
Breakout force 7,125.94 kg
Breakout force 6,450.09 kg
Breakout force 9,588.5 kg
Loader dump height
Loader dump height 2.77 m
Loader dump height 2.59 m
Loader dump height 2.68 m
Loader dump reach
Loader dump reach 1.07 m
Loader dump reach 1.04 m
Loader dump reach 0.88 m
Bucket capacity
Bucket capacity 1.38 cu m
Bucket capacity 0.99 cu m
Bucket capacity 1.22 cu m
Engine model
Engine model 3304
Engine model 3304
Engine model 3204
Max speed forward
Max speed forward 11.59 kph
Max speed forward 11.1 kph
Max speed forward 9.66 kph
Operating voltage
Operating voltage 24 V
Operating voltage 24 V
Operating voltage -
Operating weight
Operating weight 12,733 kg
Operating weight 11,294 kg
Operating weight 11,888 kg
Tipping load
Tipping load 8,558 kg
Tipping load 7,180 kg
Tipping load 8,032 kg
Cooling fluid cap
Cooling fluid cap 24.6 liter
Cooling fluid cap 24.6 liter
Cooling fluid cap -
Fuel cap
Fuel cap 197.2 liter
Fuel cap 151.02 liter
Fuel cap 159.35 liter
Hydraulic fluid cap
Hydraulic fluid cap 73.81 liter
Hydraulic fluid cap 71.92 liter
Hydraulic fluid cap 58.29 liter
Raise time
Raise time 7 s
Raise time 7 s
Raise time 7 s
Lower time
Lower time 2 s
Lower time 2 s
Lower time 2 s
Engine oil cap
Engine oil cap 18.93 liter
Engine oil cap 18.93 liter
Engine oil cap -
Final drives fluid cap
Final drives fluid cap 9.84 liter
Final drives fluid cap 9.84 liter
Final drives fluid cap -
Ground clearance
Ground clearance 0.43 m
Ground clearance 0.4 m
Ground clearance 0.37 m
Height - top of cab
Height - top of cab 2.9 m
Height - top of cab 2.87 m
Height - top of cab 3.05 m
Length with bucket
Length with bucket 4.79 m
Length with bucket 4.54 m
Length with bucket 5.46 m
Width over tracks
Width over tracks 1.98 m
Width over tracks 1.98 m
Width over tracks 2.07 m
Ground contact area
Ground contact area 38,609.65 cu cm
Ground contact area 34,545.65 cu cm
Ground contact area 50,293.65 cu cm
Number of shoes per side
Number of shoes per side 39
Number of shoes per side 38
Number of shoes per side -
Number of track rollers per side
Number of track rollers per side 5
Number of track rollers per side 5
Number of track rollers per side 6
Track gauge
Track gauge 1.53 m
Track gauge 1.52 m
Track gauge 1.7 m
Track length
Track length 2.16 m
Track length 2.07 m
Track length 2.16 m
Track width
Track width 35.56 cm
Track width 33.02 cm
Track width 46.23 cm
Ground pressure
Ground pressure -
Ground pressure -
Ground pressure 0.59 bar
Pump flow cap
Pump flow cap 126.04 lpm
Pump flow cap 105.22 lpm
Pump flow cap -
Pump type
Pump type Vane-type pump
Pump type Vane-type pump
Pump type -
Relief valve pressure
Relief valve pressure 172.37 bar
Relief valve pressure 172.37 bar
Relief valve pressure -
