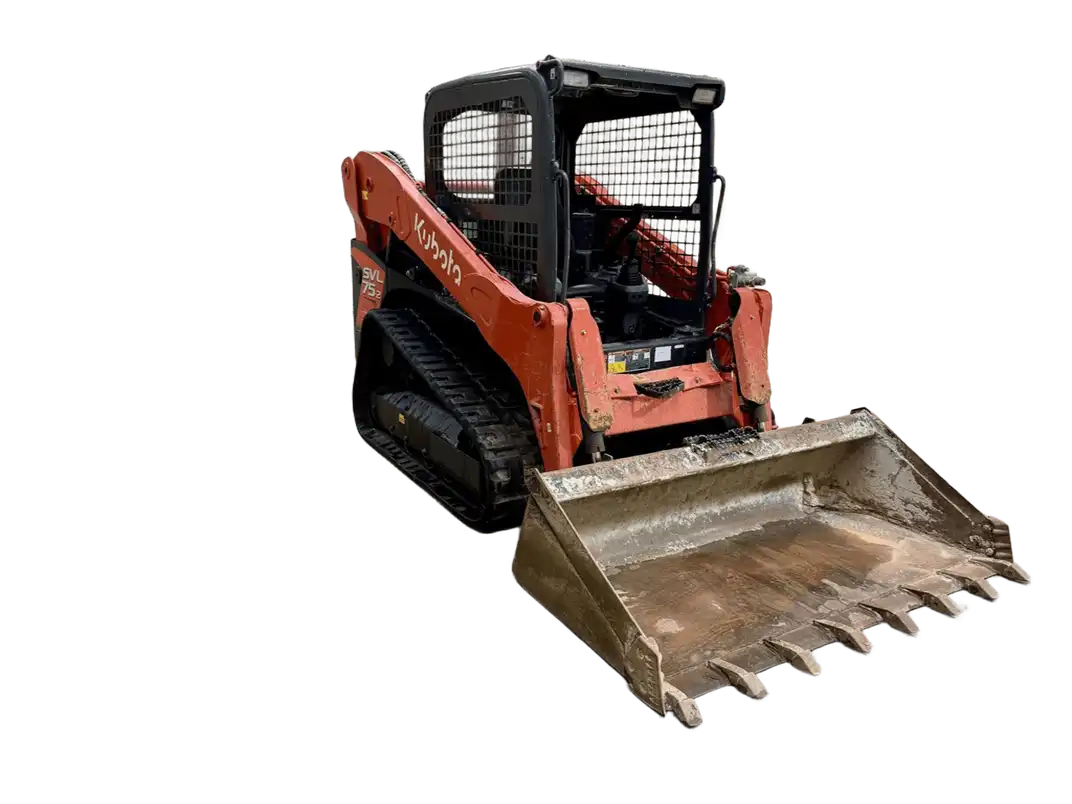

Kubota SVL75 Compact track loaders tech specs
:quality(50)/75284/4bda40d3-9c69-4fae-95d8-aeb47c9d8267.png)
:quality(50)/75296/conversions/d465f927-4470-4b3e-82c2-5ffd34f8acbf-thumb.webp)
Video[1]
:quality(50)/75288/conversions/257e90d5-9327-4550-b686-b88ae38a43e7-thumb.webp)

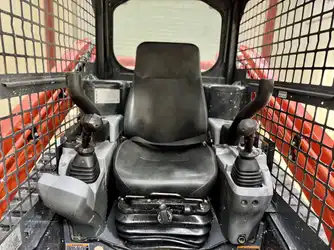

Interior [2]
:quality(50)/75290/conversions/53a46759-3e2d-45e7-b363-811063f33fdf-thumb.webp)
Exterior [4]
:quality(50)/75294/conversions/c515aac8-276e-435c-88eb-5a45a400e3d1-thumb.webp)
Attachments [2]
2021-2025
Kubota Engine make
93.11 liter Fuel cap
0.39 bar Ground pressure
Vertical Lift arm path
4,245 kg Operating weight
65 º Rack back angle
Makana rating
Owner rating
Market average
AED 320,000Starting from
AED 137,000Kubota SVL75 technical specifications
Highlight differences
:quality(50)/75285/c0e5f799-dcc3-40a3-bd6b-17ff23a2cbe7.png)
Kubota SVL75-2HFWC
:quality(50)/75286/af9f59b2-d7b9-432e-80ac-ad2d7e43ee29.png)

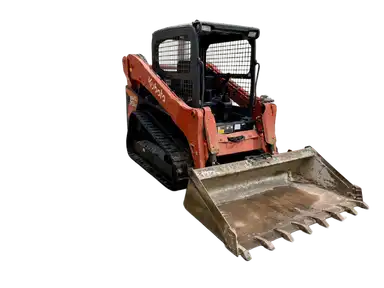

Kubota SVL75-2HWC
:quality(50)/75287/0aa7d310-627d-4888-9ede-579d23072107.png)
Kubota SVL75-2W
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Engine make
Engine make Kubota
Engine make Kubota
Engine make Kubota
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Years
Years 2021-2025
Years 2021-2025
Years 2021-2025
Market Average
Market Average AED 320,000
Market Average AED 320,000
Market Average AED 320,000
Price
Price AED 137,000
Price AED 137,000
Price AED 137,000
Breakout force - lift cylinder
Breakout force - lift cylinder 2,162.01 kg
Breakout force - lift cylinder 2,162.01 kg
Breakout force - lift cylinder 2,162.01 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder 2,814.09 kg
Breakout force - tilt cylinder 2,814.05 kg
Breakout force - tilt cylinder 2,814.09 kg
Engine model
Engine model V3800CR-TIE F4
Engine model V3800CR-TIE F4
Engine model V3800CR-TIE F4
Lift arm path
Lift arm path Vertical
Lift arm path Vertical
Lift arm path Vertical
Max speed forward
Max speed forward 11.43 kph
Max speed forward 11.43 kph
Max speed forward 11.43 kph
Operating weight
Operating weight 4,245 kg
Operating weight 4,245 kg
Operating weight 4,245 kg
Fuel cap
Fuel cap 93.11 liter
Fuel cap 93.11 liter
Fuel cap 93.11 liter
Hydraulic fluid cap
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 60.18 liter
Ground pressure
Ground pressure 0.39 bar
Ground pressure 0.39 bar
Ground pressure 0.39 bar
Number of track rollers per side
Number of track rollers per side 4
Number of track rollers per side 4
Number of track rollers per side 4
Track length
Track length 1.46 m
Track length 1.46 m
Track length 1.46 m
Track width
Track width 32 cm
Track width 32 cm
Track width -
Rack back angle
Rack back angle 65 º
Rack back angle 65 º
Rack back angle 65 º
Pump flow cap
Pump flow cap -
Pump flow cap 65.86 lpm
Pump flow cap 65.86 lpm
Download datasheets
Kubota SVL75 expert review
:quality(50)/60957/29d1cdd1-536a-473f-acd1-59aa581d5497.jpeg)
Overview
The Kubota SVL75 (2021–2025) is a compact track loader designed for loading, grading, pallet handling, and general site support. It combines a Kubota turbocharged engine, 4,245 kg operating weight, and a vertical lift arm path to deliver balanced compact-loader performance in a practical tracked package.
Expert rating: 5 stars
Pros
Vertical lift path suits loading work, low ground pressure helps on softer ground, and tracked traction supports stable site performance.
Cons
Lower capacity than larger compact track loaders, and Cat rivals may still win on dealer familiarity.
Performance & Efficiency
The SVL75 uses vertical-lift geometry, a 65-degree rack-back angle, low 0.39 bar ground pressure, and a turbocharged engine to support efficient loading, grading, and material-handling work across mixed jobsite conditions.
In Comparison
Cat 277: Proven compact track loader with strong market familiarity.
Cat 279: Mainstream Cat option with balanced capability and broad support.
Kubota SVL75: Straightforward tracked loader with practical lift geometry, low ground pressure, and contractor-friendly versatility.
Final Verdict
Rated 5 stars, the Kubota SVL75 offers stable tracked performance, practical loading geometry, and useful everyday versatility within the AED 137,000–320,000 range.
Kubota SVL75 owner rating
Kubota SVL75 Compact track loaders [2021-2025]
2021-2025
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.7
fuel efficiency
4.7
safety
4.7
features
4.3
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Kubota SVL75 similar models
Highlight differences
Kubota SVL75-2HFWC
:quality(50)/65684/5bd0f310-c65b-4a3d-a01e-217152671797.png)
Cat 277B
:quality(50)/65701/cc5dd393-f00b-4d70-94f3-c54632f59361.png)
Cat 279C
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Engine make
Engine make Kubota
Engine make -
Engine make -
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Bore
Bore -
Bore 9.4 cm
Bore 8.64 cm
Gross power
Gross power -
Gross power 61.15 kw
Gross power 62.64 kw
Net power
Net power -
Net power 58.17 kw
Net power 61.15 kw
Stroke
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Power measured @
Power measured @ -
Power measured @ -
Power measured @ 2,500 rpm
Years
Years 2021-2025
Years 2004-2007
Years 2009-2015
Market Average
Market Average AED 320,000
Market Average AED 99,200
Market Average AED 168,000
Price
Price AED 137,000
Price AED 62,500
Price AED 114,000
Breakout force - lift cylinder
Breakout force - lift cylinder 2,162.01 kg
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder 2,814.09 kg
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Engine model
Engine model V3800CR-TIE F4
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Lift arm path
Lift arm path Vertical
Lift arm path -
Lift arm path -
Max speed forward
Max speed forward 11.43 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating weight
Operating weight 4,245 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Displacement
Displacement -
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Loader dump height
Loader dump height -
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach
Loader dump reach -
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Lifting capacity
Lifting capacity -
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Tipping load
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Turning radius
Turning radius -
Turning radius 1.55 m
Turning radius 1.64 m
Bucket capacity
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Fuel cap
Fuel cap 93.11 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Ground pressure
Ground pressure 0.39 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Number of track rollers per side
Number of track rollers per side 4
Number of track rollers per side -
Number of track rollers per side -
Track length
Track length 1.46 m
Track length 2.07 m
Track length 1.77 m
Track width
Track width 32 cm
Track width -
Track width -
Ground contact area
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Rack back angle
Rack back angle 65 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle
Dump angle -
Dump angle -
Dump angle 40 º
Engine oil cap
Engine oil cap -
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Ground clearance
Ground clearance -
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab
Height - top of cab -
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket
Length with bucket -
Length with bucket 3.69 m
Length with bucket 3.69 m
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Width over tracks
Width over tracks -
Width over tracks 1.92 m
Width over tracks 1.98 m
Pump flow cap
Pump flow cap -
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Pump type
Pump type -
Pump type Standard
Pump type High Flow XPS
Relief valve pressure
Relief valve pressure -
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
