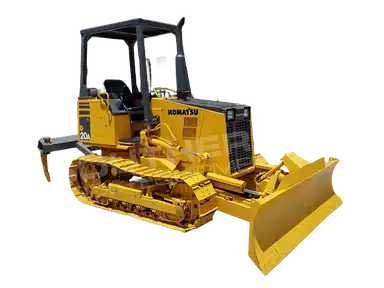

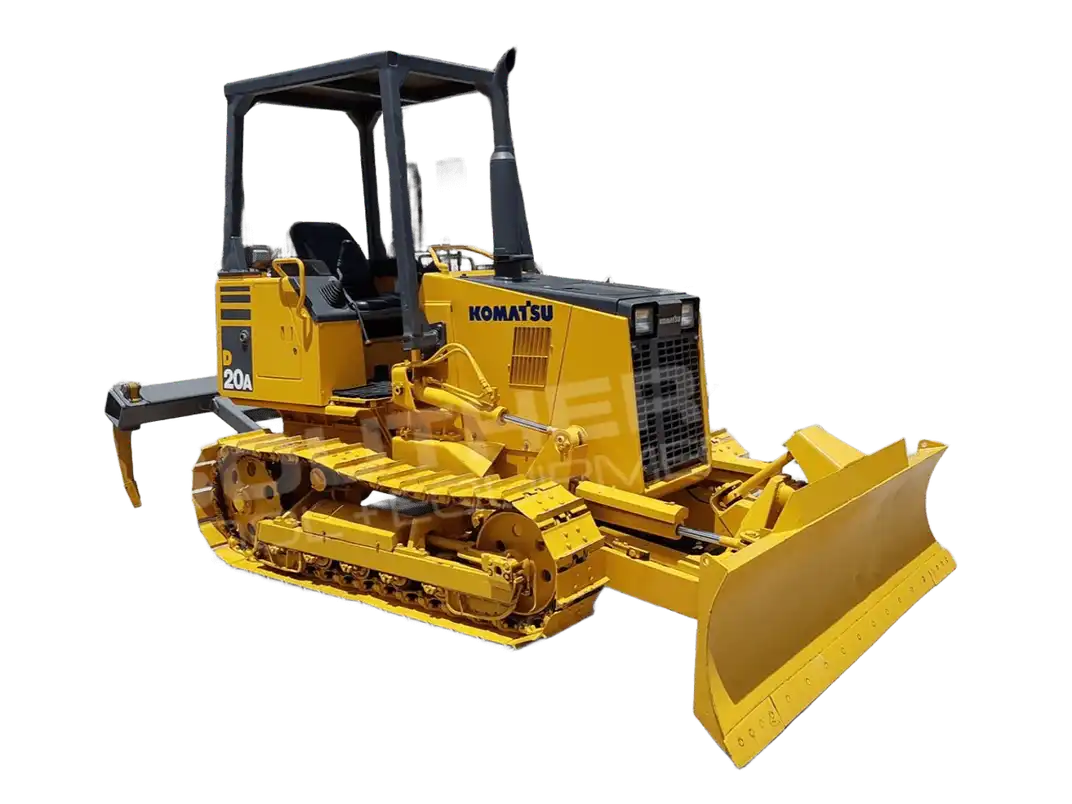

Komatsu D20 Crawler dozers tech specs

makana img
video play button
Video[1]
Interior [2]

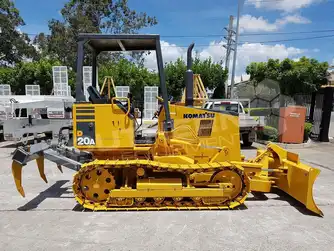

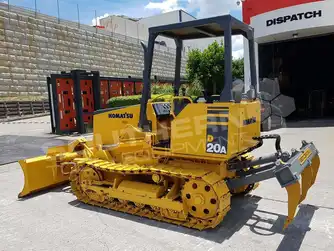

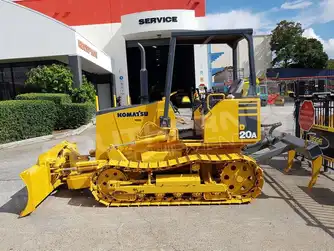

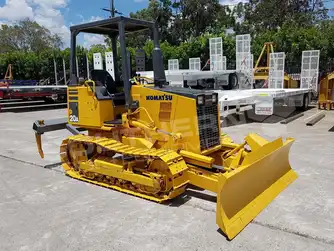

Exterior [4]

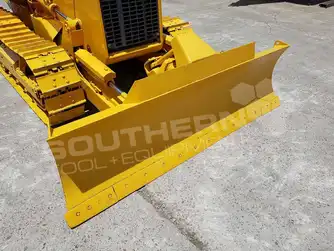

Attachments [2]
1993-1996
2.32 m Blade width
Direct drive Drive type
60.18 liter Fuel cap
3,330 kg Operating weight
1.68 m Track length
30.23 cm Track width

A compact crawler dozer designed for light construction, landscaping, and site preparation, the Komatsu D20 combines a small 3,330 kg operating weight with a 2 m blade and simple direct-drive drivetrain. Built for maneuverability and low ground pressure rather than raw pushing power, it works well on small construction sites, farms, and utility trench backfilling where larger bulldozers are impractical.

Operating weight 3,330 kg

Blade width 2 m

Track width 30.23 cm

Track length 1.68 m

Fuel capacity 60.18 liters

Direct-drive drivetrain

Compact crawler design for tight job sites

Makana rating

Owner rating

 | 3

Market average

AED 100,000

Starting from

AED 60,000

Komatsu D20 technical specifications

Highlight differences

Komatsu D20A-3

Komatsu D20A-5

Komatsu D20P-3

Komatsu D20P-5

Komatsu D20P-6A

Komatsu D20P-7E

Komatsu D20PG-7A

Komatsu D20PL-7

Komatsu D20PL-7E

Komatsu D20PLL-6

Komatsu D20PLL-7

Komatsu D20PLL-7E

General
Blade capacity 0.76 cu m
Blade capacity 0.76 cu m
Blade capacity 0.76 cu m
Blade capacity 0.92 cu m
Blade capacity -
Blade capacity -
Blade capacity -
Blade capacity -
Blade capacity -
Blade capacity -
Blade capacity -
Blade capacity -
Blade width 2.32 m
Blade width 2.19 m
Blade width 2.19 m
Blade width 2.19 m
Blade width 2.56 m
Blade width 2.56 m
Blade width 2.56 m
Blade width 2.5 m
Blade width 2.5 m
Blade width 3.2 m
Blade width 3.2 m
Blade width 3.2 m
Displacement 2,600.63 cu cm
Displacement 2,941.48 cu cm
Displacement 2,600.63 cu cm
Displacement 2,941.48 cu cm
Displacement 2,690.76 cu cm
Displacement 2,775.97 cu cm
Displacement 2,690.76 cu cm
Displacement 2,690.76 cu cm
Displacement 2,775.97 cu cm
Displacement 2,961.15 cu cm
Displacement 2,690.76 cu cm
Displacement 2,775.97 cu cm
Drive type Direct drive
Drive type Direct drive
Drive type Direct drive
Drive type Direct drive
Drive type Direct drive
Drive type Direct drive
Drive type Direct drive
Drive type Direct drive
Drive type Direct drive
Drive type Direct drive
Drive type Direct drive
Drive type Direct drive
Engine model 4D95-1A
Engine model 4D94-2N
Engine model 4D92-1A
Engine model 4D92-2N
Engine model 4D95S
Engine model 4D94E
Engine model 4D95S
Engine model 4D95S
Engine model 4D94E
Engine model 4D95S-W1
Engine model 4D95S
Engine model 4D94E
Max speed forward 7.4 kph
Max speed forward 7.4 kph
Max speed forward -
Max speed forward -
Max speed forward -
Max speed forward -
Max speed forward -
Max speed forward -
Max speed forward -
Max speed forward -
Max speed forward -
Max speed forward -
Operating weight 3,330 kg
Operating weight 3,560 kg
Operating weight 3,600 kg
Operating weight 3,780 kg
Operating weight 3,940 kg
Operating weight 4,020 kg
Operating weight 3,980 kg
Operating weight 4,030 kg
Operating weight 4,060 kg
Operating weight 4,670 kg
Operating weight 4,670 kg
Operating weight 4,710 kg
Max torque -
Max torque 147.1 Nm
Max torque -
Max torque -
Max torque -
Max torque -
Max torque -
Max torque -
Max torque -
Max torque -
Max torque -
Max torque -
Years 1993-1996
Years 1993-1996
Years 1993-1996
Years 1993-1996
Years 1993-1996
Years 1993-1996
Years 1993-1996
Years 1993-1996
Years 1993-1996
Years 1993-1996
Years 1993-1996
Years 1993-1996
Market Average AED 100,000
Market Average AED 100,000
Market Average AED 100,000
Market Average AED 100,000
Market Average AED 100,000
Market Average AED 100,000
Market Average AED 100,000
Market Average AED 100,000
Market Average AED 100,000
Market Average AED 100,000
Market Average AED 100,000
Market Average AED 100,000
Price AED 60,000
Price AED 60,000
Price AED 60,000
Price AED 60,000
Price AED 60,000
Price AED 60,000
Price AED 60,000
Price AED 60,000
Price AED 60,000
Price AED 60,000
Price AED 60,000
Price AED 60,000
Dimensions
Blade height 0.57 m
Blade height 0.59 m
Blade height 0.59 m
Blade height 0.59 m
Blade height 0.59 m
Blade height 0.59 m
Blade height 0.59 m
Blade height 0.59 m
Blade height 0.59 m
Blade height 0.5 m
Blade height 0.5 m
Blade height 0.5 m
Ground clearance 0.34 m
Ground clearance 0.34 m
Ground clearance 0.4 m
Ground clearance 0.4 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Ground clearance 0.37 m
Height - top of cab 2.1 m
Height - top of cab 2.16 m
Height - top of cab 2.13 m
Height - top of cab 2.19 m
Height - top of cab 2.53 m
Height - top of cab 2.53 m
Height - top of cab 2.53 m
Height - top of cab 2.5 m
Height - top of cab 2.5 m
Height - top of cab 2.53 m
Height - top of cab 2.53 m
Height - top of cab 2.53 m
Length with blade 3.47 m
Length with blade 3.47 m
Length with blade 3.26 m
Length with blade 3.23 m
Length with blade 3.41 m
Length with blade 3.41 m
Length with blade 3.41 m
Length with blade 3.47 m
Length with blade 3.47 m
Length with blade 3.66 m
Length with blade 3.66 m
Length with blade 3.66 m
Length without blade 2.47 m
Length without blade 2.47 m
Length without blade 2.5 m
Length without blade 2.5 m
Length without blade 2.56 m
Length without blade 2.56 m
Length without blade 2.56 m
Length without blade 2.65 m
Length without blade 2.65 m
Length without blade 2.96 m
Length without blade 2.96 m
Length without blade 2.96 m
Width over tracks 1.55 m
Width over tracks 1.62 m
Width over tracks 1.86 m
Width over tracks 1.83 m
Width over tracks 2.56 m
Width over tracks 2.01 m
Width over tracks 2.01 m
Width over tracks 2.19 m
Width over tracks 2.19 m
Width over tracks 2.9 m
Width over tracks 2.9 m
Width over tracks 2.9 m
Service refill capacities
Cooling fluid cap 14 liter
Cooling fluid cap 13.25 liter
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap -
Fuel cap 60.18 liter
Fuel cap 60.18 liter
Fuel cap -
Fuel cap -
Fuel cap -
Fuel cap -
Fuel cap -
Fuel cap -
Fuel cap -
Fuel cap -
Fuel cap -
Fuel cap -
Engine
Gross power 26.1 kw
Gross power 29.08 kw
Gross power 26.1 kw
Gross power 29.08 kw
Gross power 29.83 kw
Gross power 29.83 kw
Gross power 29.83 kw
Gross power 29.83 kw
Gross power 29.83 kw
Gross power 29.83 kw
Gross power 29.83 kw
Gross power 29.83 kw
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Undercarriage
Ground pressure 0.28 bar
Ground pressure 0.29 bar
Ground pressure 0.18 bar
Ground pressure 0.19 bar
Ground pressure -
Ground pressure -
Ground pressure -
Ground pressure -
Ground pressure -
Ground pressure -
Ground pressure -
Ground pressure -
Number of shoes per side 37
Number of shoes per side 37
Number of shoes per side 37
Number of shoes per side 37
Number of shoes per side 37
Number of shoes per side -
Number of shoes per side -
Number of shoes per side -
Number of shoes per side -
Number of shoes per side 43
Number of shoes per side 43
Number of shoes per side -
Number of track rollers per side 5
Number of track rollers per side 5
Number of track rollers per side 5
Number of track rollers per side 5
Number of track rollers per side 5
Number of track rollers per side 5
Number of track rollers per side 5
Number of track rollers per side 6
Number of track rollers per side 6
Number of track rollers per side 7
Number of track rollers per side 7
Number of track rollers per side 7
Track gauge 1.22 m
Track gauge 1.31 m
Track gauge 1.34 m
Track gauge 1.31 m
Track gauge 1.49 m
Track gauge 1.49 m
Track gauge 1.49 m
Track gauge 1.49 m
Track gauge 1.49 m
Track gauge 1.86 m
Track gauge 1.86 m
Track gauge 1.86 m
Track length 1.68 m
Track length 1.71 m
Track length 1.68 m
Track length 1.71 m
Track length 1.71 m
Track length 1.71 m
Track length 1.71 m
Track length 1.83 m
Track length 1.83 m
Track length 2.1 m
Track length 2.1 m
Track length 2.1 m
Track pitch 13.72 cm
Track pitch 13.72 cm
Track pitch 13.72 cm
Track pitch 13.72 cm
Track pitch 13.72 cm
Track pitch 13.72 cm
Track pitch 14.73 cm
Track pitch 13.72 cm
Track pitch 13.72 cm
Track pitch 13.72 cm
Track pitch 13.72 cm
Track pitch 13.72 cm
Track width 30.23 cm
Track width 30.23 cm
Track width 51.05 cm
Track width 51.05 cm
Track width 51.05 cm
Track width 51.05 cm
Track width 50.04 cm
Track width 70.1 cm
Track width 70.1 cm
Track width 70.1 cm
Track width 70.1 cm
Track width 70.1 cm
Transmission
Max speed reverse 6.6 kph
Max speed reverse 6.6 kph
Max speed reverse -
Max speed reverse -
Max speed reverse -
Max speed reverse -
Max speed reverse -
Max speed reverse -
Max speed reverse -
Max speed reverse -
Max speed reverse -
Max speed reverse -
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Number of reverse gears 2
Hydraulic system
Pump flow cap -
Pump flow cap 53.37 lpm
Pump flow cap -
Pump flow cap -
Pump flow cap -
Pump flow cap -
Pump flow cap -
Pump flow cap -
Pump flow cap -
Pump flow cap -
Pump flow cap -
Pump flow cap -
Relief valve pressure -
Relief valve pressure 152.01 bar
Relief valve pressure -
Relief valve pressure -
Relief valve pressure -
Relief valve pressure -
Relief valve pressure -
Relief valve pressure -
Relief valve pressure -
Relief valve pressure -
Relief valve pressure -
Relief valve pressure -
Download datasheets
OEM product brochure

Komatsu D20 expert review

Reviewed by Marcis V. on March 12, 2026

Overview

The Komatsu D20 is a compact crawler dozer designed for light-duty earthmoving and site preparation. With a 3,330 kg operating weight and a 2 m blade, it is well suited for landscaping, farm work, and small construction sites.

Expert rating: 3 stars

Pros Compact dimensions and lightweight design make it ideal for tight job sites.
Cons Limited pushing force and blade capacity compared with larger crawler dozers.

Performance & Efficiency

The lightweight crawler design and direct-drive system provide simple operation and reliable traction for light earthmoving tasks.

In Comparison

Komatsu D21: Slightly larger compact dozer with stronger pushing capability.
Komatsu D31: Larger dozer suited for heavier site preparation work.
Komatsu D20: Best suited for small-scale construction and landscaping jobs.

Final Verdict

Rated 3 stars, the Komatsu D20 remains a useful compact crawler dozer within the AED 60,000–100,000 range.

Show less

Komatsu D20 owner rating

Komatsu D20 Crawler dozers [1993-1996]

1993-1996

Overall rating

Based on 3 ratings

4.0
performance

4.0

comfort

4.3

fuel efficiency

4.3

safety

4.3

features

4.3

5 stars

0 %

4 stars

100 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Compact size allows easy operation on small residential or landscaping sites.
Cons
Limited blade capacity makes it slower for large earthmoving projects.
performance

3.0

comfort

4.0

fuel efficiency

4.0

safety

4.0

features

4.0

Valuation

Last 12 month
1993

Komatsu D20 similar models

Highlight differences
Komatsu D20A-3
Komatsu D21A-3
Komatsu D31A-16
General
Blade capacity 0.76 cu m
Blade capacity 0.76 cu m
Blade capacity -
Blade width 2.32 m
Blade width 2.32 m
Blade width 2.44 m
Displacement 2,600.63 cu cm
Displacement 2,605.55 cu cm
Displacement 4,326.19 cu cm
Drive type Direct drive
Drive type Hydrostatic
Drive type planetary gear
Engine model 4D95-1A
Engine model 4D92-1
Engine model 4D105-3
Max speed forward 7.4 kph
Max speed forward 6.92 kph
Max speed forward 6.6 kph
Operating weight 3,330 kg
Operating weight 3,430 kg
Operating weight 5,180 kg
Years 1993-1996
Years 1972-1979
Years 1993-1996
Market Average AED 100,000
Market Average AED 120,000
Market Average AED 210,000
Price AED 60,000
Price AED 70,000
Price AED 120,000
Dimensions
Blade height 0.57 m
Blade height 0.57 m
Blade height 0.75 m
Ground clearance 0.34 m
Ground clearance 0.34 m
Ground clearance -
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Height - top of cab -
Length with blade 3.47 m
Length with blade 3.47 m
Length with blade -
Length without blade 2.47 m
Length without blade 2.47 m
Length without blade 2.87 m
Width over tracks 1.55 m
Width over tracks 1.55 m
Width over tracks 1.8 m
Service refill capacities
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Cooling fluid cap 22.33 liter
Fuel cap 60.18 liter
Fuel cap 60.18 liter
Fuel cap 115.06 liter
Engine
Gross power 26.1 kw
Gross power 27.59 kw
Gross power 46.98 kw
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Power measured @ 2,450 rpm
Power measured @ 2,450 rpm
Power measured @ -
Undercarriage
Ground pressure 0.28 bar
Ground pressure 0.29 bar
Ground pressure 0.41 bar
Number of shoes per side 37
Number of shoes per side 37
Number of shoes per side -
Number of track rollers per side 5
Number of track rollers per side 5
Number of track rollers per side 5
Track gauge 1.22 m
Track gauge 1.22 m
Track gauge 1.46 m
Track length 1.68 m
Track length 1.68 m
Track length 1.89 m
Track pitch 13.72 cm
Track pitch 13.72 cm
Track pitch -
Track width 30.23 cm
Track width 30.23 cm
Track width 33.02 cm
Transmission
Max speed reverse 6.6 kph
Max speed reverse 6.44 kph
Max speed reverse 7.24 kph
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of reverse gears 2
Number of reverse gears 3
Number of reverse gears 3

Crawler dozers. For sale.

Similar machines. Other reviews.

Komatsu SK1020 Compact track loaders specs Komatsu WB140 Backhoe loaders specs Komatsu WB142 Backhoe loaders specs Komatsu WB146 Backhoe loaders specs Komatsu WB150 Backhoe loaders specs Komatsu WB156 Backhoe loaders specs Komatsu WB70 Backhoe loaders specs Komatsu WB91 Backhoe loaders specs Komatsu WB93 Backhoe loaders specs Komatsu WB97 Backhoe loaders specs
Komatsu WF450 Crawler dozers specs Komatsu WF550 Crawler dozers specs Cat D10 Crawler dozers specs Cat D11 Crawler dozers specs Komatsu D135 Crawler dozers specs Komatsu D20 Crawler dozers specs Komatsu D21 Crawler dozers specs Cat D3 Crawler dozers specs Komatsu D31 Crawler dozers specs Komatsu D32 Crawler dozers specs
Komatsu WD600 Wheel dozers specs Komatsu WF450 Crawler dozers specs Komatsu WF550 Crawler dozers specs Cat D10 Crawler dozers specs Cat D11 Crawler dozers specs Komatsu D135 Crawler dozers specs Komatsu D20 Crawler dozers specs Komatsu D21 Crawler dozers specs Cat D3 Crawler dozers specs Komatsu D31 Crawler dozers specs
John deere 850D VS Komatsu D20PLL-7 Cat 931 VS Komatsu D20PL-7 Cat 931 VS Komatsu D20PLL-7 Cat 931B VS Komatsu D20PL-7 Cat 931B VS Komatsu D20PLL-7
Get the latest from Makana

Subscribe to receive auction dates, exclusive deals, and news in your inbox.

We care about the protection of your data. Read ourPrivacy Policy
trustpilot-logo Over +13 reviews
4.9
google logo Over +160 reviews
4.8

Makana connects quality machinery with the global market, ensuring safe transactions for buyers and sellers.

CompanyAbout usMachinery auctionsWatch showsNewsDocumentation
Book a demo
HELP AND SUPPORTContact usCustomer reviewsHow to sellFinancingInstallmentsFAQ
LEGALPrivacy PolicyTerms & Conditions
© 2026 Makana. All rights reserved.

build datetime: 8/20/2026, 11:35:18 AM
