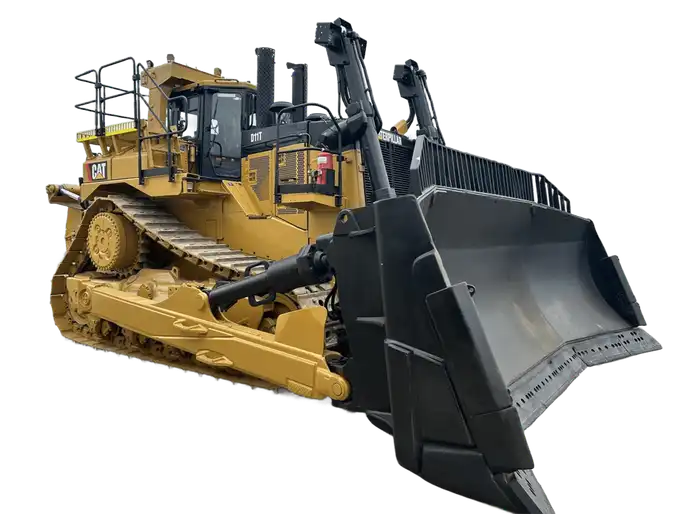

Cat D11 Crawler dozers tech specs
:quality(50)/73539/483a771d-4866-40f8-8a6b-62141de2d84d.png)
:quality(50)/73551/conversions/7a0b9665-5339-4213-9d1b-cb5f4a495ecd-thumb.webp)
Video[1]
:quality(50)/73543/conversions/908b823b-79da-46ea-8ca8-95675549f50a-thumb.webp)
Interior [2]
:quality(50)/73545/conversions/b65b4834-9e79-41b3-960c-00c23609cf99-thumb.webp)
Exterior [4]
:quality(50)/73549/conversions/61e36881-dfc3-4735-a7b8-454bb0cdd4c4-thumb.webp)
Attachments [2]

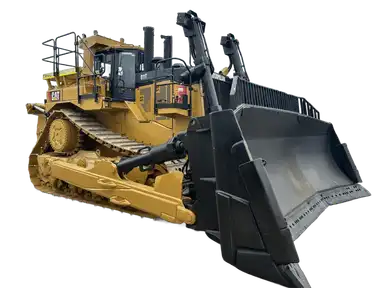

Cat D11 technical specifications
Highlight differences
:quality(50)/73540/f18dd0f4-97b7-4835-bc3b-0d7c32f1baaa.png)
:quality(50)/73541/13adf489-e40b-4260-bee9-07b11ff228e1.png)
:quality(50)/73542/059aa662-2cd6-44ae-87fe-646f92aaf975.png)
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged, aftercooled
Aspiration Turbocharged
Gross power
Gross power 574.2 kw
Gross power 682.33 kw
Gross power 697.24 kw
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 100 Amh
Alternator supplied amperage 100 Amh
Net power
Net power -
Net power 633.86 kw
Net power 633.86 kw
Number of cylinders
Number of cylinders -
Number of cylinders 8
Number of cylinders 12
Power measured @
Power measured @ -
Power measured @ 1,800 rpm
Power measured @ 1,800 rpm
Years
Years 2019-2026
Years 2019-2026
Years 2019-2026
Market Average
Market Average AED 1,200,000
Market Average AED 1,200,000
Market Average AED 1,200,000
Price
Price AED 800,000
Price AED 800,000
Price AED 800,000
Blade capacity
Blade capacity 25.61 cu m
Blade capacity -
Blade capacity -
Blade width
Blade width 5.61 m
Blade width -
Blade width -
Displacement
Displacement 34,501.4 cu cm
Displacement -
Displacement -
Drive type
Drive type Powershift
Drive type Powershift
Drive type -
Engine model
Engine model 3508
Engine model 3508B
Engine model C32 ACERT
Max speed forward
Max speed forward 11.75 kph
Max speed forward 11.75 kph
Max speed forward 11.75 kph
Operating weight
Operating weight 95,846 kg
Operating weight -
Operating weight -
Operating voltage
Operating voltage -
Operating voltage 24 V
Operating voltage 24 V
Blade height
Blade height 2.31 m
Blade height -
Blade height -
Height - top of cab
Height - top of cab 4.57 m
Height - top of cab 4.66 m
Height - top of cab -
Length with blade
Length with blade 8.41 m
Length with blade -
Length with blade -
Length without blade
Length without blade 6.19 m
Length without blade 6.19 m
Length without blade 6.04 m
Ground clearance
Ground clearance -
Ground clearance 0.64 m
Ground clearance -
Width over tracks
Width over tracks -
Width over tracks 3.63 m
Width over tracks -
Fuel cap
Fuel cap 1,490.15 liter
Fuel cap 1,470.85 liter
Fuel cap -
Hydraulic fluid cap
Hydraulic fluid cap 169.19 liter
Hydraulic fluid cap 205.15 liter
Hydraulic fluid cap 243 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 231.26 liter
Cooling fluid cap -
Ground contact area
Ground contact area 160,529.67 cu cm
Ground contact area -
Ground contact area -
Number of track rollers per side
Number of track rollers per side 8
Number of track rollers per side 8
Number of track rollers per side 8
Track gauge
Track gauge 2.9 m
Track gauge -
Track gauge 2.93 m
Track length
Track length 4.45 m
Track length 4.45 m
Track length -
Track width
Track width 71.12 cm
Track width -
Track width -
Number of shoes per side
Number of shoes per side -
Number of shoes per side 41
Number of shoes per side 41
Track pitch
Track pitch -
Track pitch 32 cm
Track pitch 31.75 cm
Ground pressure
Ground pressure -
Ground pressure -
Ground pressure 1.39 bar
Max speed reverse
Max speed reverse 14.16 kph
Max speed reverse 14 kph
Max speed reverse 14 kph
Number of reverse gears
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of forward gears
Number of forward gears -
Number of forward gears 3
Number of forward gears 3
Pump flow cap
Pump flow cap 610.14 lpm
Pump flow cap -
Pump flow cap 249.81 lpm
Relief valve pressure
Relief valve pressure 227.52 bar
Relief valve pressure -
Relief valve pressure 241.31 bar
Pump type
Pump type -
Pump type -
Pump type Gear driven
Engine oil cap
Engine oil cap -
Engine oil cap 106.36 liter
Engine oil cap -
Final drives fluid cap
Final drives fluid cap -
Final drives fluid cap 30.28 liter
Final drives fluid cap 30.28 liter
Download datasheets
Cat D11 expert review
:quality(50)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
Overview
The Cat D11 (D11R, D11T) is a flagship mining crawler dozer designed for extreme earthmoving operations. With an operating weight of 95,846 kg and a 5 m blade, it delivers massive pushing power for high-production mining environments.
Expert rating: 5 stars
Pros
Extremely powerful dozer capable of moving massive volumes of material.
Cons
Very high operating costs and difficult transport requirements.
Performance & Efficiency
The D11 focuses on extreme pushing capability with a heavy-duty powershift drivetrain and wide tracks for traction on mining terrain.
In Comparison
Cat D10: Slightly smaller mining dozer with strong pushing capability.
Komatsu D275A: Comparable large crawler dozer for mining operations.
Cat D11: One of the largest production dozers built for maximum earthmoving output.
Final Verdict
Rated 5 stars, the Cat D11 delivers exceptional mining performance within the AED 800,000–1,200,000 range.
Cat D11 owner rating
Cat D11 Crawler dozers [2019-2026]
2019-2026
Overall rating
Based on 3 ratings
4.7
performance
4.3
comfort
4.7
fuel efficiency
4.7
safety
4.7
features
4.3
5 stars
67 %
4 stars
33 %
3 stars
0 %
2 stars
0 %
1 stars
0 %

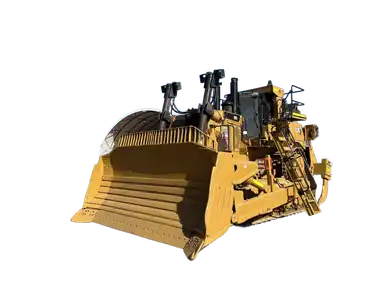

Cat D11 similar models
Highlight differences
:quality(50)/73512/69a93f21-0f20-4224-9996-4f14cd89319f.png)
:quality(50)/61055/3c6ca741-515a-4097-8ed8-f4695a536412.png)
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration Turbocharged, emission certified diesel
Gross power
Gross power 574.2 kw
Gross power 522 kw
Gross power 305.74 kw
Power measured @
Power measured @ -
Power measured @ -
Power measured @ 1,800 rpm
Torque measured @
Torque measured @ -
Torque measured @ -
Torque measured @ 2,000 rpm
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage -
Alternator supplied amperage 50 Amh
Number of cylinders
Number of cylinders -
Number of cylinders -
Number of cylinders 6
Net power
Net power -
Net power -
Net power 289 kw
Bore
Bore -
Bore -
Bore 110 cm
Stroke
Stroke -
Stroke -
Stroke 90 cm
Years
Years 2019-2026
Years 1996-2011
Years 2018-2024
Market Average
Market Average AED 1,200,000
Market Average AED 600,000
Market Average AED 150,000
Price
Price AED 800,000
Price AED 450,000
Price AED 120,000
Blade capacity
Blade capacity 25.61 cu m
Blade capacity -
Blade capacity 12.84 cu m
Blade width
Blade width 5.61 m
Blade width 3.51 m
Blade width 4.33 m
Displacement
Displacement 34,501.4 cu cm
Displacement 29,300.14 cu cm
Displacement 23,150.06 cm3
Drive type
Drive type Powershift
Drive type Powershift
Drive type Torqflow
Engine model
Engine model 3508
Engine model D348
Engine model S6D170-4
Max speed forward
Max speed forward 11.75 kph
Max speed forward 11.75 kph
Max speed forward 11.91 kph
Operating weight
Operating weight 95,846 kg
Operating weight 77,870 kg
Operating weight 50,000 kg
Engine power
Engine power -
Engine power -
Engine power 409 hp
Operating voltage
Operating voltage -
Operating voltage -
Operating voltage 24 V
Max torque
Max torque -
Max torque -
Max torque 3,200 Nm
Blade height
Blade height 2.31 m
Blade height -
Blade height 1.91 cm
Height - top of cab
Height - top of cab 4.57 m
Height - top of cab 4.54 m
Height - top of cab 3.96 m
Length with blade
Length with blade 8.41 m
Length with blade 7.59 m
Length with blade 9.08 m
Length without blade
Length without blade 6.19 m
Length without blade 5.94 m
Length without blade 5.46 m
Ground clearance
Ground clearance -
Ground clearance 0.7 m
Ground clearance 0.52 m
Width over tracks
Width over tracks -
Width over tracks 3.66 m
Width over tracks 2.96 m
Fuel cap
Fuel cap 1,490.15 liter
Fuel cap 1,445.87 liter
Fuel cap 840.27 liter
Hydraulic fluid cap
Hydraulic fluid cap 169.19 liter
Hydraulic fluid cap -
Hydraulic fluid cap -
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap 136.26 liters
Ground contact area
Ground contact area 160,529.67 cu cm
Ground contact area 141,225.67 cu cm
Ground contact area 106,909.44 cu cm
Number of track rollers per side
Number of track rollers per side 8
Number of track rollers per side 8
Number of track rollers per side 8
Track gauge
Track gauge 2.9 m
Track gauge 2.93 m
Track gauge -
Track length
Track length 4.45 m
Track length 3.93 m
Track length -
Track width
Track width 71.12 cm
Track width 71.12 cm
Track width 61.21 mm
Ground pressure
Ground pressure -
Ground pressure 1.37 bar
Ground pressure 0.87 bar
Number of shoes per side
Number of shoes per side -
Number of shoes per side -
Number of shoes per side 39
Track pitch
Track pitch -
Track pitch -
Track pitch 26.16 cm
Max speed reverse
Max speed reverse 14.16 kph
Max speed reverse 13.84 kph
Max speed reverse 14.97 kph
Number of reverse gears
Number of reverse gears 3
Number of reverse gears 3
Number of reverse gears 3
Number of forward gears
Number of forward gears -
Number of forward gears 3
Number of forward gears 3
Pump flow cap
Pump flow cap 610.14 lpm
Pump flow cap -
Pump flow cap 255.11 lpm
Relief valve pressure
Relief valve pressure 227.52 bar
Relief valve pressure -
Relief valve pressure 205.94 bar
Pump type
Pump type -
Pump type -
Pump type Gear driven
Final drives fluid cap
Final drives fluid cap -
Final drives fluid cap -
Final drives fluid cap 43.15 liters
Engine oil cap
Engine oil cap -
Engine oil cap -
Engine oil cap 51.1 liter

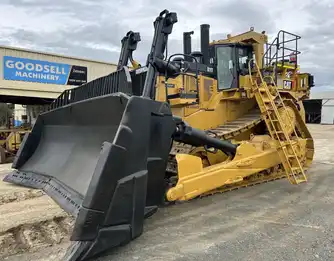

Cat D11 gallery
:quality(50)/73543/908b823b-79da-46ea-8ca8-95675549f50a.webp)
:quality(50)/73544/47f9fd8e-6b4b-4087-a3fc-cc3dc2390686.webp)
:quality(50)/73545/b65b4834-9e79-41b3-960c-00c23609cf99.webp)
:quality(50)/73546/8585f4fc-4a95-443f-8f12-c87182637f4c.webp)
:quality(50)/73547/1e028fc4-807a-4e59-b9d2-f60b150d9d5e.webp)
:quality(50)/73548/2c8b2829-3ec6-4abb-ad95-04e03567dc14.webp)
:quality(50)/73549/61e36881-dfc3-4735-a7b8-454bb0cdd4c4.jpg)
:quality(50)/73550/b471da5b-fbac-47ae-9c94-8aadc8522d58.webp)
:quality(50)/73551/conversions/7a0b9665-5339-4213-9d1b-cb5f4a495ecd-thumb.webp)
:quality(75)/products/10191/3d_cover/5baa775f-39b6-47a9-a7a6-6ae487bb4aca.png)
:quality(75)/products/10170/3d_cover/0d3784e6-43fe-497b-933e-3d9ff6bd72ea.png)
:quality(75)/products/10285/3d_cover/9bfd4809-ed9a-4303-a29a-55d5a9090868.png)
:quality(75)/products/10032/cover/d2ed1969-5d41-4a66-85b4-8e9939bf2453.png)
Similar machines. Other reviews.
:quality(50)/73539/483a771d-4866-40f8-8a6b-62141de2d84d.png)
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
:quality(50)/73719/41aa3ddd-b7ce-4507-92cc-51a338a88afe.png)
:quality(80)/60951/b376c375-391e-4221-936c-4c863ae106c1.jpeg)
:quality(50)/103866/e327728f-a5a4-41b1-88a0-11591ce9e6f0.webp)
:quality(50)/74191/8c415f3c-4451-408b-93b2-fddf9a396d1d.png)
Cat M318 Wheel excavators specs Cat 988 Wheel loaders specs Cat 798 Off-highway trucks specs Cat 797 Off-highway trucks specs Cat 795 Off-highway trucks specs Cat 345 Large excavators specs Cat D10 Crawler dozers specs Cat D11 Crawler dozers specs Cat D3 Crawler dozers specs Cat D4 Crawler dozers specs
Komatsu WF450 Crawler dozers specs Komatsu WF550 Crawler dozers specs Cat D10 Crawler dozers specs Cat D11 Crawler dozers specs Komatsu D135 Crawler dozers specs Komatsu D20 Crawler dozers specs Komatsu D21 Crawler dozers specs Cat D3 Crawler dozers specs Komatsu D31 Crawler dozers specs Komatsu D32 Crawler dozers specs
Komatsu WD600 Wheel dozers specs Komatsu WF450 Crawler dozers specs Komatsu WF550 Crawler dozers specs Cat D10 Crawler dozers specs Cat D11 Crawler dozers specs Komatsu D135 Crawler dozers specs Komatsu D20 Crawler dozers specs Komatsu D21 Crawler dozers specs Cat D3 Crawler dozers specs Komatsu D31 Crawler dozers specs
Cat D10 VS Cat D11N Cat D11N VS Cat D11R Cat D11N VS Komatsu D375A-1 Cat D11R VS Komatsu D375A-2 Cat D11N VS Komatsu D275A-2 Cat D11N VS Komatsu D375A-2 Cat D11R VS Cat D11T Cat D11R VS Komatsu D375A-1 Cat D11T VS Komatsu D475A-3SD Cat D10 VS Cat D11R Cat D10N VS Cat D11R Cat D11R VS Komatsu D575A-2 Cat D11N VS Cat D11T Cat D11N VS Komatsu D51PX-22 Cat D11N VS Komatsu D575A-2 Cat D11R VS Komatsu D275A-2 Cat D10N VS Cat D11N Cat D11R VS Komatsu D475A-2 Cat D11R VS Komatsu D475A-3 Cat D11N VS Komatsu D475A-3 Cat D11R VS Komatsu D51PX-22 Cat D11T VS Komatsu D475A-3
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
:quality(50)/35112/27094105-1188-4d7f-b8cd-5ed4b9c99391.svg)
:quality(50)/35115/93df1526-7a54-4e3c-9c3b-06102e561c2b.svg)
