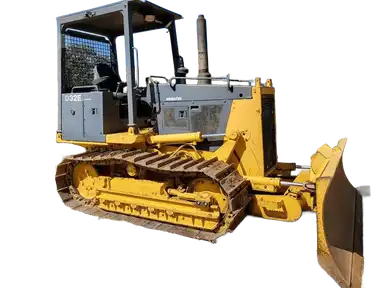

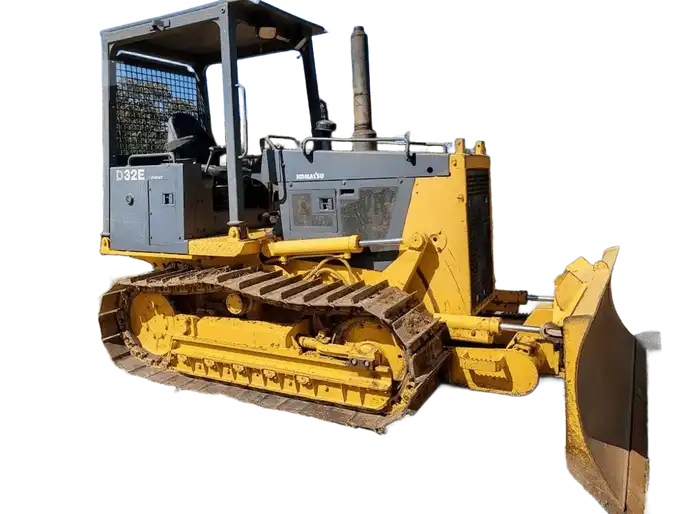

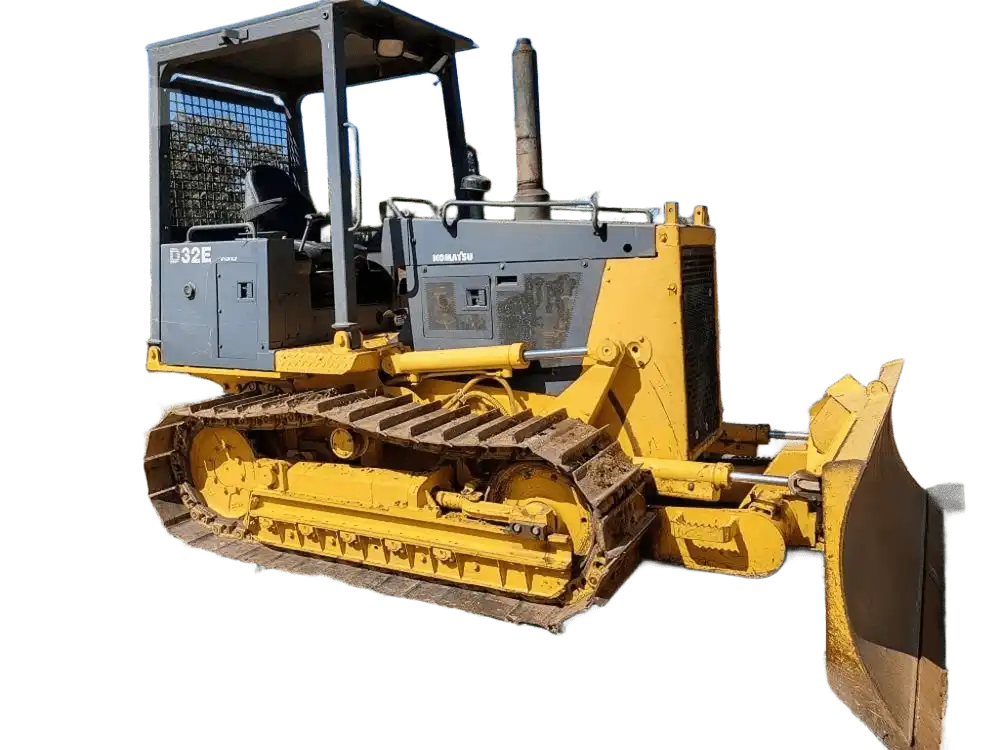

Komatsu D32 Crawler dozers tech specs

makana img
video play button
Video[1]

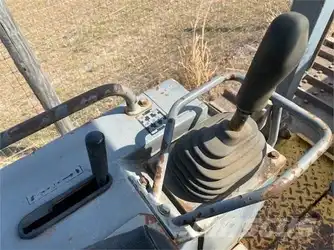

Interior [2]

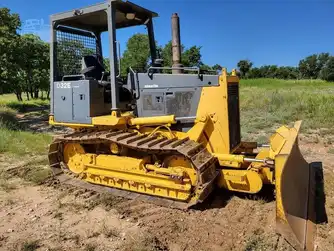

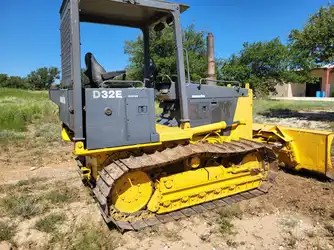

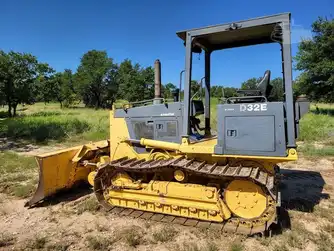

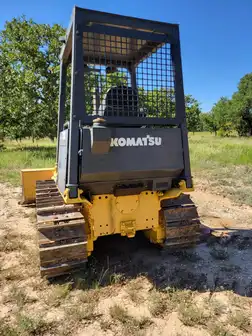

Exterior [4]

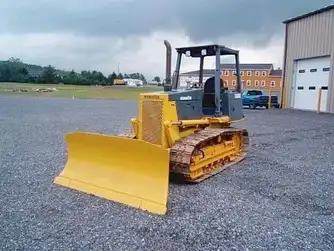

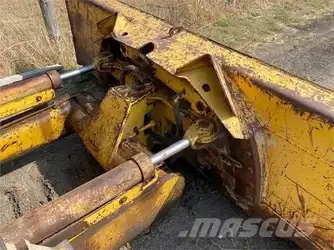

Attachments [2]
1998-2003
2.62 m Blade width
Torque Converter Drive type
170.33 liter Fuel cap
7,212 kg Operating weight
1.86 m Track length
38.1 cm Track width

A compact crawler dozer built for grading, landscaping, and light earthmoving work, the Komatsu D32 combines a 7,212 kg operating weight with a 2 m blade and a torque converter drivetrain for smooth power delivery. Designed for construction sites and utility work, the machine emphasizes traction, durability, and stable grading performance.

Operating weight 7,212 kg

Blade width 2 m

Track width 38.1 cm

Track length 1.86 m

Fuel capacity 170.33 liters

Torque converter drivetrain

Compact crawler dozer for grading and site preparation

Makana rating

Owner rating

 | 3

Market average

AED 150,000

Starting from

AED 90,000

Komatsu D32 technical specifications

Highlight differences

Komatsu D32E-1

Komatsu D32P-1

Engine
Alternator supplied amperage 62 Amh
Alternator supplied amperage 62 Amh
Aspiration Naturally aspirated
Aspiration Naturally aspirated
Gross power 59.66 kw
Gross power 59.66 kw
Net power 52.2 kw
Net power 52.2 kw
Number of cylinders 4
Number of cylinders 4
Power measured @ 2,500 rpm
Power measured @ 2,500 rpm
Torque measured @ 1,200 rpm
Torque measured @ 1,200 rpm
Years 1998-2003
Years 1998-2003
Market Average AED 150,000
Market Average AED 150,000
Price AED 90,000
Price AED 90,000
Blades
Blade angle 25 º
Blade angle 25 º
General
Blade capacity 1.45 cu m
Blade capacity 1.45 cu m
Blade width 2.62 m
Blade width 2.83 m
Displacement 3,916.52 cu cm
Displacement 3,916.52 cu cm
Drive type Torque Converter
Drive type Torque Converter
Engine model 4D102E-1
Engine model 4D102E-1
Max speed forward 8.85 kph
Max speed forward 8.85 kph
Max torque 268.45 Nm
Max torque 268.45 Nm
Operating voltage 12 V
Operating voltage 12 V
Operating weight 7,212 kg
Operating weight 7,860 kg
Dimensions
Blade height 0.84 m
Blade height 0.84 m
Ground clearance 0.34 m
Ground clearance 0.34 m
Height - top of cab 2.59 m
Height - top of cab 2.59 m
Length with blade 4.02 m
Length with blade 4.33 m
Service refill capacities
Cooling fluid cap 26.87 liter
Cooling fluid cap 26.87 liter
Fuel cap 170.33 liter
Fuel cap 170.33 liter
Refill capacities
Engine oil cap 10.6 liter
Engine oil cap 10.6 liter
Final drives fluid cap 9.84 liter
Final drives fluid cap 9.84 liter
Undercarriage
Ground contact area 35,592.78 cu cm
Ground contact area 64,581.56 cu cm
Ground pressure 0.5 bar
Ground pressure 0.3 bar
Number of shoes per side 34
Number of shoes per side 37
Number of track rollers per side 5
Number of track rollers per side 6
Track gauge 1.37 m
Track gauge 1.55 m
Track length 1.86 m
Track length 2.1 m
Track width 38.1 cm
Track width 60.96 cm
Transmission
Max speed reverse 10.46 kph
Max speed reverse 10.46 kph
Number of forward gears 3
Number of forward gears 3
Number of reverse gears 3
Number of reverse gears 3
Hydraulic system
Pump flow cap 75.7 lpm
Pump flow cap 75.7 lpm
Pump type Tandem Gear
Pump type Tandem Gear
Relief valve pressure 155.13 bar
Relief valve pressure 155.13 bar
Download datasheets
OEM product brochure

Komatsu D32 expert review

Reviewed by Adrien E. on March 12, 2026

Overview

The Komatsu D32 is a compact crawler dozer designed for grading, landscaping, and site preparation. With a 7,212 kg operating weight, a 2 m blade, and a torque converter drivetrain, it provides stable performance for light earthmoving tasks.

Expert rating: 4 stars

Pros Smooth power delivery and stable crawler traction improve grading control.
Cons Limited pushing force compared with larger construction dozers.

Performance & Efficiency

The torque converter drivetrain allows smooth torque transfer while the crawler undercarriage provides strong traction for grading and site preparation tasks.

In Comparison

Cat D3: Larger compact dozer with higher pushing capacity.
Komatsu D31: Smaller dozer suited for lighter construction tasks.
Komatsu D32: Balanced machine focused on smooth grading performance.

Final Verdict

Rated 4 stars, the Komatsu D32 remains a reliable compact crawler dozer within the AED 90,000–150,000 range.

Show less

Komatsu D32 owner rating

Komatsu D32 Crawler dozers [1998-2003]

1998-2003

Overall rating

Based on 3 ratings

5.0
performance

4.7

comfort

4.7

fuel efficiency

4.5

safety

4.3

features

4.7

5 stars

100 %

4 stars

0 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Torque converter drivetrain delivers smooth pushing power for grading jobs.
Cons
Blade width limits productivity on large earthmoving projects.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

5.0

Valuation

Last 12 month
1998

Komatsu D32 similar models

Highlight differences
Komatsu D32E-1
Cat D3
Komatsu D31A-16
Engine
Alternator supplied amperage 62 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Aspiration Naturally aspirated
Aspiration -
Aspiration -
Gross power 59.66 kw
Gross power 46.23 kw
Gross power 46.98 kw
Net power 52.2 kw
Net power -
Net power -
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @ 2,500 rpm
Power measured @ -
Power measured @ -
Torque measured @ 1,200 rpm
Torque measured @ -
Torque measured @ -
Years 1998-2003
Years 1972-2020
Years 1993-1996
Market Average AED 150,000
Market Average AED 200,000
Market Average AED 210,000
Price AED 90,000
Price AED 120,000
Price AED 120,000
Blades
Blade angle 25 º
Blade angle -
Blade angle -
General
Blade capacity 1.45 cu m
Blade capacity -
Blade capacity -
Blade width 2.62 m
Blade width -
Blade width 2.44 m
Displacement 3,916.52 cu cm
Displacement 5,201.27 cu cm
Displacement 4,326.19 cu cm
Drive type Torque Converter
Drive type Powershift
Drive type planetary gear
Engine model 4D102E-1
Engine model 3204
Engine model 4D105-3
Max speed forward 8.85 kph
Max speed forward 11.43 kph
Max speed forward 6.6 kph
Max torque 268.45 Nm
Max torque -
Max torque -
Operating voltage 12 V
Operating voltage -
Operating voltage -
Operating weight 7,212 kg
Operating weight 13,980 kg
Operating weight 5,180 kg
Dimensions
Blade height 0.84 m
Blade height -
Blade height 0.75 m
Ground clearance 0.34 m
Ground clearance 0.34 m
Ground clearance -
Height - top of cab 2.59 m
Height - top of cab 1.71 m
Height - top of cab -
Length with blade 4.02 m
Length with blade 3.69 m
Length with blade -
Length without blade -
Length without blade 2.77 m
Length without blade 2.87 m
Width over tracks -
Width over tracks 1.8 m
Width over tracks 1.8 m
Service refill capacities
Cooling fluid cap 26.87 liter
Cooling fluid cap -
Cooling fluid cap 22.33 liter
Fuel cap 170.33 liter
Fuel cap 114.31 liter
Fuel cap 115.06 liter
Refill capacities
Engine oil cap 10.6 liter
Engine oil cap -
Engine oil cap -
Final drives fluid cap 9.84 liter
Final drives fluid cap -
Final drives fluid cap -
Undercarriage
Ground contact area 35,592.78 cu cm
Ground contact area 28,195.64 cu cm
Ground contact area -
Ground pressure 0.5 bar
Ground pressure 0.54 bar
Ground pressure 0.41 bar
Number of shoes per side 34
Number of shoes per side -
Number of shoes per side -
Number of track rollers per side 5
Number of track rollers per side 5
Number of track rollers per side 5
Track gauge 1.37 m
Track gauge 1.43 m
Track gauge 1.46 m
Track length 1.86 m
Track length 1.83 m
Track length 1.89 m
Track width 38.1 cm
Track width 30.73 cm
Track width 33.02 cm
Transmission
Max speed reverse 10.46 kph
Max speed reverse 5.15 kph
Max speed reverse 7.24 kph
Number of forward gears 3
Number of forward gears 3
Number of forward gears 3
Number of reverse gears 3
Number of reverse gears 1
Number of reverse gears 3
Hydraulic system
Pump flow cap 75.7 lpm
Pump flow cap -
Pump flow cap -
Pump type Tandem Gear
Pump type -
Pump type -
Relief valve pressure 155.13 bar
Relief valve pressure -
Relief valve pressure -
