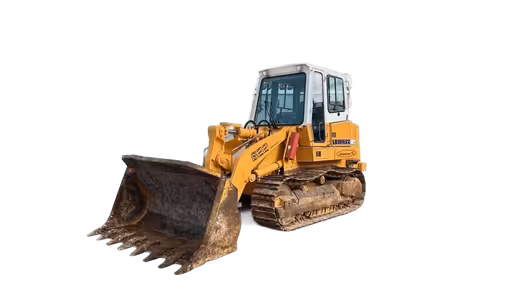

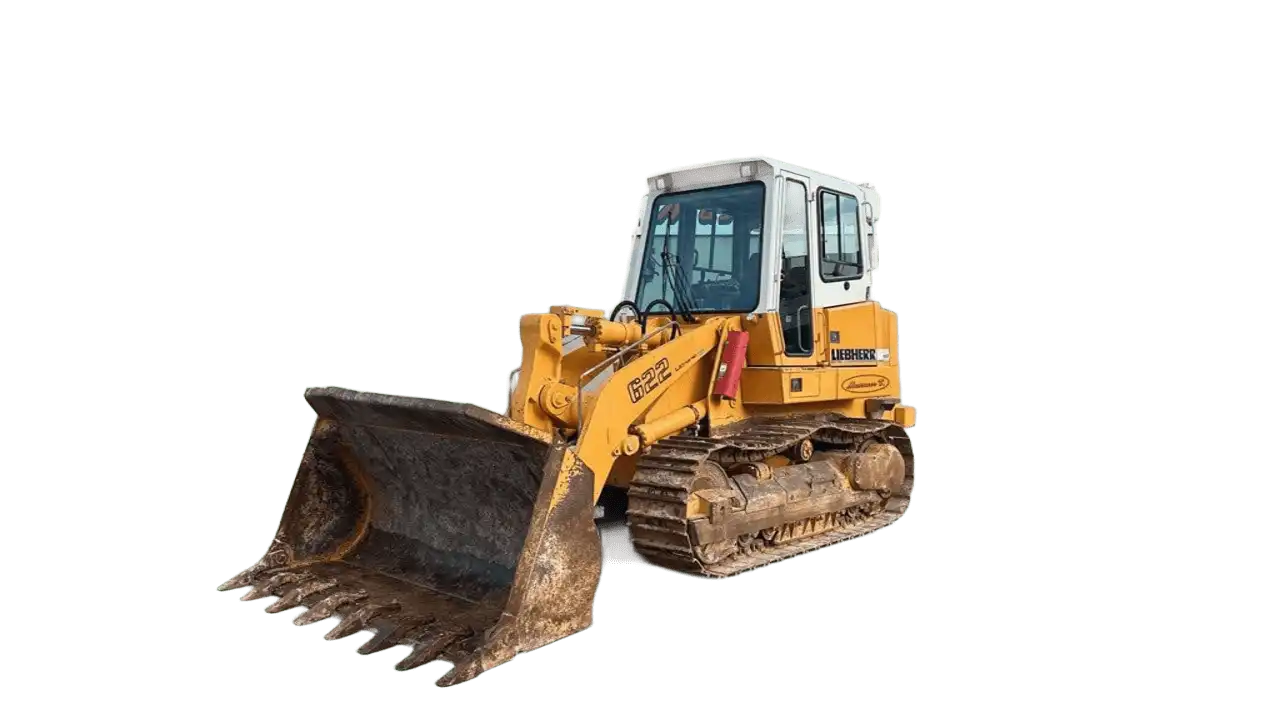

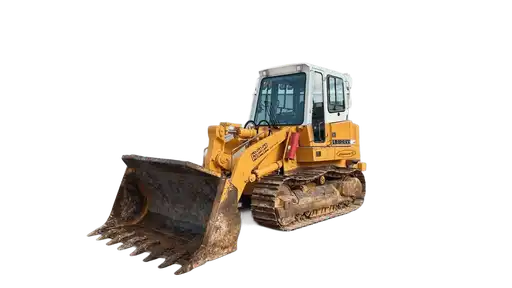

Liebherr LR622 Crawler loaders tech specs
:quality(50)/74595/conversions/db1c1c2f-68aa-4661-b523-0743180701b8-thumb.webp)
Video[1]
:quality(50)/74587/conversions/4f6d20e0-4526-4933-b297-35d12ca4dcb0-thumb.webp)

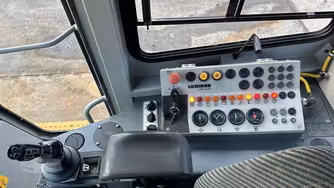

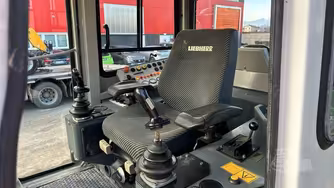

Interior [2]
:quality(50)/74589/conversions/69488dba-22db-4297-96b3-0e60be5ca1e9-thumb.webp)

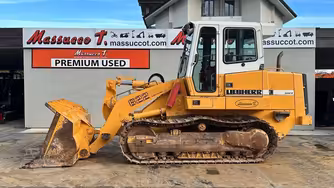

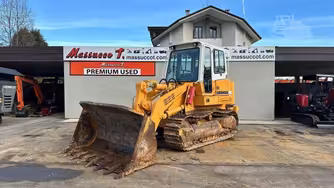

Exterior [4]
:quality(50)/74593/conversions/dc3dd200-acd7-411a-be89-be4493680a26-thumb.webp)

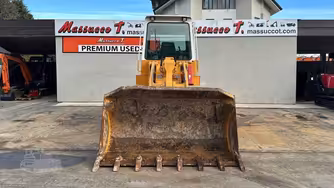

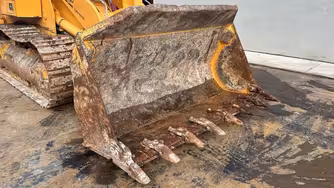

Attachments [2]
2003-2007
13,868.2 kg Breakout force
1.76 cu m Bucket capacity
D 924 T-E Engine model
2.93 m Loader dump height
98.43 kw Net power
15,921 kg Operating weight
Makana rating
Market average
AED 305,000Starting from
AED 97,000Liebherr LR622 Technical specifications
Engine
Alternator supplied amperage
55 Amh
Aspiration
Turbocharged
Displacement
6700.69 cu cm
Net power
98.43 kw
Number of cylinders
4
Power measured @
2,000 rpm
Loader
Breakout force
13868.2 kg
Loader dump height
2.93 m
Loader dump reach
1.04 m
General
Bucket capacity
1.76 cu m
Engine model
D 924 T-E
Operating voltage
24 V
Operating weight
15,921 kg
Tipping load
10,600 kg
Service refill capacities
Cooling fluid cap
42.01 liter
Fuel cap
260.03 liter
Hydraulic fluid cap
130.2 liter
Refill capacities
Engine oil cap
18.17 liter
Final drives fluid cap
13.25 liter
Dimensions
Ground clearance
4.75 m
Height - top of cab
3.14 m
Length with bucket
6.13 m
Width over tracks
2.47 m
Undercarriage
Ground pressure
0.6 bar
Number of track rollers per side
6
Track gauge
1.68 m
Track width
50.8 cm
Hydraulic system
Pump flow cap
156.32 lpm
Pump type
Swash plate piston pump
Relief valve pressure
259.93 bar
Download datasheets
Liebherr LR622 similar models
Highlight differences
Liebherr LR622B

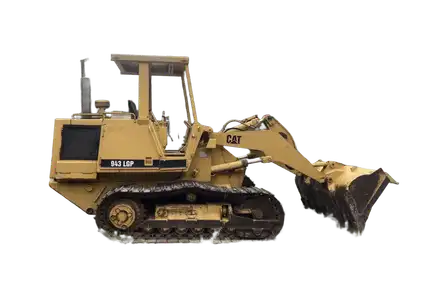

Cat 943 LGP

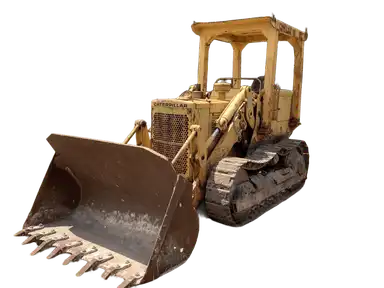

Cat 951C
Alternator supplied amperage
Alternator supplied amperage 55 Amh
Alternator supplied amperage -
Alternator supplied amperage 19 Amh
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration -
Displacement
Displacement 6,700.69 cu cm
Displacement 5,201.27 cu cm
Displacement 7,000.57 cu cm
Net power
Net power 98.43 kw
Net power 59.66 kw
Net power 70.84 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ 2,000 rpm
Power measured @ -
Power measured @ 2,200 rpm
Years
Years 2003-2007
Years 1985-2025
Years 1982-2025
Market Average
Market Average AED 305,000
Market Average AED 298,000
Market Average AED 384,000
Price
Price AED 97,000
Price AED 152,000
Price AED 289,000
Breakout force
Breakout force 13,868.2 kg
Breakout force 9,588.5 kg
Breakout force 7,125.94 kg
Loader dump height
Loader dump height 2.93 m
Loader dump height 2.68 m
Loader dump height 2.77 m
Loader dump reach
Loader dump reach 1.04 m
Loader dump reach 0.88 m
Loader dump reach 1.07 m
Bucket capacity
Bucket capacity 1.76 cu m
Bucket capacity 1.22 cu m
Bucket capacity 1.38 cu m
Engine model
Engine model D 924 T-E
Engine model 3204
Engine model 3304
Operating voltage
Operating voltage 24 V
Operating voltage -
Operating voltage 24 V
Operating weight
Operating weight 15,921 kg
Operating weight 11,888 kg
Operating weight 12,733 kg
Tipping load
Tipping load 10,600 kg
Tipping load 8,032 kg
Tipping load 8,558 kg
Max speed forward
Max speed forward -
Max speed forward 9.66 kph
Max speed forward 11.59 kph
Cooling fluid cap
Cooling fluid cap 42.01 liter
Cooling fluid cap -
Cooling fluid cap 24.6 liter
Fuel cap
Fuel cap 260.03 liter
Fuel cap 159.35 liter
Fuel cap 197.2 liter
Hydraulic fluid cap
Hydraulic fluid cap 130.2 liter
Hydraulic fluid cap 58.29 liter
Hydraulic fluid cap 73.81 liter
Engine oil cap
Engine oil cap 18.17 liter
Engine oil cap -
Engine oil cap 18.93 liter
Final drives fluid cap
Final drives fluid cap 13.25 liter
Final drives fluid cap -
Final drives fluid cap 9.84 liter
Ground clearance
Ground clearance 4.75 m
Ground clearance 0.37 m
Ground clearance 0.43 m
Height - top of cab
Height - top of cab 3.14 m
Height - top of cab 3.05 m
Height - top of cab 2.9 m
Length with bucket
Length with bucket 6.13 m
Length with bucket 5.46 m
Length with bucket 4.79 m
Width over tracks
Width over tracks 2.47 m
Width over tracks 2.07 m
Width over tracks 1.98 m
Ground pressure
Ground pressure 0.6 bar
Ground pressure 0.59 bar
Ground pressure -
Number of track rollers per side
Number of track rollers per side 6
Number of track rollers per side 6
Number of track rollers per side 5
Track gauge
Track gauge 1.68 m
Track gauge 1.7 m
Track gauge 1.53 m
Track width
Track width 50.8 cm
Track width 46.23 cm
Track width 35.56 cm
Ground contact area
Ground contact area -
Ground contact area 50,293.65 cu cm
Ground contact area 38,609.65 cu cm
Track length
Track length -
Track length 2.16 m
Track length 2.16 m
Number of shoes per side
Number of shoes per side -
Number of shoes per side -
Number of shoes per side 39
Pump flow cap
Pump flow cap 156.32 lpm
Pump flow cap -
Pump flow cap 126.04 lpm
Pump type
Pump type Swash plate piston pump
Pump type -
Pump type Vane-type pump
Relief valve pressure
Relief valve pressure 259.93 bar
Relief valve pressure -
Relief valve pressure 172.37 bar
Raise time
Raise time -
Raise time 7 s
Raise time 7 s
Lower time
Lower time -
Lower time 2 s
Lower time 2 s

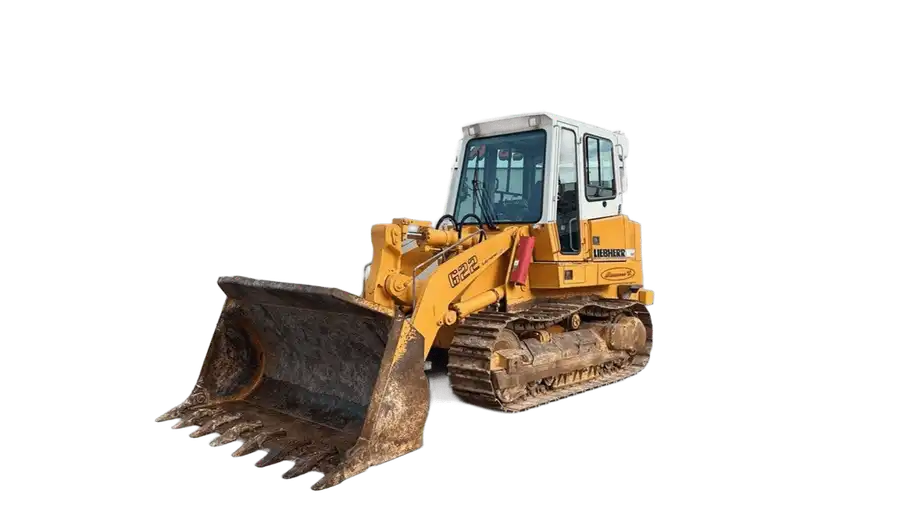

Liebherr LR622 gallery
