Liebherr LR624 Crawler loaders tech specs
:quality(50)/74607/conversions/1fa35e73-1aee-4a02-978a-9c97fb361e37-thumb.webp)
Video[1]
:quality(50)/74599/conversions/3586a9de-9dff-421b-95b1-62b156823772-thumb.webp)

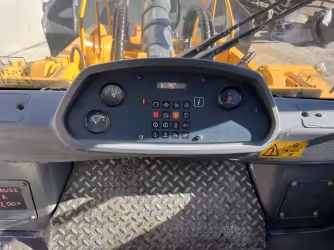

Interior [2]
:quality(50)/74601/conversions/3f2a1534-57fd-46d9-a5bd-1f3a65113b9b-thumb.webp)

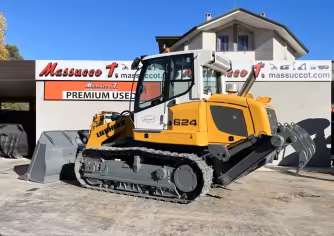

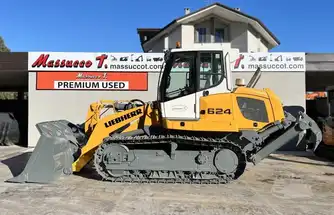

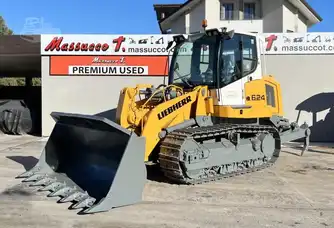

Exterior [4]
:quality(50)/74605/conversions/a755e33e-7955-4760-b972-dca2e6bf7b01-thumb.webp)

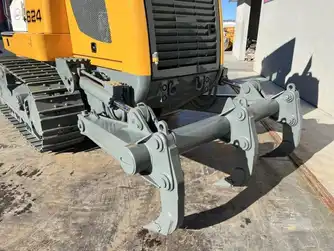

Attachments [2]
2007-2017
1.83 cu m Bucket capacity
D934 S A6 Engine model
0.46 m Ground clearance
2.87 m Loader dump height
106.64 kw Net power
16,908 kg Operating weight
Makana rating
Market average
AED 240,000Starting from
AED 146,000Liebherr LR624 Technical specifications
Engine
Alternator supplied amperage
80 Amh
Aspiration
Turbocharged, aftercooled
Displacement
6407.36 cu cm
Net power
106.64 kw
Number of cylinders
4
Power measured @
1,800 rpm
General
Bucket capacity
1.83 cu m
Engine model
D934 S A6
Max speed forward
9.98 kph
Operating voltage
24 V
Operating weight
16,908 kg
Tipping load
11,863 kg
Service refill capacities
Cooling fluid cap
36.34 liter
Fuel cap
243 liter
Hydraulic fluid cap
78.35 liter
Operating specifications
Raise time
6 s
Lower time
3 s
Refill capacities
Engine oil cap
30.28 liter
Final drives fluid cap
15.14 liter
Dimensions
Ground clearance
0.46 m
Height - top of cab
3.17 m
Length with bucket
6.34 m
Width over tracks
2.26 m
Undercarriage
Ground pressure
0.66 bar
Number of shoes per side
39
Number of track rollers per side
6
Track gauge
1.74 m
Track length
2.5 m
Track width
50.8 cm
Loader
Loader dump height
2.87 m
Loader dump reach
1.07 m
Hydraulic system
Pump flow cap
162 lpm
Relief valve pressure
259.93 bar
Download datasheets
Liebherr LR624 similar models
Highlight differences
Liebherr LR624
Cat 943 LGP
Cat 951C
Alternator supplied amperage
Alternator supplied amperage 80 Amh
Alternator supplied amperage -
Alternator supplied amperage 19 Amh
Aspiration
Aspiration Turbocharged, aftercooled
Aspiration -
Aspiration -
Displacement
Displacement 6,407.36 cu cm
Displacement 5,201.27 cu cm
Displacement 7,000.57 cu cm
Net power
Net power 106.64 kw
Net power 59.66 kw
Net power 70.84 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ 1,800 rpm
Power measured @ -
Power measured @ 2,200 rpm
Years
Years 2007-2017
Years 1985-2025
Years 1982-2025
Market Average
Market Average AED 240,000
Market Average AED 298,000
Market Average AED 384,000
Price
Price AED 146,000
Price AED 152,000
Price AED 289,000
Bucket capacity
Bucket capacity 1.83 cu m
Bucket capacity 1.22 cu m
Bucket capacity 1.38 cu m
Engine model
Engine model D934 S A6
Engine model 3204
Engine model 3304
Max speed forward
Max speed forward 9.98 kph
Max speed forward 9.66 kph
Max speed forward 11.59 kph
Operating voltage
Operating voltage 24 V
Operating voltage -
Operating voltage 24 V
Operating weight
Operating weight 16,908 kg
Operating weight 11,888 kg
Operating weight 12,733 kg
Tipping load
Tipping load 11,863 kg
Tipping load 8,032 kg
Tipping load 8,558 kg
Cooling fluid cap
Cooling fluid cap 36.34 liter
Cooling fluid cap -
Cooling fluid cap 24.6 liter
Fuel cap
Fuel cap 243 liter
Fuel cap 159.35 liter
Fuel cap 197.2 liter
Hydraulic fluid cap
Hydraulic fluid cap 78.35 liter
Hydraulic fluid cap 58.29 liter
Hydraulic fluid cap 73.81 liter
Raise time
Raise time 6 s
Raise time 7 s
Raise time 7 s
Lower time
Lower time 3 s
Lower time 2 s
Lower time 2 s
Engine oil cap
Engine oil cap 30.28 liter
Engine oil cap -
Engine oil cap 18.93 liter
Final drives fluid cap
Final drives fluid cap 15.14 liter
Final drives fluid cap -
Final drives fluid cap 9.84 liter
Ground clearance
Ground clearance 0.46 m
Ground clearance 0.37 m
Ground clearance 0.43 m
Height - top of cab
Height - top of cab 3.17 m
Height - top of cab 3.05 m
Height - top of cab 2.9 m
Length with bucket
Length with bucket 6.34 m
Length with bucket 5.46 m
Length with bucket 4.79 m
Width over tracks
Width over tracks 2.26 m
Width over tracks 2.07 m
Width over tracks 1.98 m
Ground pressure
Ground pressure 0.66 bar
Ground pressure 0.59 bar
Ground pressure -
Number of shoes per side
Number of shoes per side 39
Number of shoes per side -
Number of shoes per side 39
Number of track rollers per side
Number of track rollers per side 6
Number of track rollers per side 6
Number of track rollers per side 5
Track gauge
Track gauge 1.74 m
Track gauge 1.7 m
Track gauge 1.53 m
Track length
Track length 2.5 m
Track length 2.16 m
Track length 2.16 m
Track width
Track width 50.8 cm
Track width 46.23 cm
Track width 35.56 cm
Ground contact area
Ground contact area -
Ground contact area 50,293.65 cu cm
Ground contact area 38,609.65 cu cm
Loader dump height
Loader dump height 2.87 m
Loader dump height 2.68 m
Loader dump height 2.77 m
Loader dump reach
Loader dump reach 1.07 m
Loader dump reach 0.88 m
Loader dump reach 1.07 m
Breakout force
Breakout force -
Breakout force 9,588.5 kg
Breakout force 7,125.94 kg
Pump flow cap
Pump flow cap 162 lpm
Pump flow cap -
Pump flow cap 126.04 lpm
Relief valve pressure
Relief valve pressure 259.93 bar
Relief valve pressure -
Relief valve pressure 172.37 bar
Pump type
Pump type -
Pump type -
Pump type Vane-type pump
