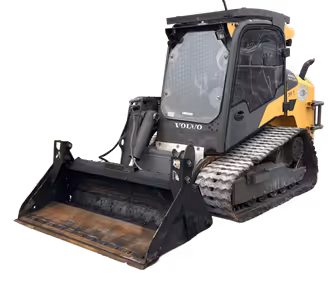

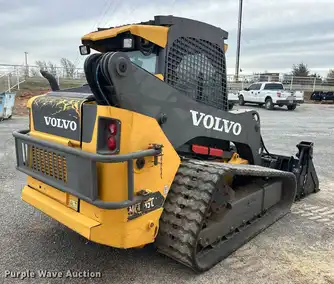

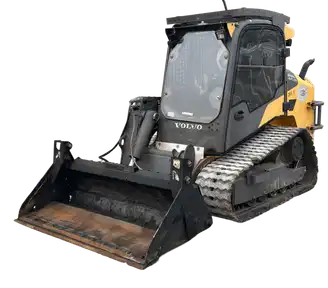

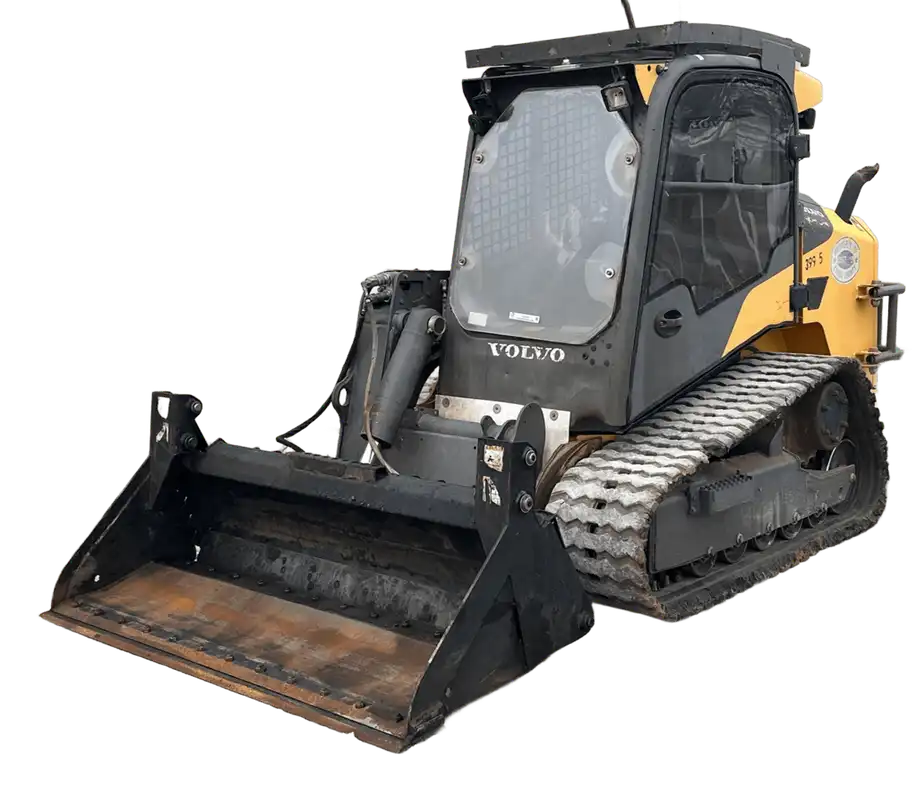

Volvo MCT135 Compact track loaders tech specs

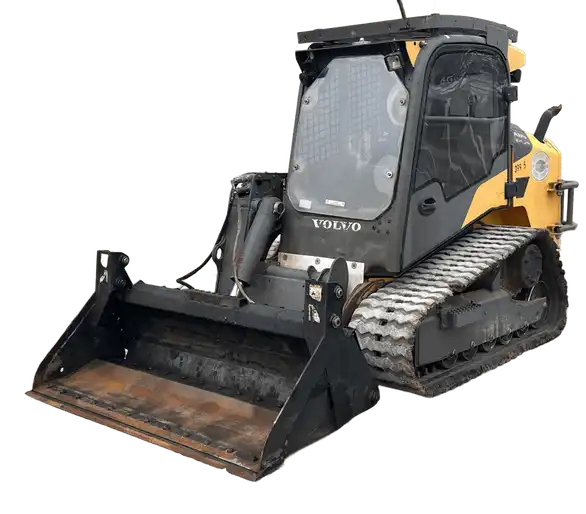

makana img
video play button
Video[1]

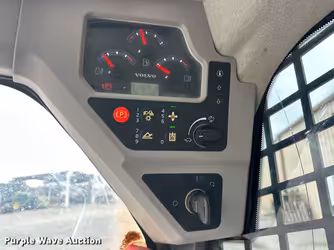

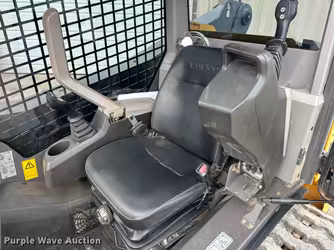

Interior [2]

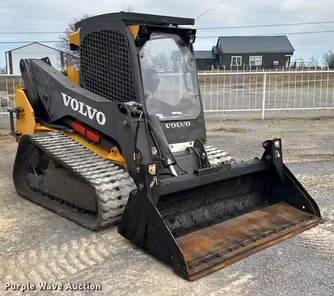

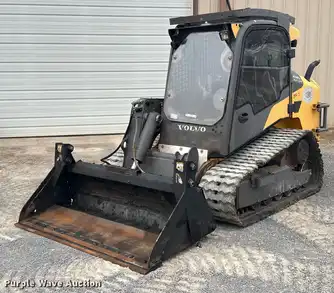

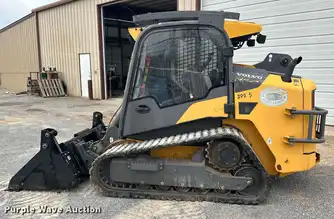

Exterior [4]

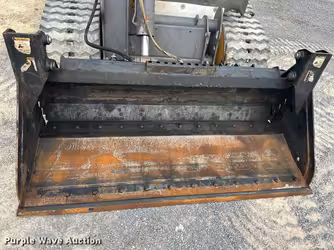

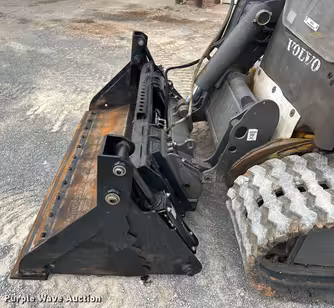

Attachments [2]
2018-2023
55.18 kw Gross power
2.41 m Loader dump height
0.91 m Loader dump reach
1,360.78 kg Lifting capacity
4,836 kg Operating weight
3,913 kg Tipping load

Makana rating

Market average

AED 147,000

Starting from

AED 105,000

Volvo MCT135 technical specifications

Highlight differences

Volvo MCT135C

Volvo MCT135D

Engine
Alternator supplied amperage 342 Amh
Alternator supplied amperage 342 Amh
Gross power 55.18 kw
Gross power 41.01 kw
Max torque 400.1 Nm
Max torque 400.1 Nm
Net power 68.61 kw
Net power -
Number of cylinders 4
Number of cylinders 4
Power measured @ 2,200 rpm
Power measured @ -
Torque measured @ 1,800 rpm
Torque measured @ -
Aspiration -
Aspiration Turbocharged
Displacement -
Displacement 4,399.94 cu cm
Years 2018-2023
Years 2018-2023
Market Average AED 147,000
Market Average AED 147,000
Price AED 105,000
Price AED 105,000
Operating specifications
Angle of departure 28 º
Angle of departure 29 º
Dump angle 42 º
Dump angle 42 º
Lift arm path Vertical
Lift arm path Vertical
Rack back angle 86 º
Rack back angle 30 º
General
Operating voltage 12 V
Operating voltage 12 V
Bucket capacity 0.69 cu m
Bucket capacity 0.54 cu m
Lifting capacity 1,360.78 kg
Lifting capacity 1,361.01 kg
Max speed forward 12.71 kph
Max speed forward 9.17 kph
Operating weight 4,836 kg
Operating weight 5,089 kg
Tipping load 3,913 kg
Tipping load 3,913 kg
Bucket width -
Bucket width 190 cm
Engine model -
Engine model TCAE-55
Loader
Breakout force - lift cylinder 2,634.01 kg
Breakout force - lift cylinder 2,634.01 kg
Breakout force - tilt cylinder 3,260.02 kg
Breakout force - tilt cylinder 2,968.04 kg
Loader dump height 2.41 m
Loader dump height 2.29 m
Loader dump reach 0.91 m
Loader dump reach 0.9 m
Service refill capacities
Cooling fluid cap 15.52 liter
Cooling fluid cap 22.33 liter
Fuel cap 103.33 liter
Fuel cap 103.33 liter
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 208.18 liter
Refill capacities
Engine oil cap 15.14 liter
Engine oil cap 15.14 liter
Dimensions
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Length with bucket 3.81 m
Length with bucket 3.02 m
Length without Bucket 2.74 m
Length without Bucket 3.81 m
Max height to hinge pin 318.01 cm
Max height to hinge pin 318.01 cm
Overall Width 1.98 m
Overall Width 1.93 m
Turning radius 1.76 m
Turning radius 1.77 m
Width over tracks 1.98 m
Width over tracks 1.1 m
Ground clearance -
Ground clearance 0.23 m
Hydraulic system
Pump flow cap 125.28 lpm
Pump flow cap 125.28 lpm
Relief valve pressure 229.94 bar
Relief valve pressure 230.01 bar
Undercarriage
Track width 45.21 cm
Track width -
Download datasheets
OEM product brochure

Valuation

Last 12 month
2018

Volvo MCT135 similar models

Highlight differences
Volvo MCT135C
Cat 289C
Cat 299C
Engine
Alternator supplied amperage 342 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Gross power 55.18 kw
Gross power 62.64 kw
Gross power 70.1 kw
Max torque 400.1 Nm
Max torque -
Max torque -
Net power 68.61 kw
Net power 61.15 kw
Net power 67.11 kw
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @ 2,200 rpm
Power measured @ 2,500 rpm
Power measured @ 2,500 rpm
Torque measured @ 1,800 rpm
Torque measured @ -
Torque measured @ -
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Bore -
Bore 9.4 cm
Bore 9.4 cm
Displacement -
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Years 2018-2023
Years 2009-2016
Years 2009-2015
Market Average AED 147,000
Market Average AED 265,000
Market Average AED 140,000
Price AED 105,000
Price AED 210,000
Price AED 110,000
Operating specifications
Angle of departure 28 º
Angle of departure 44 º
Angle of departure 38 º
Dump angle 42 º
Dump angle 50 º
Dump angle 51 º
Lift arm path Vertical
Lift arm path -
Lift arm path -
Rack back angle 86 º
Rack back angle 77 º
Rack back angle 83 º
Cab FOPS -
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
General
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Bucket capacity 0.69 cu m
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Lifting capacity 1,360.78 kg
Lifting capacity 1,746.33 kg
Lifting capacity 1,882.41 kg
Max speed forward 12.71 kph
Max speed forward 13.68 kph
Max speed forward 13.68 kph
Operating weight 4,836 kg
Operating weight 4,701 kg
Operating weight 4,867 kg
Tipping load 3,913 kg
Tipping load 3,502 kg
Tipping load 3,782 kg
Engine model -
Engine model Cat C3.4T
Engine model Cat C3.4T
Max horizontal reach -
Max horizontal reach 1.28 m
Max horizontal reach 1.27 m
Loader
Breakout force - lift cylinder 2,634.01 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder 3,260.02 kg
Breakout force - tilt cylinder 3,314.86 kg
Breakout force - tilt cylinder 3,314.86 kg
Loader dump height 2.41 m
Loader dump height 2.47 m
Loader dump height 2.5 m
Loader dump reach 0.91 m
Loader dump reach 0.79 m
Loader dump reach 0.79 m
Service refill capacities
Cooling fluid cap 15.52 liter
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Fuel cap 103.33 liter
Fuel cap 98.03 liter
Fuel cap 98.03 liter
Hydraulic fluid cap 60.18 liter
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap 57.15 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Refill capacities
Engine oil cap 15.14 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Dimensions
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Height - top of cab 2.13 m
Length with bucket 3.81 m
Length with bucket 3.69 m
Length with bucket 3.84 m
Length without Bucket 2.74 m
Length without Bucket -
Length without Bucket -
Max height to hinge pin 318.01 cm
Max height to hinge pin 19.56 cm
Max height to hinge pin 19.56 cm
Overall Width 1.98 m
Overall Width 1.98 m
Overall Width 1.98 m
Turning radius 1.76 m
Turning radius 1.64 m
Turning radius 1.78 m
Width over tracks 1.98 m
Width over tracks 1.98 m
Width over tracks 1.98 m
Ground clearance -
Ground clearance 0.23 m
Ground clearance 0.23 m
Hydraulic system
Pump flow cap 125.28 lpm
Pump flow cap 124.91 lpm
Pump flow cap 124.91 lpm
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Relief valve pressure 279.99 bar
Pump type -
Pump type High Flow XPS
Pump type High Flow XPS
Undercarriage
Track width 45.21 cm
Track width -
Track width -
Ground contact area -
Ground contact area 41,033.3 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure -
Ground pressure 0.28 bar
Ground pressure 0.3 bar
Track length -
Track length 1.77 m
Track length 1.77 m
