New holland LB90 Backhoe loaders tech specs

makana img
video play button
Video[1]

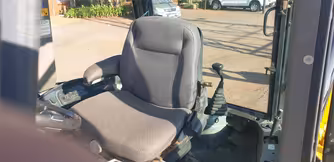

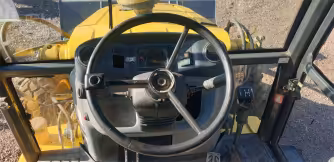

Interior [2]

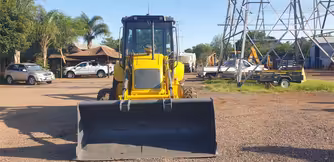

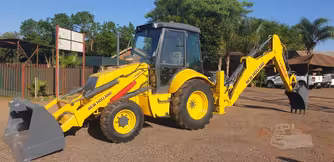

Exterior [4]

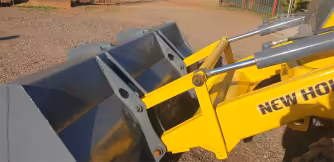

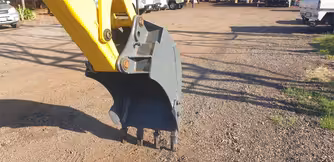

Attachments [3]
2001-2003
4.24 m Backhoe digging depth
124.91 liter Fuel cap
73.08 kw Net power
6,674 kg Operating weight
7.07 m Overall Length
3.23 m Overall Width

A backhoe loader built for excavation, trenching, and general site support work, the New Holland LB90 combines 73.08 kilowatt net power with a 4.24 m backhoe digging depth and a practical layout for day-to-day contractor jobs. With its 124.91 liter fuel capacity, 7.07 m overall length, and 3.23 m overall width, it is suited for roadworks, utility installation, backfilling, and mixed construction work where usable digging reach and straightforward site versatility matter more than a specialist setup.

Net power 73.08 kilowatt

Backhoe digging depth 4.24 m

Fuel tank capacity 124.91 liters

Operating weight 6,674 kg

Overall length 7.07 m

Overall width 3.23 m

Built for excavation, trenching, and general site support

Makana rating

Owner rating

 | 3

Market average

AED 230,000

Starting from

AED 150,000

New holland LB90 technical specifications

Highlight differences

New holland LB90

New holland LB90.B

Engine
Alternator supplied amperage 70 Amh
Alternator supplied amperage 70 Amh
Aspiration Turbocharged
Aspiration Turbocharged
Net power 73.08 kw
Net power 70.84 kw
Number of cylinders -
Number of cylinders 4
Power measured @ -
Power measured @ 2,200 rpm
Torque measured @ -
Torque measured @ 1,400 rpm
Years 2001-2003
Years 2001-2003
Market Average AED 230,000
Market Average AED 230,000
Price AED 150,000
Price AED 150,000
General
Backhoe digging depth 4.24 m
Backhoe digging depth 4.3 m
Bucket capacity 1.07 cu m
Bucket capacity -
Bucket digging force 5,809.62 kg
Bucket digging force -
Bucket width 225 cm
Bucket width -
Displacement 5,001.34 cu cm
Displacement 4,501.54 cu cm
Engine model BSD 450T
Engine model CNH F4GE0454C*D
Loader dump height 2.74 m
Loader dump height 4.48 m
Loader dump reach 0.82 m
Loader dump reach 0.73 m
Max speed forward 32.19 kph
Max speed forward 38.95 kph
Operating voltage 12 V
Operating voltage 12 V
Operating weight 6,674 kg
Operating weight 8,340 kg
Transmission type power-reversing/torque converter
Transmission type Powershuttle
Wheelbase 2.19 m
Wheelbase 2.19 m
Max torque -
Max torque 294.07 Nm
Backhoe
Backhoe reach from swivel 5.55 m
Backhoe reach from swivel 5.58 m
Loader
Breakout force 6,323.99 kg
Breakout force -
Loader digging depth -
Loader digging depth 10.16 cm
Service refill capacities
Cooling fluid cap 24.6 liter
Cooling fluid cap 24.22 liter
Fuel cap 124.91 liter
Fuel cap 135.12 liter
Hydraulic fluid cap 105.98 liter
Hydraulic fluid cap 118.09 liter
Transmission fluid cap -
Transmission fluid cap 18.17 liter
Refill capacities
Engine oil cap 17.03 liter
Engine oil cap 14 liter
Operating specifications
Extended backhoe digging depth 5.46 m
Extended backhoe digging depth 5.49 m
Extended backhoe dump height 4.48 m
Extended backhoe dump height 3.78 m
Extended backhoe dump reach 2.68 m
Extended backhoe dump reach 3.08 m
Extended backhoe reach from swivel 6.68 m
Extended backhoe reach from swivel 5.76 m
Dimensions
Ground clearance 0.4 m
Ground clearance 0.4 m
Height - top of cab 2.9 m
Height - top of cab 2.96 m
Overall Length 7.07 m
Overall Length 5.7 m
Overall Width 3.23 m
Overall Width 2.44 m
Transmission
Max speed reverse 40.23 kph
Max speed reverse 46.51 kph
Number of forward gears 4
Number of forward gears 4
Number of reverse gears 4
Number of reverse gears 4
Hydraulic system
Pump flow cap 151.4 lpm
Pump flow cap 151.02 lpm
Pump type Tandem gear
Pump type Load sensing
Relief valve pressure 209.94 bar
Relief valve pressure 210 bar
Tires
Front tires size (2WD) -
Front tires size (2WD) 12.5 / 80 - 18 (10 Ply)
Rear tires size -
Rear tires size 18.4 - 26
Download datasheets
OEM product brochure

New holland LB90 expert review

Reviewed by Marcis V. on April 26, 2026

Overview

The New Holland LB90 (2001–2003) is a practical backhoe loader designed for excavation, trenching, and general site support tasks. It delivers 73.08 kilowatt net power, a 4.24 m backhoe digging depth, and a straightforward all-round layout, providing balanced performance across contractor and infrastructure work.

Expert rating: 3 stars

Pros Good digging depth and practical all-round performance for daily site work.
Cons Value depends heavily on machine condition, and it is less substantial than heavier backhoe classes.

Performance & Efficiency

The 73.08 kilowatt net output and 4.24 m digging depth give the LB90 reliable performance for trenching, excavation, loading, and routine contractor work, while the 124.91 liter fuel tank supports regular site shifts.

In Comparison

Terex 860: Practical backhoe loader with similar contractor-oriented digging and loading capability.
New Holland LB85: Closely related alternative with a similar work-focused site role.
New Holland LB90: Known for its balanced day-to-day usability and practical all-round versatility.

Final Verdict

Rated 3 stars, the New Holland LB90 offers practical backhoe-loader capability within the AED 150,000–230,000 range.

Show less

New holland LB90 owner rating

New holland LB90 Backhoe loaders [2001-2003]

2001-2003

Overall rating

Based on 3 ratings

4.0
performance

4.0

comfort

3.7

fuel efficiency

4.0

safety

3.7

features

4.0

5 stars

34 %

4 stars

33 %

3 stars

33 %

2 stars

0 %

1 stars

0 %

Pros
Digging depth is good for utility trenches and routine site work.
Cons
Machine condition makes a big difference at this age.
performance

3.0

comfort

4.0

fuel efficiency

4.0

safety

4.0

features

3.0

Valuation

Last 12 month
2001

New holland LB90 similar models

Highlight differences
New holland LB90
Terex 860 Elite
New holland LB85
Engine
Alternator supplied amperage 70 Amh
Alternator supplied amperage 75 Amh
Alternator supplied amperage -
Aspiration Turbocharged
Aspiration -
Aspiration -
Net power 73.08 kw
Net power 70.1 kw
Net power -
Gross power -
Gross power 74.57 kw
Gross power 63.01 kw
Number of cylinders -
Number of cylinders 4
Number of cylinders -
Power measured @ -
Power measured @ 2,200 rpm
Power measured @ -
Torque measured @ -
Torque measured @ 1,400 rpm
Torque measured @ -
Years 2001-2003
Years 2001-2013
Years 1999-2003
Market Average AED 230,000
Market Average AED 141,000
Market Average AED 210,000
Price AED 150,000
Price AED 122,000
Price AED 130,000
General
Backhoe digging depth 4.24 m
Backhoe digging depth 4.45 m
Backhoe digging depth 4.48 m
Bucket capacity 1.07 cu m
Bucket capacity 1.22 cu m
Bucket capacity 1.07 cu m
Bucket digging force 5,809.62 kg
Bucket digging force 5,260.05 kg
Bucket digging force 5,739.04 kg
Bucket width 225 cm
Bucket width 238 cm
Bucket width 227 cm
Displacement 5,001.34 cu cm
Displacement 4,408.13 cu cm
Displacement -
Engine model BSD 450T
Engine model 1104C-44T
Engine model NG Genises 450/NB
Loader dump height 2.74 m
Loader dump height 2.68 m
Loader dump height 3.54 m
Loader dump reach 0.82 m
Loader dump reach 0.67 m
Loader dump reach -
Max speed forward 32.19 kph
Max speed forward 41.04 kph
Max speed forward 38.95 kph
Operating voltage 12 V
Operating voltage 12 V
Operating voltage -
Operating weight 6,674 kg
Operating weight 7,514 kg
Operating weight 7,265 kg
Transmission type power-reversing/torque converter
Transmission type full powershift
Transmission type Powershuttle
Wheelbase 2.19 m
Wheelbase 2.13 m
Wheelbase -
Max torque -
Max torque 413.52 Nm
Max torque -
Backhoe dump height -
Backhoe dump height -
Backhoe dump height 3.78 m
Lifting capacity -
Lifting capacity -
Lifting capacity 2,100.04 kg
Backhoe
Backhoe reach from swivel 5.55 m
Backhoe reach from swivel 5.73 m
Backhoe reach from swivel 5.55 m
Loader
Breakout force 6,323.99 kg
Breakout force 5,575.11 kg
Breakout force -
Loader digging depth -
Loader digging depth 12.45 cm
Loader digging depth -
Service refill capacities
Cooling fluid cap 24.6 liter
Cooling fluid cap 16.28 liter
Cooling fluid cap -
Fuel cap 124.91 liter
Fuel cap 130.2 liter
Fuel cap -
Hydraulic fluid cap 105.98 liter
Hydraulic fluid cap 143.07 liter
Hydraulic fluid cap 128.31 liter
Front axle fluid capacity -
Front axle fluid capacity 12.87 liter
Front axle fluid capacity -
Rear axle fluid capacity -
Rear axle fluid capacity 17.79 liter
Rear axle fluid capacity -
Transmission fluid cap -
Transmission fluid cap 23.09 liter
Transmission fluid cap -
Refill capacities
Engine oil cap 17.03 liter
Engine oil cap 8.71 liter
Engine oil cap -
Operating specifications
Extended backhoe digging depth 5.46 m
Extended backhoe digging depth 5.79 m
Extended backhoe digging depth -
Extended backhoe dump height 4.48 m
Extended backhoe dump height 4.57 m
Extended backhoe dump height -
Extended backhoe dump reach 2.68 m
Extended backhoe dump reach 2.93 m
Extended backhoe dump reach -
Extended backhoe reach from swivel 6.68 m
Extended backhoe reach from swivel 7.04 m
Extended backhoe reach from swivel -
Dimensions
Ground clearance 0.4 m
Ground clearance 0.46 m
Ground clearance -
Height - top of cab 2.9 m
Height - top of cab 2.77 m
Height - top of cab -
Overall Length 7.07 m
Overall Length 7.35 m
Overall Length 5.7 m
Overall Width 3.23 m
Overall Width 2.32 m
Overall Width 2.29 m
Turning radius -
Turning radius 3.96 m
Turning radius -
Transmission
Max speed reverse 40.23 kph
Max speed reverse 41.2 kph
Max speed reverse 38.95 kph
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Hydraulic system
Pump flow cap 151.4 lpm
Pump flow cap 160.11 lpm
Pump flow cap 151.02 lpm
Pump type Tandem gear
Pump type Tandem gear
Pump type Gear pump
Relief valve pressure 209.94 bar
Relief valve pressure 224.08 bar
Relief valve pressure 210 bar
Tires
Front tires size (2WD) -
Front tires size (2WD) 16/70x20
Front tires size (2WD) -
Rear tires size -
Rear tires size 18.4x26
Rear tires size -
