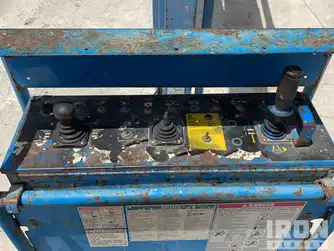

Interior [2]
:quality(50)/76203/conversions/bdc085c3-7a78-4222-aabb-7a741ce4f5f4-thumb.webp)

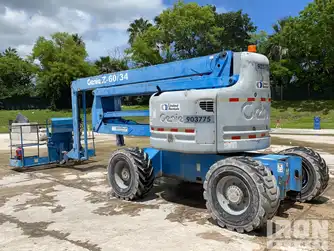

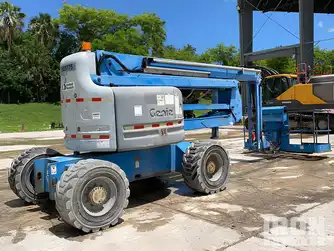

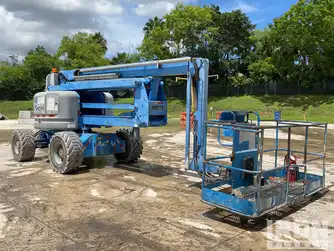

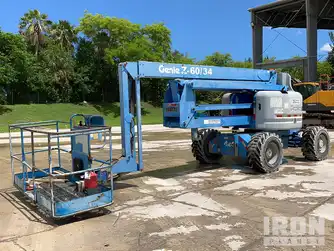

Exterior [4]
:quality(50)/76207/conversions/3953c6f3-0b2f-41c9-bbda-f3812389c30e-thumb.webp)

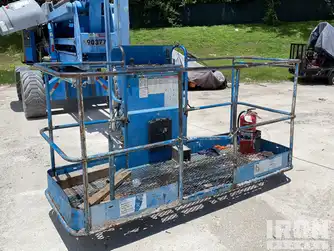

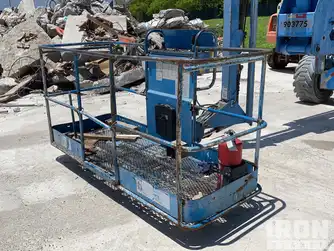

Attachments [2]
Genie Z-60 Technical specifications
General
Engine model
DSG-423
Max horizontal reach
11.06 m
Max speed forward
4.83 kph
Max working height
20.39 m
Operating weight
10,215 kg
Platform rotation
180 º
Tire size
385/65 D19.5 12PLY
Service refill capacities
Fuel cap
75.7 liter
Hydraulic fluid cap
170.33 liter
Engine
Gross power
55.93 kw
Dimensions
Ground clearance
0.41 m
Stowed height
2.71 m
Overall Length
0.6 m
Overall Width
2.47 m
Turning radius
6.1 m
Wheelbase
2.53 m
Platform
Platform Dimension B
183.13 cm
Platform Dimension A
76.2 cm
Performance
Platform Capacity - Unrestricted
227.02 kg
Download datasheets
Genie Z-60 similar models
Highlight differences
:quality(50)/72049/72f0a2e0-f84a-4b8c-8b9b-873a70213c73.png)
:quality(50)/72552/a4c93ae9-61e9-4a71-b031-ecb53ddba83f.png)
Engine model
Engine model DSG-423
Engine model Deutz D2.9L4
Engine model Deutz D2.9L4
Max horizontal reach
Max horizontal reach 11.06 m
Max horizontal reach 1,200 mm
Max horizontal reach -
Max speed forward
Max speed forward 4.83 kph
Max speed forward -
Max speed forward -
Max working height
Max working height 20.39 m
Max working height 15.85 m
Max working height -
Operating weight
Operating weight 10,215 kg
Operating weight 7,530 kg
Operating weight -
Platform rotation
Platform rotation 180 º
Platform rotation 180 º
Platform rotation -
Tire size
Tire size 385/65 D19.5 12PLY
Tire size 12 x 16.5
Tire size 14x17.5
Fuel type
Fuel type -
Fuel type Diesel
Fuel type -
Gradeability
Gradeability -
Gradeability 24 º
Gradeability -
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating voltage -
Drive type
Drive type -
Drive type -
Drive type 4WD
Years
Years 2007-2014
Years 2016-2020
Years 2013-2020
Market Average
Market Average AED 160,000
Market Average AED 220,000
Market Average AED 19,800
Price
Price AED 90,000
Price AED 128,500
Price AED 15,000
Fuel cap
Fuel cap 75.7 liter
Fuel cap 83.3 liter
Fuel cap -
Hydraulic fluid cap
Hydraulic fluid cap 170.33 liter
Hydraulic fluid cap 121 liter
Hydraulic fluid cap -
Gross power
Gross power 55.93 kw
Gross power 36.4 kw
Gross power -
Ground clearance
Ground clearance 0.41 m
Ground clearance 31 cm
Ground clearance -
Stowed height
Stowed height 2.71 m
Stowed height 2.49 m
Stowed height 2.56 mm
Overall Length
Overall Length 0.6 m
Overall Length 8.91 m
Overall Length -
Overall Width
Overall Width 2.47 m
Overall Width 2.31 m
Overall Width 2.44 m
Turning radius
Turning radius 6.1 m
Turning radius 4.83 m
Turning radius -
Wheelbase
Wheelbase 2.53 m
Wheelbase 2.39 m
Wheelbase -
Axle Oscillation
Axle Oscillation -
Axle Oscillation 0.2 m
Axle Oscillation -
Platform Dimension B
Platform Dimension B 183.13 cm
Platform Dimension B 0.91 m
Platform Dimension B -
Platform Dimension A
Platform Dimension A 76.2 cm
Platform Dimension A 2.44 m
Platform Dimension A -
Platform Capacity - Unrestricted
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 272 kg
Platform Capacity - Unrestricted -
Drive Speed - Platform Lowered
Drive Speed - Platform Lowered -
Drive Speed - Platform Lowered 7.2 kph
Drive Speed - Platform Lowered -
Boom Type
Boom Type -
Boom Type -
Boom Type AT/60.7
Swing
Swing -
Swing 360 º
Swing -
Swing type
Swing type -
Swing type Continuous
Swing type -
Tire Type
Tire Type -
Tire Type Foam-Filled
Tire Type -
