Cat
Cat 824 Wheel dozers
Cat 824 Wheel dozers tech specs
:quality(50)/https://www.makana.com/66485/conversions/3b17dd98-56c8-417d-bf0e-a1468b704028-webp.webp)

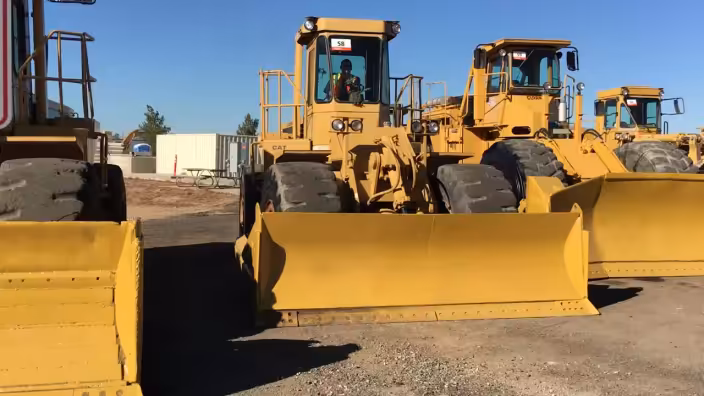

Video[1]
:quality(50)/https://www.makana.com/66477/conversions/cf6dd480-adc5-4f42-a8df-2241ef82fee3-webp.webp)

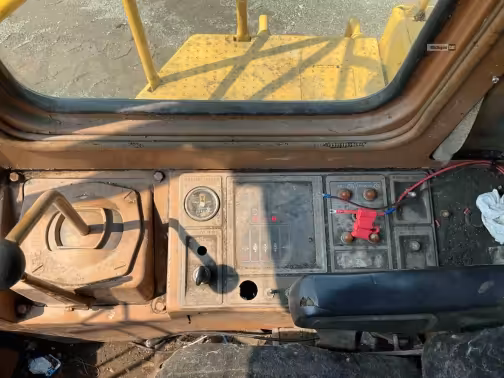

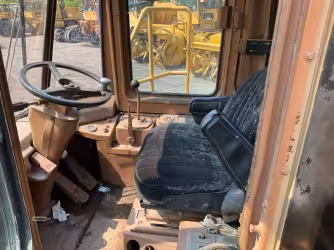

Interior [2]
:quality(50)/https://www.makana.com/66479/conversions/68df8d08-b12b-4bed-9f88-6e46fc5161ae-webp.webp)

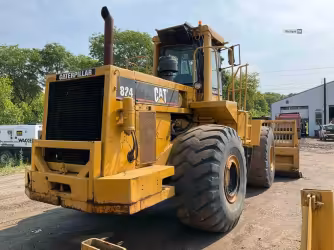

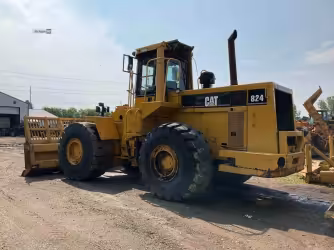

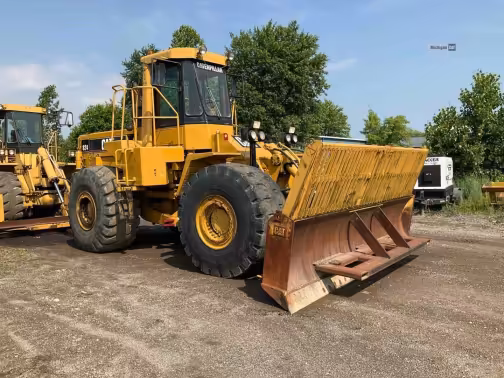

Exterior [4]
:quality(50)/https://www.makana.com/66483/conversions/b40b9f11-7a6d-428b-bccf-c6df02df9967-webp.webp)

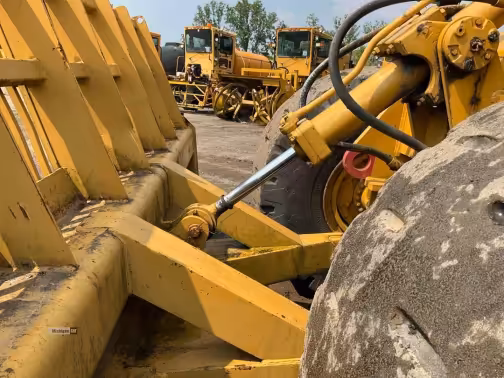

Attachments [2]
Cat 824 technical specifications
Highlight differences
Blade capacity
Blade capacity 4.74 cu m
Blade capacity 4.74 cu m
Blade capacity 11.31 cu m
Engine model
Engine model Cat 3406 or 2236
Engine model Cat 2236 or 3406E ATAAC Diesel
Engine model Cat 2236 or C15 ACERT
Max speed forward
Max speed forward 33.31 kph
Max speed forward 33.15 kph
Max speed forward 32.19 kph
Operating weight
Operating weight 30,380 kg
Operating weight 28,723 kg
Operating weight 28,723 kg
Tire size
Tire size 29.5-25 16PR (L-3)
Tire size 29.5-25 16PR (L-3)
Tire size 29.5R25 XHA MX L3
Years
Years 2002-2015
Years 2002-2015
Years 2002-2015
Market Average
Market Average AED 294,000
Market Average AED 294,000
Market Average AED 294,000
Price
Price AED 184,000
Price AED 184,000
Price AED 184,000
Displacement
Displacement 14,600.91 cu cm
Displacement 14,600.91 cu cm
Displacement 15,207.23 cu cm
Gross power
Gross power 234.9 kw
Gross power 253.02 kw
Gross power 299.03 kw
Bore
Bore -
Bore 13.72 cm
Bore 13.72 cm
Number of cylinders
Number of cylinders -
Number of cylinders 6
Number of cylinders 6
Power measured @
Power measured @ -
Power measured @ 2,000 rpm
Power measured @ 1,800 rpm
Stroke
Stroke -
Stroke 16.51 cm
Stroke 17.02 cm
Fuel cap
Fuel cap 588.95 liter
Fuel cap -
Fuel cap 700.23 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 82.89 liter
Cooling fluid cap 82.89 liter
Engine crankcase
Engine crankcase -
Engine crankcase 34.07 liter
Engine crankcase -
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 87.81 liter
Hydraulic fluid cap 87.81 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 62.07 liter
Transmission fluid cap 62.07 liter
Ground clearance
Ground clearance 0.49 m
Ground clearance 0.4 m
Ground clearance 0.37 m
Height - top of cab
Height - top of cab 3.96 m
Height - top of cab 3.5 m
Height - top of cab -
Length with blade
Length with blade 7.71 m
Length with blade -
Length with blade 8.23 m
Overall Width
Overall Width 3.2 m
Overall Width 4.51 m
Overall Width -
Wheelbase
Wheelbase 3.54 m
Wheelbase -
Wheelbase 3.72 m
Blade height
Blade height -
Blade height 1.25 m
Blade height 1.25 m
Turning radius
Turning radius -
Turning radius 7.32 m
Turning radius -
Max speed reverse
Max speed reverse 37.82 kph
Max speed reverse 36.69 kph
Max speed reverse 36.53 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Blade angle
Blade angle -
Blade angle 11 º
Blade angle -
Blade width
Blade width -
Blade width 4 m
Blade width 4 m
Brake system
Brake system -
Brake system Meet OSHA, SAE J1473 DEC84, ISO 2450-1985 standards.
Brake system Meet SAE/ISO 3450 1996
Cab ROPS
Cab ROPS -
Cab ROPS Meets SAE and ISO standards
Cab ROPS -
Final drives fluid cap
Final drives fluid cap -
Final drives fluid cap 90.08 liter
Final drives fluid cap 90.08 liter
Engine oil cap
Engine oil cap -
Engine oil cap -
Engine oil cap 34.07 liter
Download datasheets
Cat 824 expert review
Cat 824 similar models
Highlight differences
Blade capacity
Blade capacity 4.74 cu m
Blade capacity 2.98 cu m
Engine model
Engine model Cat 3406 or 2236
Engine model Cat 3306 or 2236
Max speed forward
Max speed forward 33.31 kph
Max speed forward 29.93 kph
Operating weight
Operating weight 30,380 kg
Operating weight 20,580 kg
Tire size
Tire size 29.5-25 16PR (L-3)
Tire size 23.5-25 12PR (L-3)
Years
Years 2002-2015
Years 2007-2025
Market Average
Market Average AED 294,000
Market Average AED 1,100,000
Price
Price AED 184,000
Price AED 881,000
Displacement
Displacement 14,600.91 cu cm
Displacement 10,500.85 cu cm
Gross power
Gross power 234.9 kw
Gross power 161.07 kw
Fuel cap
Fuel cap 588.95 liter
Fuel cap 462.15 liter
Ground clearance
Ground clearance 0.49 m
Ground clearance 0.43 m
Height - top of cab
Height - top of cab 3.96 m
Height - top of cab 3.57 m
Length with blade
Length with blade 7.71 m
Length with blade 6.83 m
Overall Width
Overall Width 3.2 m
Overall Width 2.87 m
Wheelbase
Wheelbase 3.54 m
Wheelbase 3.35 m
Max speed reverse
Max speed reverse 37.82 kph
Max speed reverse 34.12 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Cat 824 gallery
