Cat
Cat 854 Wheel dozers tech specs
:quality(50)/66534/conversions/9c8bd2c1-43fb-4838-8ce0-3ef95f10d1d8-webp.webp)

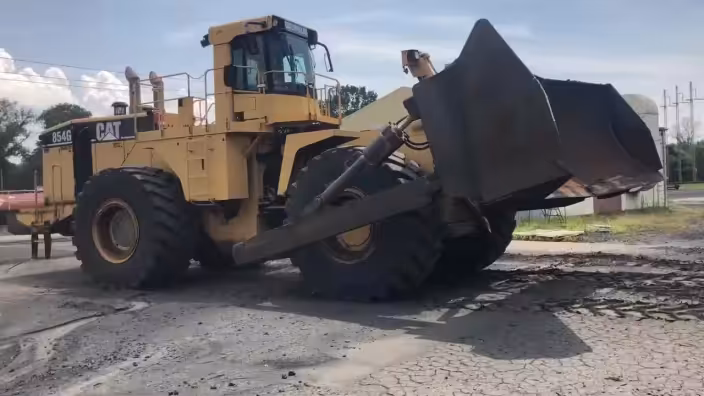

Video[1]
:quality(50)/66527/conversions/242b6762-417f-4041-89e0-eff58fdcc9fb-webp.webp)

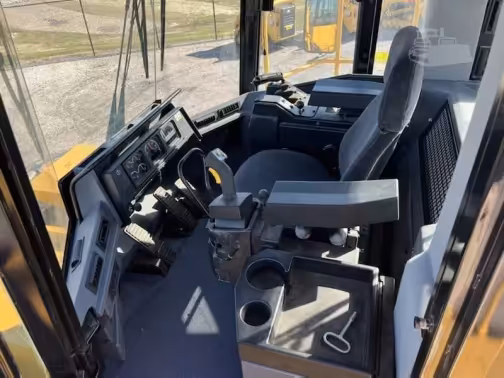

Interior [2]
:quality(50)/66529/conversions/e4d41bd2-6a83-4587-b219-ac6dabdaa115-webp.webp)

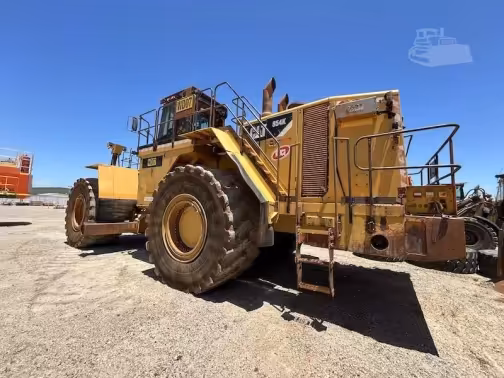

Exterior [4]
:quality(50)/66533/conversions/ca500617-a78b-42a4-8689-e9c39e0aacc4-webp.webp)

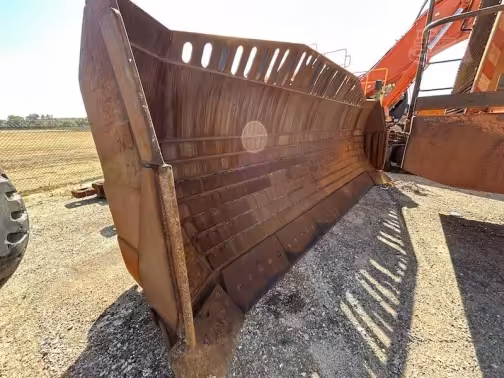

Attachments [1]
2013-2025
96,266 kg Operating weight
21.24 kph Max speed forward
34,501.4 cu cm Displacement
596.57 kw Gross power
30 % Torque rise
6 m Blade width
Built for extreme-scale material movement, the Cat 854 delivers 596.57 kW of gross power with a 6 m blade width and massive 96,266 kg operating weight. Designed for mega landfills, mining stockpiles, and bulk earthmoving, this wheel dozer prioritizes volume per pass over maneuverability.
Gross power 596.57 kW
Blade width 6 m
Operating weight ~96,266 kg
Max travel speed 21.24 kph
Heavy-duty Cat 2236 / 3508B EUI engines
Ultra-high production wheel-dozer platform
Price range AED 760K–2.02M
Makana rating
Owner rating
Market average
AED 2,020,000Starting from
AED 760,000Cat 854 technical specifications
Highlight differences
Cat 854G
Cat 854K
Engine model
Engine model Cat 2236 or 3508B EUI
Engine model Cat 2236 or C32 ACERT
Operating weight
Operating weight 96,266 kg
Operating weight 98,488 kg
Tire size
Tire size 45/65R45, L-4
Tire size 45/65-R45
Max speed forward
Max speed forward 21.24 kph
Max speed forward 21.24 kph
Operating voltage
Operating voltage 24
Operating voltage 24 V
Transmission type
Transmission type -
Transmission type Cat Planetary Power Shift
Years
Years 2013-2025
Years 2013-2025
Market Average
Market Average AED 2,020,000
Market Average AED 2,020,000
Price
Price AED 760,000
Price AED 760,000
Displacement
Displacement 34,501.4 cu cm
Displacement 32,100.69 cu cm
Power measured @
Power measured @ 1,750 rpm
Power measured @ 1,750 rpm
Gross power
Gross power 596.57 kw
Gross power -
Max torque
Max torque 4,218.03 Nm
Max torque 4,242.3 Nm
Alternator supplied amperage
Alternator supplied amperage 105 Amh
Alternator supplied amperage 150 Amh
Torque rise
Torque rise 30 %
Torque rise 30 %
Aspiration
Aspiration -
Aspiration Turbocharged
Bore
Bore -
Bore 14.48 cm
Number of cylinders
Number of cylinders -
Number of cylinders 12
Stroke
Stroke -
Stroke 16.26 cm
Blade width
Blade width 6 m
Blade width 6 m
Final drives fluid cap
Final drives fluid cap 345.19 liters
Final drives fluid cap 370.93 liter
Engine oil cap
Engine oil cap 102.2 liter
Engine oil cap 120.36 liter
Height - top of cab
Height - top of cab 5.55 m
Height - top of cab 5.61 m
Length with blade
Length with blade 13.41 m
Length with blade 13.41 m
Ground clearance
Ground clearance 1.31 m
Ground clearance 0.7 m
Turning radius
Turning radius 9.91 m
Turning radius -
Wheelbase
Wheelbase 5.91 m
Wheelbase 5.91 m
Overall Width
Overall Width 4.54 m
Overall Width -
Blade height
Blade height -
Blade height 2.19 m
Cooling fluid cap
Cooling fluid cap 204.01 liters
Cooling fluid cap 200.61 liter
Fuel cap
Fuel cap 1,562.07 liter
Fuel cap 1,562.07 liter
Hydraulic fluid cap
Hydraulic fluid cap 326.27 liter
Hydraulic fluid cap -
Engine crankcase
Engine crankcase 102.2 liters
Engine crankcase 121.12 liter
Transmission fluid cap
Transmission fluid cap 169.19 liter
Transmission fluid cap 170.33 liter
Max speed reverse
Max speed reverse 23.34 kph
Max speed reverse 23.66 kph
Number of reverse gears
Number of reverse gears 3
Number of reverse gears 3
Number of forward gears
Number of forward gears 3
Number of forward gears 3
Brake system
Brake system -
Brake system Meets ISO 3540:2011
Download datasheets
Cat 854 expert review
:quality(50)/60953/d01e174e-11e1-47e0-987c-da947df67259.jpeg)
Overview
The Cat 854 delivers 596.57 kW of gross power with a massive 6 m blade and nearly 100 tonnes of operating weight for ultra-heavy production work.
Pros Enormous pushing power, extreme blade width, outstanding stability under load.
Cons Very high operating costs, huge footprint, unsuitable for smaller sites.
Efficiency
Efficiency is measured in volume per pass, with the 6 m blade dramatically reducing cycle counts on landfill and mining applications.
In Cabin
Built for long production shifts with strong blade visibility and confident control feel.
In Comparison
Far larger than Cat 844 and Cat 834, the 854 focuses purely on maximum material moved per hour.
Final Verdict
Rated 4 stars, the Cat 854 is priced between AED 760,000 and 2,020,000 for ultra-heavy production environments.
Cat 854 owner rating
Cat 854 Wheel dozers [2013-2025]
2013-2025
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.0
fuel efficiency
4.0
safety
4.3
features
4.0
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Pros
Moves staggering volumes of material on long landfill push runs.
Cons
Fuel and tire costs escalate quickly if the site is not truly massive.
performance
4.0
comfort
4.0
fuel efficiency
4.0
safety
4.0
features
4.0
