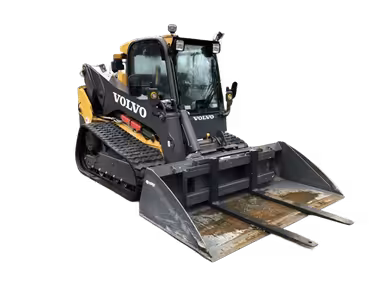

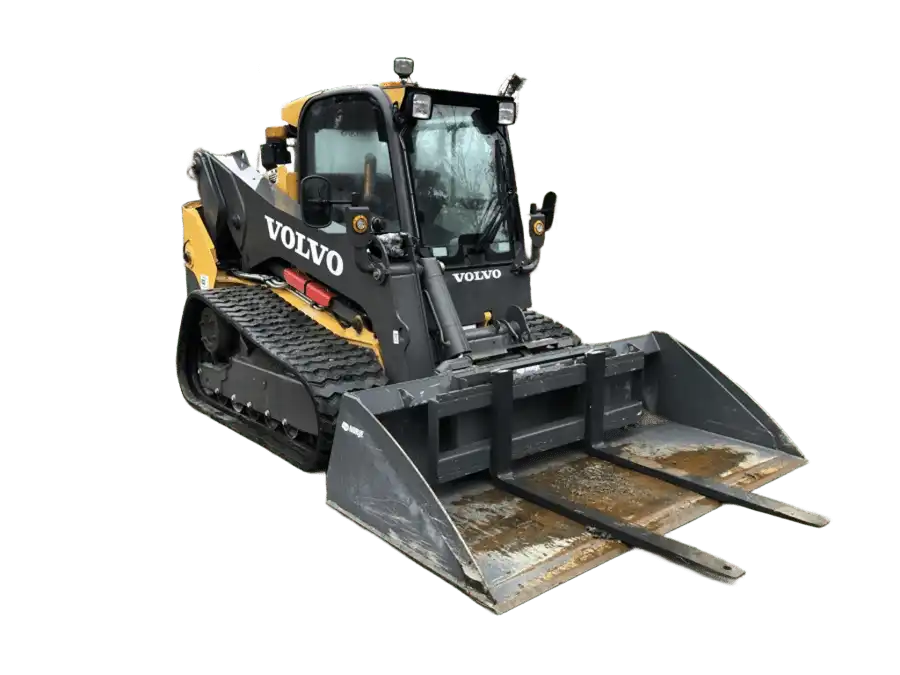

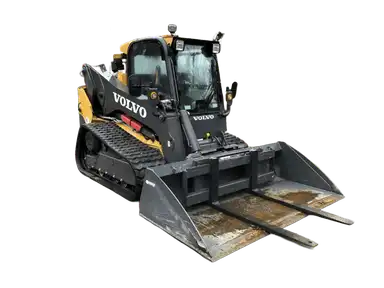

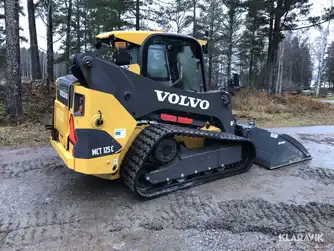

Volvo MCT125 Compact track loaders tech specs

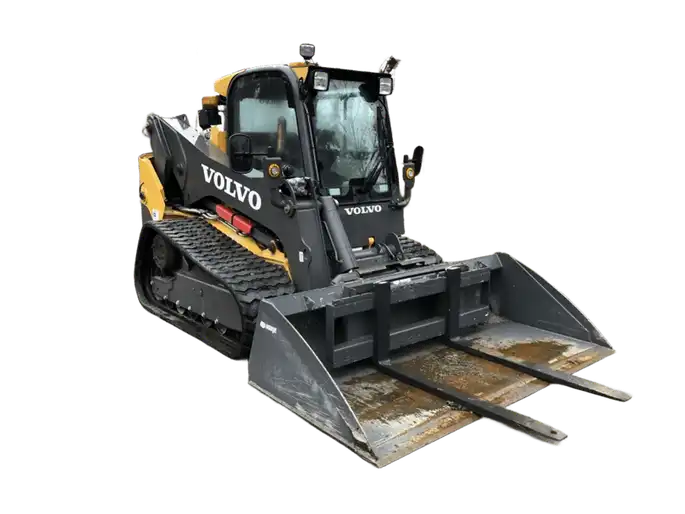

makana img
video play button
Video[1]
Interior [3]

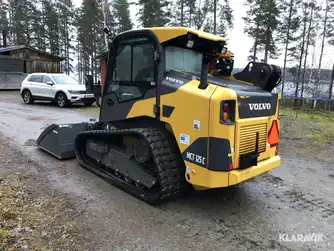

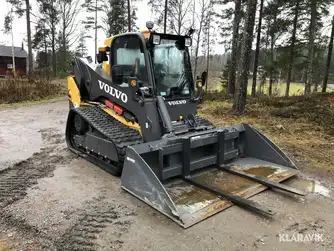

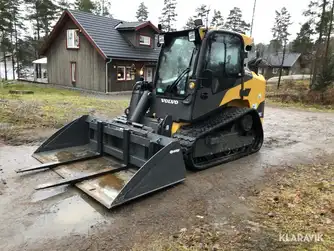

Exterior [4]

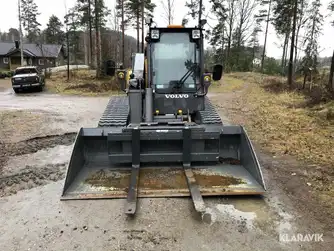

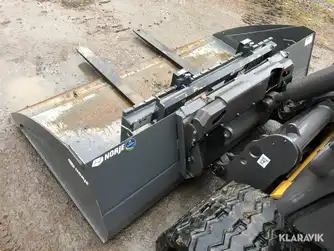

Attachments [2]
2013-2019
55.18 kw Gross power
2.44 m Loader dump height
0.91 m Loader dump reach
1,268.7 kg Lifting capacity
4,628 kg Operating weight
3,624 kg Tipping load

Makana rating

Market average

AED 155,000

Starting from

AED 105,000

Volvo MCT125 technical specifications

Highlight differences

Volvo MCT125C

Volvo MCT125D

Engine
Alternator supplied amperage 342 Amh
Alternator supplied amperage 342 Amh
Gross power 55.18 kw
Gross power 41.01 kw
Max torque 400.1 Nm
Max torque 400.1 Nm
Net power 62.64 kw
Net power -
Number of cylinders 4
Number of cylinders 4
Power measured @ 2,200 rpm
Power measured @ -
Torque measured @ 1,800 rpm
Torque measured @ -
Aspiration -
Aspiration Turbocharged
Displacement -
Displacement 4,399.94 cu cm
Years 2013-2019
Years 2013-2019
Market Average AED 155,000
Market Average AED 155,000
Price AED 105,000
Price AED 105,000
Operating specifications
Angle of departure 28 º
Angle of departure 29 º
Dump angle 42 º
Dump angle 42 º
Lift arm path Vertical
Lift arm path Vertical
Rack back angle 79 º
Rack back angle 30 º
General
Operating voltage 12 V
Operating voltage 12 V
Bucket capacity 0.69 cu m
Bucket capacity 0.54 cu m
Bucket width 198 cm
Bucket width 190 cm
Lifting capacity 1,268.7 kg
Lifting capacity 1,235.04 kg
Max speed forward 12.71 kph
Max speed forward 9.17 kph
Operating weight 4,628 kg
Operating weight 4,991 kg
Tipping load 3,624 kg
Tipping load 3,624 kg
Engine model -
Engine model TCAE-55
Loader
Breakout force - lift cylinder 2,634.01 kg
Breakout force - lift cylinder 2,634.01 kg
Breakout force - tilt cylinder 3,260.02 kg
Breakout force - tilt cylinder 2,968.04 kg
Loader dump height 2.44 m
Loader dump height 2.29 m
Loader dump reach 0.91 m
Loader dump reach 0.9 m
Service refill capacities
Cooling fluid cap 15.52 liter
Cooling fluid cap 22.33 liter
Fuel cap 103.33 liter
Fuel cap 103.33 liter
Hydraulic fluid cap -
Hydraulic fluid cap 208.18 liter
Refill capacities
Engine oil cap 15.14 liter
Engine oil cap 15.14 liter
Dimensions
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Length with bucket 3.72 m
Length with bucket 3.02 m
Length without Bucket 2.74 m
Length without Bucket 3.81 m
Max height to hinge pin 318.01 cm
Max height to hinge pin 318.01 cm
Overall Width 1.98 m
Overall Width 1.93 m
Turning radius 1.76 m
Turning radius 1.77 m
Width over tracks 1.98 m
Width over tracks 1.1 m
Ground clearance -
Ground clearance 0.23 m
Hydraulic system
Pump flow cap 125.28 lpm
Pump flow cap 125.28 lpm
Relief valve pressure 229.94 bar
Relief valve pressure 230.01 bar
Undercarriage
Track width 45.21 cm
Track width -
Download datasheets
OEM product brochure

Valuation

Last 12 month
2013

Volvo MCT125 similar models

Highlight differences
Volvo MCT125C
Cat 277B
Cat 279C
Engine
Alternator supplied amperage 342 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Gross power 55.18 kw
Gross power 61.15 kw
Gross power 62.64 kw
Max torque 400.1 Nm
Max torque -
Max torque -
Net power 62.64 kw
Net power 58.17 kw
Net power 61.15 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @ 2,200 rpm
Power measured @ -
Power measured @ 2,500 rpm
Torque measured @ 1,800 rpm
Torque measured @ -
Torque measured @ -
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Bore -
Bore 9.4 cm
Bore 8.64 cm
Displacement -
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Years 2013-2019
Years 2004-2007
Years 2009-2015
Market Average AED 155,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 105,000
Price AED 62,500
Price AED 114,000
Operating specifications
Angle of departure 28 º
Angle of departure -
Angle of departure 44 º
Dump angle 42 º
Dump angle -
Dump angle 40 º
Lift arm path Vertical
Lift arm path -
Lift arm path -
Rack back angle 79 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
General
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Bucket capacity 0.69 cu m
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket width 198 cm
Bucket width -
Bucket width -
Lifting capacity 1,268.7 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward 12.71 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating weight 4,628 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Tipping load 3,624 kg
Tipping load 2,676 kg
Tipping load 2,940 kg
Engine model -
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Loader
Breakout force - lift cylinder 2,634.01 kg
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder 3,260.02 kg
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Loader dump height 2.44 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach 0.91 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Service refill capacities
Cooling fluid cap 15.52 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Fuel cap 103.33 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Hydraulic fluid cap -
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Refill capacities
Engine oil cap 15.14 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Dimensions
Height - top of cab 2.1 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket 3.72 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Length without Bucket 2.74 m
Length without Bucket -
Length without Bucket -
Max height to hinge pin 318.01 cm
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width 1.98 m
Overall Width 1.91 m
Overall Width 1.98 m
Turning radius 1.76 m
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks 1.98 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Ground clearance -
Ground clearance 0.36 m
Ground clearance 0.23 m
Hydraulic system
Pump flow cap 125.28 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Relief valve pressure 229.94 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Pump type -
Pump type Standard
Pump type High Flow XPS
Undercarriage
Track width 45.21 cm
Track width -
Track width -
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure -
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Track length -
Track length 2.07 m
Track length 1.77 m
