Bobcat MT52 Compact track loaders tech specs

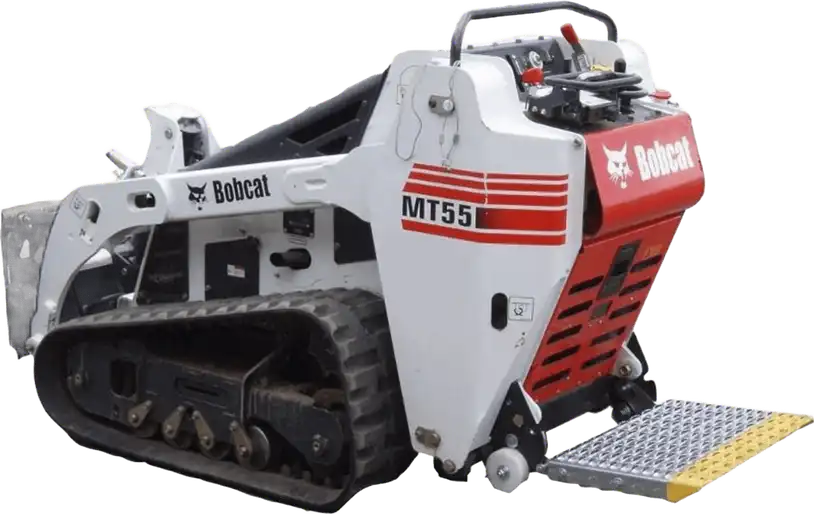

makana img
video play button
Video[1]

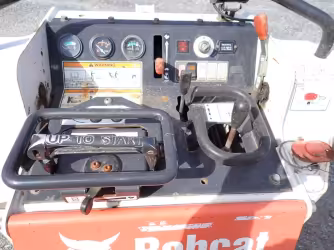

Interior [1]

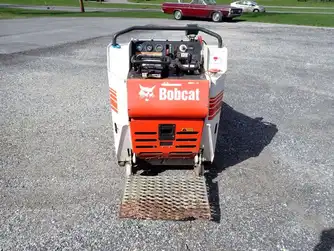

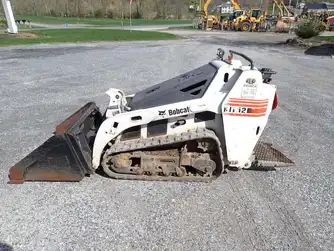

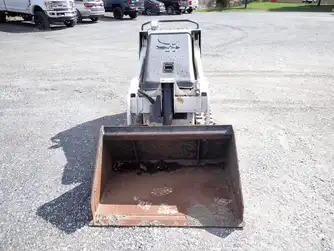

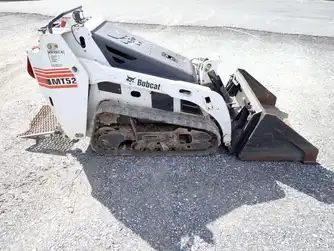

Exterior [4]

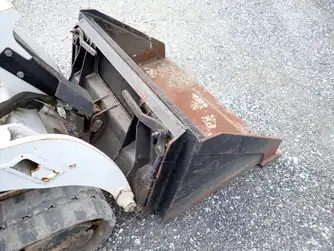

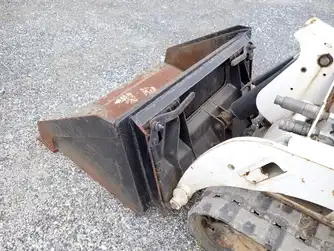

Attachments [2]
2004-2007
2,580 kg Operating weight
726 kg Tipping load
721.03 cu cm Displacement
14.91 kw Gross power
0.11 m Ground clearance
0.46 mm Loader dump height

The Bobcat MT52 is a compact mini track loader designed for tight job sites, landscaping work, light construction, and material handling. Powered by a Kubota D722 diesel engine, the machine offers reliable performance, narrow access capability, and strong lifting performance for small-scale operations.

Kubota D722 diesel engine

Gross power 14.91 kW

Operating weight 2,580 kg

Tipping load 726 kg

Narrow 0.91 m machine width

Hydraulic flow 45.42 lpm

Makana rating

Owner rating

| 3

Market average

AED 52,000

Starting from

AED 29,000

Bobcat MT52 Technical specifications

General

Engine model

D722-E3B-BC-6

Operating weight

2,580 kg

Operating voltage

12

Tipping load

726 kg

Engine

Displacement

721.03 cu cm

Power measured @

3,600 rpm

Torque measured @

2,600 rpm

Gross power

14.91 kw

Max torque

43.93 Nm

Alternator supplied amperage

40 Amh

Number of cylinders

3

Engine make

Kubota

Bore

6.86 cm

Stroke

6.86 cm

Refill capacities

Engine oil cap

3.41 liter

Undercarriage

Ground pressure

0.36 bar

Dimensions

Height - top of cab

1.25 m

Length without Bucket

1.86 m

Ground clearance

0.11 m

Width over tracks

0.91 m

Length with bucket

2.38 m

Max height to hinge pin

181.1 cm

Hydraulic system

Pump flow cap

45.42 lpm

Relief valve pressure

199.94 bar

Pump type

Engine driven

Loader

Breakout force

7384.04 kN

Loader dump height

0.46 mm

Service refill capacities

Cooling fluid cap

4.92 liters

Fuel cap

26.87 liter

Hydraulic fluid cap

20.06 liter

Operating specifications

Dump angle

49 degrees

View more
Download datasheets

Bobcat MT52 expert review

Reviewed by Wade A. on March 9, 2026

Overview

The Bobcat MT52 is designed for contractors who need compact equipment capable of operating in restricted environments. Its narrow width and simple hydraulic system make it well suited for landscaping projects, small trenching tasks, and light material handling.

Pros Extremely compact size for tight access areas. Reliable Kubota engine with simple maintenance.
Cons Limited lifting capacity compared to larger compact track loaders.

Performance & Efficiency

The Kubota D722 diesel engine delivers 14.91 kW of power, providing reliable output for landscaping, small excavation, and light material handling. A 45.42 lpm hydraulic system supports multiple compact attachments.

In-Cab & Operator Experience

The stand-on design offers excellent visibility and simple controls, allowing operators to work efficiently in confined job sites and narrow access areas.

In Comparison

Compared to larger compact loaders like the Cat 247 and Cat 257, the MT52 focuses on maneuverability and access rather than lifting power.

Verdict

Rated 3 stars, the Bobcat MT52 is a practical compact loader in the AED 29,000–52,000 range, suited for landscaping contractors and small construction tasks.

Show less

Bobcat MT52 owner rating

Bobcat MT52 Compact track loaders [2004-2007]

2004-2007

Overall rating

Based on 3 ratings

3.7
performance

3.7

comfort

3.7

fuel efficiency

4.0

safety

4.0

features

4.3

5 stars

0 %

4 stars

67 %

3 stars

33 %

2 stars

0 %

1 stars

0 %

Pros
Excellent for tight landscaping jobs and narrow access areas.
Cons
Limited lifting power for heavier construction tasks.
performance

4.0

comfort

4.0

fuel efficiency

3.0

safety

4.0

features

4.0

Valuation

Last 12 month
2004

Bobcat MT52 similar models

Highlight differences
Bobcat MT52

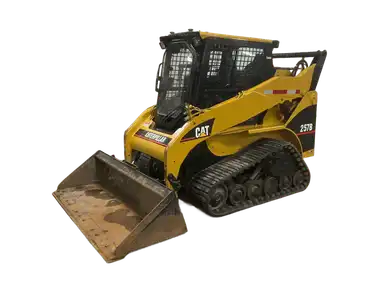

Cat 257

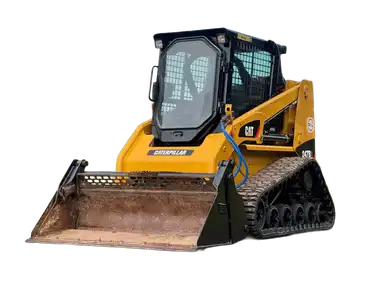

Cat 247
General
Engine model D722-E3B-BC-6
Engine model Cat 3034 naturally aspirated
Engine model Cat 3034 naturally aspirated
Operating weight 2,580 kg
Operating weight 3,460 kg
Operating weight 3,023 kg
Operating voltage 12
Operating voltage -
Operating voltage -
Tipping load 726 kg
Tipping load 2,091 kg
Tipping load 1,753 kg
Bucket capacity -
Bucket capacity 0.46 cu m
Bucket capacity 0.38 cu m
Lifting capacity -
Lifting capacity 1,065.94 kg
Lifting capacity 952.55 kg
Max speed forward -
Max speed forward 12.07 kph
Max speed forward 12.07 kph
Years 2004-2007
Years 2014-2019
Years 2004-2008
Market Average AED 52,000
Market Average AED 186,000
Market Average AED 145,000
Price AED 29,000
Price AED 147,000
Price AED 130,000
Engine
Displacement 721.03 cu cm
Displacement 2,998.84 cu cm
Displacement 2,998.84 cu cm
Power measured @ 3,600 rpm
Power measured @ 2,600 rpm
Power measured @ 2,600 rpm
Torque measured @ 2,600 rpm
Torque measured @ -
Torque measured @ -
Gross power 14.91 kw
Gross power 46.98 kw
Gross power 43.25 kw
Max torque 43.93 Nm
Max torque -
Max torque -
Alternator supplied amperage 40 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Number of cylinders 3
Number of cylinders 4
Number of cylinders 4
Engine make Kubota
Engine make -
Engine make -
Bore 6.86 cm
Bore 9.91 cm
Bore 9.91 cm
Stroke 6.86 cm
Stroke 10.16 cm
Stroke 10.16 cm
Aspiration -
Aspiration Turbocharged
Aspiration -
Net power -
Net power 44 kw
Net power 40.27 kw
Refill capacities
Engine oil cap 3.41 liter
Engine oil cap -
Engine oil cap -
Undercarriage
Ground pressure 0.36 bar
Ground pressure 0.3 bar
Ground pressure 0.26 bar
Ground contact area -
Ground contact area 29,005.17 cu cm
Ground contact area 29,005.17 cu cm
Track length -
Track length 1.52 m
Track length 1.52 m
Track width -
Track width 38.1 cm
Track width 38.1 cm
Dimensions
Height - top of cab 1.25 m
Height - top of cab 2.04 m
Height - top of cab 2.01 m
Length without Bucket 1.86 m
Length without Bucket 2.71 m
Length without Bucket 2.53 m
Ground clearance 0.11 m
Ground clearance 0.26 m
Ground clearance 0.27 m
Width over tracks 0.91 m
Width over tracks 1.68 m
Width over tracks 1.68 m
Length with bucket 2.38 m
Length with bucket 3.54 m
Length with bucket 3.32 m
Max height to hinge pin 181.1 cm
Max height to hinge pin -
Max height to hinge pin -
Turning radius -
Turning radius 2.29 m
Turning radius 2.16 m
Hydraulic system
Pump flow cap 45.42 lpm
Pump flow cap 57.53 lpm
Pump flow cap 54.5 lpm
Relief valve pressure 199.94 bar
Relief valve pressure -
Relief valve pressure -
Pump type Engine driven
Pump type -
Pump type -
Loader
Breakout force 7,384.04 kN
Breakout force -
Breakout force -
Loader dump height 0.46 mm
Loader dump height 2.29 m
Loader dump height 2.1 m
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,583.04 kg
Breakout force - lift cylinder 1,365.77 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,602.09 kg
Breakout force - tilt cylinder 1,603.9 kg
Loader dump reach -
Loader dump reach 0.82 m
Loader dump reach 0.64 m
Service refill capacities
Cooling fluid cap 4.92 liters
Cooling fluid cap 9.84 liter
Cooling fluid cap 9.84 liter
Fuel cap 26.87 liter
Fuel cap 90.08 liter
Fuel cap 64.35 liter
Hydraulic fluid cap 20.06 liter
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Engine crankcase -
Engine crankcase 6.81 liter
Engine crankcase 6.81 liter
Operating specifications
Dump angle 49 degrees
Dump angle -
Dump angle -
Rack back angle -
Rack back angle 44 º
Rack back angle 37 º
