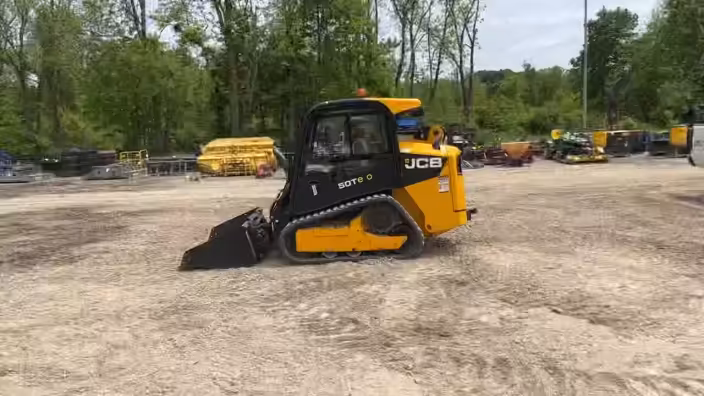

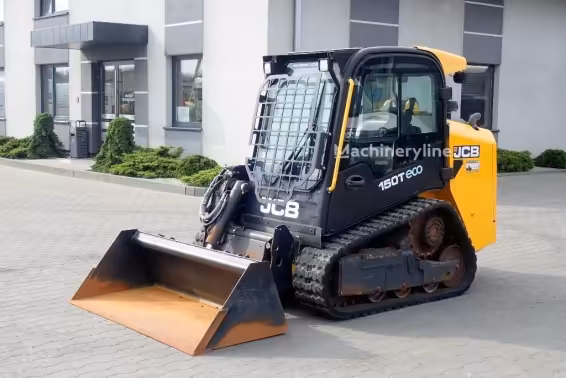

JCB 150T Compact track loaders tech specs

makana img
video play button
Video[1]
Interior [2]
Exterior [4]

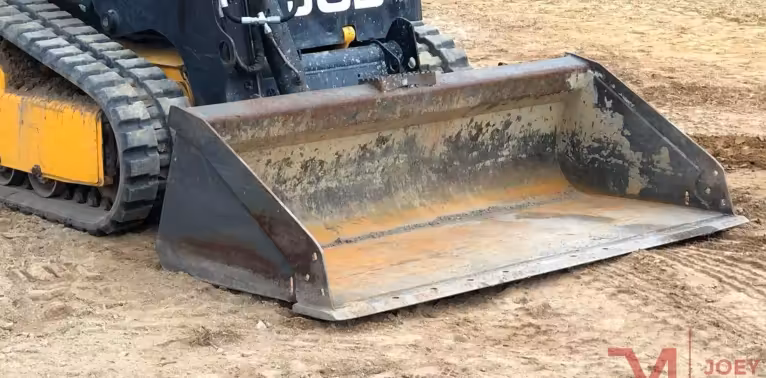

Attachments [2]
2011-2020
1,820.04 kg Breakout force
41.76 kw Gross power
3.05 m Loader dump height
1.01 m Loader dump reach
3,690.02 kg Lifting capacity
3,691 kg Operating weight
Show features

Makana rating

Market average

AED 186,000

Starting from

AED 152,000

JCB 150T Technical specifications

Engine

Alternator supplied amperage

100 Amh

Aspiration

Turbocharged

Displacement

1859.94 cu cm

Emissions

EPA-T4F (EU St3B)

Engine cooling system

Liquid

Gross power

41.76 kw

Max torque

225.06 Nm

Power measured @

2,400 rpm

Torque measured @

1,200 rpm

Operating specifications

Angle of departure

27 º

Rack back angle

42 º

General

Operating voltage

12 V

Bucket capacity

0.38 cu m

Bucket width

168 cm

Engine model

Kohler KDI 1903TCR/26B

Lifting capacity

3690.02 kg

Max speed forward

10.14 kph

Operating weight

3,691 kg

Loader

Breakout force

1820.04 kg

Loader dump height

3.05 m

Loader dump reach

1.01 m

Service refill capacities

Cooling fluid cap

10.22 liter

Fuel cap

98.03 liter

Hydraulic fluid cap

43.53 liter

Refill capacities

Engine oil cap

7.57 liter

Dimensions

Ground clearance

0.23 m

Height - top of cab

2.01 m

Length with bucket

3.51 m

Width over tracks

1.71 m

View more
Download datasheets
OEM product brochure

JCB 150T similar models

Highlight differences
JCB 150T
150T
JCB 1110T
1110T
JCB 270T
270T
Engine
Alternator supplied amperage 100 Amh
Alternator supplied amperage 72 Amh
Alternator supplied amperage 95 Amh
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Liquid
Displacement 1,859.94 cu cm
Displacement 3,900.13 cu cm
Displacement 4,399 cm3
Emissions EPA-T4F (EU St3B)
Emissions -
Emissions Tier 4F
Engine cooling system Liquid
Engine cooling system -
Engine cooling system Liquid
Gross power 41.76 kw
Gross power 68.61 kw
Gross power 55.03 kw
Max torque 225.06 Nm
Max torque 368.78 Nm
Max torque 400.1 Nm
Power measured @ 2,400 rpm
Power measured @ 2,200 rpm
Power measured @ -
Torque measured @ 1,200 rpm
Torque measured @ 1,200 rpm
Torque measured @ -
Net power -
Net power 61.15 kw
Net power -
Number of cylinders -
Number of cylinders 4
Number of cylinders -
Years 2011-2020
Years 2008-2013
Years 2018-2024
Market Average AED 186,000
Market Average AED 162,000
Market Average AED 93,300
Price AED 152,000
Price AED 143,000
Price AED 89,000
Operating specifications
Angle of departure 27 º
Angle of departure -
Angle of departure 29 degrees
Rack back angle 42 º
Rack back angle 64 º
Rack back angle 30 º
Dump angle -
Dump angle -
Dump angle 42 degrees
General
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Bucket capacity 0.38 cu m
Bucket capacity 0.61 cu m
Bucket capacity 0.46 m3
Bucket width 168 cm
Bucket width -
Bucket width 1,900 mm
Engine model Kohler KDI 1903TCR/26B
Engine model -
Engine model EcoMAX TCAE-55
Lifting capacity 3,690.02 kg
Lifting capacity 1,020.04 kg
Lifting capacity 1,235 kg
Max speed forward 10.14 kph
Max speed forward 10.14 kph
Max speed forward 12.5 kph
Operating weight 3,691 kg
Operating weight 4,625 kg
Operating weight 4,991 kg
Loader
Breakout force 1,820.04 kg
Breakout force -
Breakout force 29.1 kN
Loader dump height 3.05 m
Loader dump height 2.47 m
Loader dump height 2,900 mm
Loader dump reach 1.01 m
Loader dump reach 0.67 m
Loader dump reach 1,310 mm
Loader digging depth -
Loader digging depth -
Loader digging depth 100 mm
Service refill capacities
Cooling fluid cap 10.22 liter
Cooling fluid cap 15.14 liter
Cooling fluid cap 22.33 liters
Fuel cap 98.03 liter
Fuel cap 107.12 liter
Fuel cap 103.33 liter
Hydraulic fluid cap 43.53 liter
Hydraulic fluid cap 35.2 liter
Hydraulic fluid cap 55.26 liter
Refill capacities
Engine oil cap 7.57 liter
Engine oil cap 10.98 liter
Engine oil cap 15.14 liter
Dimensions
Ground clearance 0.23 m
Ground clearance 0.28 m
Ground clearance 0.23 m
Height - top of cab 2.01 m
Height - top of cab 2.04 m
Height - top of cab -
Length with bucket 3.51 m
Length with bucket 3.51 m
Length with bucket 3.81 m
Width over tracks 1.71 m
Width over tracks 1.98 m
Width over tracks 1.92 m
Length without Bucket -
Length without Bucket 2.38 m
Length without Bucket -
Turning radius -
Turning radius 1.67 m
Turning radius -
Undercarriage
Ground pressure -
Ground pressure 0.33 bar
Ground pressure -
Track length -
Track length 1.52 m
Track length -
Track width -
Track width 32 cm
Track width -
Hydraulic system
Pump flow cap -
Pump flow cap 76.08 lpm
Pump flow cap -
Pump type -
Pump type hydrostatic drive pumps
Pump type -
Relief valve pressure -
Relief valve pressure 184.91 bar
Relief valve pressure -
