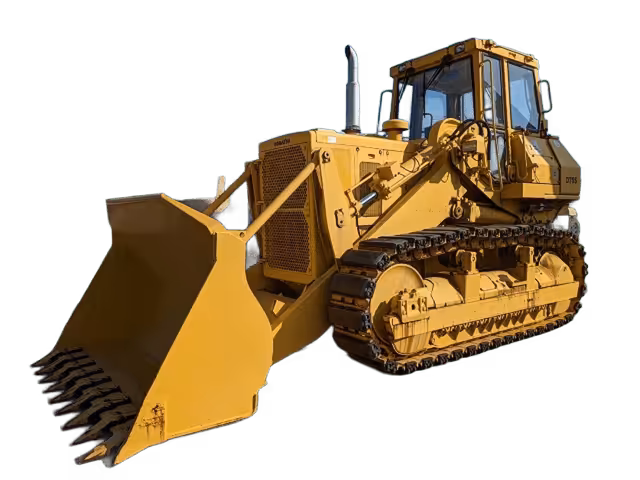

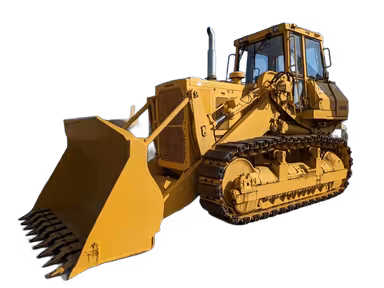

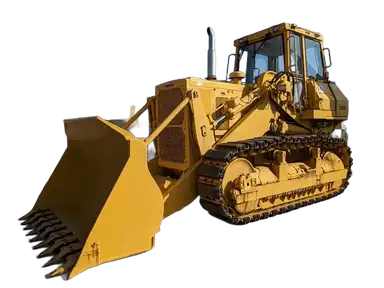

Komatsu D75S Crawler loaders tech specs

makana img
video play button
Video[1]

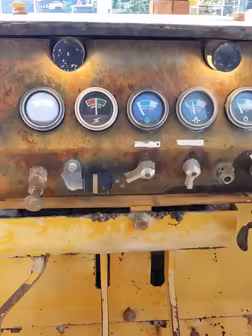

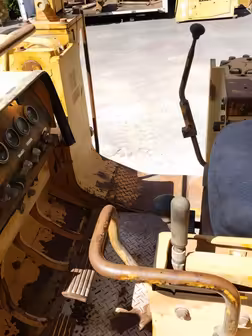

Interior [2]

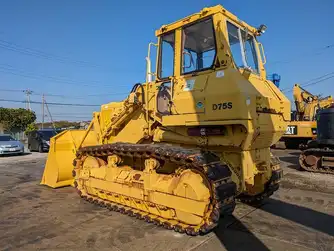

Exterior [4]
Attachments [2]
1979-1987
16,887.26 kg Breakout force
2.22 cu m Bucket capacity
NTO-6-CI Engine model
3.2 m Loader dump height
149.14 kw Net power
20,790 kg Operating weight

A 20,790 kg crawler loader built for heavy material handling, site clearing, and rough loading work, the Komatsu D75S combines 149.14 kilowatt net power with a 2.22 cu m bucket and 3.2 m dump height for steady production performance. With its NTO-6-CI engine, strong breakout force, and tracked undercarriage, it is suited for quarry work, bulk loading, land clearing, and demanding job sites where traction and pushing ability matter as much as bucket work.

Operating weight 20,790 kg

Net power 149.14 kilowatt

Bucket capacity 2.22 cu m

Loader dump height 3.2 m

Engine model NTO-6-CI

Breakout force 16,887.26 kg

Crawler undercarriage for traction and stability

Makana rating

Owner rating

 | 3

Market average

AED 110,000

Starting from

AED 58,000

Komatsu D75S technical specifications

Highlight differences

Komatsu D75S-3

Komatsu D75S-5

Engine
Aspiration Turbocharged
Aspiration -
Net power 149.14 kw
Net power 149.07 kw
Power measured @ -
Power measured @ 2,000 rpm
Years 1979-1987
Years 1979-1987
Market Average AED 110,000
Market Average AED 110,000
Price AED 58,000
Price AED 58,000
Loader
Breakout force 16,887.26 kg
Breakout force 17,889.71 kg
Loader dump height 3.2 m
Loader dump height 3.2 m
Loader dump reach 1.28 m
Loader dump reach 1.31 m
General
Bucket capacity 2.22 cu m
Bucket capacity 2.22 cu m
Displacement 12,175.62 cu cm
Displacement 11,041.63 cu cm
Engine model NTO-6-CI
Engine model S6D125E
Max speed forward 9.66 kph
Max speed forward 9.66 kph
Operating weight 20,790 kg
Operating weight 21,220 kg
Tipping load 14,002 kg
Tipping load 14,160 kg
Service refill capacities
Cooling fluid cap 52.23 liter
Cooling fluid cap -
Fuel cap 400.07 liter
Fuel cap 400.07 liter
Operating specifications
Raise time 11 s
Raise time -
Lower time 9 s
Lower time -
Dimensions
Ground clearance 0.4 m
Ground clearance -
Height - top of cab 3.23 m
Height - top of cab 3.29 m
Length with bucket 6.07 m
Length with bucket 6.22 m
Width over tracks 2.53 m
Width over tracks 2.44 m
Undercarriage
Ground pressure 0.81 bar
Ground pressure 0.83 bar
Number of track rollers per side 7
Number of track rollers per side 7
Track gauge 1.95 m
Track gauge 1.95 m
Track length 2.74 m
Track length 2.74 m
Track width 46.23 cm
Track width 46.23 cm
Download datasheets
OEM product brochure

Komatsu D75S expert review

Reviewed by Rizwan R. on April 22, 2026

Overview

The Komatsu D75S (1979–1987) is a heavy crawler loader designed for bulk material handling, land clearing, and rough loading tasks. It delivers 149.14 kilowatt engine power, a 2.22 cu m bucket, and a 3.2 m dump height, providing solid production capability on difficult ground conditions.

Expert rating: 3 stars

Pros Strong traction and stable bucket performance on rough and uneven job sites.
Cons Older machine platform with slower travel and less refinement than newer loaders.

Performance & Efficiency

The 149.14 kilowatt engine, 2.22 cu m bucket, and 3.2 m dump height give the D75S practical loading power for bulk earthmoving and site material handling, while the tracked undercarriage improves traction on softer or uneven ground.

In Comparison

John Deere 655: Practical crawler loader with comparable site-loading ability.
Komatsu D70: More focused on dozing rather than dedicated loading work.
Komatsu D75S: Better suited to buyers wanting tracked loading performance and stronger bucket-focused capability.

Final Verdict

Rated 3 stars, the Komatsu D75S offers practical crawler-loader performance within the AED 58,000–110,000 range.

Show less

Komatsu D75S owner rating

Komatsu D75S Crawler loaders [1979-1987]

1979-1987

Overall rating

Based on 3 ratings

4.0
performance

3.7

comfort

4.0

fuel efficiency

4.3

safety

4.3

features

3.3

5 stars

34 %

4 stars

33 %

3 stars

33 %

2 stars

0 %

1 stars

0 %

Pros
Tracks give it good grip in muddy and loose ground.
Cons
Older machine layout feels slower than newer loaders.
performance

3.0

comfort

4.0

fuel efficiency

4.0

safety

4.0

features

3.0

Valuation

Last 12 month
1979

Komatsu D75S similar models

Highlight differences
Komatsu D75S-3

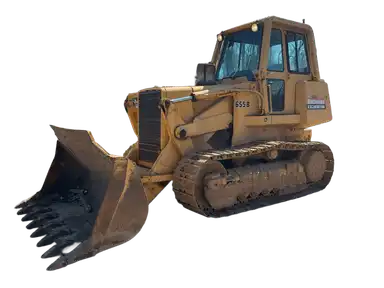

John deere 655B

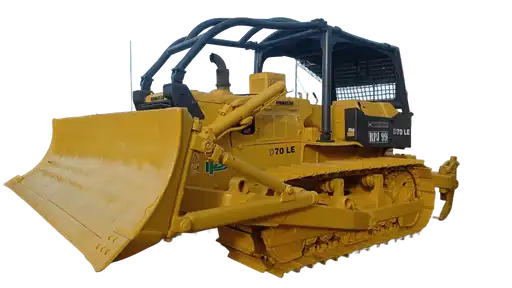

Komatsu D70LE-8
Engine
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration -
Net power 149.14 kw
Net power 89.49 kw
Net power -
Alternator supplied amperage -
Alternator supplied amperage 40 Amh
Alternator supplied amperage -
Number of cylinders -
Number of cylinders 6
Number of cylinders -
Power measured @ -
Power measured @ 2,100 rpm
Power measured @ -
Torque measured @ -
Torque measured @ 1,300 rpm
Torque measured @ -
Years 1979-1987
Years 1986-2021
Years 2016-2025
Market Average AED 110,000
Market Average AED 917,000
Market Average AED 480,000
Price AED 58,000
Price AED 206,000
Price AED 350,000
Loader
Breakout force 16,887.26 kg
Breakout force 11,249.1 kg
Breakout force -
Loader dump height 3.2 m
Loader dump height 2.83 m
Loader dump height -
Loader dump reach 1.28 m
Loader dump reach 1.22 m
Loader dump reach -
General
Bucket capacity 2.22 cu m
Bucket capacity -
Bucket capacity -
Displacement 12,175.62 cu cm
Displacement 6,784.26 cu cm
Displacement 11,044.91 cu cm
Engine model NTO-6-CI
Engine model 6068T
Engine model 6D125
Max speed forward 9.66 kph
Max speed forward 10.46 kph
Max speed forward 10.46 kph
Operating weight 20,790 kg
Operating weight 14,696 kg
Operating weight 13,850 kg
Tipping load 14,002 kg
Tipping load -
Tipping load -
Max torque -
Max torque 508.43 Nm
Max torque -
Operating voltage -
Operating voltage 24 V
Operating voltage -
Service refill capacities
Cooling fluid cap 52.23 liter
Cooling fluid cap 26.5 liter
Cooling fluid cap -
Fuel cap 400.07 liter
Fuel cap 276.31 liter
Fuel cap 320.21 liter
Hydraulic fluid cap -
Hydraulic fluid cap 140.05 liter
Hydraulic fluid cap -
Operating specifications
Raise time 11 s
Raise time 6 s
Raise time -
Lower time 9 s
Lower time 3 s
Lower time -
Dimensions
Ground clearance 0.4 m
Ground clearance 4.27 m
Ground clearance -
Height - top of cab 3.23 m
Height - top of cab 3.11 m
Height - top of cab 2.41 m
Length with bucket 6.07 m
Length with bucket 5.67 m
Length with bucket -
Width over tracks 2.53 m
Width over tracks 2.16 m
Width over tracks 2.5 m
Length with blade -
Length with blade -
Length with blade 4.15 m
Undercarriage
Ground pressure 0.81 bar
Ground pressure -
Ground pressure -
Number of track rollers per side 7
Number of track rollers per side 1
Number of track rollers per side -
Track gauge 1.95 m
Track gauge 1.63 m
Track gauge 1.89 m
Track length 2.74 m
Track length 2.32 m
Track length 2.65 m
Track width 46.23 cm
Track width 38.1 cm
Track width 61.21 cm
Ground contact area -
Ground contact area 44,638.46 cu cm
Ground contact area -
Number of shoes per side -
Number of shoes per side 40
Number of shoes per side -
Refill capacities
Engine oil cap -
Engine oil cap 18.93 liter
Engine oil cap -
Final drives fluid cap -
Final drives fluid cap 13.25 liter
Final drives fluid cap -
Hydraulic system
Pump flow cap -
Pump flow cap 204.39 lpm
Pump flow cap -
Pump type -
Pump type Gear
Pump type -
Relief valve pressure -
Relief valve pressure 155.13 bar
Relief valve pressure -
Transmission
Max speed reverse -
Max speed reverse -
Max speed reverse 9.17 kph
Number of forward gears -
Number of forward gears -
Number of forward gears 5
Number of reverse gears -
Number of reverse gears -
Number of reverse gears 4
