John deere
John deere 415 Backhoe loaders
John deere 415 Backhoe loaders tech specs

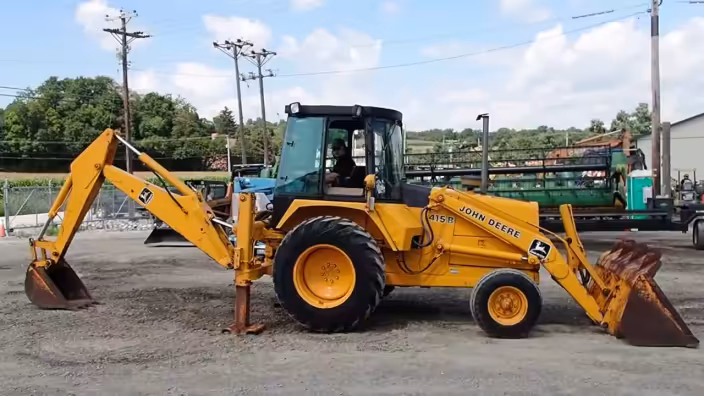

:quality(50)/65973/conversions/392d617c-ac3b-4dc0-8610-edee07628af7-webp.webp)
Video[1]
:quality(50)/65966/conversions/fc88d188-ecf4-4c28-8331-830a0ce08e85-webp.webp)

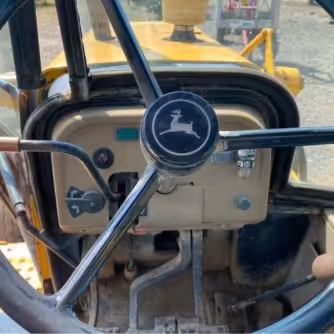

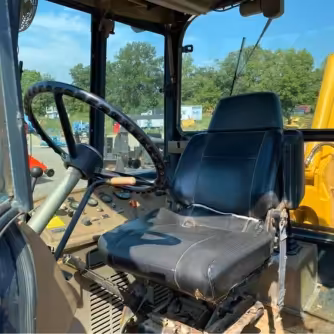

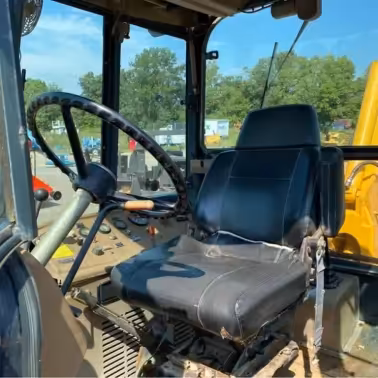

Interior [2]
:quality(50)/65968/conversions/3b0bcffa-f32f-43ef-b19f-49b4956aa073-webp.webp)

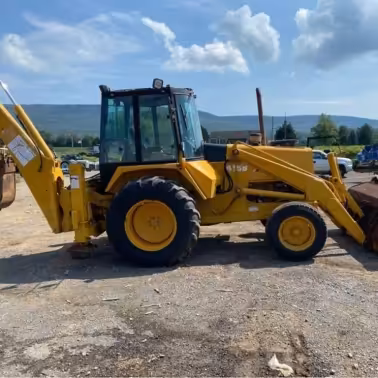

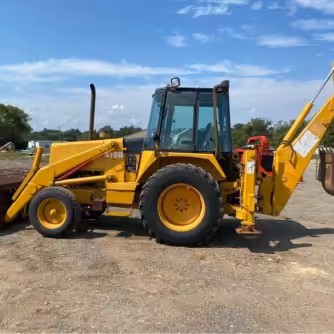

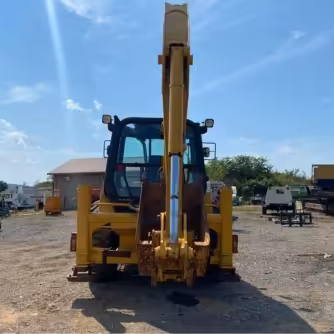

Exterior [4]

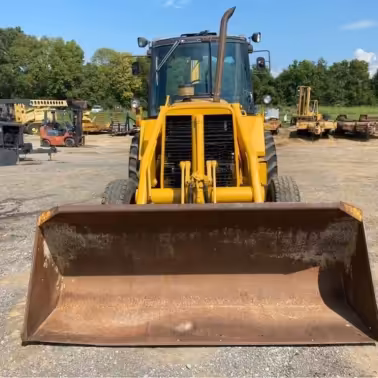

:quality(50)/65972/conversions/5f2ad56f-1f09-4259-9815-b55bb1bc3ad5-webp.webp)
Attachments [1]
1996-2021
3,916.52 cu cm Displacement
300 Series Engine model
230.49 Nm Max torque
50.71 kw Net power
7,257 kg Operating weight
220.63 bar Relief valve pressure
Makana rating
Market average
AED 506,000Starting from
AED 128,000John deere 415 Technical specifications
Engine
Alternator supplied amperage
65 Amh
Aspiration
Naturally aspirated
Displacement
3916.52 cu cm
Max torque
230.49 Nm
Net power
50.71 kw
Number of cylinders
4
Power measured @
2,500 rpm
Torque measured @
1,400 rpm
Service refill capacities
Cooling fluid cap
16.28 liter
Fuel cap
87.06 liter
Hydraulic fluid cap
71.92 liter
Transmission fluid cap
13.25 liter
General
Engine model
300 Series
Operating voltage
12 V
Operating weight
7,257 kg
Transmission type
4-speed with first and second collar shift, third and fourth synchronized with hydraulic server
Refill capacities
Engine oil cap
8.71 liter
Tires
Front tires size (2WD)
11L-16 F3
Rear tires size
19.5L-24 R4
Dimensions
Height - top of cab
2.65 m
Turning radius
3.57 m
Transmission
Number of forward gears
4
Number of reverse gears
4
Hydraulic system
Pump flow cap
87.06 lpm
Pump type
Closed center
Relief valve pressure
220.63 bar
Download datasheets

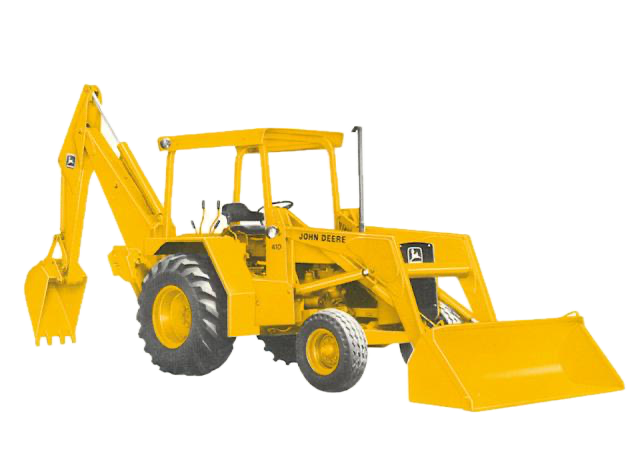

John deere 415 similar models
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 65 Amh
Alternator supplied amperage -
Alternator supplied amperage 35 Amh
Aspiration
Aspiration Naturally aspirated
Aspiration -
Aspiration -
Displacement
Displacement 3,916.52 cu cm
Displacement 3,300.36 cu cm
Displacement 3,588.77 cu cm
Max torque
Max torque 230.49 Nm
Max torque 196.59 Nm
Max torque 216.93 Nm
Net power
Net power 50.71 kw
Net power 44 kw
Net power 46.23 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,500 rpm
Power measured @ 2,500 rpm
Power measured @ 2,500 rpm
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ 1,300 rpm
Torque measured @ 1,300 rpm
Bore
Bore -
Bore 9.91 cm
Bore -
Engine make
Engine make -
Engine make John Deere
Engine make -
Stroke
Stroke -
Stroke 10.92 cm
Stroke -
Gross power
Gross power -
Gross power -
Gross power 49.22 kw
Years
Years 1996-2021
Years 1965-1971
Years 1973-2021
Market Average
Market Average AED 506,000
Market Average AED 51,000
Market Average AED 740,000
Price
Price AED 128,000
Price AED 32,000
Price AED 198,000
Cooling fluid cap
Cooling fluid cap 16.28 liter
Cooling fluid cap 11.73 liter
Cooling fluid cap 12.49 liter
Fuel cap
Fuel cap 87.06 liter
Fuel cap 73.81 liter
Fuel cap 13.25 liter
Hydraulic fluid cap
Hydraulic fluid cap 71.92 liter
Hydraulic fluid cap 40.88 liter
Hydraulic fluid cap 77.59 liter
Transmission fluid cap
Transmission fluid cap 13.25 liter
Transmission fluid cap -
Transmission fluid cap 37.85 liter
Engine model
Engine model 300 Series
Engine model -
Engine model 300 Series
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 7,257 kg
Operating weight 4,762 kg
Operating weight -
Transmission type
Transmission type 4-speed with first and second collar shift, third and fourth synchronized with hydraulic server
Transmission type Constant mesh
Transmission type Constant mesh, 8-speed forward and reverse. Standard hydraulic direction reverser permits no clutch reversing in all gears
Max speed forward
Max speed forward -
Max speed forward 25.91 kph
Max speed forward 26.39 kph
Bucket capacity
Bucket capacity -
Bucket capacity -
Bucket capacity 0.99 cu m
Bucket width
Bucket width -
Bucket width -
Bucket width 227 cm
Engine oil cap
Engine oil cap 8.71 liter
Engine oil cap 6.81 liter
Engine oil cap 8.71 liter
Front tires size (2WD)
Front tires size (2WD) 11L-16 F3
Front tires size (2WD) 7.50-16
Front tires size (2WD) 11L-16,10ply rating,F3/7.50/8.00-16,10ply rating,F3
Rear tires size
Rear tires size 19.5L-24 R4
Rear tires size 13.6-28
Rear tires size 16.9-24,8ply rating,R4/19.5L-24 8ply rating,R4
Height - top of cab
Height - top of cab 2.65 m
Height - top of cab 2.04 m
Height - top of cab 2.59 m
Turning radius
Turning radius 3.57 m
Turning radius -
Turning radius 3.11 m
Front tread range
Front tread range -
Front tread range 142.24 cm
Front tread range -
Rear tread range
Rear tread range -
Rear tread range 198.12 cm
Rear tread range -
Overall Length
Overall Length -
Overall Length 3.23 m
Overall Length 7.25 m
Overall Width
Overall Width -
Overall Width 1.92 m
Overall Width 3.11 m
Wheelbase
Wheelbase -
Wheelbase 2.1 m
Wheelbase -
Number of forward gears
Number of forward gears 4
Number of forward gears 8
Number of forward gears 8
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 8
Max speed reverse
Max speed reverse -
Max speed reverse 7.72 kph
Max speed reverse 30.09 kph
Pump flow cap
Pump flow cap 87.06 lpm
Pump flow cap 105.98 lpm
Pump flow cap 143.83 lpm
Pump type
Pump type Closed center
Pump type Closed center
Pump type Variable flow, axial piston
Relief valve pressure
Relief valve pressure 220.63 bar
Relief valve pressure 155.13 bar
Relief valve pressure 162.02 bar
Breakout force
Breakout force -
Breakout force 1,814.37 kg
Breakout force 3,401.95 kg
Loader dump height
Loader dump height -
Loader dump height 2.53 m
Loader dump height 3.29 m
Loader dump reach
Loader dump reach -
Loader dump reach 0.73 m
Loader dump reach 0.85 m
Loader digging depth
Loader digging depth -
Loader digging depth -
Loader digging depth 10.16 cm
Backhoe digging depth
Backhoe digging depth -
Backhoe digging depth -
Backhoe digging depth 4.69 m
Backhoe reach from swivel
Backhoe reach from swivel -
Backhoe reach from swivel -
Backhoe reach from swivel 5.7 m
Bucket digging force
Bucket digging force -
Bucket digging force -
Bucket digging force 4,377.17 kg
Extended backhoe digging depth
Extended backhoe digging depth -
Extended backhoe digging depth -
Extended backhoe digging depth 4.33 m
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe dump height 3.54 m
Extended backhoe dump reach
Extended backhoe dump reach -
Extended backhoe dump reach -
Extended backhoe dump reach 6.71 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel -
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 5.7 m
