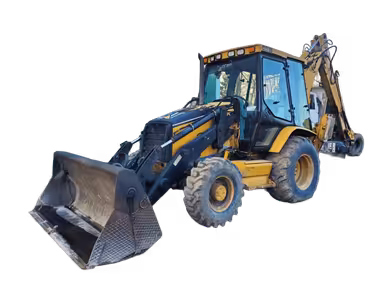

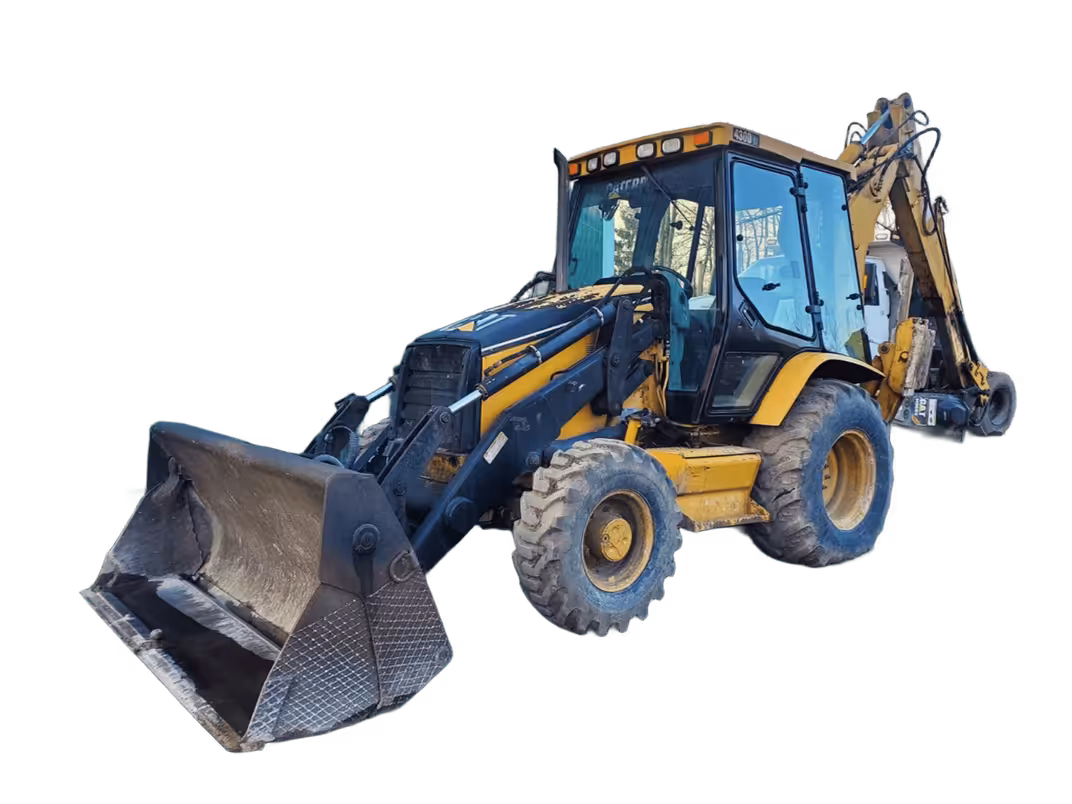

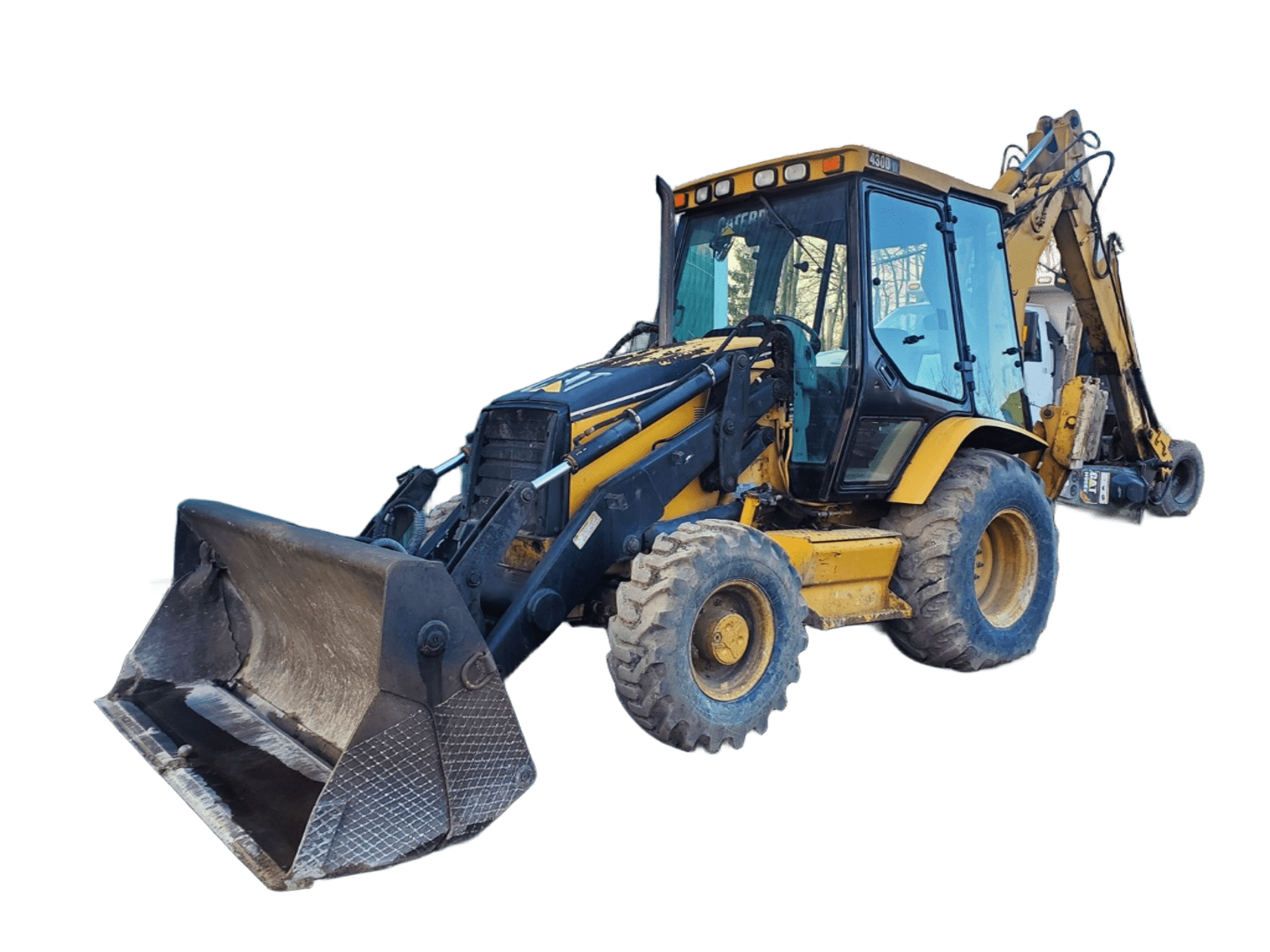

Cat 430 Backhoe loaders tech specs
:quality(50)/66088/conversions/2db919e6-f080-4e84-9e06-e68286709f84-thumb.webp)

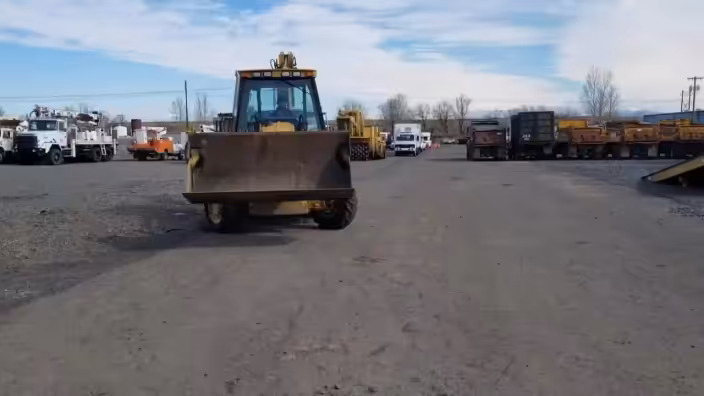

Video[1]
:quality(50)/66081/conversions/1b4314a8-0409-46f3-9955-bb940911f20e-thumb.webp)

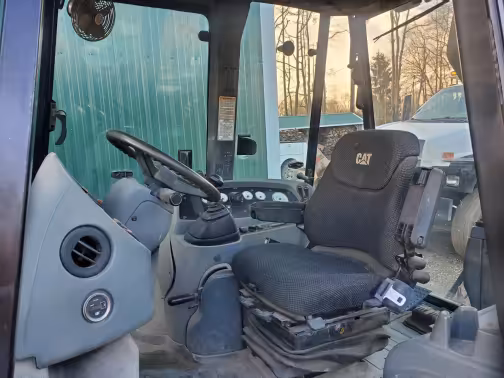

Interior [2]
:quality(50)/66083/conversions/727a6054-0d28-4e08-af65-340226bff970-thumb.webp)

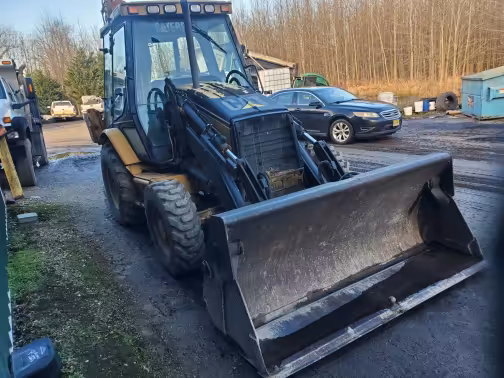

Exterior [4]
:quality(50)/66087/conversions/3709483f-36b6-41b5-bc3f-e808a4c3fcf2-thumb.webp)

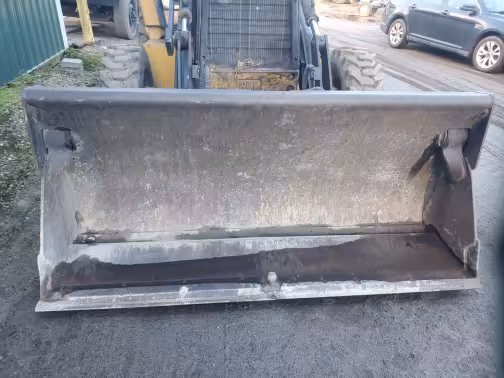

Attachments [1]
Cat 430 technical specifications
Highlight differences
Arm crowding force
Arm crowding force 4,285.55 kg
Arm crowding force -
Arm crowding force -
Arm crowding force -
Years
Years 2008-2025
Years 2008-2025
Years 2008-2025
Years 2008-2025
Market Average
Market Average AED 565,000
Market Average AED 565,000
Market Average AED 565,000
Market Average AED 565,000
Price
Price AED 275,000
Price AED 275,000
Price AED 275,000
Price AED 275,000
Backhoe digging depth
Backhoe digging depth 4.66 m
Backhoe digging depth 4.66 m
Backhoe digging depth 4.72 m
Backhoe digging depth -
Backhoe dump height
Backhoe dump height 1.83 m
Backhoe dump height -
Backhoe dump height -
Backhoe dump height -
Backhoe reach from swivel
Backhoe reach from swivel 7.07 m
Backhoe reach from swivel 7.07 m
Backhoe reach from swivel 6.07 m
Backhoe reach from swivel 6.07 m
Bucket rotation
Bucket rotation 205 º
Bucket rotation -
Bucket rotation -
Bucket rotation -
Bore
Bore 10.16 cm
Bore -
Bore -
Bore -
Gross power
Gross power 73.08 kw
Gross power 73.08 kw
Gross power 75.32 kw
Gross power 75.32 kw
Max torque
Max torque 375.56 Nm
Max torque -
Max torque 405.38 Nm
Max torque 405.38 Nm
Net power
Net power 70.1 kw
Net power -
Net power 72.33 kw
Net power 72.33 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ -
Power measured @ -
Stroke
Stroke 12.7 cm
Stroke -
Stroke -
Stroke -
Torque rise
Torque rise 23.1 %
Torque rise -
Torque rise 0.29 %
Torque rise 0.29 %
Brake system
Brake system Inboard, oil-immersed
Brake system -
Brake system -
Brake system -
Cab ROPS
Cab ROPS SAE J397/SAE J1040 May 1994/ISO 3741 1994
Cab ROPS -
Cab ROPS -
Cab ROPS -
Cab sound
Cab sound ANSI/SAE J1166 Oct 98 is 78.5 dB(A)
Cab sound -
Cab sound -
Cab sound -
Extended backhoe digging depth
Extended backhoe digging depth 6.1 m
Extended backhoe digging depth 6.1 m
Extended backhoe digging depth 5.94 m
Extended backhoe digging depth 5.94 m
Extended backhoe dump reach
Extended backhoe dump reach 3.08 m
Extended backhoe dump reach 3.08 m
Extended backhoe dump reach 2.93 m
Extended backhoe dump reach 2.93 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel 8.41 m
Extended backhoe reach from swivel 8.41 m
Extended backhoe reach from swivel 7.25 m
Extended backhoe reach from swivel 7.25 m
Exterior sound
Exterior sound SAE J88 April 95 is 73.0 dB(A)
Exterior sound -
Exterior sound -
Exterior sound -
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height 4.6 m
Extended backhoe dump height 4.54 m
Extended backhoe dump height 4.54 m
Bucket capacity
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Bucket capacity 1.07 cu m
Displacement
Displacement 3,982.07 cu cm
Displacement 4,000.09 cu cm
Displacement 4,391.74 cu cm
Displacement 4,391.74 cu cm
Engine model
Engine model Cat 3054T
Engine model 3054T
Engine model 3054C DIT
Engine model 3054C DIT
Lifting capacity
Lifting capacity 2,898.91 kg
Lifting capacity -
Lifting capacity -
Lifting capacity -
Max speed forward
Max speed forward 33.8 kph
Max speed forward 33.8 kph
Max speed forward 43.13 kph
Max speed forward 43.13 kph
Operating weight
Operating weight 9,799 kg
Operating weight 7,355 kg
Operating weight 10,690 kg
Operating weight 10,690 kg
Transmission type
Transmission type Powershuttle
Transmission type Powershuttle
Transmission type Powershuttle
Transmission type Powershuttle
Wheelbase
Wheelbase 2.1 m
Wheelbase -
Wheelbase 2.23 m
Wheelbase 2.23 m
Bucket width
Bucket width -
Bucket width 240 cm
Bucket width 203 cm
Bucket width 203 cm
Operating voltage
Operating voltage -
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Bucket digging force
Bucket digging force 6,682.33 kg
Bucket digging force 6,682.33 kg
Bucket digging force 7,208.5 kg
Bucket digging force 7,208.5 kg
Circuit type
Circuit type Closed center, load sensing
Circuit type -
Circuit type -
Circuit type -
Pump flow cap
Pump flow cap 163.13 lpm
Pump flow cap 163.13 lpm
Pump flow cap 162.76 lpm
Pump flow cap 162.76 lpm
Relief valve pressure
Relief valve pressure 227.54 bar
Relief valve pressure 227.54 bar
Relief valve pressure 248.97 bar
Relief valve pressure 248.97 bar
Pump type
Pump type -
Pump type Closed center, load sensing
Pump type Variable flow, axial piston
Pump type Variable flow, axial piston
Engine oil cap
Engine oil cap 7.57 liter
Engine oil cap -
Engine oil cap 7.57 liter
Engine oil cap 7.57 liter
Front tires size (2WD)
Front tires size (2WD) 11Lx16,12PR / 12.5/80x18,10PR
Front tires size (2WD) 11Lx16,12PR / 12.5/80x18,10PR
Front tires size (2WD) 335/80R 18 XM37 / 12.5/80-18 NHS (10 ply) 1-3 super traction
Front tires size (2WD) 335/80R 18 XM37 / 12.5/80-18 NHS (10 ply) 1-3 super traction
Rear tires size
Rear tires size 12.5/80x18,10PR / 19.5x24,10PR
Rear tires size 12.5/80x18,10PR / 19.5x24,10PR
Rear tires size 19.5L-R24 XM37 / 21L-24 (16 ply) R4 ATU
Rear tires size 19.5L-R24 XM37 / 21L-24 (16 ply) R4 ATU
Fuel cap
Fuel cap 128.31 liter
Fuel cap 128.31 liter
Fuel cap 143.83 liter
Fuel cap 143.83 liter
Hydraulic fluid cap
Hydraulic fluid cap 79.49 liter
Hydraulic fluid cap -
Hydraulic fluid cap 79.49 liter
Hydraulic fluid cap 79.49 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap -
Cooling fluid cap 16.65 liter
Cooling fluid cap 16.65 liter
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity -
Front axle fluid capacity 7.57 liter
Front axle fluid capacity 7.57 liter
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity -
Rear axle fluid capacity 16.65 liter
Rear axle fluid capacity 16.65 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap -
Transmission fluid cap 18.93 liter
Transmission fluid cap 18.93 liter
Ground clearance
Ground clearance 0.3 m
Ground clearance 0.3 m
Ground clearance -
Ground clearance -
Height - top of cab
Height - top of cab 2.77 m
Height - top of cab 2.77 m
Height - top of cab 2.83 m
Height - top of cab 2.83 m
Overall Length
Overall Length 7.35 m
Overall Length 7.35 m
Overall Length 7.38 m
Overall Length 7.38 m
Overall Width
Overall Width 2.38 m
Overall Width -
Overall Width 2.44 m
Overall Width 2.44 m
Turning radius
Turning radius 5.43 m
Turning radius 5.43 m
Turning radius 5.43 m
Turning radius 5.43 m
Loader digging depth
Loader digging depth 13.72 cm
Loader digging depth 13.72 cm
Loader digging depth 10.16 cm
Loader digging depth 10.16 cm
Loader dump height
Loader dump height 2.62 m
Loader dump height 2.59 m
Loader dump height 2.62 m
Loader dump height 2.62 m
Loader dump reach
Loader dump reach 0.82 m
Loader dump reach 0.82 m
Loader dump reach 0.82 m
Loader dump reach 0.82 m
Breakout force
Breakout force -
Breakout force 4,660.12 kg
Breakout force 4,717.82 kg
Breakout force 4,717.82 kg
Max speed reverse
Max speed reverse 33.8 kph
Max speed reverse 33.8 kph
Max speed reverse 43.13 kph
Max speed reverse 43.13 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Download datasheets
Cat 430 expert review
:quality(50)/55272/8c2d1d6b-e9a4-40d8-9825-964e2a331151.webp)
Overview
The Cat 430 is aimed at contractors who need more power and lift than mid-range backhoes can offer. Producing 73.08 kW of gross power and operating at nearly 9.8 tons, it delivers confident digging and loading performance across utilities, road construction, and large site preparation.
Pros Strong engine output, solid lifting capacity, stable working platform.
Cons Larger footprint than mid-size models, higher purchase cost.
Efficiency
With higher power and heavier operating weight, the Cat 430 handles tough soil and heavier loads with less strain. A 2.62 m loader dump height supports truck loading, while its mass improves stability during deep trenching.
In Cabin
The cab offers practical ergonomics with clear sightlines and straightforward controls. Comfort favors durability over luxury.
In Comparison
Compared with the Cat 428, the 430 offers far more power. Against the Case 770, it stands out for engine output and overall stability.
Final Verdict
Rated 4 stars, the Cat 430 suits contractors handling utilities, roadworks, and heavy site prep, priced between AED 275,000 and 565,000.
Cat 430 owner rating
Cat 430 Backhoe loaders [2008-2025]
2008-2025
Overall rating
Based on 3 ratings
4.3
performance
4.7
comfort
4.7
fuel efficiency
4.3
safety
4.7
features
4.3
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %

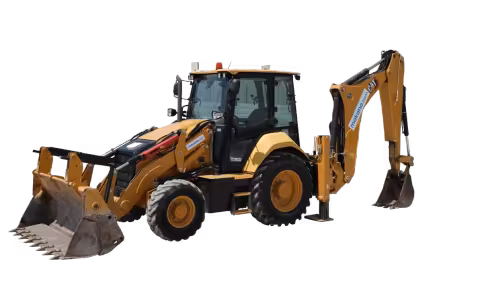

Cat 430 similar models
Highlight differences
:quality(50)/59551/432eeaeb-8e2c-403a-a995-e3c3bb9bb21c.png)
Arm crowding force
Arm crowding force 4,285.55 kg
Arm crowding force 36.8 kN
Arm crowding force -
Years
Years 2008-2025
Years 1987-2025
Years 2021-2025
Market Average
Market Average AED 565,000
Market Average AED 275,000
Market Average AED 170,000
Price
Price AED 275,000
Price AED 186,000
Price AED 150,000
Backhoe digging depth
Backhoe digging depth 4.66 m
Backhoe digging depth 4,400 mm
Backhoe digging depth 4,400 mm
Backhoe dump height
Backhoe dump height 1.83 m
Backhoe dump height 3,900 m
Backhoe dump height 3,800 m
Backhoe reach from swivel
Backhoe reach from swivel 7.07 m
Backhoe reach from swivel 5,600 m
Backhoe reach from swivel 5,625 m
Bucket rotation
Bucket rotation 205 º
Bucket rotation 205 degrees
Bucket rotation 204 degrees
Backhoe dump reach
Backhoe dump reach -
Backhoe dump reach -
Backhoe dump reach 2,150 m
Bore
Bore 10.16 cm
Bore 10.5 cm
Bore -
Gross power
Gross power 73.08 kw
Gross power 74 kw
Gross power 54.4 kw
Max torque
Max torque 375.56 Nm
Max torque 383 Nm
Max torque 340 Nm
Net power
Net power 70.1 kw
Net power 65.6 kw
Net power -
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @
Power measured @ 2,200 rpm
Power measured @ -
Power measured @ -
Stroke
Stroke 12.7 cm
Stroke 12.7 cm
Stroke -
Torque rise
Torque rise 23.1 %
Torque rise 31 %
Torque rise -
Aspiration
Aspiration -
Aspiration Mechanical turbo
Aspiration Turbocharged
Emissions
Emissions -
Emissions Tier 3
Emissions Tier 4F
Brake system
Brake system Inboard, oil-immersed
Brake system -
Brake system Hydraulic foot operated, 2 disc per side
Cab ROPS
Cab ROPS SAE J397/SAE J1040 May 1994/ISO 3741 1994
Cab ROPS -
Cab ROPS -
Cab sound
Cab sound ANSI/SAE J1166 Oct 98 is 78.5 dB(A)
Cab sound -
Cab sound -
Extended backhoe digging depth
Extended backhoe digging depth 6.1 m
Extended backhoe digging depth 5.7 m
Extended backhoe digging depth -
Extended backhoe dump reach
Extended backhoe dump reach 3.08 m
Extended backhoe dump reach 2.5 m
Extended backhoe dump reach -
Extended backhoe reach from swivel
Extended backhoe reach from swivel 8.41 m
Extended backhoe reach from swivel 6.5 m
Extended backhoe reach from swivel -
Exterior sound
Exterior sound SAE J88 April 95 is 73.0 dB(A)
Exterior sound -
Exterior sound -
Dump angle
Dump angle -
Dump angle 45 degrees
Dump angle -
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height 4.5 m
Extended backhoe dump height -
Rack back angle
Rack back angle -
Rack back angle -
Rack back angle 45 º
Bucket capacity
Bucket capacity 1.07 cu m
Bucket capacity 1 m3
Bucket capacity 0.26 m3
Displacement
Displacement 3,982.07 cu cm
Displacement 4,400 cm3
Displacement 3,840 l
Engine model
Engine model Cat 3054T
Engine model CAT 3054C
Engine model Ashok Leyland H4C4E7422*W
Lifting capacity
Lifting capacity 2,898.91 kg
Lifting capacity 3,728 kg
Lifting capacity 3,515 kg
Max speed forward
Max speed forward 33.8 kph
Max speed forward 37 kph
Max speed forward 34.1 kph
Operating weight
Operating weight 9,799 kg
Operating weight 11,000 kg
Operating weight 7,780 kg
Transmission type
Transmission type Powershuttle
Transmission type Powershuttle 4x4
Transmission type Powershuttle synchromesh
Wheelbase
Wheelbase 2.1 m
Wheelbase 2.2 m
Wheelbase 2.18 m
Bucket width
Bucket width -
Bucket width 2,409 mm
Bucket width -
Tire size
Tire size -
Tire size (F) 340/80-18 , (R) 440/80-28
Tire size (F) Standard 9x16-16 PR, (R) Standard 16.9x28-12 PR
Bucket digging force
Bucket digging force 6,682.33 kg
Bucket digging force 63.4 kN
Bucket digging force -
Circuit type
Circuit type Closed center, load sensing
Circuit type -
Circuit type -
Pump flow cap
Pump flow cap 163.13 lpm
Pump flow cap 160 lpm
Pump flow cap 126 lpm
Relief valve pressure
Relief valve pressure 227.54 bar
Relief valve pressure 250 bar
Relief valve pressure 194.98 bar
Pump type
Pump type -
Pump type Variable flow, axial piston
Pump type Open center, load sensing
Engine oil cap
Engine oil cap 7.57 liter
Engine oil cap 9 liter
Engine oil cap 9.1 liter
Front tires size (2WD)
Front tires size (2WD) 11Lx16,12PR / 12.5/80x18,10PR
Front tires size (2WD) -
Front tires size (2WD) -
Rear tires size
Rear tires size 12.5/80x18,10PR / 19.5x24,10PR
Rear tires size -
Rear tires size -
Fuel cap
Fuel cap 128.31 liter
Fuel cap 160 liter
Fuel cap 129 liter
Hydraulic fluid cap
Hydraulic fluid cap 79.49 liter
Hydraulic fluid cap 95 liter
Hydraulic fluid cap 107 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 18 liters
Cooling fluid cap 20 liter
Front axle fluid cap
Front axle fluid cap -
Front axle fluid cap 11 liters
Front axle fluid cap -
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 19 liter
Transmission fluid cap 18 liter
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity 16 liter
Rear axle fluid capacity 17.1 liter
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity -
Front axle fluid capacity 8.9 liter
Ground clearance
Ground clearance 0.3 m
Ground clearance -
Ground clearance -
Height - top of cab
Height - top of cab 2.77 m
Height - top of cab -
Height - top of cab -
Overall Length
Overall Length 7.35 m
Overall Length 5 m
Overall Length -
Overall Width
Overall Width 2.38 m
Overall Width 2 m
Overall Width -
Turning radius
Turning radius 5.43 m
Turning radius -
Turning radius -
Transport length
Transport length -
Transport length -
Transport length 5 m
Transport width
Transport width -
Transport width -
Transport width 2 m
Loader digging depth
Loader digging depth 13.72 cm
Loader digging depth 99 mm
Loader digging depth 110 mm
Loader dump height
Loader dump height 2.62 m
Loader dump height 2,755 mm
Loader dump height 2,730 mm
Loader dump reach
Loader dump reach 0.82 m
Loader dump reach 805 mm
Loader dump reach 760 mm
Breakout force
Breakout force -
Breakout force 54.79 kN
Breakout force 56.9 kN
Max speed reverse
Max speed reverse 33.8 kph
Max speed reverse 37 kph
Max speed reverse -
Number of forward gears
Number of forward gears 4
Number of forward gears 6
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Cat 430 gallery
:quality(50)/66088/conversions/2db919e6-f080-4e84-9e06-e68286709f84-thumb.webp)
:quality(75)/products/10078/view_360/242622af-fd6d-4f8c-84eb-9871c9e2ff4f.png)
:quality(75)/products/10123/view_360/bbb4e853-cbf8-4ea4-832e-deee377b5adb.png)
:quality(75)/products/10077/view_360/748f9164-0b67-49d4-aa7f-0550dacb5ac7.png)
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
Cat D8 Crawler dozers specs Cat D9 Crawler dozers specs Cat D6 Crawler dozers specs Cat 725 Articulated dump trucks specs Cat 730 Articulated dump trucks specs Cat 740 Articulated dump trucks specs Cat 745 Articulated dump trucks specs Cat 307 Mini excavators specs Cat 320 Medium excavators specs Cat 336 Medium excavators specs
John Deere 310 Backhoe loaders specs JCB 3DX Backhoe loaders specs Case 770 Backhoe loaders specs Case 851 Backhoe loaders specs Cat 426 Backhoe loaders specs Cat 428 Backhoe loaders specs Massey ferguson 50 Backhoe loaders specs Massey ferguson 60 Backhoe loaders specs Cukurova 88 Backhoe loaders specs John deere 110 Backhoe loaders specs
John Deere 310 Backhoe loaders specs JCB 3DX Backhoe loaders specs John Deere 524 Wheel loaders specs John Deere 544 Wheel loaders specs John Deere 624 Wheel loaders specs John Deere 644 Wheel loaders specs Case 770 Backhoe loaders specs Case 851 Backhoe loaders specs Cat 906 Wheel loaders specs Cat 938 Wheel loaders specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
