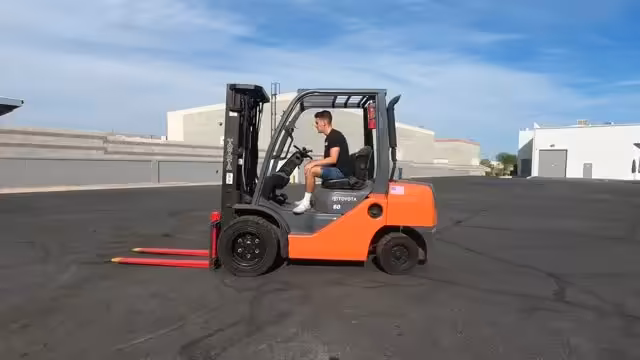

Video[1]
:quality(50)/70327/conversions/741bfacb-9cc3-4395-8e9d-dd57bff583af-thumb.webp)

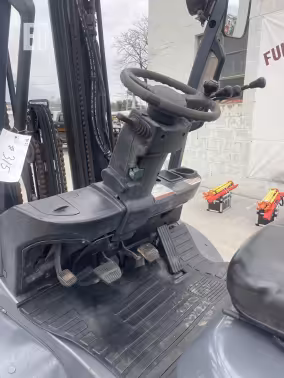

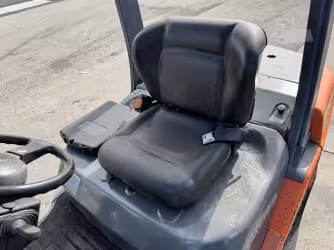

Interior [2]
:quality(50)/70329/conversions/c89b6f70-d11a-457d-92f3-b82c1fb7cb99-thumb.webp)

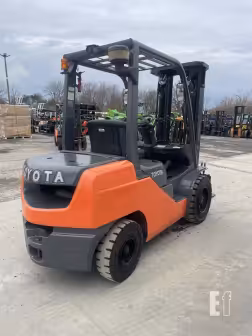

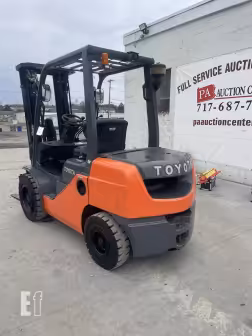

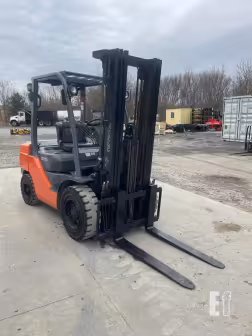

Exterior [4]
:quality(50)/70333/conversions/54dec6d2-920a-446d-a273-562e87041126-thumb.webp)

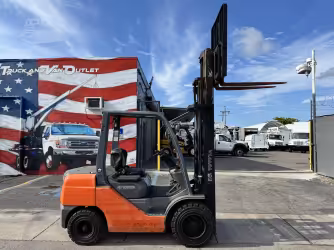

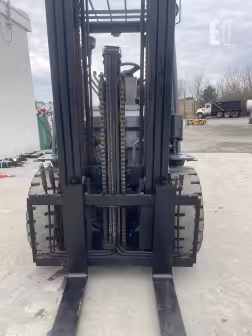

Attachments [2]
Toyota 8FDU Technical specifications
General
Displacement
2486 cu cm
Engine model
Toyota 1DZ-III
Lifting capacity
2722 kg
Max speed forward
18 kph
Max torque
160 Nm
Operating weight
4,210 kg
Undercarriage
Drawbar Pull
19.6 kN
Service refill capacities
Fuel cap
60 liter
Hydraulic fluid cap
79 liter
Engine
Gross power
41 kw
Number of cylinders
4
Power measured @
2,200 rpm
Torque measured @
2,200 rpm
Dimensions
Height - top of cab
2.17 m
Length to Fork Face
2.78 m
Overall Width
1.24 m
Turning radius
2.35 m
Mast
Lift Speed
30 m/min
Load Center
61 cm
Operating specifications
Number of Front Wheels
2
Number of Rear Wheels
2
Tire Type
Pneumatic
Hydraulic system
Relief valve pressure
157 bar
Download datasheets
Toyota 8FDU owner rating
Toyota 8FDU Forklifts [2015-2025]
2015-2025
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.3
fuel efficiency
4.3
safety
4.3
features
4.3
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %

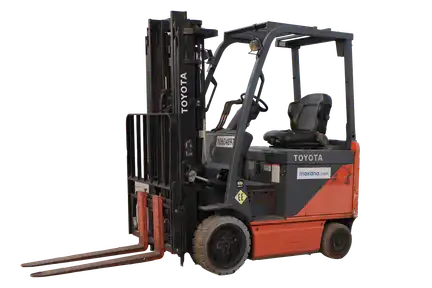

Toyota 8FDU similar models
Highlight differences
:quality(50)/72955/68d60c87-fb07-49d3-ac80-cb535464d6d8.png)
:quality(50)/59673/b63f9deb-216b-4435-8379-0e7720ebf308.png)
Displacement
Displacement 2,486 cu cm
Displacement -
Displacement 2,228.65 cu cm
Engine model
Engine model Toyota 1DZ-III
Engine model -
Engine model TOYOTA 4Y-ECS
Lifting capacity
Lifting capacity 2,722 kg
Lifting capacity 2,268 kg
Lifting capacity 2,267.96 kg
Max speed forward
Max speed forward 18 kph
Max speed forward 18.5 kph
Max speed forward 17.06 kph
Max torque
Max torque 160 Nm
Max torque -
Max torque 160.12 Nm
Operating weight
Operating weight 4,210 kg
Operating weight -
Operating weight 3,630 kg
Years
Years 2015-2025
Years 2010-2025
Years 2024-2025
Market Average
Market Average AED 107,000
Market Average AED 92,000
Market Average AED 106,500
Price
Price AED 70,000
Price AED 66,500
Price AED 91,000
Drawbar Pull
Drawbar Pull 19.6 kN
Drawbar Pull -
Drawbar Pull 76.44 kN
Fuel cap
Fuel cap 60 liter
Fuel cap -
Fuel cap 45.04 liter
Hydraulic fluid cap
Hydraulic fluid cap 79 liter
Hydraulic fluid cap -
Hydraulic fluid cap 75.7 liter
Gross power
Gross power 41 kw
Gross power -
Gross power 38.03 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ 2,200 rpm
Power measured @ -
Power measured @ 2,570 rpm
Torque measured @
Torque measured @ 2,200 rpm
Torque measured @ -
Torque measured @ 2,100 rpm
Height - top of cab
Height - top of cab 2.17 m
Height - top of cab 2.126 m
Height - top of cab 2.07 m
Length to Fork Face
Length to Fork Face 2.78 m
Length to Fork Face 2.14 m
Length to Fork Face 2.41 m
Overall Width
Overall Width 1.24 m
Overall Width 1.06 m
Overall Width 1.07 m
Turning radius
Turning radius 2.35 m
Turning radius 1.8 m
Turning radius 1.98 m
Right Angle Stack
Right Angle Stack -
Right Angle Stack 2.405 m
Right Angle Stack -
Lift Speed
Lift Speed 30 m/min
Lift Speed 0.35 m/min
Lift Speed 37.8 m/min
Load Center
Load Center 61 cm
Load Center 61 cm
Load Center 60.2 cm
Number of Front Wheels
Number of Front Wheels 2
Number of Front Wheels 2
Number of Front Wheels 2
Number of Rear Wheels
Number of Rear Wheels 2
Number of Rear Wheels 2
Number of Rear Wheels 2
Tire Type
Tire Type Pneumatic
Tire Type Cushion
Tire Type Cushion
Relief valve pressure
Relief valve pressure 157 bar
Relief valve pressure -
Relief valve pressure 156.85 bar
