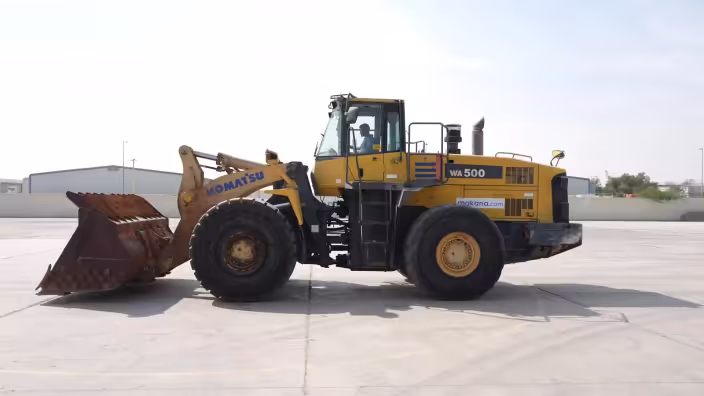

Komatsu WA500 wheel loaders tech specs
:quality(50)/69811/conversions/e7d6fd32-4105-473b-9da9-f409d117e049-webp.webp)
Video[1]
:quality(50)/69803/conversions/50bcaedf-3b89-40bd-a4e2-9f06ff2f9d0c-webp.webp)

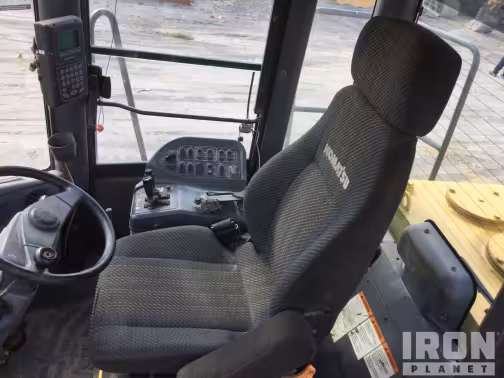

Interior [2]
:quality(50)/69805/conversions/f77e7724-15c9-459f-badd-98c3a7e9e421-webp.webp)
Exterior [4]
:quality(50)/69809/conversions/2fec3240-b5ac-46e1-8698-f13ebaac6ccd-webp.webp)

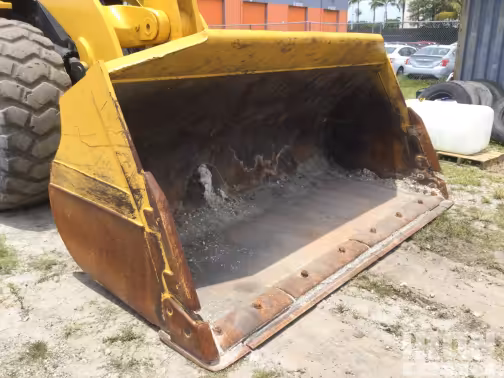

Attachments [2]
Komatsu WA500 Technical specifications
General
Lifting capacity
24300 kg
Bucket width
3,430 mm
Engine model
Komatsu SAA6D140E-5
Bucket capacity
5.3 cu m
Operating weight
39,200 kg
Tipping load
21,000 kg
Max speed forward
34.9 kph
Transmission type
Automatic powershift transmission
Engine
Max torque
1875 Nm
Displacement
15240 cu cm
Net power
263.23 kw
Dimensions
Height - top of cab
3.79 m
Wheelbase
3.78 m
Hydraulic system
Pump flow cap
320 lpm
Pump type
Piston pump
Relief valve pressure
343 bar
Loader
Breakout force
245 kN
Loader dump height
3295 mm
Loader dump reach
1500 mm
Service refill capacities
Fuel cap
473 liter
Hydraulic fluid cap
337 liter
Download datasheets
Komatsu WA500 similar models
Highlight differences
Lifting capacity
Lifting capacity 24,300 kg
Lifting capacity 10,500 kg
Lifting capacity -
Bucket width
Bucket width 3,430 mm
Bucket width 3,700 mm
Bucket width 3,190 mm
Engine model
Engine model Komatsu SAA6D140E-5
Engine model Cat C13 ACERT
Engine model Komatsu SAA6D125E-5
Bucket capacity
Bucket capacity 5.3 cu m
Bucket capacity 5.6 cu m
Bucket capacity 3.6 cu m
Operating weight
Operating weight 39,200 kg
Operating weight 25,500 kg
Operating weight 24,955 kg
Tipping load
Tipping load 21,000 kg
Tipping load 21,000 kg
Tipping load 18,560 kg
Max speed forward
Max speed forward 34.9 kph
Max speed forward 40 kph
Max speed forward 37.3 kph
Transmission type
Transmission type Automatic powershift transmission
Transmission type -
Transmission type Full powershift, contershaft type
Max dump height
Max dump height -
Max dump height 3,450 mm
Max dump height -
Years
Years 2006-2013
Years 2014-2025
Years 2022-2025
Market Average
Market Average AED 300,000
Market Average AED 550,000
Market Average AED 760,000
Price
Price AED 256,000
Price AED 275,000
Price AED 650,000
Max torque
Max torque 1,875 Nm
Max torque 1,650 Nm
Max torque -
Displacement
Displacement 15,240 cu cm
Displacement 12,500 cu cm
Displacement 11,000 cu cm
Net power
Net power 263.23 kw
Net power -
Net power 203.58 kw
Gross power
Gross power -
Gross power 224.46 kw
Gross power -
Height - top of cab
Height - top of cab 3.79 m
Height - top of cab 3.65 m
Height - top of cab 3.5 m
Wheelbase
Wheelbase 3.78 m
Wheelbase 3.4 m
Wheelbase 3.4 m
Pump flow cap
Pump flow cap 320 lpm
Pump flow cap 320 lpm
Pump flow cap 195 lpm
Pump type
Pump type Piston pump
Pump type Piston pump
Pump type Piston pump
Relief valve pressure
Relief valve pressure 343 bar
Relief valve pressure 248.21 bar
Relief valve pressure 244.9 bar
Breakout force
Breakout force 245 kN
Breakout force 195 kN
Breakout force 209 kN
Loader dump height
Loader dump height 3,295 mm
Loader dump height -
Loader dump height 3,185 mm
Loader dump reach
Loader dump reach 1,500 mm
Loader dump reach -
Loader dump reach 1,950 mm
Fuel cap
Fuel cap 473 liter
Fuel cap 530 liter
Fuel cap 413 liter
Hydraulic fluid cap
Hydraulic fluid cap 337 liter
Hydraulic fluid cap 195 liter
Hydraulic fluid cap 173 liter
Max dump reach
Max dump reach -
Max dump reach 1,280 mm
Max dump reach -
Rack back angle
Rack back angle -
Rack back angle 45 º
Rack back angle -
Komatsu WA500 gallery
:quality(50)/69811/conversions/e7d6fd32-4105-473b-9da9-f409d117e049-thumb.webp)

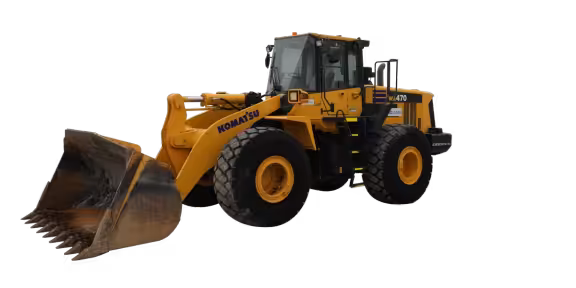

:quality(75)/products/10066/view_360/c59d2cad-7bed-453b-8db9-24f4557878e5.png "Komatsu WA470-6R wheel loader")
Customs paid
Low hours:quality(75)/products/10067/view_360/8abc7f05-6a96-4f4f-8439-7af14450580f.png "Cat 966L wheel loader")
WHL-002
Cat 966L wheel loader
Great deal:quality(75)/products/10171/view_360/469e9cb8-e116-43c9-8b60-1cf7915fd5b2.png "Komatsu WA500-6 wheel loader")
WHL-003
Komatsu WA500-6 wheel loader

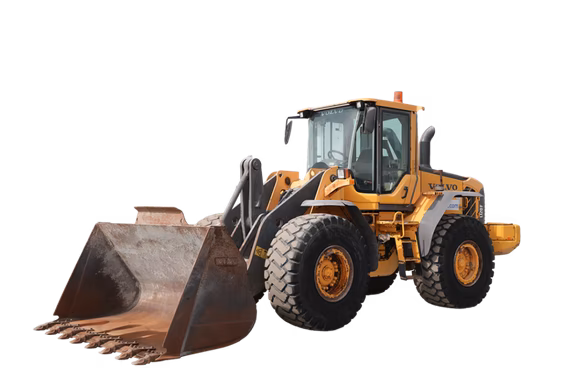

:quality(75)/products/10187/view_360/68e9c174-858b-4cac-83e8-5f1173894153.png "Volvo L120F wheel loader")
