JCB 1CX Backhoe loaders tech specs
:quality(50)/66863/conversions/99f9c2ef-5c8f-4556-b7a8-a75d428d87a8-webp.webp)

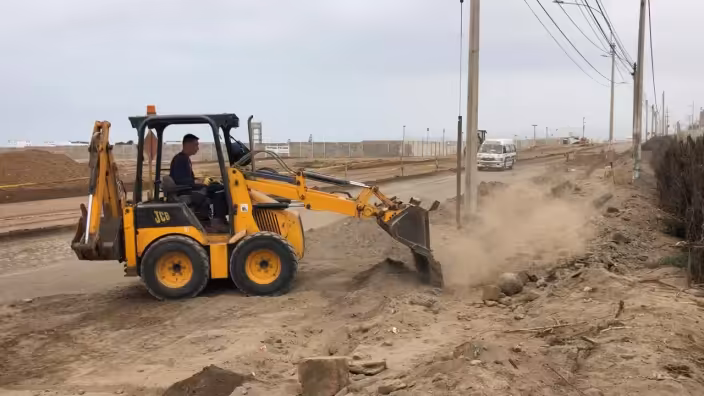

Video[1]
:quality(50)/66855/conversions/3af75477-57c6-447b-b113-4a13d34ff28b-webp.webp)

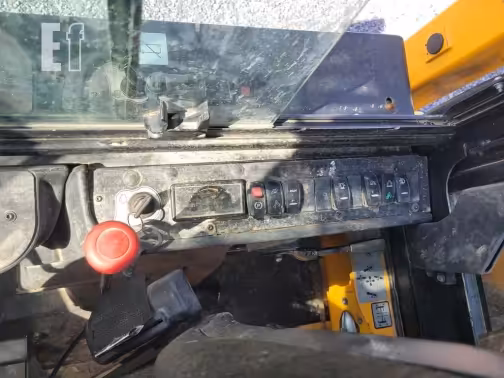

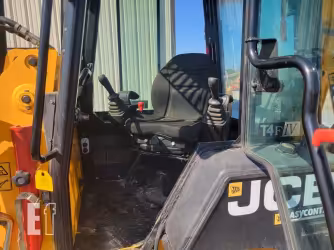

Interior [2]
:quality(50)/66857/conversions/86f333e6-7f4d-4380-af08-81312ee66135-webp.webp)

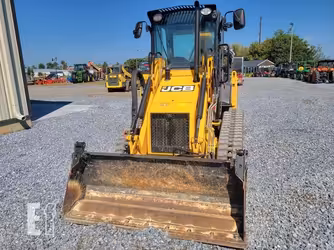

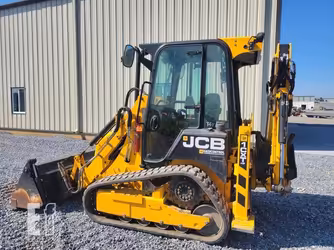

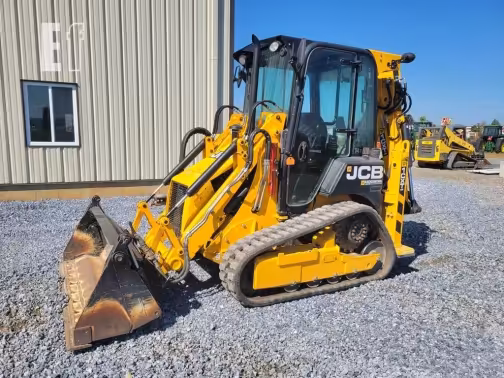

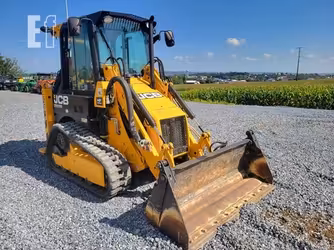

Exterior [4]
:quality(50)/66861/conversions/a2edff61-e424-498a-98d5-fa15a21b245c-webp.webp)

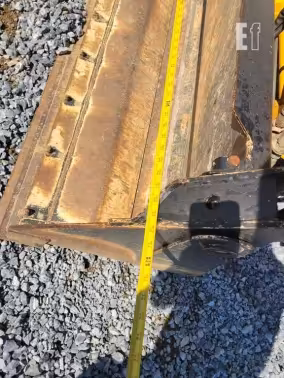

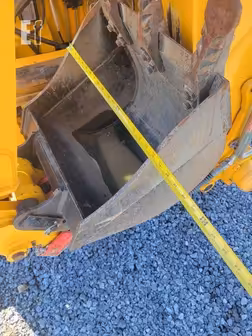

Attachments [2]
2009-2020
2.56 m Backhoe digging depth
2,349.16 kg Breakout force
2,201.01 kg Bucket digging force
404C-22 Engine model
37.29 kw Gross power
2.1 m Loader dump height
A micro backhoe loader built for tight-access utility work and light contracting, the JCB 1CX combines 37.29 kW of power with compact dimensions and integrated loader–backhoe versatility. With a 2.56 m digging depth, 2.1 m loader dump height, and breakout just over 2.3 tonnes, it’s aimed at crews working in sidewalks, courtyards, and urban sites where full-size backhoes simply won’t fit.
Gross power 37.29 kW (engine model 404C-22)
Backhoe digging depth 2.56 m
Loader dump height 2.1 m
Breakout force ~2,349 kg
Bucket digging force ~2,201 kg
Integrated loader + backhoe in compact footprint
Designed for sidewalks, utilities, and confined sites
Price range AED 187,000–232,000
JCB 1CX technical specifications
Highlight differences
Alternator supplied amperage
Alternator supplied amperage 50 Amh
Alternator supplied amperage 50 Amh
Aspiration
Aspiration Naturally aspirated
Aspiration Naturally aspirated
Displacement
Displacement 2,200.79 cu cm
Displacement 2,200.79 cu cm
Gross power
Gross power 37.29 kw
Gross power 36.54 kw
Max torque
Max torque 141 Nm
Max torque 140.05 Nm
Net power
Net power 35.05 kw
Net power 35.05 kw
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Power measured @
Power measured @ 2,800 rpm
Power measured @ 2,800 rpm
Battery amperage
Battery amperage -
Battery amperage 72 Amh
Emissions
Emissions -
Emissions Stage EC Stage IIIA
Torque measured @
Torque measured @ -
Torque measured @ 2,000 rpm
Years
Years 2009-2020
Years 2009-2020
Market Average
Market Average AED 232,000
Market Average AED 232,000
Price
Price AED 187,000
Price AED 187,000
Backhoe digging depth
Backhoe digging depth 2.56 m
Backhoe digging depth 2.56 m
Backhoe reach from swivel
Backhoe reach from swivel 3.38 m
Backhoe reach from swivel 3.38 m
Breakout force
Breakout force 2,349.16 kg
Breakout force -
Loader digging depth
Loader digging depth 5.08 cm
Loader digging depth 5.08 cm
Loader dump height
Loader dump height 2.1 m
Loader dump height 2.23 m
Loader dump reach
Loader dump reach -
Loader dump reach 0.43 m
Bucket capacity
Bucket capacity 0.23 cu m
Bucket capacity -
Bucket width
Bucket width 143 cm
Bucket width -
Engine model
Engine model 404C-22
Engine model -
Max speed forward
Max speed forward 11.27 kph
Max speed forward 7.56 kph
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Transmission type
Transmission type Hydrostatic
Transmission type Hydrostatic
Bucket digging force
Bucket digging force 2,201.01 kg
Bucket digging force -
Cooling fluid cap
Cooling fluid cap 7.95 liter
Cooling fluid cap 8.33 liter
Fuel cap
Fuel cap 45.04 liter
Fuel cap 45.04 liter
Hydraulic fluid cap
Hydraulic fluid cap 45.04 liter
Hydraulic fluid cap -
Front tires size (2WD)
Front tires size (2WD) 7 x 15
Front tires size (2WD) 10X16.5
Rear tires size
Rear tires size 7 x 15
Rear tires size 10X16.5
Ground clearance
Ground clearance 0.27 m
Ground clearance 0.27 m
Overall Length
Overall Length 3.41 m
Overall Length 3.32 m
Wheelbase
Wheelbase 1.1 m
Wheelbase 1.1 m
Height - top of cab
Height - top of cab -
Height - top of cab 2.26 m
Overall Width
Overall Width -
Overall Width 1.43 m
Max speed reverse
Max speed reverse 11.27 kph
Max speed reverse 7.56 kph
Number of forward gears
Number of forward gears 1
Number of forward gears -
Number of reverse gears
Number of reverse gears 1
Number of reverse gears -
Pump flow cap
Pump flow cap 46.93 lpm
Pump flow cap 45.04 lpm
Pump type
Pump type Hydrostatic
Pump type -
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure 206.84 bar
Engine oil cap
Engine oil cap -
Engine oil cap 9.84 liter
Download datasheets
JCB 1CX expert review
:quality(50)/60953/d01e174e-11e1-47e0-987c-da947df67259.jpeg)
Overview
The JCB 1CX (2017–2020) is a niche backhoe loader built for access-first jobs. With 37.29 kW, 2.56 m digging depth, and compact proportions, it targets utility crews and contractors working in tight urban spaces.
Key Features Highlight
- Micro backhoe format for sidewalks and confined yards
- 37.29 kW engine
- 2.56 m backhoe digging depth
- 2.1 m loader dump height
- ~2,349 kg breakout force
Pros Fits extremely tight sites, true loader–backhoe versatility, easy transport.
Cons Limited digging power, slow on larger trenches.
Efficiency
Best suited to small utility trenches and cleanup where access matters more than production volume.
In Cabin
Compact, functional operator area with simple controls and good close-quarters visibility.
In Comparison
- JCB 3DX Plus: much more powerful, larger footprint.
- Cat 428: stronger hydraulics, less tight-access friendly.
- JCB 1CX: access specialist.
Final Verdict
Rated 3 stars, the JCB 1CX fits tight-access utility work in the AED 187,000–232,000 range.
JCB 1CX owner rating
JCB 1CX Backhoe loaders [2009-2020]
2009-2020
Overall rating
Based on 3 ratings
4.7
performance
4.7
comfort
4.7
fuel efficiency
4.7
safety
4.7
features
4.0
5 stars
67 %
4 stars
33 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Pros
Gets into places no normal backhoe can, perfect for sidewalk and service work.
Cons
Digging power is limited once trenches get deeper or ground gets hard.
performance
4.0
comfort
5.0
fuel efficiency
5.0
safety
5.0
features
4.0
JCB 1CX similar models
Highlight differences
:quality(50)/72199/4aa253f2-e585-4f0c-be4d-a6c422b3a744.webp)
Alternator supplied amperage
Alternator supplied amperage 50 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Aspiration
Aspiration Naturally aspirated
Aspiration Turbocharged
Aspiration Mechanical turbo
Displacement
Displacement 2,200.79 cu cm
Displacement 3,000 cu cm
Displacement 4,400 cm3
Gross power
Gross power 37.29 kw
Gross power 37 kw
Gross power 74 kw
Max torque
Max torque 141 Nm
Max torque 270 Nm
Max torque 383 Nm
Net power
Net power 35.05 kw
Net power -
Net power 65.6 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @
Power measured @ 2,800 rpm
Power measured @ -
Power measured @ -
Emissions
Emissions -
Emissions Tier 4F
Emissions Tier 3
Bore
Bore -
Bore -
Bore 10.5 cm
Stroke
Stroke -
Stroke -
Stroke 12.7 cm
Torque rise
Torque rise -
Torque rise -
Torque rise 31 %
Years
Years 2009-2020
Years 2019-2025
Years 1987-2025
Market Average
Market Average AED 232,000
Market Average AED 220,000
Market Average AED 275,000
Price
Price AED 187,000
Price AED 190,000
Price AED 186,000
Backhoe digging depth
Backhoe digging depth 2.56 m
Backhoe digging depth 4,770 mm
Backhoe digging depth 4,400 mm
Backhoe reach from swivel
Backhoe reach from swivel 3.38 m
Backhoe reach from swivel 5.4 m
Backhoe reach from swivel 5,600 m
Backhoe dump height
Backhoe dump height -
Backhoe dump height 4.18 m
Backhoe dump height 3,900 m
Bucket rotation
Bucket rotation -
Bucket rotation 185 degrees
Bucket rotation 205 degrees
Backhoe dump reach
Backhoe dump reach -
Backhoe dump reach 2.9 m
Backhoe dump reach -
Breakout force
Breakout force 2,349.16 kg
Breakout force 51.7 kN
Breakout force 54.79 kN
Loader digging depth
Loader digging depth 5.08 cm
Loader digging depth 79 mm
Loader digging depth 99 mm
Loader dump height
Loader dump height 2.1 m
Loader dump height 2,740 mm
Loader dump height 2,755 mm
Loader dump reach
Loader dump reach -
Loader dump reach 880 mm
Loader dump reach 805 mm
Bucket capacity
Bucket capacity 0.23 cu m
Bucket capacity 0.26 m3
Bucket capacity 1 m3
Bucket width
Bucket width 143 cm
Bucket width 790 mm
Bucket width 2,409 mm
Engine model
Engine model 404C-22
Engine model JCB 430 CRDi
Engine model CAT 3054C
Max speed forward
Max speed forward 11.27 kph
Max speed forward 32.3 kph
Max speed forward 37 kph
Operating voltage
Operating voltage 12 V
Operating voltage -
Operating voltage -
Transmission type
Transmission type Hydrostatic
Transmission type Syncroshuttle
Transmission type Powershuttle 4x4
Operating weight
Operating weight -
Operating weight 7,200 kg
Operating weight 11,000 kg
Lifting capacity
Lifting capacity -
Lifting capacity 1,650 kg
Lifting capacity 3,728 kg
Tire size
Tire size -
Tire size (F) 9/16.16 PR, (R) 16.9/28.12 PR
Tire size (F) 340/80-18 , (R) 440/80-28
Bucket digging force
Bucket digging force 2,201.01 kg
Bucket digging force -
Bucket digging force 63.4 kN
Cooling fluid cap
Cooling fluid cap 7.95 liter
Cooling fluid cap 16.5 liters
Cooling fluid cap 18 liters
Fuel cap
Fuel cap 45.04 liter
Fuel cap 128 liter
Fuel cap 160 liter
Hydraulic fluid cap
Hydraulic fluid cap 45.04 liter
Hydraulic fluid cap 92 liter
Hydraulic fluid cap 95 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 17.5 liter
Transmission fluid cap 19 liter
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity 20 liter
Rear axle fluid capacity 16 liter
Front axle fluid cap
Front axle fluid cap -
Front axle fluid cap -
Front axle fluid cap 11 liters
Front tires size (2WD)
Front tires size (2WD) 7 x 15
Front tires size (2WD) -
Front tires size (2WD) -
Rear tires size
Rear tires size 7 x 15
Rear tires size -
Rear tires size -
Ground clearance
Ground clearance 0.27 m
Ground clearance -
Ground clearance -
Overall Length
Overall Length 3.41 m
Overall Length -
Overall Length 5 m
Wheelbase
Wheelbase 1.1 m
Wheelbase 2.17 mm
Wheelbase 2.2 m
Transport length
Transport length -
Transport length 6 m
Transport length -
Transport width
Transport width -
Transport width 2 m
Transport width -
Overall Width
Overall Width -
Overall Width -
Overall Width 2 m
Max speed reverse
Max speed reverse 11.27 kph
Max speed reverse -
Max speed reverse 37 kph
Number of forward gears
Number of forward gears 1
Number of forward gears 4
Number of forward gears 6
Number of reverse gears
Number of reverse gears 1
Number of reverse gears 2
Number of reverse gears 4
Pump flow cap
Pump flow cap 46.93 lpm
Pump flow cap 114 lpm
Pump flow cap 160 lpm
Pump type
Pump type Hydrostatic
Pump type Variable displacement
Pump type Variable flow, axial piston
Relief valve pressure
Relief valve pressure 206.84 bar
Relief valve pressure 265.44 bar
Relief valve pressure 250 bar
Engine oil cap
Engine oil cap -
Engine oil cap 15 liter
Engine oil cap 9 liter
Rack back angle
Rack back angle -
Rack back angle 38 º
Rack back angle -
Brake system
Brake system -
Brake system JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc
Brake system -
Dump angle
Dump angle -
Dump angle -
Dump angle 45 degrees
Extended backhoe digging depth
Extended backhoe digging depth -
Extended backhoe digging depth -
Extended backhoe digging depth 5.7 m
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe dump height 4.5 m
Extended backhoe dump reach
Extended backhoe dump reach -
Extended backhoe dump reach -
Extended backhoe dump reach 2.5 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel -
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 6.5 m
Arm crowding force
Arm crowding force -
Arm crowding force -
Arm crowding force 36.8 kN

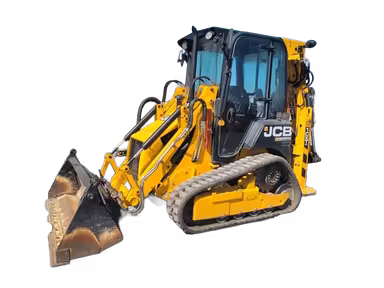

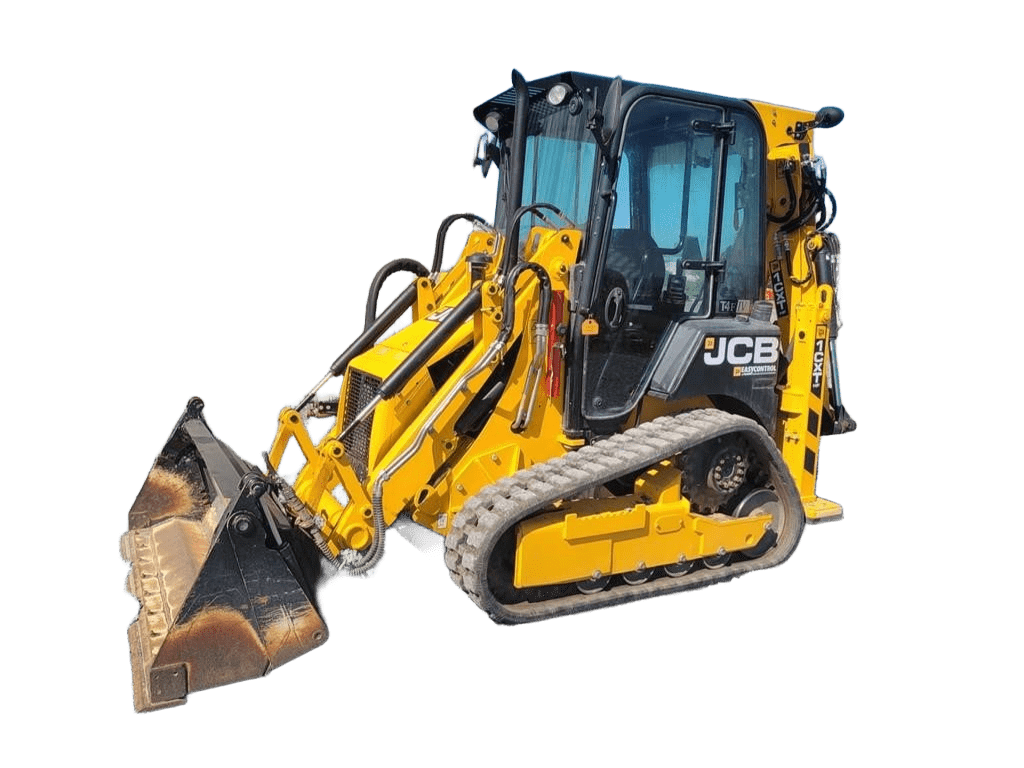

JCB 1CX gallery
:quality(50)/66863/conversions/99f9c2ef-5c8f-4556-b7a8-a75d428d87a8-thumb.webp)
Customs paid
Great deal:quality(75)/products/10077/view_360/748f9164-0b67-49d4-aa7f-0550dacb5ac7.png "Cat 426F2 backhoe loader")
BHL-001
Cat 426F2 backhoe loader
:quality(75)/products/10078/view_360/242622af-fd6d-4f8c-84eb-9871c9e2ff4f.png "Cat 428 backhoe loader")
:quality(75)/products/10123/view_360/bbb4e853-cbf8-4ea4-832e-deee377b5adb.png "JCB 3DX Plus backhoe loader")
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
JCB 1110T Compact track loaders specsJCB 150T Compact track loaders specsJCB 180T Compact track loaders specsJCB 190T Compact track loaders specsJCB 1CX Backhoe loaders specsJCB 210T Compact track loaders specsJCB 215T Compact track loaders specsJCB 250T Compact track loaders specsJCB 2CX Backhoe loaders specsJCB 300T Compact track loaders specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
