Volvo MCT85 Compact track loaders tech specs
:quality(50)/74756/conversions/3e575e14-bab2-437d-a6b4-f06b3ef76909-thumb.webp)
Video[1]
:quality(50)/74748/conversions/f0d008a7-f7ed-4533-b63f-0d839eb9b0c5-thumb.webp)

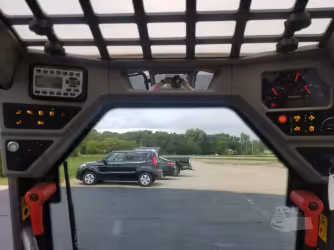

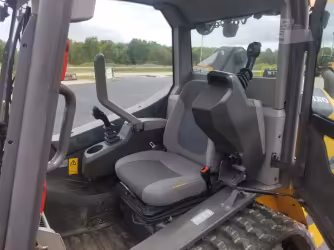

Interior [2]
:quality(50)/74750/conversions/6afbb062-4027-4bf9-b864-4eab001f3c3e-thumb.webp)

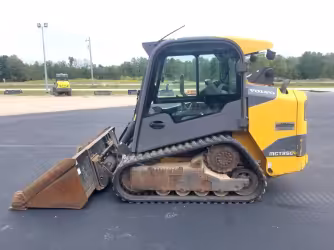

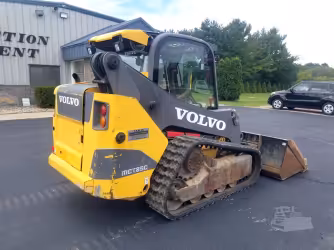

Exterior [4]
:quality(50)/74754/conversions/b2e91efa-0c9c-4f83-93ec-079e61f6e6ce-thumb.webp)

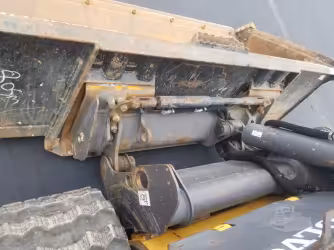

Attachments [2]
2016-2021
2,481.01 cu cm Displacement
34.3 kw Gross power
2.32 m Loader dump height
0.85 m Loader dump reach
1,361.01 kg Lifting capacity
3,790 kg Operating weight
Makana rating
Market average
AED 155,000Starting from
AED 90,000Volvo MCT85 Technical specifications
Engine
Alternator supplied amperage
342 Amh
Aspiration
Turbocharged
Displacement
2481.01 cu cm
Gross power
34.3 kw
Max torque
300.04 Nm
Number of cylinders
4
Operating specifications
Angle of departure
27 º
Dump angle
42 º
Lift arm path
Vertical
Rack back angle
30 º
General
Operating voltage
12 V
Bucket capacity
0.46 cu m
Bucket width
183 cm
Engine model
KDI 2054 TCR
Lifting capacity
1361.01 kg
Max speed forward
16.09 kph
Operating weight
3,790 kg
Tipping load
2,462 kg
Loader
Breakout force - lift cylinder
1570.02 kg
Breakout force - tilt cylinder
2968.04 kg
Loader dump height
2.32 m
Loader dump reach
0.85 m
Service refill capacities
Cooling fluid cap
10.22 liter
Fuel cap
92.35 liter
Hydraulic fluid cap
43.53 liter
Refill capacities
Engine oil cap
9.84 liter
Dimensions
Ground clearance
0.23 m
Height - top of cab
2.01 m
Length with bucket
2.8 m
Length without Bucket
3.54 m
Max height to hinge pin
302.01 cm
Overall Width
1.68 m
Turning radius
1.68 m
Width over tracks
1.8 m
Hydraulic system
Pump flow cap
100.3 lpm
Relief valve pressure
158.58 bar
Download datasheets
Volvo MCT85 similar models
Highlight differences
Volvo MCT85C
Cat 257
Alternator supplied amperage
Alternator supplied amperage 342 Amh
Alternator supplied amperage -
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Displacement
Displacement 2,481.01 cu cm
Displacement 2,998.84 cu cm
Gross power
Gross power 34.3 kw
Gross power 46.98 kw
Max torque
Max torque 300.04 Nm
Max torque -
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Bore
Bore -
Bore 9.91 cm
Net power
Net power -
Net power 44 kw
Power measured @
Power measured @ -
Power measured @ 2,600 rpm
Stroke
Stroke -
Stroke 10.16 cm
Years
Years 2016-2021
Years 2014-2019
Market Average
Market Average AED 155,000
Market Average AED 186,000
Price
Price AED 90,000
Price AED 147,000
Angle of departure
Angle of departure 27 º
Angle of departure -
Dump angle
Dump angle 42 º
Dump angle -
Lift arm path
Lift arm path Vertical
Lift arm path -
Rack back angle
Rack back angle 30 º
Rack back angle 44 º
Operating voltage
Operating voltage 12 V
Operating voltage -
Bucket capacity
Bucket capacity 0.46 cu m
Bucket capacity 0.46 cu m
Bucket width
Bucket width 183 cm
Bucket width -
Engine model
Engine model KDI 2054 TCR
Engine model Cat 3034 naturally aspirated
Lifting capacity
Lifting capacity 1,361.01 kg
Lifting capacity 1,065.94 kg
Max speed forward
Max speed forward 16.09 kph
Max speed forward 12.07 kph
Operating weight
Operating weight 3,790 kg
Operating weight 3,460 kg
Tipping load
Tipping load 2,462 kg
Tipping load 2,091 kg
Breakout force - lift cylinder
Breakout force - lift cylinder 1,570.02 kg
Breakout force - lift cylinder 1,583.04 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder 2,968.04 kg
Breakout force - tilt cylinder 1,602.09 kg
Loader dump height
Loader dump height 2.32 m
Loader dump height 2.29 m
Loader dump reach
Loader dump reach 0.85 m
Loader dump reach 0.82 m
Cooling fluid cap
Cooling fluid cap 10.22 liter
Cooling fluid cap 9.84 liter
Fuel cap
Fuel cap 92.35 liter
Fuel cap 90.08 liter
Hydraulic fluid cap
Hydraulic fluid cap 43.53 liter
Hydraulic fluid cap 55.26 liter
Engine crankcase
Engine crankcase -
Engine crankcase 6.81 liter
Engine oil cap
Engine oil cap 9.84 liter
Engine oil cap -
Ground clearance
Ground clearance 0.23 m
Ground clearance 0.26 m
Height - top of cab
Height - top of cab 2.01 m
Height - top of cab 2.04 m
Length with bucket
Length with bucket 2.8 m
Length with bucket 3.54 m
Length without Bucket
Length without Bucket 3.54 m
Length without Bucket 2.71 m
Max height to hinge pin
Max height to hinge pin 302.01 cm
Max height to hinge pin -
Overall Width
Overall Width 1.68 m
Overall Width -
Turning radius
Turning radius 1.68 m
Turning radius 2.29 m
Width over tracks
Width over tracks 1.8 m
Width over tracks 1.68 m
Pump flow cap
Pump flow cap 100.3 lpm
Pump flow cap 57.53 lpm
Relief valve pressure
Relief valve pressure 158.58 bar
Relief valve pressure -
Ground contact area
Ground contact area -
Ground contact area 29,005.17 cu cm
Ground pressure
Ground pressure -
Ground pressure 0.3 bar
Track length
Track length -
Track length 1.52 m
Track width
Track width -
Track width 38.1 cm
