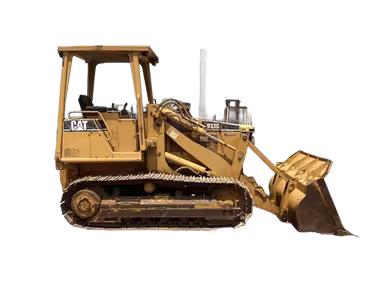

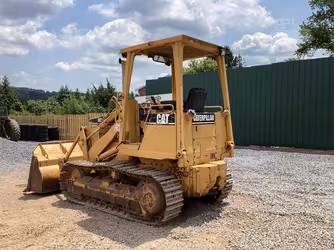

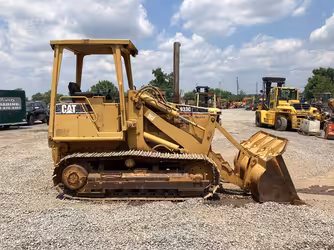

Cat 933 Crawler loaders tech specs

makana img
video play button
Video[1]

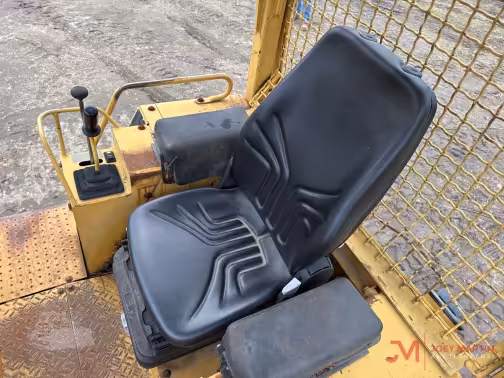

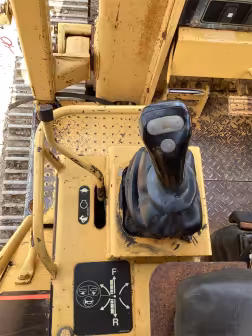

Interior [2]

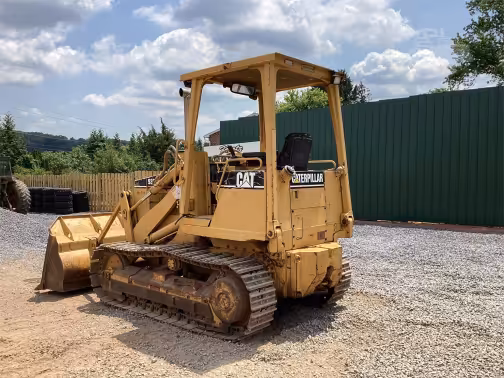

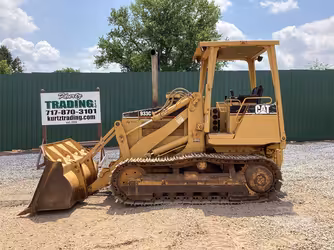

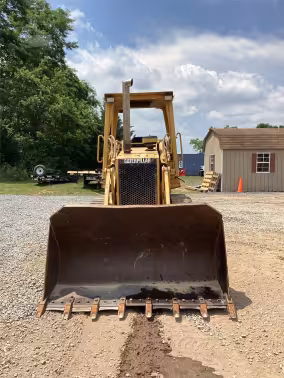

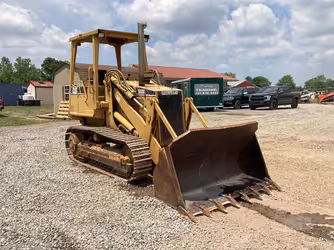

Exterior [4]

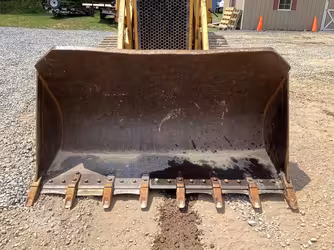

Attachments [2]
1988-2025
7,887.98 kg Breakout force
0.84 cu m Bucket capacity
5,001.34 cu cm Displacement
9.01 kph Max speed forward
52.2 kw Net power
8,485 kg Operating weight

A heavier evolution of the 931 platform, the Cat 933 delivers 52.2 kW net power with 7,888 kg breakout force and a 0.84 cu m bucket. With 8,485 kg operating weight and optional LGP undercarriage, it suits site prep, bulk backfilling, and material handling on soft or uneven terrain.

Net power 52.2 kW

Breakout force ~7,888 kg

Bucket capacity 0.84 cu m

Operating weight ~8,485 kg

Max travel speed ~9.01 kph

LGP option for soft ground

Price range AED 257K–477K

Makana rating

Owner rating

 | 3

Market average

AED 477,000

Starting from

AED 257,000

Cat 933 technical specifications

Highlight differences

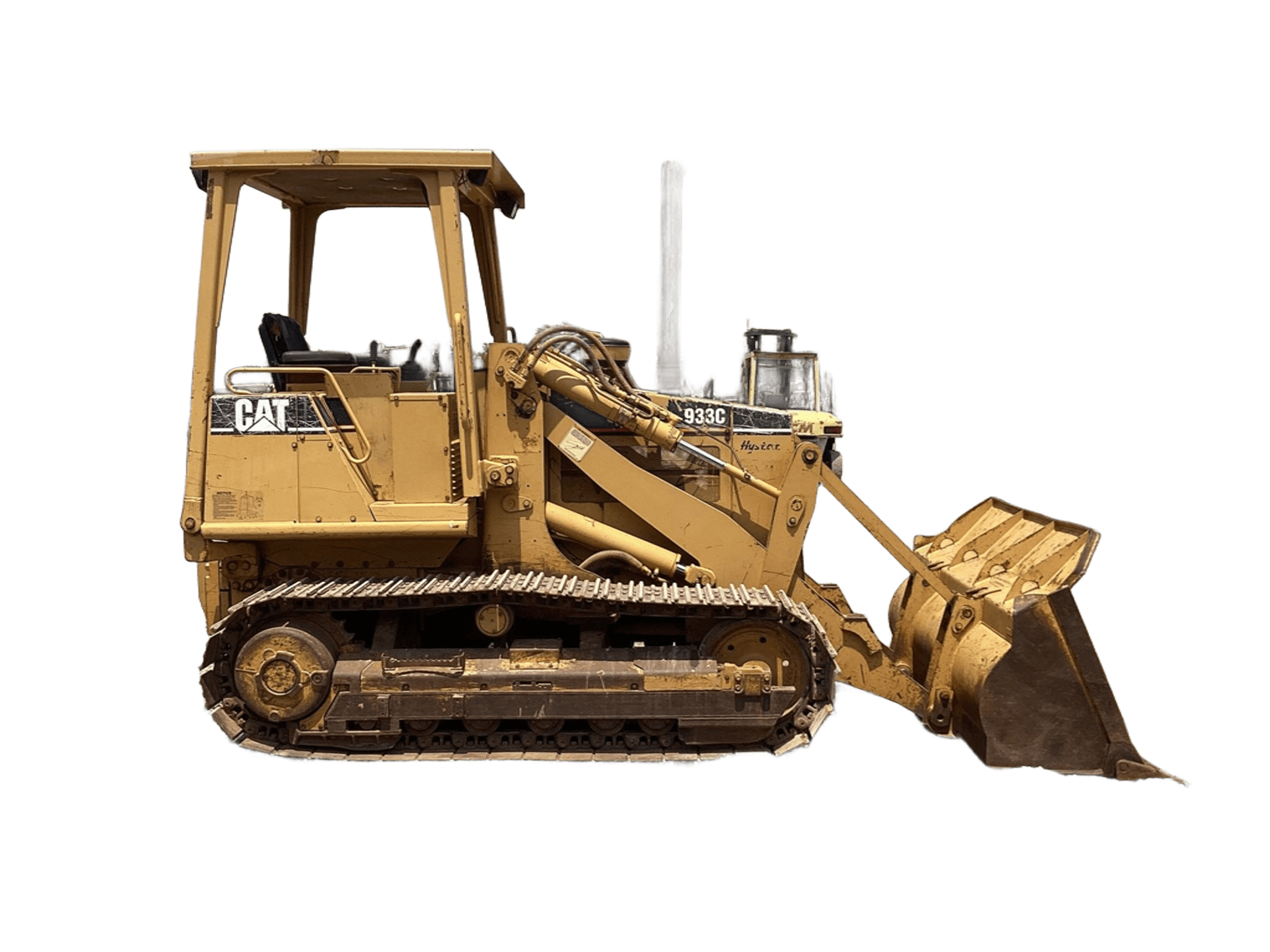

Cat 933C

Cat 933C LGP

Engine
Alternator supplied amperage 90 Amh
Alternator supplied amperage 55 Amh
Displacement 5,001.34 cu cm
Displacement 5,001.34 cu cm
Net power 52.2 kw
Net power 52.2 kw
Number of cylinders 6
Number of cylinders 6
Power measured @ 2,400 rpm
Power measured @ 2,400 rpm
Years 1988-2025
Years 1988-2025
Market Average AED 477,000
Market Average AED 477,000
Price AED 257,000
Price AED 257,000
Loader
Breakout force 7,887.98 kg
Breakout force 8,523.01 kg
Loader dump height 2.56 m
Loader dump height 2.74 m
Loader dump reach 0.88 m
Loader dump reach 0.82 m
General
Bucket capacity 0.84 cu m
Bucket capacity 0.99 cu m
Engine model 3046
Engine model 3046
Max speed forward 9.01 kph
Max speed forward 9.01 kph
Operating voltage 12 V
Operating voltage 12 V
Operating weight 8,485 kg
Operating weight 8,485 kg
Tipping load 5,821 kg
Tipping load 5,630 kg
Service refill capacities
Cooling fluid cap 21.2 liter
Cooling fluid cap 21.2 liter
Fuel cap 157.08 liter
Fuel cap 157.08 liter
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap 57.15 liter
Operating specifications
Raise time 9 s
Raise time 6 s
Lower time 2 s
Lower time 2 s
Refill capacities
Engine oil cap 13.25 liter
Engine oil cap 13.25 liter
Final drives fluid cap 14 liter
Final drives fluid cap 20.82 liter
Dimensions
Ground clearance 0.4 m
Ground clearance 0.43 m
Height - top of cab 2.74 m
Height - top of cab 2.77 m
Length with bucket 4.36 m
Length with bucket 4.33 m
Width over tracks 1.83 m
Width over tracks 2.32 m
Undercarriage
Ground contact area 37,085.65 cu cm
Ground contact area 66,041.65 cu cm
Ground pressure 0.54 bar
Ground pressure 0.33 bar
Number of shoes per side 39
Number of shoes per side 39
Number of track rollers per side 6
Number of track rollers per side 6
Track gauge 1.45 m
Track gauge 1.68 m
Track length 2.07 m
Track length 2.07 m
Track width 35.81 cm
Track width 63.5 cm
Hydraulic system
Pump flow cap 103.33 lpm
Pump flow cap 103.33 lpm
Pump type Open center parallel system
Pump type Open center parallel system
Relief valve pressure 198.2 bar
Relief valve pressure 198.2 bar
Download datasheets
OEM product brochure

Cat 933 expert review

Reviewed by Rizwan R. on February 4, 2026

Overview

The Cat 933 delivers 52.2 kW net power with 7,888 kg breakout force and a 0.84 cu m bucket for traction-focused crawler loader work.

Pros Strong breakout, excellent traction, simple mechanics.
Cons Slow travel speed, basic cab comfort.

Efficiency

Heavier chassis favors steady pushing and bulk handling over fast cycles.

In Cabin

Functional cab with solid bucket visibility but higher noise than modern machines.

In Comparison

Between the Cat 931 and John Deere 855, the 933 offers stronger push without jumping to larger loaders.

Final Verdict

Rated 3 stars, the Cat 933 fits soft-ground site prep in the AED 257,000–477,000 range.

Show less

Cat 933 owner rating

Cat 933 Crawler loaders [1988-2025]

1988-2025

Overall rating

Based on 3 ratings

4.0
performance

4.3

comfort

3.7

fuel efficiency

4.3

safety

4.7

features

4.3

5 stars

34 %

4 stars

33 %

3 stars

33 %

2 stars

0 %

1 stars

0 %

Pros
Extra weight gives noticeably better push than the 931.
Cons
Still slow moving between work areas.
performance

4.0

comfort

4.0

fuel efficiency

4.0

safety

5.0

features

5.0

Valuation

Last 12 month
1988

Cat 933 similar models

Highlight differences
Cat 933C
John deere 855
Cat 931
Engine
Alternator supplied amperage 90 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Displacement 5,001.34 cu cm
Displacement 10,143.62 cu cm
Displacement 5,201.27 cu cm
Net power 52.2 kw
Net power 149.14 kw
Net power 46.23 kw
Number of cylinders 6
Number of cylinders 6
Number of cylinders -
Power measured @ 2,400 rpm
Power measured @ 1,800 rpm
Power measured @ -
Aspiration -
Aspiration Turbocharged, aftercooled
Aspiration -
Max torque -
Max torque 989.73 Nm
Max torque -
Torque measured @ -
Torque measured @ 1,300 rpm
Torque measured @ -
Years 1988-2025
Years 1983-2021
Years 1974-2025
Market Average AED 477,000
Market Average AED 260,000
Market Average AED 389,000
Price AED 257,000
Price AED 49,000
Price AED 182,000
Loader
Breakout force 7,887.98 kg
Breakout force -
Breakout force 4,853.44 kg
Loader dump height 2.56 m
Loader dump height -
Loader dump height 2.47 m
Loader dump reach 0.88 m
Loader dump reach -
Loader dump reach 0.79 m
General
Bucket capacity 0.84 cu m
Bucket capacity -
Bucket capacity 0.84 cu m
Engine model 3046
Engine model 500 Series
Engine model 3204
Max speed forward 9.01 kph
Max speed forward -
Max speed forward 11.1 kph
Operating voltage 12 V
Operating voltage -
Operating voltage -
Operating weight 8,485 kg
Operating weight 22,498 kg
Operating weight 6,900 kg
Tipping load 5,821 kg
Tipping load -
Tipping load 4,035 kg
Service refill capacities
Cooling fluid cap 21.2 liter
Cooling fluid cap 39.74 liter
Cooling fluid cap -
Fuel cap 157.08 liter
Fuel cap 334.22 liter
Fuel cap 114.69 liter
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap 151.4 liter
Hydraulic fluid cap 49.21 liter
Operating specifications
Raise time 9 s
Raise time 7 s
Raise time 6 s
Lower time 2 s
Lower time 4 s
Lower time 4 s
Refill capacities
Engine oil cap 13.25 liter
Engine oil cap -
Engine oil cap -
Final drives fluid cap 14 liter
Final drives fluid cap 23.85 liter
Final drives fluid cap -
Dimensions
Ground clearance 0.4 m
Ground clearance -
Ground clearance 0.34 m
Height - top of cab 2.74 m
Height - top of cab -
Height - top of cab 2.74 m
Length with bucket 4.36 m
Length with bucket -
Length with bucket -
Width over tracks 1.83 m
Width over tracks 3.87 m
Width over tracks 1.8 m
Undercarriage
Ground contact area 37,085.65 cu cm
Ground contact area -
Ground contact area 28,449.64 cu cm
Ground pressure 0.54 bar
Ground pressure -
Ground pressure -
Number of shoes per side 39
Number of shoes per side -
Number of shoes per side -
Number of track rollers per side 6
Number of track rollers per side -
Number of track rollers per side -
Track gauge 1.45 m
Track gauge -
Track gauge 1.42 m
Track length 2.07 m
Track length -
Track length 1.83 m
Track width 35.81 cm
Track width -
Track width 30.73 cm
Hydraulic system
Pump flow cap 103.33 lpm
Pump flow cap 221.42 lpm
Pump flow cap -
Pump type Open center parallel system
Pump type -
Pump type -
Relief valve pressure 198.2 bar
Relief valve pressure 137.89 bar
Relief valve pressure -
