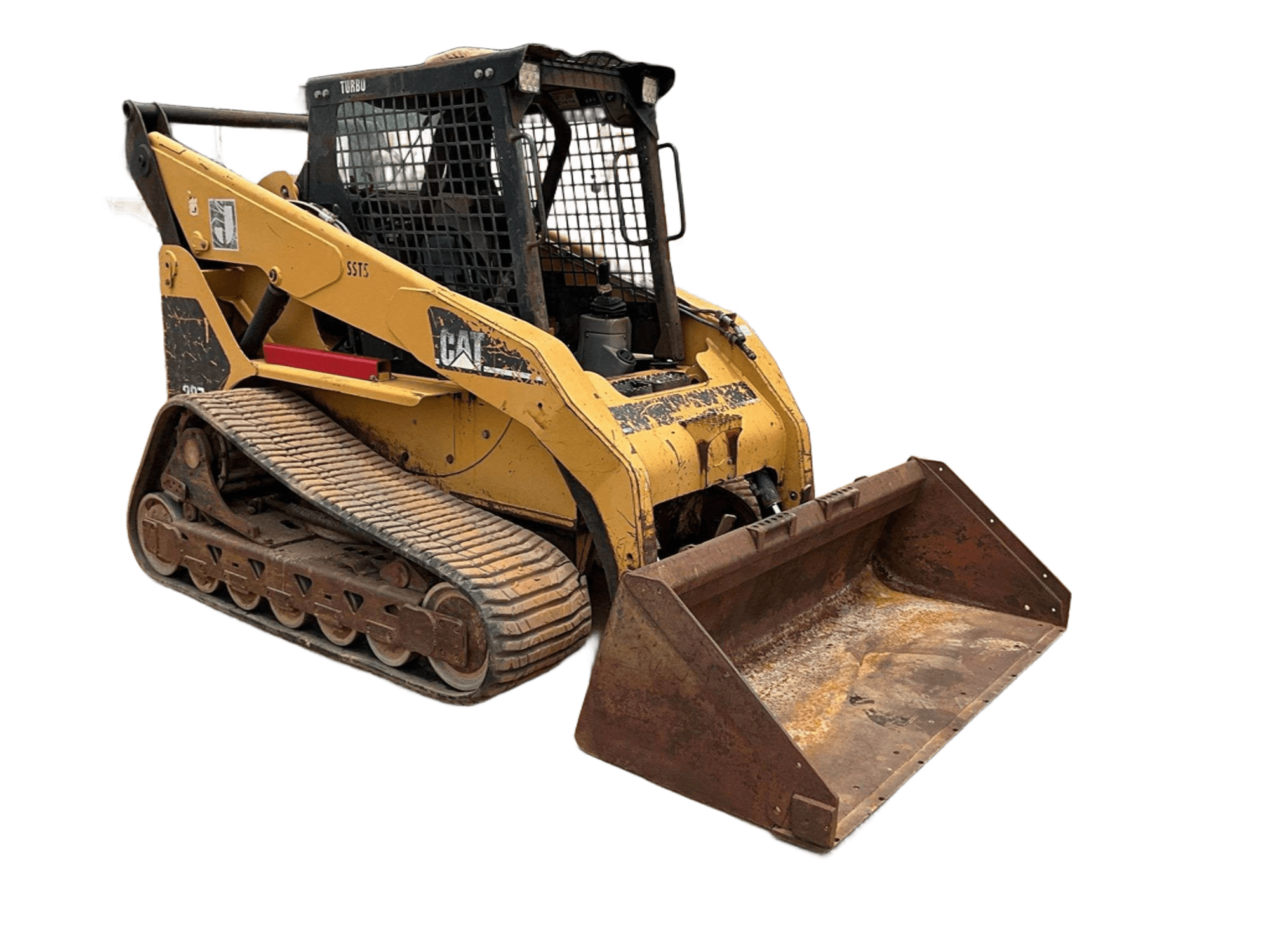

Cat 287 Compact track loaders tech specs

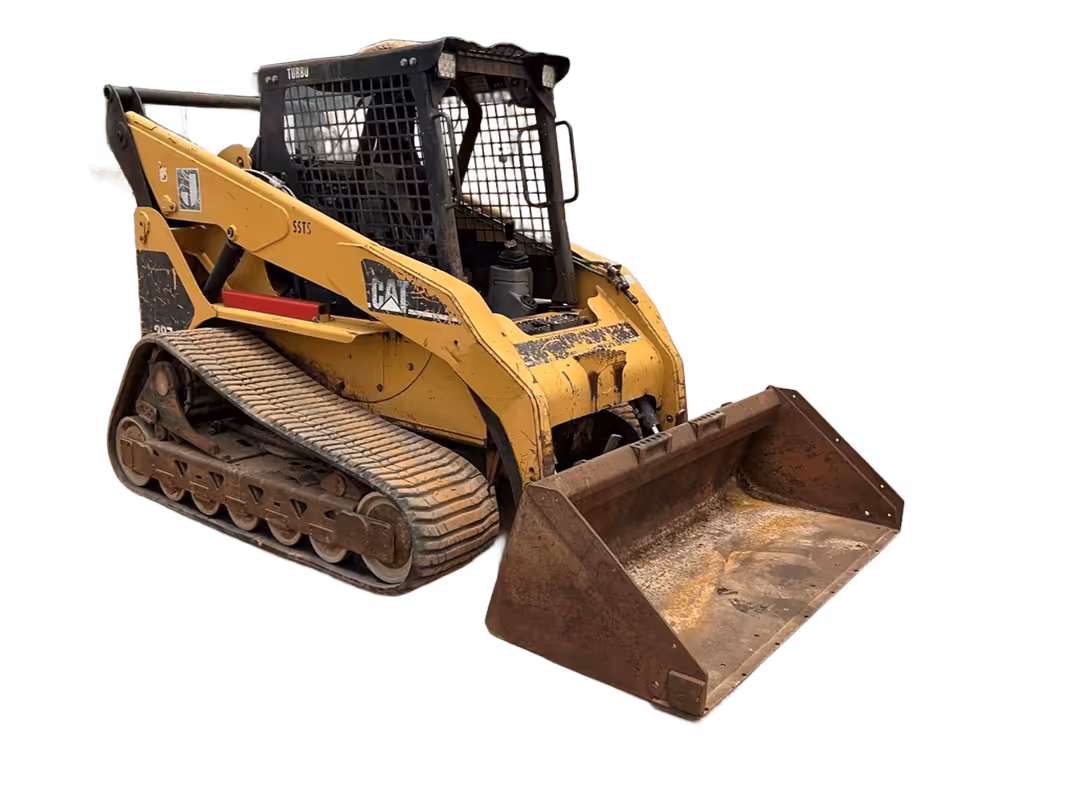

makana img
video play button
Video[1]

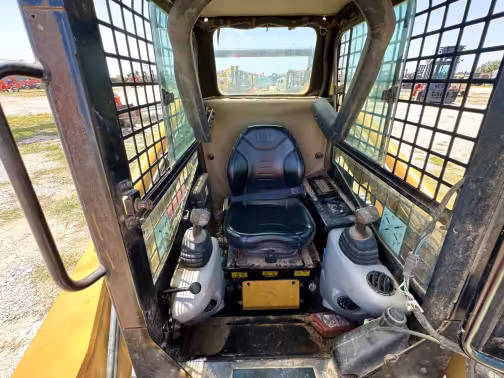

Interior [2]

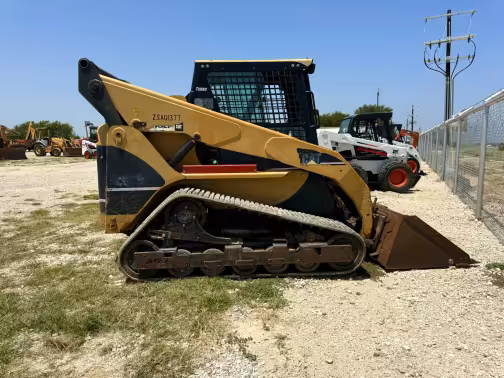

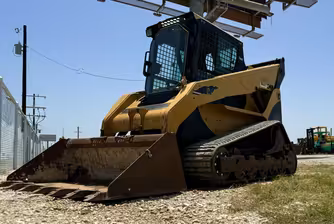

Exterior [4]

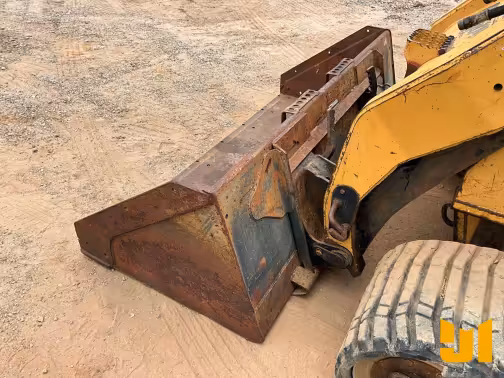

Attachments [2]
2004-2008
2,498.39 kg Breakout force - tilt cylinder
61.15 kw Gross power
2.41 m Loader dump height
1,632.03 kg Lifting capacity
4,660 kg Operating weight
3,265 kg Tipping load

A wide-track, high-output compact loader, the Cat 287 series brings serious lifting power and stability for heavy material handling. With over 61 kW of engine output and more than 1.6 tons rated lift, it targets bulk loading and rough site work rather than finish grading.

Gross power 61.15 kW

Operating weight ~4,660 kg

Operating weight ~4,660 kg

Tipping load 3,265 kg

Tipping load 3,265 kg

Loader dump height 2.41 m

Breakout force (tilt cylinder) ~2,498.39 kg

Show features

Makana rating

Owner rating

 | 2

Market average

AED 131,000

Starting from

AED 88,200

Cat 287 technical specifications

Highlight differences

Cat 287

Cat 287B

Cat 287C

Cat 287C2

Cat 287D

Engine
Bore 9.91 cm
Bore 9.4 cm
Bore 9.4 cm
Bore 9.4 cm
Bore 9.4 cm
Gross power 59.66 kw
Gross power 61.15 kw
Gross power 62.64 kw
Gross power 55.18 kw
Gross power 55.41 kw
Net power 55.18 kw
Net power 58.17 kw
Net power 61.15 kw
Net power 54.44 kw
Net power 54.36 kw
Stroke 10.16 cm
Stroke 11.94 cm
Stroke 11.94 cm
Stroke 11.94 cm
Stroke 11.94 cm
Alternator supplied amperage -
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage -
Aspiration -
Aspiration Turbocharged
Aspiration -
Aspiration -
Aspiration -
Displacement -
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Displacement 3,326.58 cu cm
Number of cylinders -
Number of cylinders -
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @ -
Power measured @ -
Power measured @ 2,500 rpm
Power measured @ -
Power measured @ -
Engine make -
Engine make -
Engine make -
Engine make Caterpillar
Engine make -
Max torque -
Max torque -
Max torque -
Max torque -
Max torque 59.44 Nm
Years 2004-2008
Years 2004-2008
Years 2004-2008
Years 2004-2008
Years 2004-2008
Market Average AED 131,000
Market Average AED 131,000
Market Average AED 131,000
Market Average AED 131,000
Market Average AED 131,000
Price AED 88,200
Price AED 88,200
Price AED 88,200
Price AED 88,200
Price AED 88,200
Loader
Breakout force - lift cylinder 2,214.44 kg
Breakout force - lift cylinder 2,498.03 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - lift cylinder 3,315.04 kg
Breakout force - lift cylinder -
Breakout force - tilt cylinder 2,172.71 kg
Breakout force - tilt cylinder 2,498.39 kg
Breakout force - tilt cylinder 3,314.86 kg
Breakout force - tilt cylinder 3,314.86 kg
Breakout force - tilt cylinder 3,307.15 kg
Loader dump height -
Loader dump height 2.41 m
Loader dump height 2.47 m
Loader dump height 2.47 m
Loader dump height 2.39 m
Loader dump reach -
Loader dump reach 0.85 m
Loader dump reach 0.79 m
Loader dump reach 0.79 m
Loader dump reach 0.78 m
Service refill capacities
Cooling fluid cap 9.84 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Cooling fluid cap 14 liter
Engine crankcase 6.81 liter
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Engine crankcase 11.36 liter
Fuel cap 109.77 liter
Fuel cap 110.14 liter
Fuel cap 98.03 liter
Fuel cap 98.03 liter
Fuel cap 93.87 liter
Hydraulic fluid cap 51.1 liter
Hydraulic fluid cap 51.1 liter
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap 57.15 liter
Hydraulic fluid cap 51.85 liter
General
Engine model Cat 3034 Turbo Charged
Engine model Cat 3044C DIT
Engine model Cat C3.4 DIT
Engine model Cat C3.4 DIT
Engine model Cat C3.3B DIT (turbo)
Max speed forward 11.27 kph
Max speed forward 11.27 kph
Max speed forward 14.97 kph
Max speed forward 14.97 kph
Max speed forward 12.87 kph
Tipping load 3,188 kg
Tipping load 3,265 kg
Tipping load 3,512 kg
Tipping load 3,512 kg
Tipping load 3,628 kg
Lifting capacity -
Lifting capacity 1,632.03 kg
Lifting capacity 1,723.65 kg
Lifting capacity 1,724.02 kg
Lifting capacity 1,270.06 kg
Max horizontal reach -
Max horizontal reach 1.38 m
Max horizontal reach 1.29 m
Max horizontal reach 1.29 m
Max horizontal reach 1.29 m
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating voltage -
Operating weight -
Operating weight 4,660 kg
Operating weight 4,516 kg
Operating weight 4,517 kg
Operating weight -
Undercarriage
Ground contact area 42,770.33 cu cm
Ground contact area 47,499.65 cu cm
Ground contact area 41,656.01 cu cm
Ground contact area 41,657.65 cu cm
Ground contact area 41,967.36 cu cm
Ground pressure 0.26 bar
Ground pressure 0.26 bar
Ground pressure 0.28 bar
Ground pressure 0.28 bar
Ground pressure 0.27 bar
Track length -
Track length 1.86 m
Track length 1.83 m
Track length 1.83 m
Track length 2.29 m
Operating specifications
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS ISO 3449:2005 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab FOPS level II ISO 3449:2005 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS ISO 3471:2008
Rack back angle -
Rack back angle 71 º
Rack back angle 77 º
Rack back angle 85 º
Rack back angle 84 º
Angle of departure -
Angle of departure -
Angle of departure 42 º
Angle of departure 42 º
Angle of departure 38 º
Dump angle -
Dump angle -
Dump angle 50 º
Dump angle 50 º
Dump angle 51 º
Air conditioning -
Air conditioning -
Air conditioning -
Air conditioning -
Air conditioning Contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
Refill capacities
Engine oil cap -
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Engine oil cap -
Engine oil cap -
Dimensions
Ground clearance -
Ground clearance 0.28 m
Ground clearance 0.22 m
Ground clearance 0.22 m
Ground clearance 0.24 m
Height - top of cab -
Height - top of cab 2.13 m
Height - top of cab 2.13 m
Height - top of cab 2.13 m
Height - top of cab 2.13 m
Length with bucket -
Length with bucket 3.72 m
Length with bucket 3.72 m
Length with bucket 3.72 m
Length with bucket 3.71 m
Max height to hinge pin -
Max height to hinge pin 21.84 cm
Max height to hinge pin 19.81 cm
Max height to hinge pin 19.81 cm
Max height to hinge pin 19.05 cm
Overall Width -
Overall Width 1.96 m
Overall Width 1.98 m
Overall Width 1.98 m
Overall Width 1.98 m
Turning radius -
Turning radius 1.62 m
Turning radius 1.63 m
Turning radius 1.63 m
Turning radius 1.71 m
Width over tracks -
Width over tracks 1.98 m
Width over tracks 1.98 m
Width over tracks 1.98 m
Width over tracks -
Length without Bucket -
Length without Bucket -
Length without Bucket -
Length without Bucket -
Length without Bucket 2.99 m
Hydraulic system
Pump flow cap -
Pump flow cap 124.91 lpm
Pump flow cap 124.91 lpm
Pump flow cap 124.91 lpm
Pump flow cap 121.12 lpm
Pump type -
Pump type High Flow XPS
Pump type High Flow XPS
Pump type High Flow XPS
Pump type -
Relief valve pressure -
Relief valve pressure 279.99 bar
Relief valve pressure 279.99 bar
Relief valve pressure 279.99 bar
Relief valve pressure 279.99 bar
Download datasheets
OEM product brochure

Cat 287 expert review

Reviewed by Raul M. on January 28, 2026

Overview

The Cat 287 wide-track compact loader delivers over 1,632 kg rated lift with 61.15 kW of power, targeting heavy material handling and pallet work.

Pros Very high rated lift, wide undercarriage for stability, strong engine output.
Cons Large footprint reduces agility and older variants lack cab refinement.

Efficiency

The 61.15 kW engine and 2,498 kg breakout favor aggressive loading, with 4,660 kg operating weight adding stability.

In Cabin

Early models feel basic, while C and D variants improve visibility and noise control.

In Comparison

Compared with Cat 277 and Cat 279, the 287 leads in lift capacity and stability.

Final Verdict

A 3-star compact track loader built for lifting and stability over maneuverability.

Show less

Cat 287 owner rating

Cat 287 Compact track loaders [2004-2008]

2004-2008

Overall rating

Based on 2 ratings

4.5
performance

4.5

comfort

4.5

fuel efficiency

5.0

safety

4.5

features

4.5

5 stars

50 %

4 stars

50 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Lifts large pallets with confidence thanks to the wide stance.
Cons
Feels cumbersome in tight jobsite layouts.
performance

4.0

comfort

4.0

fuel efficiency

5.0

safety

5.0

features

5.0

Read more

Cat 287 similar models

Highlight differences
Cat 287B
287B
Cat 277B
277B
Cat 279C
279C
Engine
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Bore 9.4 cm
Bore 9.4 cm
Bore 8.64 cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Gross power 61.15 kw
Gross power 61.15 kw
Gross power 62.64 kw
Net power 58.17 kw
Net power 58.17 kw
Net power 61.15 kw
Stroke 11.94 cm
Stroke 11.94 cm
Stroke 11.94 cm
Number of cylinders -
Number of cylinders -
Number of cylinders 4
Power measured @ -
Power measured @ -
Power measured @ 2,500 rpm
Years 2004-2008
Years 2004-2007
Years 2009-2015
Market Average AED 131,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 88,200
Price AED 62,500
Price AED 114,000
Loader
Breakout force - lift cylinder 2,498.03 kg
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder 2,498.39 kg
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Loader dump height 2.41 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach 0.85 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Operating specifications
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Rack back angle 71 º
Rack back angle 58 º
Rack back angle 64 º
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle -
Dump angle -
Dump angle 40 º
Service refill capacities
Cooling fluid cap 10.22 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Fuel cap 110.14 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap 51.1 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
General
Engine model Cat 3044C DIT
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Lifting capacity 1,632.03 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max horizontal reach 1.38 m
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Max speed forward 11.27 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight 4,660 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Tipping load 3,265 kg
Tipping load 2,676 kg
Tipping load 2,940 kg
Bucket capacity -
Bucket capacity -
Bucket capacity 0.46 cu m
Refill capacities
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Dimensions
Ground clearance 0.28 m
Ground clearance 0.36 m
Ground clearance 0.23 m
Height - top of cab 2.13 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket 3.72 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Max height to hinge pin 21.84 cm
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width 1.96 m
Overall Width 1.91 m
Overall Width 1.98 m
Turning radius 1.62 m
Turning radius 1.55 m
Turning radius 1.64 m
Width over tracks 1.98 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Undercarriage
Ground contact area 47,499.65 cu cm
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure 0.26 bar
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Track length 1.86 m
Track length 2.07 m
Track length 1.77 m
Hydraulic system
Pump flow cap 124.91 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Pump type High Flow XPS
Pump type Standard
Pump type High Flow XPS
Relief valve pressure 279.99 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar

Similar machines. Other reviews.

Cat D8 Crawler dozers specsCat D9 Crawler dozers specsCat D6 Crawler dozers specsCat 725 Articulated dump trucks specsCat 730 Articulated dump trucks specsCat 740 Articulated dump trucks specsCat 745 Articulated dump trucks specsCat 307 Mini excavators specsCat 320 Medium excavators specsCat 336 Medium excavators specs
Get the latest from Makana

Subscribe to receive auction dates, exclusive deals, and news in your inbox.

We care about the protection of your data. Read ourPrivacy Policy

Makana connects quality machinery with the global market, ensuring safe transactions for buyers and sellers.

COMPANYAbout usMachinery auctionsWatch showsNewsDocumentation
Book a demo
HELP AND SUPPORTContact usHow to buyHow to sellFinancingInstallmentsFAQ
LEGALPrivacy PolicyTerms & Conditions
© 2025 Makana. All rights reserved.

build datetime: 3/1/2026, 11:11:32 AM
