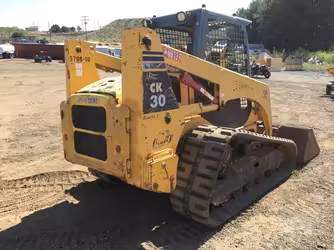

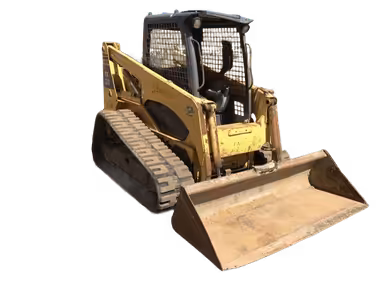

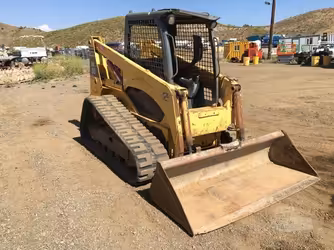

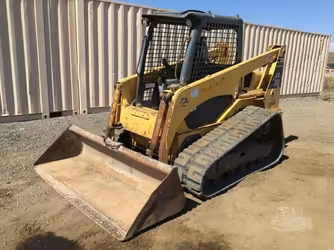

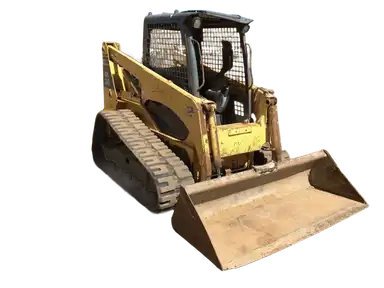

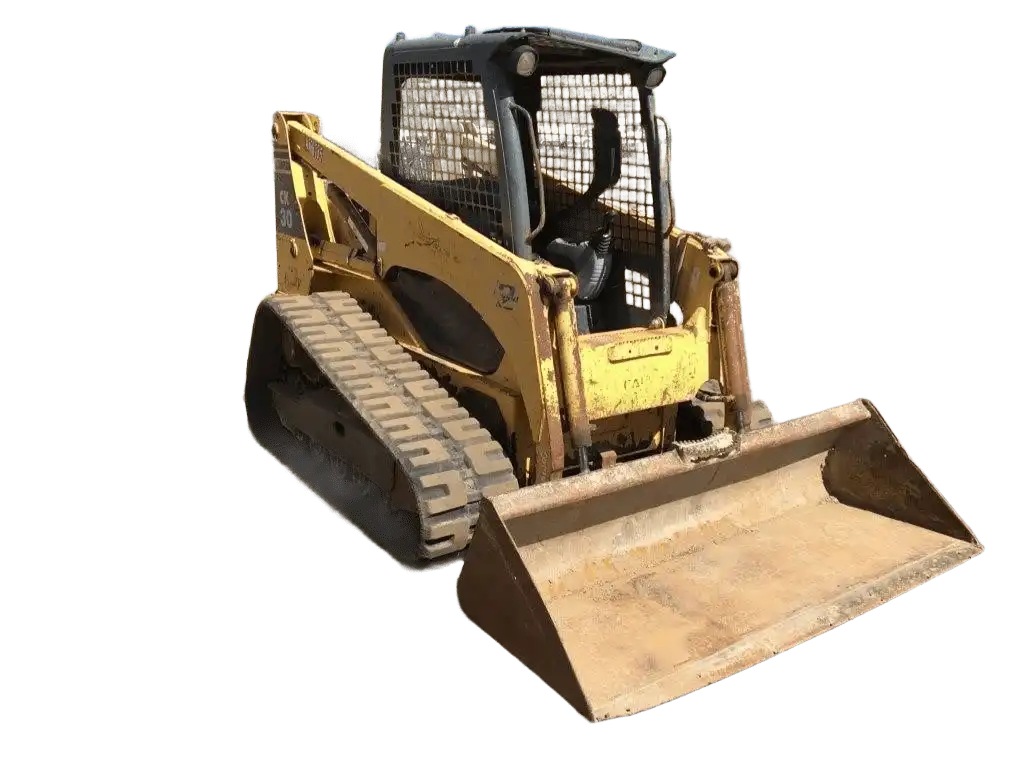

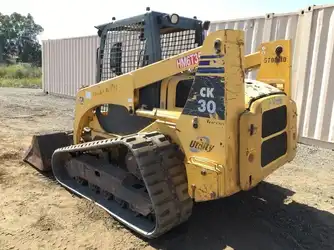

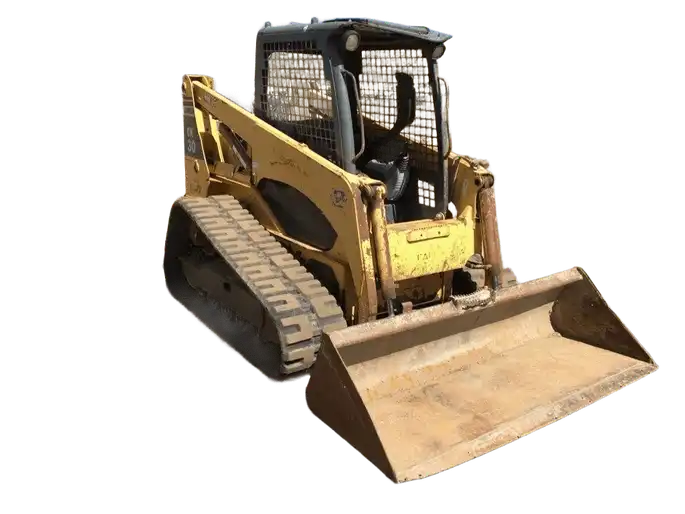

Komatsu CK30 Compact track loaders tech specs

makana img
video play button
Video[1]

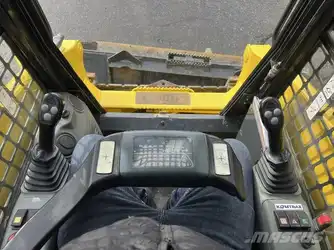

Interior [2]
Exterior [4]

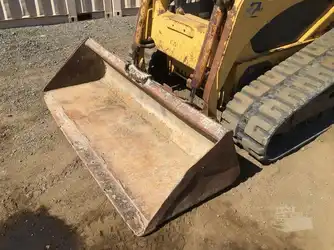

Attachments [1]
2005-2012
3,400.32 cu cm Displacement
2.32 m Loader dump height
0.64 m Loader dump reach
1,610.03 kg Lifting capacity
62.64 kw Net power
4,330 kg Operating weight

A heavy compact track loader built for demanding material handling and site preparation work, the Komatsu CK30 combines 62.64 kilowatt net engine power with a strong 1,610 kg rated lifting capacity. With a durable rubber track undercarriage, closed load-sensing hydraulic system, and compact dimensions, the machine is suited for grading, excavation support, landscaping, and construction site operations.

Net power 62.64 kilowatt

Maximum torque 286.07 Nm

Rated lifting capacity 1,610.03 kg

Bucket capacity 0.46 cu m

Operating weight 4,330 kg

Closed load-sensing hydraulic system

Maximum travel speed 12.07 kph

Fuel tank capacity 73.05 liters

Makana rating

Owner rating

 | 3

Market average

AED 92,000

Starting from

AED 45,000

Komatsu CK30 Technical specifications

Engine

Alternator supplied amperage

40 Amh

Aspiration

Turbocharged

Net power

62.64 kw

Number of cylinders

4

Power measured @

2,500 rpm

Torque measured @

1,600 rpm

Loader

Breakout force

2290.01 kg

General

Bucket capacity

0.46 cu m

Displacement

3400.32 cu cm

Engine model

S4D98E-2NFE

Loader dump height

2.32 m

Loader dump reach

0.64 m

Lifting capacity

1610.03 kg

Max speed forward

12.07 kph

Max torque

286.07 Nm

Operating voltage

12 V

Operating weight

4,330 kg

Turning radius

2.26 m

Service refill capacities

Cooling fluid cap

8.33 liter

Fuel cap

73.05 liter

Hydraulic fluid cap

38.23 liter

Refill capacities

Engine oil cap

12.87 liter

Dimensions

Height - top of cab

2.13 m

Length with bucket

3.57 m

Width over tracks

2.04 m

Hydraulic system

Pump flow cap

80.24 lpm

Pump type

komatsu closed load sensing system

Relief valve pressure

209.94 bar

Operating specifications

Rack back angle

70 º

Download datasheets
OEM product brochure

Komatsu CK30 expert review

Reviewed by Marcis V. on March 11, 2026

Overview

The Komatsu CK30 (2005–2012) is a heavy compact track loader designed for demanding construction and material handling work. It produces 62.64 kilowatt engine power and offers over 1.6 ton lifting capacity.

Expert rating: 3 stars

Pros High lifting capacity and efficient closed load-sensing hydraulics.
Cons Larger size and weight compared with smaller compact loaders.

Performance & Efficiency

The Komatsu S4D98E-2NFE diesel engine produces 62.64 kilowatt and roughly 286 Nm of torque, delivering strong performance for grading and heavy material handling.

In Comparison

Cat 277: Durable compact track loader with strong dealer support.
Cat 279: Larger machine with higher productivity.
Komatsu CK30: Strong lifting capability and efficient hydraulics.

Final Verdict

Rated 3 stars, the Komatsu CK30 offers strong compact track loader capability within the AED 45,000–92,000 range.

Show less

Komatsu CK30 owner rating

Komatsu CK30 Compact track loaders [2005-2012]

2005-2012

Overall rating

Based on 3 ratings

4.0
performance

4.0

comfort

4.3

fuel efficiency

4.0

safety

4.7

features

3.7

5 stars

0 %

4 stars

100 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros
Very strong lifting capacity for a compact track loader.
Cons
Larger machine footprint can limit maneuverability.
performance

4.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

4.0

Valuation

Last 12 month
2005

Komatsu CK30 similar models

Highlight differences
Komatsu CK30-1
Cat 277B
Cat 279C
Engine
Alternator supplied amperage 40 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Net power 62.64 kw
Net power 58.17 kw
Net power 61.15 kw
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @ 2,500 rpm
Power measured @ -
Power measured @ 2,500 rpm
Torque measured @ 1,600 rpm
Torque measured @ -
Torque measured @ -
Bore -
Bore 9.4 cm
Bore 8.64 cm
Gross power -
Gross power 61.15 kw
Gross power 62.64 kw
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Years 2005-2012
Years 2004-2007
Years 2009-2015
Market Average AED 92,000
Market Average AED 99,200
Market Average AED 168,000
Price AED 45,000
Price AED 62,500
Price AED 114,000
Loader
Breakout force 2,290.01 kg
Breakout force -
Breakout force -
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
General
Bucket capacity 0.46 cu m
Bucket capacity -
Bucket capacity 0.46 cu m
Displacement 3,400.32 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Engine model S4D98E-2NFE
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Loader dump height 2.32 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach 0.64 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Lifting capacity 1,610.03 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward 12.07 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Max torque 286.07 Nm
Max torque -
Max torque -
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight 4,330 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Turning radius 2.26 m
Turning radius 1.55 m
Turning radius 1.64 m
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Service refill capacities
Cooling fluid cap 8.33 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Fuel cap 73.05 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap 38.23 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Refill capacities
Engine oil cap 12.87 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Dimensions
Height - top of cab 2.13 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket 3.57 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Width over tracks 2.04 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Ground clearance -
Ground clearance 0.36 m
Ground clearance 0.23 m
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Hydraulic system
Pump flow cap 80.24 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Pump type komatsu closed load sensing system
Pump type Standard
Pump type High Flow XPS
Relief valve pressure 209.94 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Operating specifications
Rack back angle 70 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle -
Dump angle -
Dump angle 40 º
Undercarriage
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure -
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Track length -
Track length 2.07 m
Track length 1.77 m
