Cat

Cat 226 Skid steer loaders

100K+ machines in details.

Cat 226 Skid steer loaders tech specs

Video[1]

Interior [2]

Exterior [4]

Attachments [1]

2016-2025

2,641 kg Operating weight

2.1 m Max dump height

680 kg Lifting capacity

12.7 kph Max speed forward

1,360 kg Tipping load

45.5 kw Net power

The 226B3 is built to offer reliable performance in tight job sites, landscaping, utility work, and general construction. It features a radial lift arm design (for better breakout in many applications) and an easy-to-service layout (tilt-up hood, accessible filters).

45.5 kW (61 hp) gross, ~ 42 kW (56 hp) net power from the Cat C2.2T engine

rated operating capacity of 680 kg (1,500 lb)

operating weight around 2,641 kg (5,822 lb)

Standard hydraulic flow is ~61 L/min, with optional high-flow of ~104 L/min

Show features

Makana rating

Owner rating

| 2

Market average

AED 105,000

Starting from

AED 86,500

Cat 226 Technical specifications

General

Engine model

C2.2

Operating weight

2,641 kg

Max dump height

2.1 m

Lifting capacity

680 kg

Bucket width

1,520 mm

Bucket capacity

0.36 m3

Max speed forward

12.7 kph

Tipping load

1,360 kg

Engine

Displacement

2200 cm3

Net power

45.5 kw

Dimensions

Height - top of cab

1.95 m

Turning radius

1.5 m

Hydraulic system

Pump flow cap

61 lpm

Relief valve pressure

229.9 bar

Loader

Loader dump reach

500 mm

Service refill capacities

Fuel cap

58 liter

Hydraulic fluid cap

55 liter

Operating specifications

Rack back angle

81 º

Download datasheets

OEM product brochure

Cat 226 expert review

Reviewed by on

Overview

The 2016-2025 Cat 226 skid steer loader, equipped with a Cat C2.2 diesel engine delivering 45.5 kW (61 hp), has proven its reliability over approximately 6,000 operational hours. Designed for versatility, this machine excels in tasks ranging from landscaping to light construction, making it a valuable asset in various applications.

Pros Operators have reported significant fuel savings, enhancing cost-effectiveness over extended use. The spacious cab design, featuring ergonomic controls and excellent visibility, reduces operator fatigue.

Cons Some operators have noted that the machine can exhibit jerky steering responses, particularly in tight quarters.

What's new

The 2016-2025 model of the Cat 226 introduced several enhancements aimed at improving performance and operator experience. The cab was redesigned to offer a more comfortable and user-friendly environment, with increased space and better visibility.

The machine's hydraulic system was upgraded to a high-flow option, delivering a maximum flow of 104 L/min at 23,000 kPa, providing operators with precise control and efficient performance.

Additionally, the 226 features a dual throttle system, allowing for both hand and foot throttle control, enhancing operator flexibility and reducing fatigue during long shifts.

Efficiency and performance

In day-to-day operations, the Cat 226 demonstrates robust performance. Its rated operating capacity of 680 kg and tipping load of 1,360 kg make it suitable for a variety of tasks.

The machine's fuel efficiency stands out, with operators reporting substantial savings over time. However, attention should be given to cold weather operations, as some users have noted starting difficulties in low temperatures.

Routine maintenance is facilitated by the machine's design, featuring easy access to service points, which helps minimize downtime and maintain consistent performance.

In-cabin and interior features

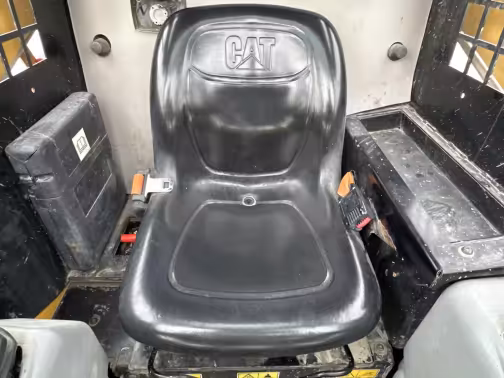

The operator station of the 226 is designed with comfort and functionality in mind. The spacious cab allows for easy movement, and the ergonomic layout ensures that controls are within easy reach. The inclusion of both hand and foot throttle controls provides operators with flexibility in managing engine speed, enhancing comfort during extended use.

Visibility from the cab is adequate, allowing operators to have a clear view of the work area, which enhances operational safety and precision.

Safety features

Safety is a key consideration in the design of the 226. The machine is equipped with an open ROPS and FOPS cab, protecting operators from rollovers and falling objects. The cab's design enhances visibility, reducing blind spots and contributing to safer operation.

The machine's maintenance-friendly design minimizes the risk of accidents during routine checks, and the inclusion of a backup alarm and interlock system further enhances operator safety.

In comparison

Compared to previous models, the 2016-2025 226 offers improved hydraulic performance and operator comfort. When compared to predecessor models like the 216, some users have noted that the 226B3's steering can be a bit jerky, particularly in tight quarters. However, the 226's fuel efficiency and operator comfort provide a competitive edge in terms of performance and operator satisfaction.

Verdict

The 2016-2025 Cat 226 skid steer loader earns a solid 5-star rating for its reliability, fuel efficiency, and operator-focused design. While attention to steering sensitivity is necessary, the machine's overall performance and cost-effectiveness make it a valuable asset for various applications.
