Manitou MLB6 Backhoe loaders tech specs

makana img
video play button
Video[1]

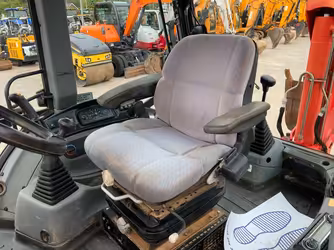

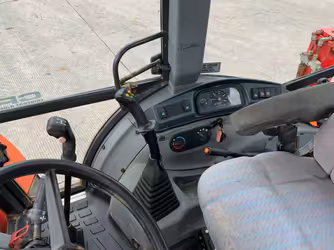

Interior [3]

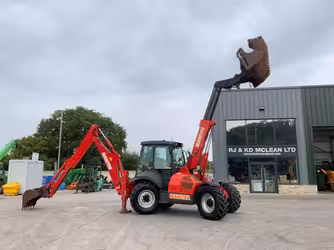

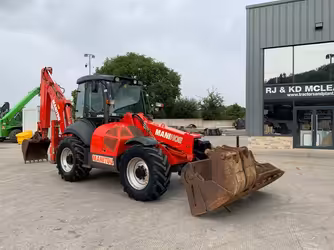

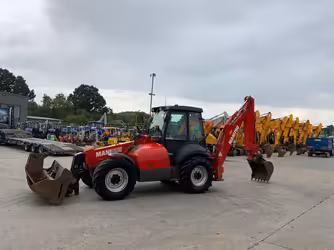

Exterior [4]

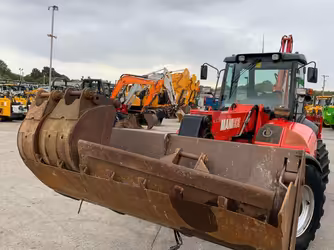

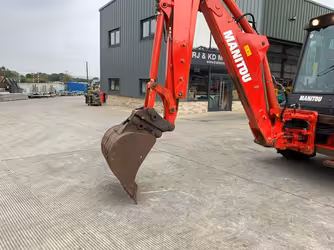

Attachments [3]
2007-2012
5 m Backhoe digging depth
150.26 liter Fuel cap
2,100.04 kg Lifting capacity
7,460 kg Operating weight
6.98 m Overall Length
2.5 m Overall Width
Show features

Makana rating

Market average

AED 200,000

Starting from

AED 120,000

Manitou MLB6 Technical specifications

Backhoe

Backhoe digging depth

5 m

Backhoe dump height

3.81 m

Backhoe reach from swivel

7.19 m

Attachments

Bucket digging force

6424.01 kg

General

Engine model

1104C44 T

Lifting capacity

2100.04 kg

Max speed forward

25.11 kph

Operating weight

7,460 kg

Transmission type

torque converter

Service refill capacities

Fuel cap

150.26 liter

Engine

Gross power

74.57 kw

Loader

Loader dump height

5.24 m

Transmission

Max speed reverse

25.11 kph

Number of forward gears

4

Number of reverse gears

4

Hydraulic system

Pump flow cap

184.33 lpm

Pump type

Gear pump

Dimensions

Overall Length

6.98 m

Overall Width

2.5 m

View more
Download datasheets
OEM product brochure

Manitou MLB6 similar models

Highlight differences
Manitou MLB625T
MLB625T
New holland LB95.B
LB95.B
MST M544
M544
Backhoe
Backhoe digging depth 5 m
Backhoe digging depth 4.6 m
Backhoe digging depth 5.43 m
Backhoe dump height 3.81 m
Backhoe dump height -
Backhoe dump height 3.66 m
Backhoe reach from swivel 7.19 m
Backhoe reach from swivel 5.88 m
Backhoe reach from swivel 6.8 m
Years 2007-2012
Years 2004-2009
Years 2007-2026
Market Average AED 200,000
Market Average AED 250,000
Market Average AED 210,000
Price AED 120,000
Price AED 165,000
Price AED 130,000
Attachments
Bucket digging force 6,424.01 kg
Bucket digging force -
Bucket digging force 4,790.03 kg
General
Engine model 1104C44 T
Engine model CNH F4GE0454C*D
Engine model 1104C-44T
Lifting capacity 2,100.04 kg
Lifting capacity -
Lifting capacity -
Max speed forward 25.11 kph
Max speed forward 38.95 kph
Max speed forward 42 kph
Operating weight 7,460 kg
Operating weight 8,500 kg
Operating weight 8,750 kg
Transmission type torque converter
Transmission type Powershuttle
Transmission type Auto Powershift, low speed gearbox
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Bucket capacity -
Bucket capacity -
Bucket capacity 1.15 cu m
Service refill capacities
Fuel cap 150.26 liter
Fuel cap 135.12 liter
Fuel cap 105.22 liter
Cooling fluid cap -
Cooling fluid cap 24.22 liter
Cooling fluid cap 26.12 liter
Hydraulic fluid cap -
Hydraulic fluid cap 118.09 liter
Hydraulic fluid cap 152.16 liter
Transmission fluid cap -
Transmission fluid cap 18.17 liter
Transmission fluid cap -
Front axle fluid capacity -
Front axle fluid capacity -
Front axle fluid capacity 8.71 liter
Rear axle fluid capacity -
Rear axle fluid capacity -
Rear axle fluid capacity 13.25 liter
Engine
Gross power 74.57 kw
Gross power -
Gross power 73.83 kw
Alternator supplied amperage -
Alternator supplied amperage 70 Amh
Alternator supplied amperage 65 Amh
Aspiration -
Aspiration Turbocharged
Aspiration -
Displacement -
Displacement 4,501.54 cu cm
Displacement 4,401.58 cu cm
Max torque -
Max torque 294.07 Nm
Max torque 415.01 Nm
Net power -
Net power 70.84 kw
Net power -
Number of cylinders -
Number of cylinders 4
Number of cylinders 4
Power measured @ -
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Torque measured @ -
Torque measured @ 1,400 rpm
Torque measured @ 1,350 rpm
Loader
Loader dump height 5.24 m
Loader dump height 4.48 m
Loader dump height 2.62 m
Loader digging depth -
Loader digging depth 10.16 cm
Loader digging depth 15.24 cm
Loader dump reach -
Loader dump reach 0.73 m
Loader dump reach 0.98 m
Breakout force -
Breakout force -
Breakout force 7,789.96 kg
Transmission
Max speed reverse 25.11 kph
Max speed reverse 46.51 kph
Max speed reverse -
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Hydraulic system
Pump flow cap 184.33 lpm
Pump flow cap 151.02 lpm
Pump flow cap 155.19 lpm
Pump type Gear pump
Pump type Load Sensing / Flow Compensation
Pump type Helical gear constant mesh type
Relief valve pressure -
Relief valve pressure 210 bar
Relief valve pressure 250 bar
Dimensions
Overall Length 6.98 m
Overall Length 5.7 m
Overall Length 5.67 m
Overall Width 2.5 m
Overall Width 2.44 m
Overall Width 2.41 m
Ground clearance -
Ground clearance 0.4 m
Ground clearance 0.49 m
Height - top of cab -
Height - top of cab 2.9 m
Height - top of cab 3.05 m
Wheelbase -
Wheelbase 2.19 m
Wheelbase 2.29 m
Turning radius -
Turning radius -
Turning radius 5.27 m
Refill capacities
Engine oil cap -
Engine oil cap 14 liter
Engine oil cap 8.33 liter
Operating specifications
Extended backhoe digging depth -
Extended backhoe digging depth 5.79 m
Extended backhoe digging depth -
Extended backhoe dump height -
Extended backhoe dump height 6.49 m
Extended backhoe dump height 4.33 m
Extended backhoe dump reach -
Extended backhoe dump reach 3.32 m
Extended backhoe dump reach -
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 6.98 m
Extended backhoe reach from swivel -
Tires
Front tires size (2WD) -
Front tires size (2WD) 12.5 / 70 (10 Ply)
Front tires size (2WD) 16.9 x 14x28, 12 ply
Rear tires size -
Rear tires size 18.4 / 26
Rear tires size 16.9 x 14x28, 12 ply
