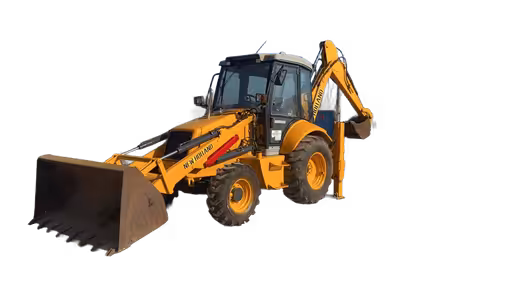

MST M544 Backhoe loaders tech specs

makana img
video play button
Video[1]
Interior [2]
Exterior [4]
Attachments [2]
2007-2026
5.43 m Backhoe digging depth
105.22 liter Fuel cap
415.01 Nm Max torque
8,750 kg Operating weight
5.67 m Overall Length
2.41 m Overall Width
Show features

Makana rating

Market average

AED 210,000

Starting from

AED 130,000

MST M544 Technical specifications

Engine

Alternator supplied amperage

65 Amh

Displacement

4401.58 cu cm

Gross power

73.83 kw

Max torque

415.01 Nm

Number of cylinders

4

Power measured @

2,200 rpm

Torque measured @

1,350 rpm

Backhoe

Backhoe digging depth

5.43 m

Backhoe dump height

3.66 m

Backhoe reach from swivel

6.8 m

Loader

Breakout force

7789.96 kg

Loader digging depth

15.24 cm

Loader dump height

2.62 m

Loader dump reach

0.98 m

General

Bucket capacity

1.15 cu m

Engine model

1104C-44T

Max speed forward

42 kph

Operating voltage

12 V

Operating weight

8,750 kg

Transmission type

Auto Powershift, low speed gearbox

Attachments

Bucket digging force

4790.03 kg

Service refill capacities

Cooling fluid cap

26.12 liter

Front axle fluid capacity

8.71 liter

Fuel cap

105.22 liter

Hydraulic fluid cap

152.16 liter

Rear axle fluid capacity

13.25 liter

Refill capacities

Engine oil cap

8.33 liter

Operating specifications

Extended backhoe dump height

4.33 m

Tires

Front tires size (2WD)

16.9 x 14x28, 12 ply

Rear tires size

16.9 x 14x28, 12 ply

Dimensions

Ground clearance

0.49 m

Height - top of cab

3.05 m

Overall Length

5.67 m

Overall Width

2.41 m

Turning radius

5.27 m

Wheelbase

2.29 m

Transmission

Number of forward gears

4

Number of reverse gears

4

Hydraulic system

Pump flow cap

155.19 lpm

Pump type

Helical gear constant mesh type

Relief valve pressure

250 bar

View more
Download datasheets
OEM product brochure

MST M544 similar models

Highlight differences
MST M544
M544
New holland LB90
LB90
New holland LB95.B
LB95.B
Engine
Alternator supplied amperage 65 Amh
Alternator supplied amperage 70 Amh
Alternator supplied amperage 70 Amh
Displacement 4,401.58 cu cm
Displacement 5,001.34 cu cm
Displacement 4,501.54 cu cm
Gross power 73.83 kw
Gross power -
Gross power -
Max torque 415.01 Nm
Max torque -
Max torque 294.07 Nm
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @ 2,200 rpm
Power measured @ -
Power measured @ 2,200 rpm
Torque measured @ 1,350 rpm
Torque measured @ -
Torque measured @ 1,400 rpm
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Net power -
Net power 73.08 kw
Net power 70.84 kw
Years 2007-2026
Years 2001-2003
Years 2004-2009
Market Average AED 210,000
Market Average AED 230,000
Market Average AED 250,000
Price AED 130,000
Price AED 150,000
Price AED 165,000
Backhoe
Backhoe digging depth 5.43 m
Backhoe digging depth 4.24 m
Backhoe digging depth 4.6 m
Backhoe dump height 3.66 m
Backhoe dump height -
Backhoe dump height -
Backhoe reach from swivel 6.8 m
Backhoe reach from swivel 5.55 m
Backhoe reach from swivel 5.88 m
Loader
Breakout force 7,789.96 kg
Breakout force 6,323.99 kg
Breakout force -
Loader digging depth 15.24 cm
Loader digging depth -
Loader digging depth 10.16 cm
Loader dump height 2.62 m
Loader dump height 2.74 m
Loader dump height 4.48 m
Loader dump reach 0.98 m
Loader dump reach 0.82 m
Loader dump reach 0.73 m
General
Bucket capacity 1.15 cu m
Bucket capacity 1.07 cu m
Bucket capacity -
Engine model 1104C-44T
Engine model BSD 450T
Engine model CNH F4GE0454C*D
Max speed forward 42 kph
Max speed forward 32.19 kph
Max speed forward 38.95 kph
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight 8,750 kg
Operating weight 6,674 kg
Operating weight 8,500 kg
Transmission type Auto Powershift, low speed gearbox
Transmission type power-reversing/torque converter
Transmission type Powershuttle
Bucket width -
Bucket width 225 cm
Bucket width -
Attachments
Bucket digging force 4,790.03 kg
Bucket digging force 5,809.62 kg
Bucket digging force -
Service refill capacities
Cooling fluid cap 26.12 liter
Cooling fluid cap 24.6 liter
Cooling fluid cap 24.22 liter
Front axle fluid capacity 8.71 liter
Front axle fluid capacity -
Front axle fluid capacity -
Fuel cap 105.22 liter
Fuel cap 124.91 liter
Fuel cap 135.12 liter
Hydraulic fluid cap 152.16 liter
Hydraulic fluid cap 105.98 liter
Hydraulic fluid cap 118.09 liter
Rear axle fluid capacity 13.25 liter
Rear axle fluid capacity -
Rear axle fluid capacity -
Transmission fluid cap -
Transmission fluid cap -
Transmission fluid cap 18.17 liter
Refill capacities
Engine oil cap 8.33 liter
Engine oil cap 17.03 liter
Engine oil cap 14 liter
Operating specifications
Extended backhoe dump height 4.33 m
Extended backhoe dump height 4.48 m
Extended backhoe dump height 6.49 m
Extended backhoe digging depth -
Extended backhoe digging depth 5.46 m
Extended backhoe digging depth 5.79 m
Extended backhoe dump reach -
Extended backhoe dump reach 2.68 m
Extended backhoe dump reach 3.32 m
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 6.68 m
Extended backhoe reach from swivel 6.98 m
Tires
Front tires size (2WD) 16.9 x 14x28, 12 ply
Front tires size (2WD) -
Front tires size (2WD) 12.5 / 70 (10 Ply)
Rear tires size 16.9 x 14x28, 12 ply
Rear tires size -
Rear tires size 18.4 / 26
Dimensions
Ground clearance 0.49 m
Ground clearance 0.4 m
Ground clearance 0.4 m
Height - top of cab 3.05 m
Height - top of cab 2.9 m
Height - top of cab 2.9 m
Overall Length 5.67 m
Overall Length 7.07 m
Overall Length 5.7 m
Overall Width 2.41 m
Overall Width 3.23 m
Overall Width 2.44 m
Turning radius 5.27 m
Turning radius -
Turning radius -
Wheelbase 2.29 m
Wheelbase 2.19 m
Wheelbase 2.19 m
Transmission
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears 4
Number of reverse gears 4
Number of reverse gears 4
Max speed reverse -
Max speed reverse 40.23 kph
Max speed reverse 46.51 kph
Hydraulic system
Pump flow cap 155.19 lpm
Pump flow cap 151.4 lpm
Pump flow cap 151.02 lpm
Pump type Helical gear constant mesh type
Pump type Tandem gear
Pump type Load Sensing / Flow Compensation
Relief valve pressure 250 bar
Relief valve pressure 209.94 bar
Relief valve pressure 210 bar
