Hidromek

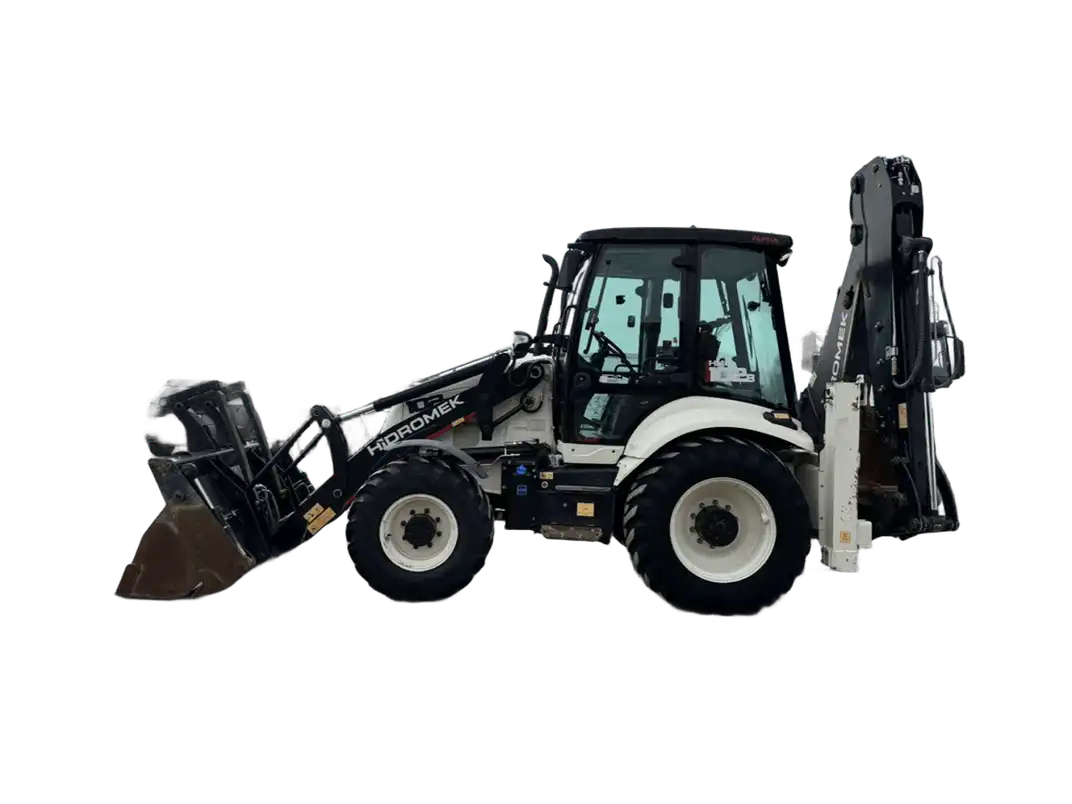

Hidromek 102B Backhoe loaders
Hidromek 102B Backhoe loaders tech specs
:quality(50)/https://www.makana.com/66802/conversions/6ad41f12-c8c0-4b91-9a27-19f36d673d7a-webp.webp)
Video[1]
:quality(50)/https://www.makana.com/66794/conversions/7ac0605e-b407-4812-8a8d-635cb71b16e7-webp.webp)
Interior [2]
:quality(50)/https://www.makana.com/66796/conversions/d1767d07-6a3a-460e-931e-b989567c97a7-webp.webp)
Exterior [4]
:quality(50)/https://www.makana.com/66800/conversions/e4a13340-2695-440f-9018-2ce3e67cbc88-webp.webp)
Attachments [2]
Hidromek 102B Technical specifications
Backhoe
Backhoe digging depth
4.45 m
Backhoe dump height
3.69 m
Backhoe reach from swivel
6.86 m
General
Bucket capacity
1.15 cu m
Bucket width
244 cm
Engine model
1104C-44T
Lifting capacity
1645.05 kg
Max speed forward
40.07 kph
Operating weight
8,400 kg
Transmission type
Powershift
Attachments
Bucket digging force
5429.01 kg
Engine
Displacement
4401.58 cu cm
Gross power
74.57 kw
Number of cylinders
4
Power measured @
2,200 rpm
Service refill capacities
Fuel cap
120.36 liter
Loader
Loader dump height
2.62 m
Transmission
Max speed reverse
40.07 kph
Number of forward gears
4
Number of reverse gears
4
Hydraulic system
Pump flow cap
145.34 lpm
Pump type
Tandem gear
Relief valve pressure
230 bar
Dimensions
Overall Length
6.1 m
Overall Width
2.47 m
Turning radius
5.18 m
Download datasheets
Hidromek 102B expert review
Hidromek 102B similar models
Highlight differences
Backhoe digging depth
Backhoe digging depth 4.45 m
Backhoe digging depth 4.45 m
Backhoe digging depth 4.45 m
Backhoe dump height
Backhoe dump height 3.69 m
Backhoe dump height -
Backhoe dump height -
Backhoe reach from swivel
Backhoe reach from swivel 6.86 m
Backhoe reach from swivel 5.73 m
Backhoe reach from swivel 5.73 m
Years
Years 2021-2025
Years 2004-2017
Years 2007-2017
Market Average
Market Average AED 330,000
Market Average AED 220,000
Market Average AED 184,000
Price
Price AED 220,000
Price AED 107,000
Price AED 135,000
Bucket capacity
Bucket capacity 1.15 cu m
Bucket capacity 1.22 cu m
Bucket capacity 1.22 cu m
Bucket width
Bucket width 244 cm
Bucket width 238 cm
Bucket width 238 cm
Engine model
Engine model 1104C-44T
Engine model 1104C-44T
Engine model 1104C-44T
Lifting capacity
Lifting capacity 1,645.05 kg
Lifting capacity -
Lifting capacity -
Max speed forward
Max speed forward 40.07 kph
Max speed forward 41.68 kph
Max speed forward 41.68 kph
Operating weight
Operating weight 8,400 kg
Operating weight 7,521 kg
Operating weight 7,521 kg
Transmission type
Transmission type Powershift
Transmission type full powershift
Transmission type full powershift
Operating voltage
Operating voltage -
Operating voltage 12 V
Operating voltage 12 V
Bucket digging force
Bucket digging force 5,429.01 kg
Bucket digging force 5,260.05 kg
Bucket digging force 5,260.05 kg
Displacement
Displacement 4,401.58 cu cm
Displacement 4,408.13 cu cm
Displacement 4,408.13 cu cm
Gross power
Gross power 74.57 kw
Gross power 74.57 kw
Gross power 74.57 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Power measured @ 2,200 rpm
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 75 Amh
Alternator supplied amperage 75 Amh
Max torque
Max torque -
Max torque 562.66 Nm
Max torque 562.66 Nm
Net power
Net power -
Net power 70.1 kw
Net power 70.1 kw
Torque measured @
Torque measured @ -
Torque measured @ 1,400 rpm
Torque measured @ 1,400 rpm
Fuel cap
Fuel cap 120.36 liter
Fuel cap 130.2 liter
Fuel cap 130.2 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 16.28 liter
Cooling fluid cap 16.28 liter
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity 12.11 liter
Front axle fluid capacity 12.11 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 143.07 liter
Hydraulic fluid cap 143.07 liter
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity 13.25 liter
Rear axle fluid capacity 13.25 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 23.09 liter
Transmission fluid cap 23.09 liter
Loader dump height
Loader dump height 2.62 m
Loader dump height 2.68 m
Loader dump height 2.68 m
Breakout force
Breakout force -
Breakout force 5,559.23 kg
Breakout force 5,559.23 kg
Loader digging depth
Loader digging depth -
Loader digging depth 11.68 cm
Loader digging depth 11.68 cm
Loader dump reach
Loader dump reach -
Loader dump reach 0.67 m
Loader dump reach 0.67 m
Max speed reverse
Max speed reverse 40.07 kph
Max speed reverse 13.04 kph
Max speed reverse 13.04 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 2
Number of reverse gears 2
Pump flow cap
Pump flow cap 145.34 lpm
Pump flow cap 160.11 lpm
Pump flow cap 160.11 lpm
Pump type
Pump type Tandem gear
Pump type Tandem gear
Pump type Tandem gear
Relief valve pressure
Relief valve pressure 230 bar
Relief valve pressure 224.08 bar
Relief valve pressure 224.08 bar
Overall Length
Overall Length 6.1 m
Overall Length 7.35 m
Overall Length 7.35 m
Overall Width
Overall Width 2.47 m
Overall Width 2.41 m
Overall Width 2.41 m
Turning radius
Turning radius 5.18 m
Turning radius 5.73 m
Turning radius 5.73 m
Ground clearance
Ground clearance -
Ground clearance 0.49 m
Ground clearance 0.49 m
Height - top of cab
Height - top of cab -
Height - top of cab 2.83 m
Height - top of cab 2.83 m
Wheelbase
Wheelbase -
Wheelbase 2.1 m
Wheelbase 2.1 m
Engine oil cap
Engine oil cap -
Engine oil cap 8.71 liter
Engine oil cap 8.71 liter
Extended backhoe digging depth
Extended backhoe digging depth -
Extended backhoe digging depth 5.79 m
Extended backhoe digging depth 5.79 m
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height 4.57 m
Extended backhoe dump height 4.57 m
Extended backhoe dump reach
Extended backhoe dump reach -
Extended backhoe dump reach 2.93 m
Extended backhoe dump reach 2.93 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 7.04 m
Extended backhoe reach from swivel 7.04 m
Front tires size (2WD)
Front tires size (2WD) -
Front tires size (2WD) 16.9x24
Front tires size (2WD) 16.9x24
Rear tires size
Rear tires size -
Rear tires size 16.9x24
Rear tires size 16.9x24

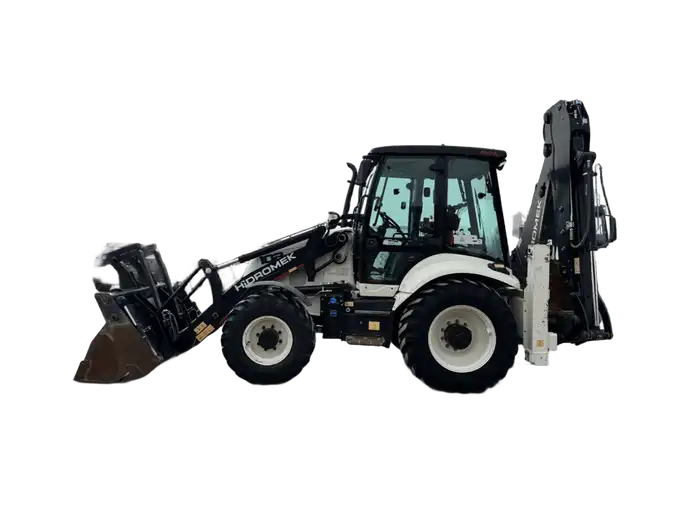

Hidromek 102B gallery
