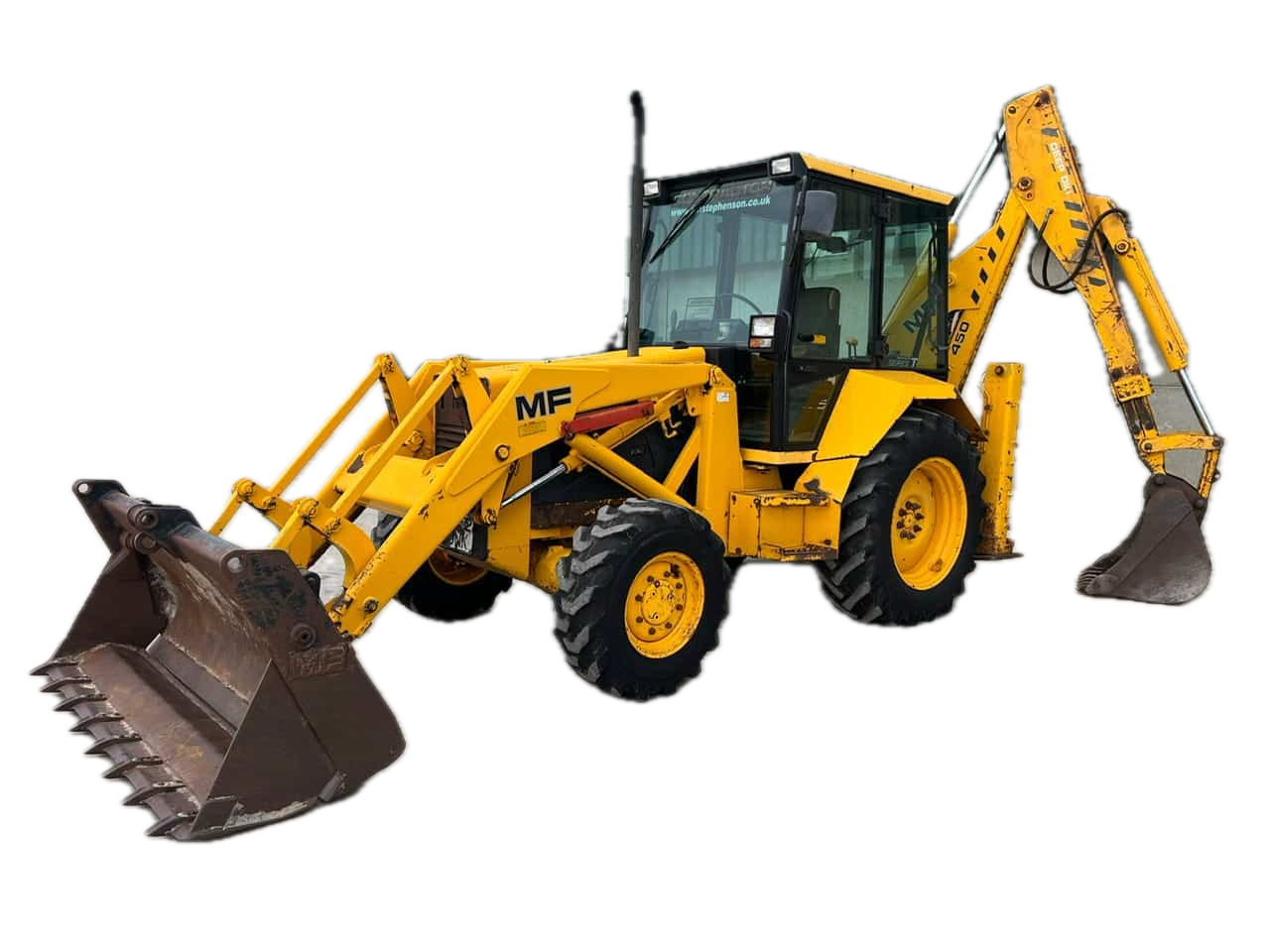

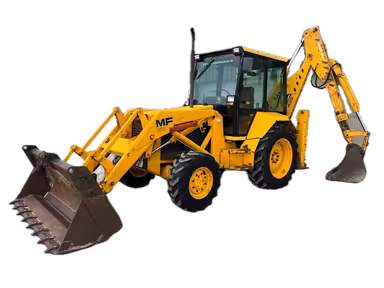

Massey ferguson 50 Backhoe loaders tech specs
:quality(50)/65677/conversions/24a3aebf-b3d4-488e-9584-3479ec63b9cd-thumb.webp)
Video[1]
:quality(50)/65669/conversions/33fc2501-183e-4c34-9099-726bd3eacab6-thumb.webp)

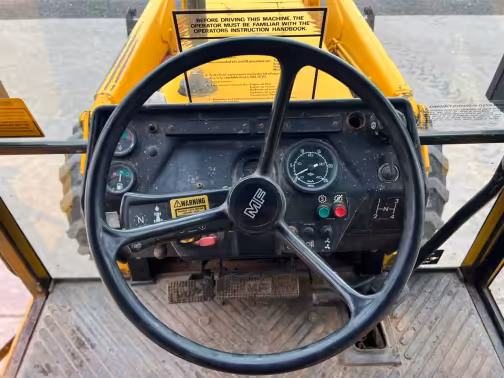

Interior [2]
:quality(50)/65671/conversions/a235a2bb-30f2-44e7-8cee-4315e6198025-thumb.webp)

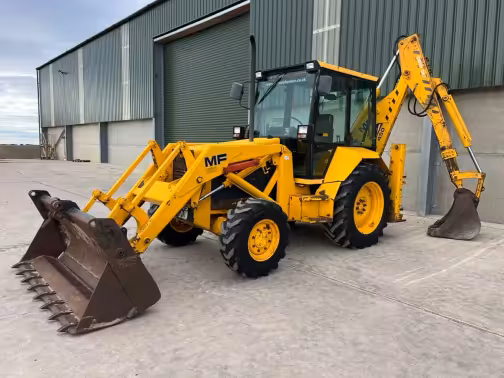

Exterior [4]
:quality(50)/65675/conversions/d252cf51-b20a-49b9-8d3a-a232b5c99a40-thumb.webp)
Attachments [2]
1987-1992
3.63 m Backhoe dump height
4,008.85 kg Breakout force
57.42 kw Gross power
2.77 m Loader dump height
286.07 Nm Max torque
6,488 kg Operating weight
Makana rating
Owner rating
Market average
AED 98,760Starting from
AED 93,800Massey ferguson 50 technical specifications
Highlight differences
Bore
Bore 9.91 cm
Bore 10.16 cm
Engine make
Engine make Perkins
Engine make Perkins
Net power
Net power 48.47 kw
Net power -
Number of cylinders
Number of cylinders 4
Number of cylinders 4
Stroke
Stroke 12.7 cm
Stroke 12.7 cm
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 55 Amh
Gross power
Gross power -
Gross power 57.42 kw
Max torque
Max torque -
Max torque 286.07 Nm
Power measured @
Power measured @ -
Power measured @ 2,000 rpm
Torque measured @
Torque measured @ -
Torque measured @ 1,400 rpm
Years
Years 1987-1992
Years 1987-1992
Market Average
Market Average AED 98,760
Market Average AED 98,760
Price
Price AED 93,800
Price AED 93,800
Breakout force
Breakout force 3,447.31 kg
Breakout force 4,008.85 kg
Loader dump reach
Loader dump reach 0.73 m
Loader dump reach 0.73 m
Loader dump height
Loader dump height -
Loader dump height 2.77 m
Displacement
Displacement 3,900.13 cu cm
Displacement 4,100.05 cu cm
Engine model
Engine model A4.236
Engine model A4.248
Operating weight
Operating weight 6,376 kg
Operating weight 6,488 kg
Bucket width
Bucket width -
Bucket width 223 cm
Max speed forward
Max speed forward -
Max speed forward 28.32 kph
Operating voltage
Operating voltage -
Operating voltage 12 V
Transmission type
Transmission type -
Transmission type Powershuttle
Wheelbase
Wheelbase -
Wheelbase 2.19 m
Front tires size (2WD)
Front tires size (2WD) 11x16
Front tires size (2WD) 11L-16
Rear tires size
Rear tires size 16.9/14x28
Rear tires size 16.9-28
Height - top of cab
Height - top of cab 2.74 m
Height - top of cab 2.77 m
Front tread range
Front tread range -
Front tread range 167.13 cm
Ground clearance
Ground clearance -
Ground clearance 0.37 m
Rear tread range
Rear tread range -
Rear tread range 173.23 cm
Overall Length
Overall Length -
Overall Length 7.74 m
Overall Width
Overall Width -
Overall Width 2.26 m
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 4
Max speed reverse
Max speed reverse -
Max speed reverse 28.32 kph
Backhoe dump height
Backhoe dump height -
Backhoe dump height 3.63 m
Backhoe reach from swivel
Backhoe reach from swivel -
Backhoe reach from swivel 5.64 m
Bucket digging force
Bucket digging force -
Bucket digging force 4,878.03 kg
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 15.9 liter
Fuel cap
Fuel cap -
Fuel cap 81 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 71.92 liter
Engine oil cap
Engine oil cap -
Engine oil cap 9.46 liter
Extended backhoe dump height
Extended backhoe dump height -
Extended backhoe dump height 4.36 m
Extended backhoe reach from swivel
Extended backhoe reach from swivel -
Extended backhoe reach from swivel 6.86 m
Pump flow cap
Pump flow cap -
Pump flow cap 111.66 lpm
Pump type
Pump type -
Pump type Open center
Relief valve pressure
Relief valve pressure -
Relief valve pressure 189.6 bar
Download datasheets
Massey ferguson 50 expert review
:quality(50)/60957/29d1cdd1-536a-473f-acd1-59aa581d5497.jpeg)
Overview
The Massey Ferguson 50 is a classic Canadian-built backhoe loader designed around mechanical simplicity. With 57.42 kW power and solid breakout, it suits light construction and utility work at a budget price.
Pros
Simple mechanical drivetrain, decent breakout for size, easy service access.
Cons
Dated ergonomics, slower cycles, and limited comfort versus modern backhoes.
Efficiency
The 57.42 kW engine and 286 Nm torque deliver steady trenching and loading, with around 4,008 kg breakout for light excavation.
In Cabin
Mechanical controls with acceptable visibility. Noise levels are higher than modern machines, but layout remains straightforward.
In Comparison
Against JCB 3DX Plus and Case 770EX, the MF 50 prioritizes affordability and simplicity over performance and comfort.
Final Verdict
A rugged, entry-level backhoe loader for light-duty work. Not modern, but practical for buyers focused on low upfront cost.
Massey ferguson 50 owner rating
Massey ferguson 50 Backhoe loaders [1987-1992]
1987-1992
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.7
fuel efficiency
4.0
safety
4.7
features
4.3
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %

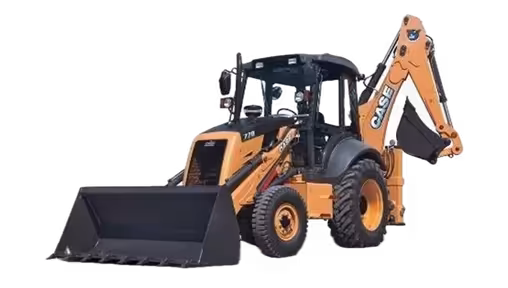

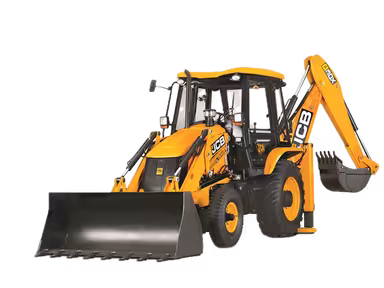

Massey ferguson 50 similar models
Highlight differences
:quality(50)/72199/4aa253f2-e585-4f0c-be4d-a6c422b3a744.webp)
:quality(50)/59551/432eeaeb-8e2c-403a-a995-e3c3bb9bb21c.png)
Alternator supplied amperage
Alternator supplied amperage 55 Amh
Alternator supplied amperage -
Alternator supplied amperage -
Bore
Bore 10.16 cm
Bore -
Bore -
Engine make
Engine make Perkins
Engine make -
Engine make -
Gross power
Gross power 57.42 kw
Gross power 37 kw
Gross power 54.4 kw
Max torque
Max torque 286.07 Nm
Max torque 270 Nm
Max torque 340 Nm
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders -
Power measured @
Power measured @ 2,000 rpm
Power measured @ -
Power measured @ -
Stroke
Stroke 12.7 cm
Stroke -
Stroke -
Torque measured @
Torque measured @ 1,400 rpm
Torque measured @ -
Torque measured @ -
Aspiration
Aspiration -
Aspiration Turbocharged
Aspiration Turbocharged
Emissions
Emissions -
Emissions Tier 4F
Emissions Tier 4F
Years
Years 1987-1992
Years 2019-2025
Years 2021-2025
Market Average
Market Average AED 98,760
Market Average AED 220,000
Market Average AED 170,000
Price
Price AED 93,800
Price AED 190,000
Price AED 150,000
Backhoe dump height
Backhoe dump height 3.63 m
Backhoe dump height 4.18 m
Backhoe dump height 3,800 m
Backhoe reach from swivel
Backhoe reach from swivel 5.64 m
Backhoe reach from swivel 5.4 m
Backhoe reach from swivel 5,625 m
Bucket rotation
Bucket rotation -
Bucket rotation 185 degrees
Bucket rotation 204 degrees
Backhoe dump reach
Backhoe dump reach -
Backhoe dump reach 2.9 m
Backhoe dump reach 2,150 m
Backhoe digging depth
Backhoe digging depth -
Backhoe digging depth 4,770 mm
Backhoe digging depth 4,400 mm
Breakout force
Breakout force 4,008.85 kg
Breakout force 51.7 kN
Breakout force 56.9 kN
Loader dump height
Loader dump height 2.77 m
Loader dump height 2,740 mm
Loader dump height 2,730 mm
Loader dump reach
Loader dump reach 0.73 m
Loader dump reach 880 mm
Loader dump reach 760 mm
Loader digging depth
Loader digging depth -
Loader digging depth 79 mm
Loader digging depth 110 mm
Bucket digging force
Bucket digging force 4,878.03 kg
Bucket digging force -
Bucket digging force -
Bucket width
Bucket width 223 cm
Bucket width 790 mm
Bucket width -
Displacement
Displacement 4,100.05 cu cm
Displacement 3,000 cu cm
Displacement 3,840 l
Engine model
Engine model A4.248
Engine model JCB 430 CRDi
Engine model Ashok Leyland H4C4E7422*W
Max speed forward
Max speed forward 28.32 kph
Max speed forward 32.3 kph
Max speed forward 34.1 kph
Operating voltage
Operating voltage 12 V
Operating voltage -
Operating voltage -
Operating weight
Operating weight 6,488 kg
Operating weight 7,200 kg
Operating weight 7,780 kg
Transmission type
Transmission type Powershuttle
Transmission type Syncroshuttle
Transmission type Powershuttle synchromesh
Wheelbase
Wheelbase 2.19 m
Wheelbase 2.17 mm
Wheelbase 2.18 m
Lifting capacity
Lifting capacity -
Lifting capacity 1,650 kg
Lifting capacity 3,515 kg
Tire size
Tire size -
Tire size (F) 9/16.16 PR, (R) 16.9/28.12 PR
Tire size (F) Standard 9x16-16 PR, (R) Standard 16.9x28-12 PR
Bucket capacity
Bucket capacity -
Bucket capacity 0.26 m3
Bucket capacity 0.26 m3
Cooling fluid cap
Cooling fluid cap 15.9 liter
Cooling fluid cap 16.5 liters
Cooling fluid cap 20 liter
Fuel cap
Fuel cap 81 liter
Fuel cap 128 liter
Fuel cap 129 liter
Hydraulic fluid cap
Hydraulic fluid cap 71.92 liter
Hydraulic fluid cap 92 liter
Hydraulic fluid cap 107 liter
Transmission fluid cap
Transmission fluid cap -
Transmission fluid cap 17.5 liter
Transmission fluid cap 18 liter
Rear axle fluid capacity
Rear axle fluid capacity -
Rear axle fluid capacity 20 liter
Rear axle fluid capacity 17.1 liter
Front axle fluid capacity
Front axle fluid capacity -
Front axle fluid capacity -
Front axle fluid capacity 8.9 liter
Engine oil cap
Engine oil cap 9.46 liter
Engine oil cap 15 liter
Engine oil cap 9.1 liter
Extended backhoe dump height
Extended backhoe dump height 4.36 m
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe reach from swivel
Extended backhoe reach from swivel 6.86 m
Extended backhoe reach from swivel -
Extended backhoe reach from swivel -
Rack back angle
Rack back angle -
Rack back angle 38 º
Rack back angle 45 º
Brake system
Brake system -
Brake system JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc
Brake system Hydraulic foot operated, 2 disc per side
Front tires size (2WD)
Front tires size (2WD) 11L-16
Front tires size (2WD) -
Front tires size (2WD) -
Rear tires size
Rear tires size 16.9-28
Rear tires size -
Rear tires size -
Front tread range
Front tread range 167.13 cm
Front tread range -
Front tread range -
Ground clearance
Ground clearance 0.37 m
Ground clearance -
Ground clearance -
Height - top of cab
Height - top of cab 2.77 m
Height - top of cab -
Height - top of cab -
Rear tread range
Rear tread range 173.23 cm
Rear tread range -
Rear tread range -
Overall Length
Overall Length 7.74 m
Overall Length -
Overall Length -
Overall Width
Overall Width 2.26 m
Overall Width -
Overall Width -
Transport length
Transport length -
Transport length 6 m
Transport length 5 m
Transport width
Transport width -
Transport width 2 m
Transport width 2 m
Max speed reverse
Max speed reverse 28.32 kph
Max speed reverse -
Max speed reverse -
Number of forward gears
Number of forward gears 4
Number of forward gears 4
Number of forward gears 4
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 2
Number of reverse gears 4
Pump flow cap
Pump flow cap 111.66 lpm
Pump flow cap 114 lpm
Pump flow cap 126 lpm
Pump type
Pump type Open center
Pump type Variable displacement
Pump type Open center, load sensing
Relief valve pressure
Relief valve pressure 189.6 bar
Relief valve pressure 265.44 bar
Relief valve pressure 194.98 bar
Massey ferguson 50 gallery
:quality(50)/65677/conversions/24a3aebf-b3d4-488e-9584-3479ec63b9cd-thumb.webp)
:quality(75)/products/10077/view_360/748f9164-0b67-49d4-aa7f-0550dacb5ac7.png)
:quality(75)/products/10078/view_360/242622af-fd6d-4f8c-84eb-9871c9e2ff4f.png)
:quality(75)/products/10123/view_360/bbb4e853-cbf8-4ea4-832e-deee377b5adb.png)
Similar machines. Other reviews.
:quality(80)/60952/a25e1d76-5098-4ef7-a6f5-fe8bc1dffd1a.jpeg)
John Deere 310 Backhoe loaders specs JCB 3DX Backhoe loaders specs Case 770 Backhoe loaders specs Case 851 Backhoe loaders specs Cat 426 Backhoe loaders specs Cat 428 Backhoe loaders specs Massey ferguson 50 Backhoe loaders specs Massey ferguson 60 Backhoe loaders specs Cukurova 88 Backhoe loaders specs John deere 110 Backhoe loaders specs
John Deere 310 Backhoe loaders specs JCB 3DX Backhoe loaders specs John Deere 524 Wheel loaders specs John Deere 544 Wheel loaders specs John Deere 624 Wheel loaders specs John Deere 644 Wheel loaders specs Case 770 Backhoe loaders specs Case 851 Backhoe loaders specs Cat 906 Wheel loaders specs Cat 938 Wheel loaders specs
Get the latest from Makana
Subscribe to receive auction dates, exclusive deals, and news in your inbox.
