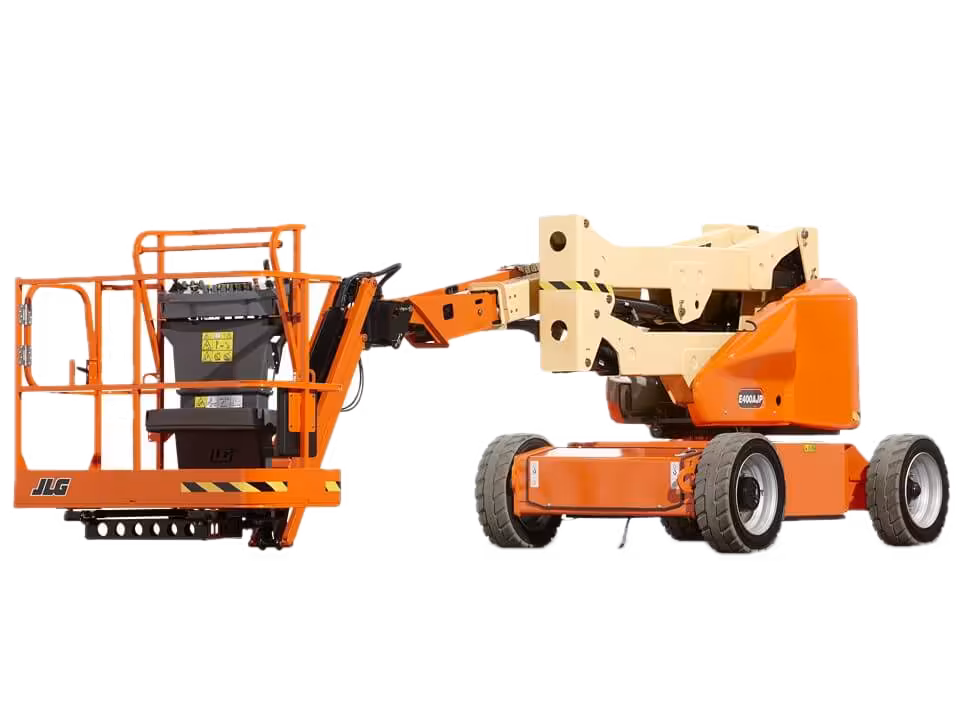

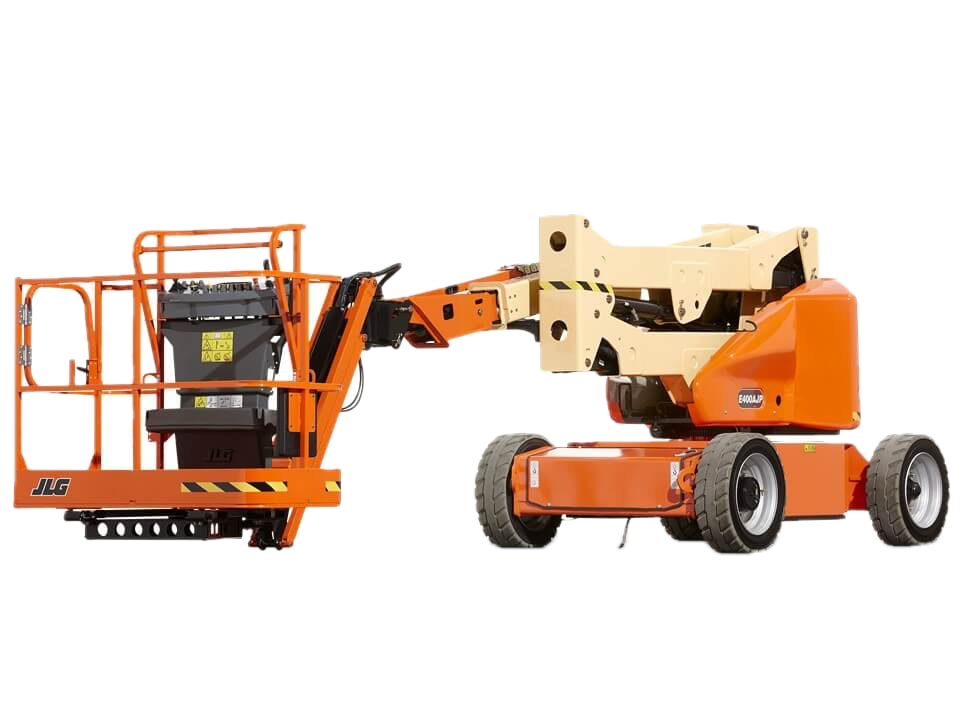

The E400 is designed to bring electric boom lift capability in confined or low-emission zones. It’s battery powered (48 V system), zero emissions, quiet.
~12.19 m (40 ft) of working height
Horizontal reach is ~6.83 m (22 ft 5 in)
platform capacity ~227 kg (500 lb)
Operating weight is about ~6,759 kg (14,900 lb)
JLG E400 Technical specifications
Engine
Battery amps
370 Amh
General
Gradeability
30 º
Max horizontal reach
6860 mm
Max working height
12.19 m
Operating weight
6,758 kg
Tire size
22 x 6 x 17.75 Non-marking (F), 25 x 7 x 12 Non-marking (R)
Dimensions
Ground clearance
12.7 cm
Height w/ Rails
2.01 m
Overall Length
6.76 m
Overall Width
1.28 m
Turning radius
1.22 m
Wheelbase
2.04 m
Service refill capacities
Hydraulic fluid cap
15.14 liter
Performance
Jib Range of Motion - Horizontal
144 º
Platform Capacity - Unrestricted
226.8 kg
Drive Speed - Platform Lowered
4.83 kph
Platform
Platform Dimension A
0.79 m
Platform Dimension B
1.22 m
Operating specifications
Swing
360 º
Swing type
Non-Continuous
JLG E400 expert review
Overview
The E400 is built for electric boom lift use in constrained or emission-sensitive environments. It runs on a 48 V battery system with zero emissions and quiet operation. It features boom articulation, a jib option, and full 360° swing (non-continuous). Its drive and gradeability are suitable for jobsite movement but not extreme terrain.
Exceptional articulation and up-and-over reach with boom + jib.
Battery regime and charging infrastructure add operational constraints.
Performance & Efficiency
Drive speed is ~7.2 km/h in many units. Gradeability ~30 %. The jib offers ~144° articulation, and up-and-over clearance is ~6.55 m. Battery pack is typically 8 × 6 V, 370 Ah deep cycle units.
In Comparison
Against combustion booms, E400 trades off fuel autonomy for clean, quiet operation. Versus smaller booms, it gives more reach and articulation. Versus larger booms, you lose lifting capacity and some height but gain maneuverability in tighter zones.
Verdict
When your jobsite demands precision, low emissions, and flexible reach, the JLG E400 is a smart choice. It’s not built for heavyweight lifting, but in access-critical, sensitive or indoor environments it can excel. Just plan battery usage carefully and abide by load limits.
