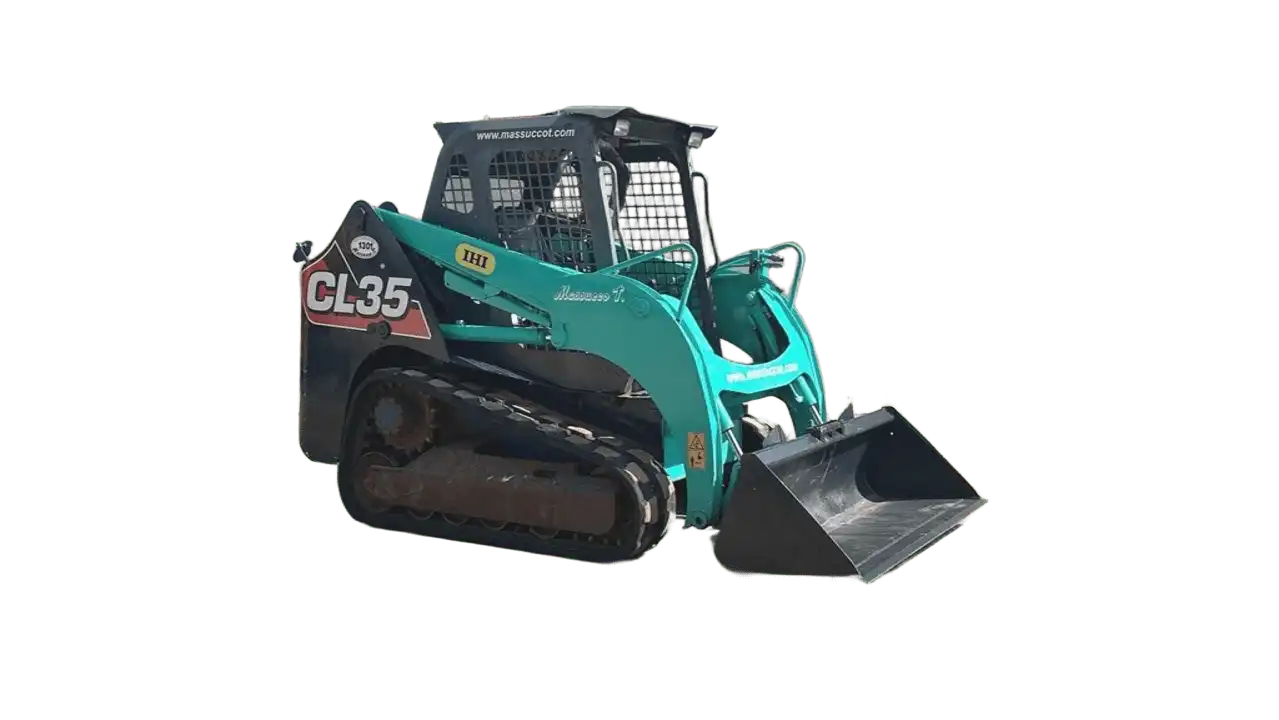

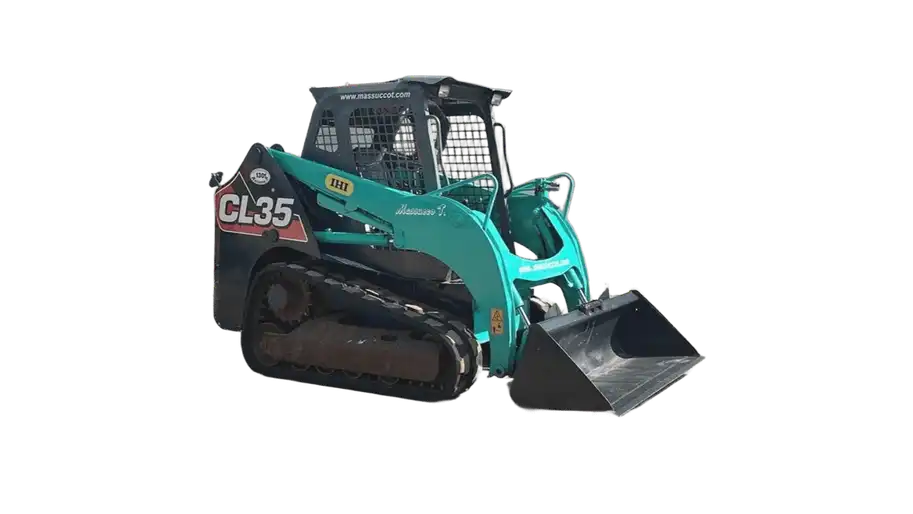

IHI CL35 Compact track loaders tech specs
:quality(50)/73402/44f436e4-25bd-46b2-882d-b6fad2b22b77.png)
:quality(50)/73412/conversions/b733f9dc-5f45-4ec2-a48e-e53bf555ded7-thumb.webp)
Video[1]
:quality(50)/73404/conversions/d706a5df-b581-4d49-858c-9e9feffae54d-thumb.webp)

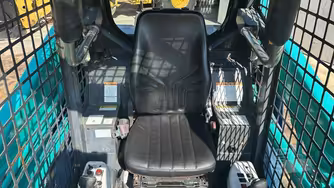

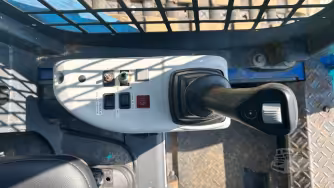

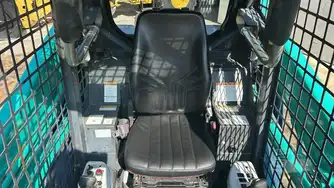

Interior [2]
:quality(50)/73406/conversions/cc86f375-2466-498d-a869-e713263b8224-thumb.webp)

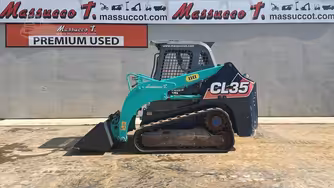

Exterior [4]
:quality(50)/73410/conversions/c0098925-f186-402b-a67e-9fd8540dc7d7-thumb.webp)

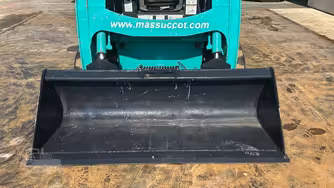

Attachments [2]
2008-2018
3,318.39 cu cm Displacement
49.07 kw Gross power
3.9 m Loader dump height
0.76 m Loader dump reach
1,115.02 kg Lifting capacity
3,550 kg Operating weight
Makana rating
Owner rating
Market average
AED 184,000Starting from
AED 70,000IHI CL35 Technical specifications
General
Bucket capacity
0.38 cu m
Displacement
3318.39 cu cm
Engine model
4TNV98
Loader dump height
3.9 m
Loader dump reach
0.76 m
Lifting capacity
1115.02 kg
Max speed forward
10.14 kph
Operating weight
3,550 kg
Tipping load
2,230 kg
Engine
Engine make
Yanmar
Gross power
49.07 kw
Power measured @
2,400 rpm
Service refill capacities
Fuel cap
91.22 liter
Dimensions
Ground clearance
0.31 m
Height - top of cab
2.16 m
Width over tracks
1.68 m
Undercarriage
Ground pressure
0.39 bar
Track length
1.4 m
Hydraulic system
Pump flow cap
66.99 lpm
Relief valve pressure
206 bar
Download datasheets
IHI CL35 expert review
:quality(50)/55272/8c2d1d6b-e9a4-40d8-9825-964e2a331151.webp)
Overview
The IHI CL35 (2008–2018) is a compact track loader designed for landscaping, grading, and construction support work. It produces 49.07 kilowatt engine power and offers around 1.1 ton lifting capacity.
Expert rating: 4 stars
Pros
Reliable Yanmar engine and stable track undercarriage.
Cons
Smaller bucket capacity than larger track loaders.
Performance & Efficiency
The Yanmar 4TNV98 engine produces 49.07 kilowatt, delivering reliable performance for grading, loading, and landscaping operations.
In Comparison
Cat 247: Durable compact track loader with strong support network.
Cat 257: Larger machine with higher productivity.
IHI CL35: Balanced option with reliable engine performance.
Final Verdict
Rated 4 stars, the IHI CL35 provides dependable compact track loader performance within the AED 70,000–184,000 range.
IHI CL35 owner rating
IHI CL35 Compact track loaders [2008-2018]
2008-2018
Overall rating
Based on 3 ratings
4.3
performance
4.3
comfort
4.3
fuel efficiency
4.7
safety
4.3
features
4.0
5 stars
33 %
4 stars
67 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
IHI CL35 similar models
Highlight differences
:quality(50)/73403/69f413e5-e974-4c8a-8eb7-8a9fa4433682.png)

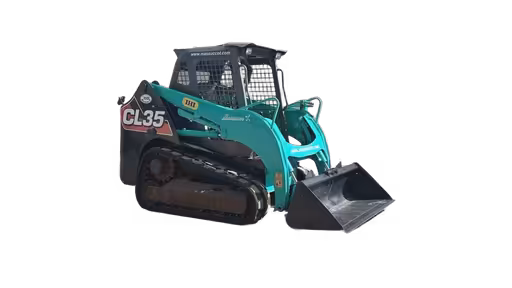

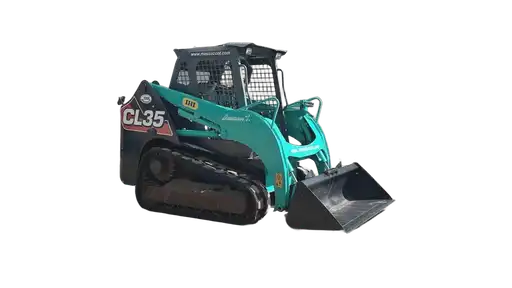

IHI CL35
:quality(50)/65595/4f0a2215-58b0-461c-bcc8-bbd94c265ef2.png)

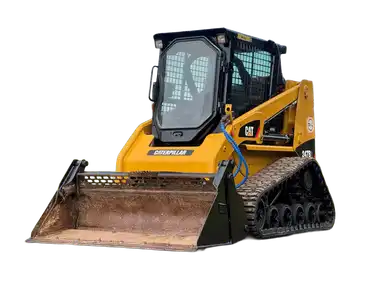

Cat 247
:quality(50)/65568/ca809aed-3ca6-43f0-9a0e-581b3e0c1472.png)

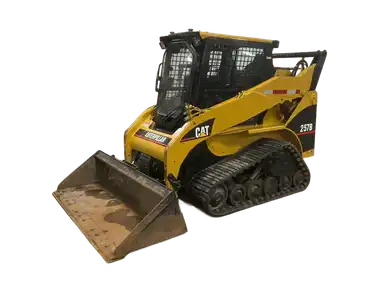

Cat 257
Bucket capacity
Bucket capacity 0.38 cu m
Bucket capacity 0.38 cu m
Bucket capacity 0.46 cu m
Displacement
Displacement 3,318.39 cu cm
Displacement 2,998.84 cu cm
Displacement 2,998.84 cu cm
Engine model
Engine model 4TNV98
Engine model Cat 3034 naturally aspirated
Engine model Cat 3034 naturally aspirated
Loader dump height
Loader dump height 3.9 m
Loader dump height 2.1 m
Loader dump height 2.29 m
Loader dump reach
Loader dump reach 0.76 m
Loader dump reach 0.64 m
Loader dump reach 0.82 m
Lifting capacity
Lifting capacity 1,115.02 kg
Lifting capacity 952.55 kg
Lifting capacity 1,065.94 kg
Max speed forward
Max speed forward 10.14 kph
Max speed forward 12.07 kph
Max speed forward 12.07 kph
Operating weight
Operating weight 3,550 kg
Operating weight 3,023 kg
Operating weight 3,460 kg
Tipping load
Tipping load 2,230 kg
Tipping load 1,753 kg
Tipping load 2,091 kg
Turning radius
Turning radius -
Turning radius 2.16 m
Turning radius 2.29 m
Years
Years 2008-2018
Years 2004-2008
Years 2014-2019
Market Average
Market Average AED 184,000
Market Average AED 145,000
Market Average AED 186,000
Price
Price AED 70,000
Price AED 130,000
Price AED 147,000
Engine make
Engine make Yanmar
Engine make -
Engine make -
Gross power
Gross power 49.07 kw
Gross power 43.25 kw
Gross power 46.98 kw
Power measured @
Power measured @ 2,400 rpm
Power measured @ 2,600 rpm
Power measured @ 2,600 rpm
Bore
Bore -
Bore 9.91 cm
Bore 9.91 cm
Net power
Net power -
Net power 40.27 kw
Net power 44 kw
Number of cylinders
Number of cylinders -
Number of cylinders 4
Number of cylinders 4
Stroke
Stroke -
Stroke 10.16 cm
Stroke 10.16 cm
Aspiration
Aspiration -
Aspiration -
Aspiration Turbocharged
Fuel cap
Fuel cap 91.22 liter
Fuel cap 64.35 liter
Fuel cap 90.08 liter
Cooling fluid cap
Cooling fluid cap -
Cooling fluid cap 9.84 liter
Cooling fluid cap 9.84 liter
Engine crankcase
Engine crankcase -
Engine crankcase 6.81 liter
Engine crankcase 6.81 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 55.26 liter
Hydraulic fluid cap 55.26 liter
Ground clearance
Ground clearance 0.31 m
Ground clearance 0.27 m
Ground clearance 0.26 m
Height - top of cab
Height - top of cab 2.16 m
Height - top of cab 2.01 m
Height - top of cab 2.04 m
Width over tracks
Width over tracks 1.68 m
Width over tracks 1.68 m
Width over tracks 1.68 m
Length with bucket
Length with bucket -
Length with bucket 3.32 m
Length with bucket 3.54 m
Length without Bucket
Length without Bucket -
Length without Bucket 2.53 m
Length without Bucket 2.71 m
Ground pressure
Ground pressure 0.39 bar
Ground pressure 0.26 bar
Ground pressure 0.3 bar
Track length
Track length 1.4 m
Track length 1.52 m
Track length 1.52 m
Ground contact area
Ground contact area -
Ground contact area 29,005.17 cu cm
Ground contact area 29,005.17 cu cm
Track width
Track width -
Track width 38.1 cm
Track width 38.1 cm
Pump flow cap
Pump flow cap 66.99 lpm
Pump flow cap 54.5 lpm
Pump flow cap 57.53 lpm
Relief valve pressure
Relief valve pressure 206 bar
Relief valve pressure -
Relief valve pressure -
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 1,365.77 kg
Breakout force - lift cylinder 1,583.04 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 1,603.9 kg
Breakout force - tilt cylinder 1,602.09 kg
Rack back angle
Rack back angle -
Rack back angle 37 º
Rack back angle 44 º

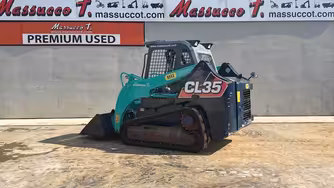

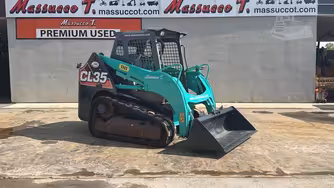

IHI CL35 gallery
