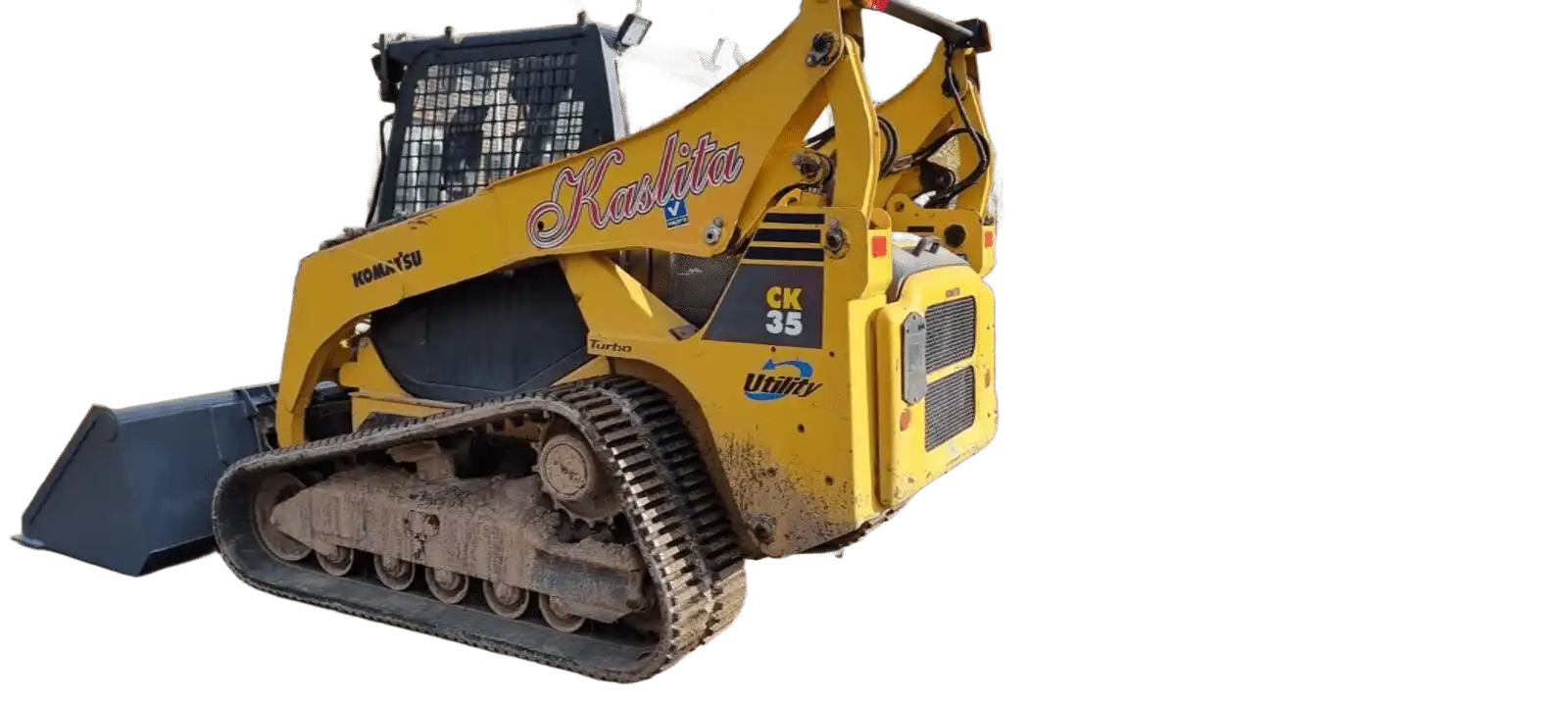

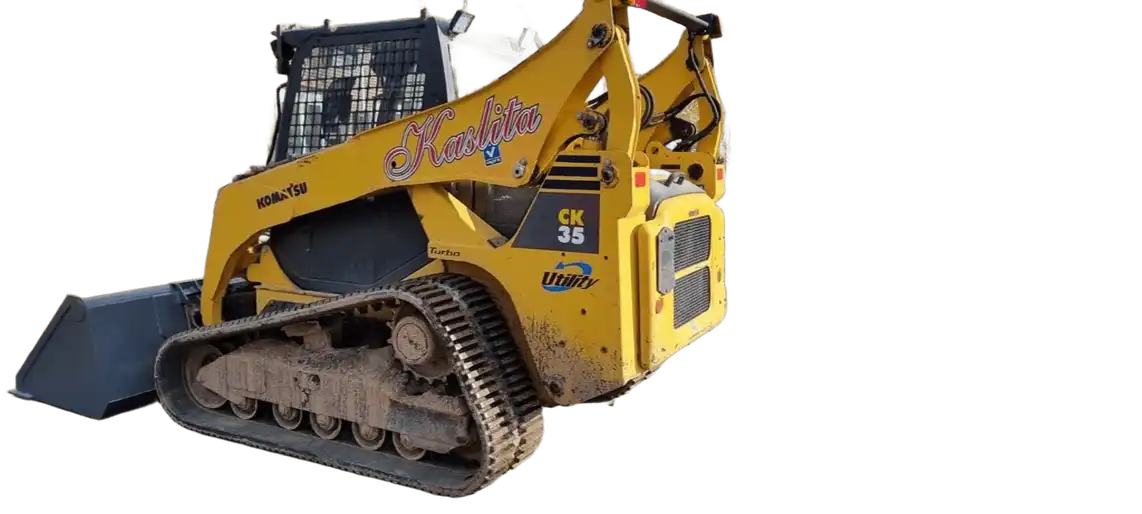

Komatsu CK35 Compact track loaders tech specs
:quality(50)/73390/04f8f744-fc1d-4367-9b09-5d1d8e52da9c.png)
:quality(50)/73400/conversions/fa6c8373-ba03-4af4-8885-c07eb01527d2-thumb.webp)
Video[1]
:quality(50)/73392/conversions/48282a96-f389-4c20-94a9-382295f3d98d-thumb.webp)

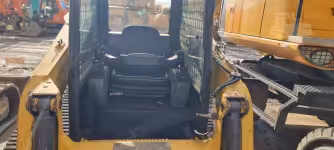

Interior [2]
:quality(50)/73394/conversions/b135c518-6ace-4dd4-af05-32cf493de50e-thumb.webp)

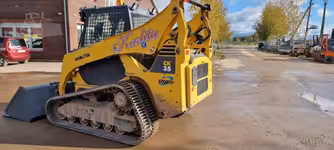

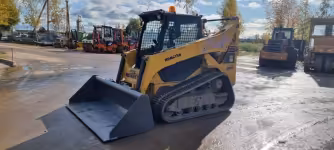

Exterior [4]
:quality(50)/73398/conversions/74a7a470-bcbd-48d3-bea4-69035f7b1a08-thumb.webp)

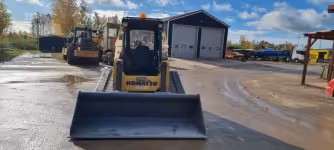

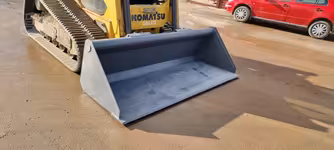

Attachments [2]
2006-2012
3,400.32 cu cm Displacement
3.6 m Loader dump height
0.88 m Loader dump reach
1,250.01 kg Lifting capacity
62.64 kw Net power
4,330 kg Operating weight
Makana rating
Owner rating
Market average
AED 128,000Starting from
AED 85,000Komatsu CK35 Technical specifications
Engine
Alternator supplied amperage
40 Amh
Aspiration
Turbocharged
Net power
62.64 kw
Number of cylinders
4
Power measured @
2,500 rpm
Torque measured @
1,600 rpm
General
Bucket capacity
0.54 cu m
Displacement
3400.32 cu cm
Engine model
S4D98E-2NFE
Loader dump height
3.6 m
Loader dump reach
0.88 m
Lifting capacity
1250.01 kg
Max speed forward
12.07 kph
Max torque
286.07 Nm
Operating voltage
12 V
Operating weight
4,330 kg
Turning radius
1.59 m
Service refill capacities
Cooling fluid cap
8.33 liter
Fuel cap
64.35 liter
Hydraulic fluid cap
38.23 liter
Refill capacities
Engine oil cap
12.87 liter
Dimensions
Height - top of cab
2.13 m
Length with bucket
3.57 m
Width over tracks
2.04 m
Hydraulic system
Pump flow cap
80.24 lpm
Pump type
komatsu closed load sensing system
Relief valve pressure
209.94 bar
Operating specifications
Rack back angle
78 º
Download datasheets
Komatsu CK35 expert review
:quality(50)/60955/11289297-4fd3-4db8-aa77-83a15321cf02.jpeg)
Overview
The Komatsu CK35 (2006–2012) is a mid-size compact track loader designed for grading, material handling, and construction work. It produces 62.64 kilowatt engine power and offers around 1.25 ton lifting capacity.
Expert rating: 3 stars
Pros
Strong engine power and efficient hydraulic system.
Cons
Lower lifting capacity than larger track loaders.
Performance & Efficiency
The Komatsu S4D98E-2NFE engine produces 62.64 kilowatt and about 286 Nm of torque, delivering dependable loader performance for construction and landscaping work.
In Comparison
Cat 277: Durable compact track loader with strong support network.
Cat 279: Larger model with higher lifting capacity.
Komatsu CK35: Balanced option with efficient hydraulics.
Final Verdict
Rated 3 stars, the Komatsu CK35 offers dependable compact track loader performance within the AED 85,000–128,000 range.
Komatsu CK35 owner rating
Komatsu CK35 Compact track loaders [2006-2012]
2006-2012
Overall rating
Based on 3 ratings
4.0
performance
3.7
comfort
4.3
fuel efficiency
4.0
safety
4.3
features
3.7
5 stars
0 %
4 stars
100 %
3 stars
0 %
2 stars
0 %
1 stars
0 %
Komatsu CK35 similar models
Highlight differences
:quality(50)/73391/627b31d0-dd6d-4269-8492-f1002796b83e.png)
Komatsu CK35-1
:quality(50)/65684/5bd0f310-c65b-4a3d-a01e-217152671797.png)
Cat 277B
:quality(50)/65701/cc5dd393-f00b-4d70-94f3-c54632f59361.png)
Cat 279C
Alternator supplied amperage
Alternator supplied amperage 40 Amh
Alternator supplied amperage 90 Amh
Alternator supplied amperage 90 Amh
Aspiration
Aspiration Turbocharged
Aspiration Turbocharged
Aspiration Turbocharged
Net power
Net power 62.64 kw
Net power 58.17 kw
Net power 61.15 kw
Number of cylinders
Number of cylinders 4
Number of cylinders -
Number of cylinders 4
Power measured @
Power measured @ 2,500 rpm
Power measured @ -
Power measured @ 2,500 rpm
Torque measured @
Torque measured @ 1,600 rpm
Torque measured @ -
Torque measured @ -
Bore
Bore -
Bore 9.4 cm
Bore 8.64 cm
Gross power
Gross power -
Gross power 61.15 kw
Gross power 62.64 kw
Stroke
Stroke -
Stroke 11.94 cm
Stroke 11.94 cm
Years
Years 2006-2012
Years 2004-2007
Years 2009-2015
Market Average
Market Average AED 128,000
Market Average AED 99,200
Market Average AED 168,000
Price
Price AED 85,000
Price AED 62,500
Price AED 114,000
Bucket capacity
Bucket capacity 0.54 cu m
Bucket capacity -
Bucket capacity 0.46 cu m
Displacement
Displacement 3,400.32 cu cm
Displacement 3,293.81 cu cm
Displacement 3,293.81 cu cm
Engine model
Engine model S4D98E-2NFE
Engine model Cat 3044C DIT
Engine model Cat C3.4T
Loader dump height
Loader dump height 3.6 m
Loader dump height 2.38 m
Loader dump height 2.44 m
Loader dump reach
Loader dump reach 0.88 m
Loader dump reach 0.7 m
Loader dump reach 0.61 m
Lifting capacity
Lifting capacity 1,250.01 kg
Lifting capacity 1,338.01 kg
Lifting capacity 1,451.5 kg
Max speed forward
Max speed forward 12.07 kph
Max speed forward 11.27 kph
Max speed forward 13.68 kph
Max torque
Max torque 286.07 Nm
Max torque -
Max torque -
Operating voltage
Operating voltage 12 V
Operating voltage 12 V
Operating voltage 12 V
Operating weight
Operating weight 4,330 kg
Operating weight 4,268 kg
Operating weight 4,486 kg
Turning radius
Turning radius 1.59 m
Turning radius 1.55 m
Turning radius 1.64 m
Max horizontal reach
Max horizontal reach -
Max horizontal reach 1.46 m
Max horizontal reach 1.39 m
Tipping load
Tipping load -
Tipping load 2,676 kg
Tipping load 2,940 kg
Cooling fluid cap
Cooling fluid cap 8.33 liter
Cooling fluid cap 10.22 liter
Cooling fluid cap 14 liter
Fuel cap
Fuel cap 64.35 liter
Fuel cap 95 liter
Fuel cap 98.03 liter
Hydraulic fluid cap
Hydraulic fluid cap 38.23 liter
Hydraulic fluid cap 52.23 liter
Hydraulic fluid cap 57.15 liter
Engine crankcase
Engine crankcase -
Engine crankcase 9.84 liter
Engine crankcase 9.84 liter
Engine oil cap
Engine oil cap 12.87 liter
Engine oil cap 10.22 liter
Engine oil cap 10.22 liter
Height - top of cab
Height - top of cab 2.13 m
Height - top of cab 2.1 m
Height - top of cab 2.13 m
Length with bucket
Length with bucket 3.57 m
Length with bucket 3.69 m
Length with bucket 3.69 m
Width over tracks
Width over tracks 2.04 m
Width over tracks 1.92 m
Width over tracks 1.98 m
Ground clearance
Ground clearance -
Ground clearance 0.36 m
Ground clearance 0.23 m
Max height to hinge pin
Max height to hinge pin -
Max height to hinge pin 25.4 cm
Max height to hinge pin 19.56 cm
Overall Width
Overall Width -
Overall Width 1.91 m
Overall Width 1.98 m
Pump flow cap
Pump flow cap 80.24 lpm
Pump flow cap 83.27 lpm
Pump flow cap 124.91 lpm
Pump type
Pump type komatsu closed load sensing system
Pump type Standard
Pump type High Flow XPS
Relief valve pressure
Relief valve pressure 209.94 bar
Relief valve pressure 229.94 bar
Relief valve pressure 279.99 bar
Rack back angle
Rack back angle 78 º
Rack back angle 58 º
Rack back angle 64 º
Cab FOPS
Cab FOPS -
Cab FOPS SAE J/ISO 3449 APR98 Level I, ISO 3449:1992 Level I
Cab FOPS SAE J1043 SEPT87, ISO 3449:1992 Level I
Cab FOPS level II
Cab FOPS level II -
Cab FOPS level II SAE J/ISO 3449 APR98 Level II, ISO 3449:1992 Level II
Cab FOPS level II SAE J231 JAN81, ISO 3449:1992 Level II
Cab ROPS
Cab ROPS -
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Cab ROPS SAE J1040 MAY94, ISO 3471:1994
Angle of departure
Angle of departure -
Angle of departure -
Angle of departure 44 º
Dump angle
Dump angle -
Dump angle -
Dump angle 40 º
Breakout force - lift cylinder
Breakout force - lift cylinder -
Breakout force - lift cylinder 2,487 kg
Breakout force - lift cylinder 3,314.86 kg
Breakout force - tilt cylinder
Breakout force - tilt cylinder -
Breakout force - tilt cylinder 2,487.5 kg
Breakout force - tilt cylinder 3,314.86 kg
Ground contact area
Ground contact area -
Ground contact area 47,489.82 cu cm
Ground contact area 41,033.3 cu cm
Ground pressure
Ground pressure -
Ground pressure 0.22 bar
Ground pressure 0.28 bar
Track length
Track length -
Track length 2.07 m
Track length 1.77 m
