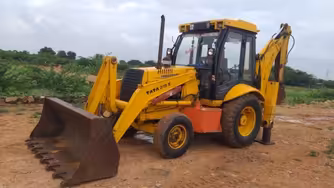

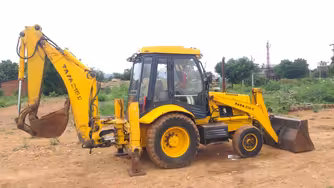

Tata hitachi JD3 Backhoe loaders tech specs
:quality(50)/74494/conversions/b735142b-66ea-4eca-86ab-4afb0aa6eb22-thumb.webp)
Video[1]
:quality(50)/74486/conversions/83465565-8b21-44a6-a11d-6bfb74e2c739-thumb.webp)
Interior [2]
:quality(50)/74488/conversions/043636a2-2e3d-4654-8cc5-23453c470df5-thumb.webp)
Exterior [4]
:quality(50)/74492/conversions/49ec164e-ce2c-4b5b-95bf-d4a5ba443689-thumb.webp)
Attachments [2]
2000-2010
4.3 m Backhoe digging depth
1.07 cu m Bucket capacity
Tata 497TC Engine model
136.26 liter Fuel cap
5.27 m Overall Length
2.35 m Overall Width
Makana rating
Market average
AED 160,000Starting from
AED 95,000Tata hitachi JD3 Technical specifications
Engine
Aspiration
Turbocharged
Backhoe
Backhoe digging depth
4.3 m
Backhoe dump height
3.57 m
Backhoe reach from swivel
5.58 m
General
Bucket capacity
1.07 cu m
Engine model
Tata 497TC
Max speed forward
41.52 kph
Service refill capacities
Cooling fluid cap
21.95 liter
Front axle fluid capacity
8.71 liter
Fuel cap
136.26 liter
Hydraulic fluid cap
91.22 liter
Rear axle fluid capacity
14 liter
Transmission fluid cap
14 liter
Refill capacities
Engine oil cap
9.46 liter
Operating specifications
Extended backhoe digging depth
5.52 m
Extended backhoe dump height
4.36 m
Extended backhoe reach from swivel
6.64 m
Tires
Front tires size (2WD)
9-16, 16 PR
Dimensions
Ground clearance
0.37 m
Overall Length
5.27 m
Overall Width
2.35 m
Turning radius
4.18 m
Wheelbase
2.19 m
Loader
Loader digging depth
20.83 cm
Loader dump height
3.41 m
Loader dump reach
0.79 m
Transmission
Max speed reverse
46.35 kph
Number of forward gears
4
Number of reverse gears
4
Hydraulic system
Pump flow cap
136.26 lpm
Pump type
Front mounted positive displacement tandem gear type
Download datasheets

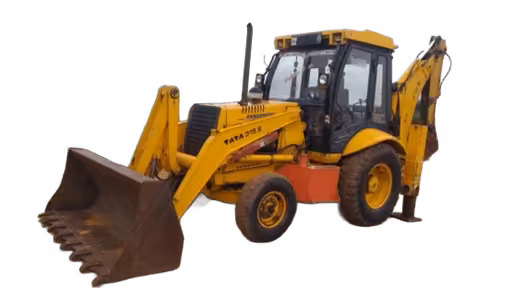

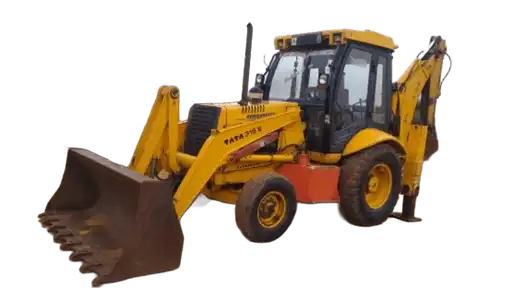

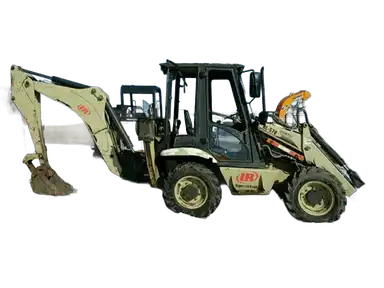

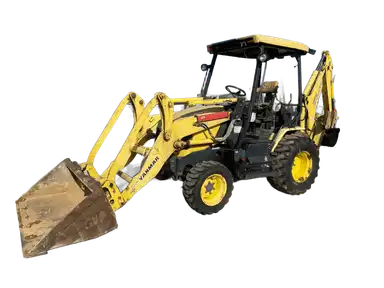

Tata hitachi JD3 similar models
Highlight differences
Aspiration
Aspiration Turbocharged
Aspiration -
Aspiration Turbocharged
Gross power
Gross power -
Gross power 41.76 kw
Gross power 27.74 kw
Net power
Net power -
Net power -
Net power 26.4 kw
Years
Years 2000-2010
Years 2005-2007
Years 2007-2011
Market Average
Market Average AED 160,000
Market Average AED 180,000
Market Average AED 100,000
Price
Price AED 95,000
Price AED 110,000
Price AED 60,000
Backhoe digging depth
Backhoe digging depth 4.3 m
Backhoe digging depth 3.35 m
Backhoe digging depth 3.08 m
Backhoe dump height
Backhoe dump height 3.57 m
Backhoe dump height 3.26 m
Backhoe dump height 2.59 m
Backhoe reach from swivel
Backhoe reach from swivel 5.58 m
Backhoe reach from swivel 4.63 m
Backhoe reach from swivel 4.02 m
Bucket capacity
Bucket capacity 1.07 cu m
Bucket capacity 0.54 cu m
Bucket capacity -
Engine model
Engine model Tata 497TC
Engine model -
Engine model -
Max speed forward
Max speed forward 41.52 kph
Max speed forward 20.12 kph
Max speed forward 22.05 kph
Bucket width
Bucket width -
Bucket width 187 cm
Bucket width -
Lifting capacity
Lifting capacity -
Lifting capacity 1,519.54 kg
Lifting capacity -
Operating weight
Operating weight -
Operating weight 4,515 kg
Operating weight 3,515 kg
Transmission type
Transmission type -
Transmission type Hydrostatic
Transmission type Mechanically controlled load sensing HMT
Cooling fluid cap
Cooling fluid cap 21.95 liter
Cooling fluid cap -
Cooling fluid cap -
Front axle fluid capacity
Front axle fluid capacity 8.71 liter
Front axle fluid capacity -
Front axle fluid capacity -
Fuel cap
Fuel cap 136.26 liter
Fuel cap 95 liter
Fuel cap 62.07 liter
Hydraulic fluid cap
Hydraulic fluid cap 91.22 liter
Hydraulic fluid cap -
Hydraulic fluid cap -
Rear axle fluid capacity
Rear axle fluid capacity 14 liter
Rear axle fluid capacity -
Rear axle fluid capacity -
Transmission fluid cap
Transmission fluid cap 14 liter
Transmission fluid cap -
Transmission fluid cap -
Engine oil cap
Engine oil cap 9.46 liter
Engine oil cap -
Engine oil cap -
Extended backhoe digging depth
Extended backhoe digging depth 5.52 m
Extended backhoe digging depth 3.63 m
Extended backhoe digging depth -
Extended backhoe dump height
Extended backhoe dump height 4.36 m
Extended backhoe dump height -
Extended backhoe dump height -
Extended backhoe reach from swivel
Extended backhoe reach from swivel 6.64 m
Extended backhoe reach from swivel -
Extended backhoe reach from swivel -
Front tires size (2WD)
Front tires size (2WD) 9-16, 16 PR
Front tires size (2WD) -
Front tires size (2WD) 27x10.5-15
Rear tires size
Rear tires size -
Rear tires size -
Rear tires size 15-19.5
Ground clearance
Ground clearance 0.37 m
Ground clearance -
Ground clearance 0.34 m
Overall Length
Overall Length 5.27 m
Overall Length 6.13 m
Overall Length 5.97 m
Overall Width
Overall Width 2.35 m
Overall Width 1.89 m
Overall Width 1.8 m
Turning radius
Turning radius 4.18 m
Turning radius 4.72 m
Turning radius 2.56 m
Wheelbase
Wheelbase 2.19 m
Wheelbase 1.92 m
Wheelbase 1.77 m
Height - top of cab
Height - top of cab -
Height - top of cab 2.5 m
Height - top of cab -
Loader digging depth
Loader digging depth 20.83 cm
Loader digging depth 5.59 cm
Loader digging depth -
Loader dump height
Loader dump height 3.41 m
Loader dump height 2.35 m
Loader dump height 2.23 m
Loader dump reach
Loader dump reach 0.79 m
Loader dump reach 0.4 m
Loader dump reach 0.61 m
Breakout force
Breakout force -
Breakout force 4,250.17 kg
Breakout force -
Max speed reverse
Max speed reverse 46.35 kph
Max speed reverse -
Max speed reverse 22.05 kph
Number of forward gears
Number of forward gears 4
Number of forward gears 2
Number of forward gears 2
Number of reverse gears
Number of reverse gears 4
Number of reverse gears 2
Number of reverse gears 2
Pump flow cap
Pump flow cap 136.26 lpm
Pump flow cap -
Pump flow cap 42.01 lpm
Pump type
Pump type Front mounted positive displacement tandem gear type
Pump type -
Pump type two axial flow piston pump
Relief valve pressure
Relief valve pressure -
Relief valve pressure -
Relief valve pressure 206.84 bar
Bucket digging force
Bucket digging force -
Bucket digging force 8,705.04 kg
Bucket digging force -

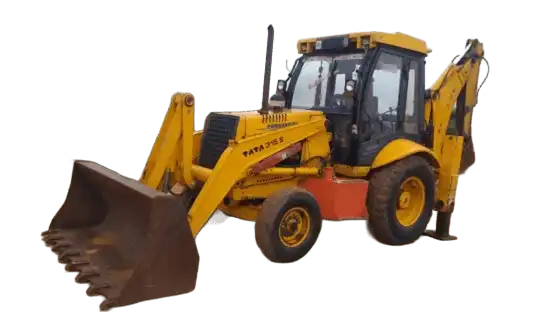

Tata hitachi JD3 gallery
