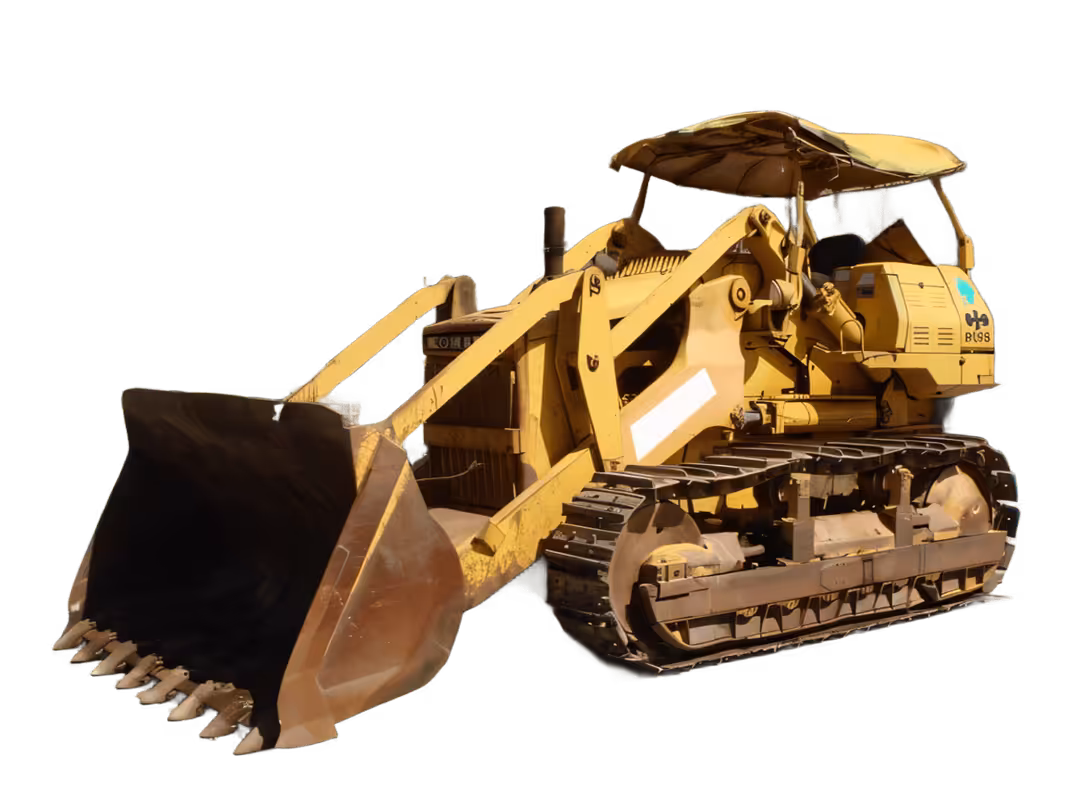

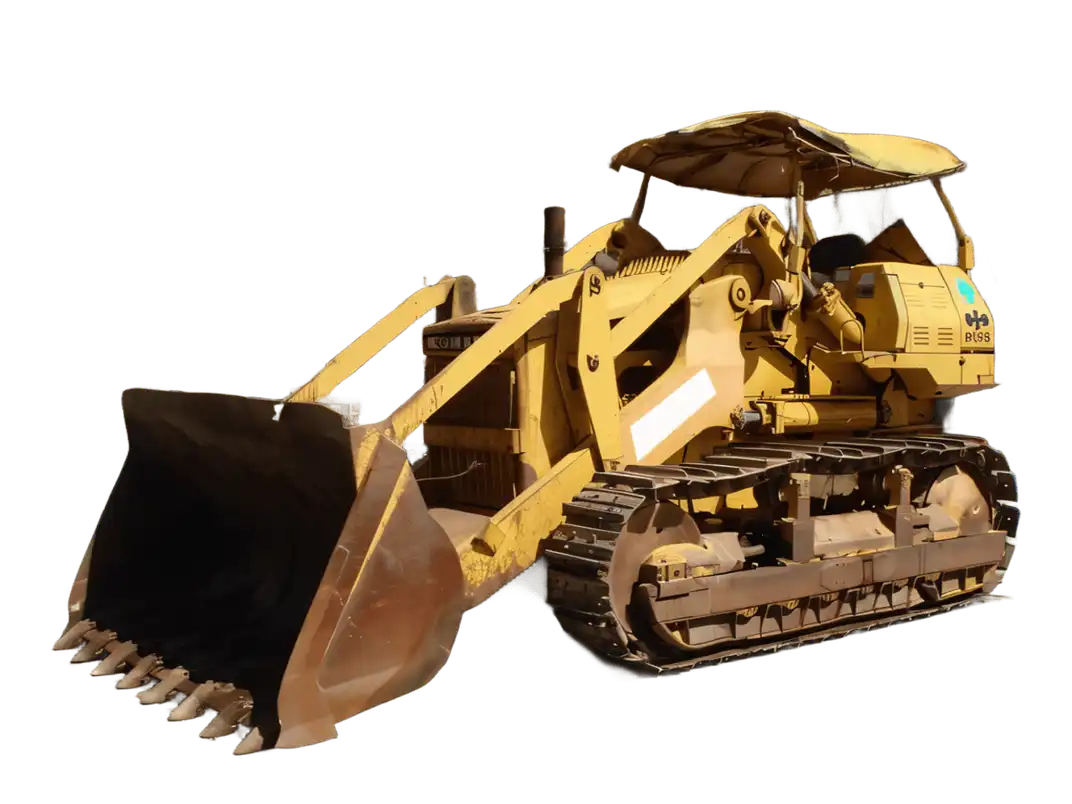

Komatsu D60S Crawler loaders tech specs
:quality(50)/74169/conversions/508737f8-bffb-4d01-8799-ebd9ab9c10b6-thumb.webp)
Video[1]
:quality(50)/74154/conversions/203d6f8c-8133-4a15-bf5d-da836e6b6754-thumb.webp)
Interior [2]
:quality(50)/74156/conversions/8238a471-407e-45b8-9e89-f055924cb216-thumb.webp)

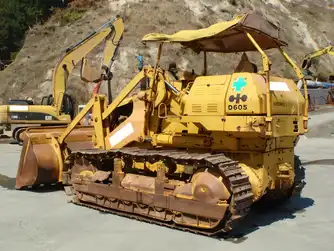

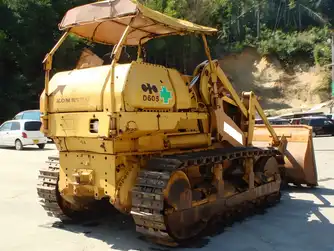

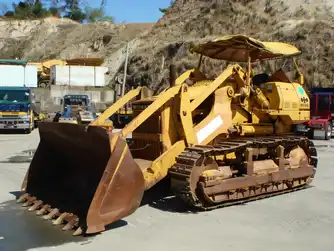

Exterior [4]
:quality(50)/74167/conversions/d93ddc53-29bb-4bb8-9088-826dc38699c4-thumb.webp)
Attachments [1]
1984-1988
13,299.34 kg Breakout force
1.83 cu m Bucket capacity
NH220-CI Engine model
2.74 m Loader dump height
115.59 kw Net power
17,700 kg Operating weight
Makana rating
Market average
AED 88,000Starting from
AED 45,000Komatsu D60S Technical specifications
Loader
Breakout force
13299.34 kg
Loader dump height
2.74 m
Loader dump reach
1.31 m
General
Bucket capacity
1.83 cu m
Engine model
NH220-CI
Max speed forward
11.43 kph
Operating weight
17,700 kg
Tipping load
10,800 kg
Service refill capacities
Cooling fluid cap
55.26 liter
Fuel cap
280.09 liter
Engine
Displacement
12175.62 cu cm
Net power
115.59 kw
Undercarriage
Ground pressure
0.72 bar
Number of track rollers per side
6
Track gauge
1.88 m
Track length
2.65 m
Track width
46.23 cm
Dimensions
Height - top of cab
3.02 m
Length with bucket
5.79 m
Width over tracks
2.38 m
Download datasheets
Komatsu D60S similar models
Highlight differences
Breakout force
Breakout force 13,299.34 kg
Breakout force 11,249.1 kg
Breakout force -
Loader dump height
Loader dump height 2.74 m
Loader dump height 2.83 m
Loader dump height -
Loader dump reach
Loader dump reach 1.31 m
Loader dump reach 1.22 m
Loader dump reach -
Years
Years 1984-1988
Years 1986-2021
Years 2018-2024
Market Average
Market Average AED 88,000
Market Average AED 917,000
Market Average AED 330,000
Price
Price AED 45,000
Price AED 206,000
Price AED 165,000
Bucket capacity
Bucket capacity 1.83 cu m
Bucket capacity -
Bucket capacity -
Engine model
Engine model NH220-CI
Engine model 6068T
Engine model P11C-WE
Max speed forward
Max speed forward 11.43 kph
Max speed forward 10.46 kph
Max speed forward 80 kph
Operating weight
Operating weight 17,700 kg
Operating weight 14,696 kg
Operating weight -
Tipping load
Tipping load 10,800 kg
Tipping load -
Tipping load -
Operating voltage
Operating voltage -
Operating voltage 24 V
Operating voltage -
Tire size
Tire size -
Tire size -
Tire size (F) 12R22.5 / (R)12R22.5
Transmission type
Transmission type -
Transmission type -
Transmission type 12 speed MT with power shift
Gross vehicle weight - GVW
Gross vehicle weight - GVW -
Gross vehicle weight - GVW -
Gross vehicle weight - GVW 16,070 kg
Gross combination weight - GCW
Gross combination weight - GCW -
Gross combination weight - GCW -
Gross combination weight - GCW 40,000 kg
Axle configuration
Axle configuration -
Axle configuration -
Axle configuration 6x4
Cooling fluid cap
Cooling fluid cap 55.26 liter
Cooling fluid cap 26.5 liter
Cooling fluid cap -
Fuel cap
Fuel cap 280.09 liter
Fuel cap 276.31 liter
Fuel cap 330 liter
Hydraulic fluid cap
Hydraulic fluid cap -
Hydraulic fluid cap 140.05 liter
Hydraulic fluid cap -
Displacement
Displacement 12,175.62 cu cm
Displacement 6,784.26 cu cm
Displacement -
Net power
Net power 115.59 kw
Net power 89.49 kw
Net power -
Alternator supplied amperage
Alternator supplied amperage -
Alternator supplied amperage 40 Amh
Alternator supplied amperage -
Aspiration
Aspiration -
Aspiration Turbocharged
Aspiration -
Max torque
Max torque -
Max torque 508.43 Nm
Max torque -
Number of cylinders
Number of cylinders -
Number of cylinders 6
Number of cylinders -
Power measured @
Power measured @ -
Power measured @ 2,100 rpm
Power measured @ -
Torque measured @
Torque measured @ -
Torque measured @ 1,300 rpm
Torque measured @ -
Gross power
Gross power -
Gross power -
Gross power 303.5 kw
Ground pressure
Ground pressure 0.72 bar
Ground pressure -
Ground pressure -
Number of track rollers per side
Number of track rollers per side 6
Number of track rollers per side 1
Number of track rollers per side -
Track gauge
Track gauge 1.88 m
Track gauge 1.63 m
Track gauge -
Track length
Track length 2.65 m
Track length 2.32 m
Track length -
Track width
Track width 46.23 cm
Track width 38.1 cm
Track width -
Ground contact area
Ground contact area -
Ground contact area 44,638.46 cu cm
Ground contact area -
Number of shoes per side
Number of shoes per side -
Number of shoes per side 40
Number of shoes per side -
Height - top of cab
Height - top of cab 3.02 m
Height - top of cab 3.11 m
Height - top of cab -
Length with bucket
Length with bucket 5.79 m
Length with bucket 5.67 m
Length with bucket -
Width over tracks
Width over tracks 2.38 m
Width over tracks 2.16 m
Width over tracks -
Ground clearance
Ground clearance -
Ground clearance 4.27 m
Ground clearance -
Raise time
Raise time -
Raise time 6 s
Raise time -
Lower time
Lower time -
Lower time 3 s
Lower time -
Engine oil cap
Engine oil cap -
Engine oil cap 18.93 liter
Engine oil cap -
Final drives fluid cap
Final drives fluid cap -
Final drives fluid cap 13.25 liter
Final drives fluid cap -
Pump flow cap
Pump flow cap -
Pump flow cap 204.39 lpm
Pump flow cap -
Pump type
Pump type -
Pump type Gear
Pump type -
Relief valve pressure
Relief valve pressure -
Relief valve pressure 155.13 bar
Relief valve pressure -

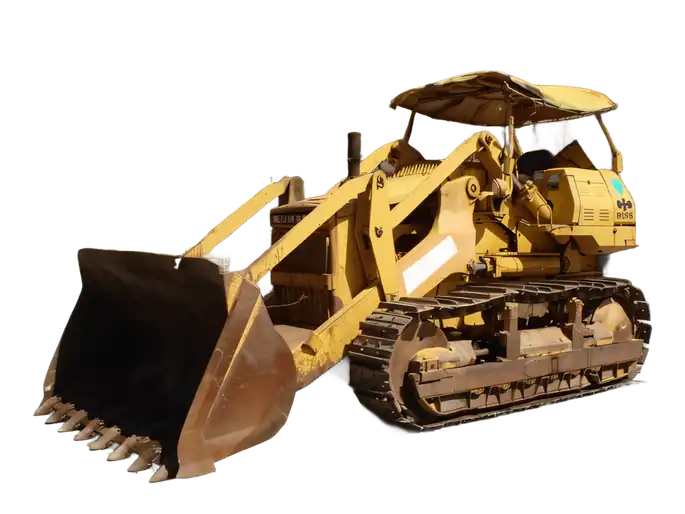

Komatsu D60S gallery
