JLG E450 Boom lifts tech specs
:quality(50)/https://www.makana.com/58985/bcf4d82a-48c0-47bd-b11c-d85929d4cddd.png)
:quality(50)/https://www.makana.com/58995/conversions/9d1219ef-bc0e-4596-bb68-5a96be8dad18-webp.webp)
:quality(50)/https://www.makana.com/58987/conversions/b5e83a92-6eb8-4812-9570-e6c2029a97bd-webp.webp)
:quality(50)/https://www.makana.com/58989/conversions/35ec3409-5328-4227-900d-077cf2ac7a5f-webp.webp)
:quality(50)/https://www.makana.com/58993/conversions/884211e8-d610-4aa2-b0d7-519f2abf48a8-webp.webp)

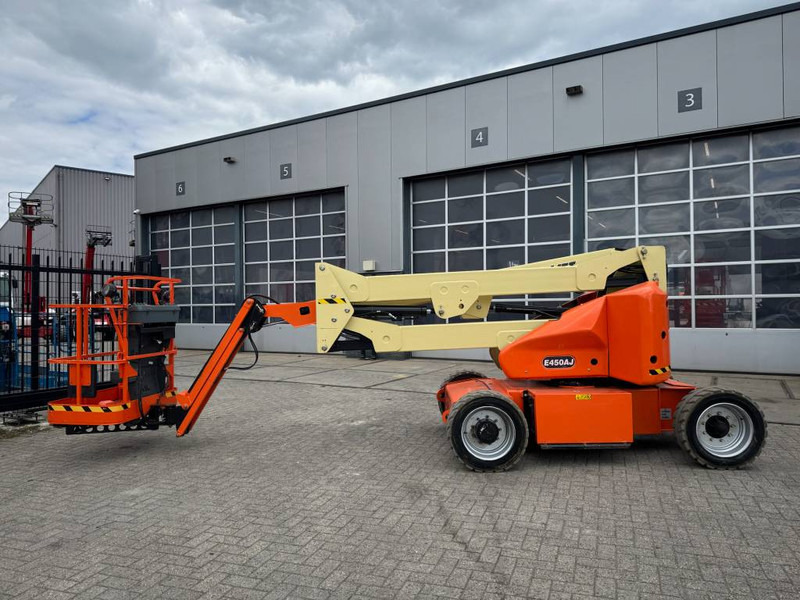

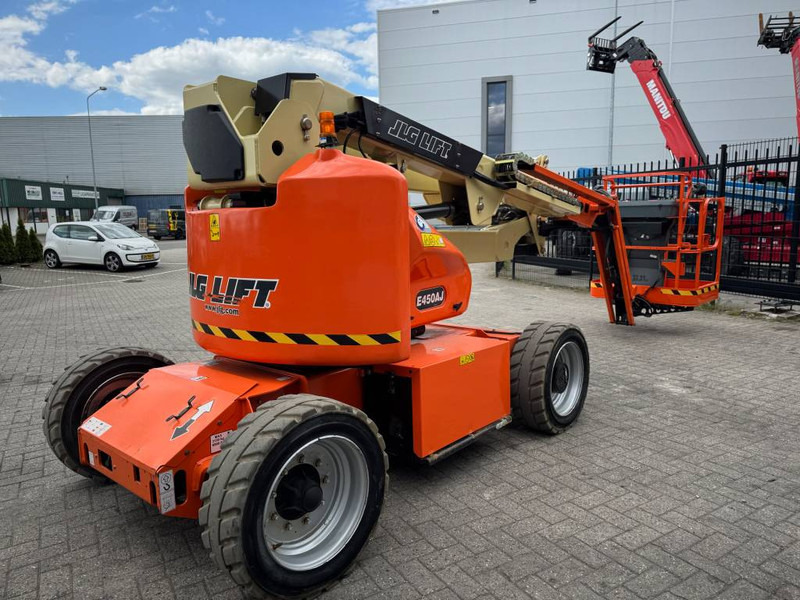

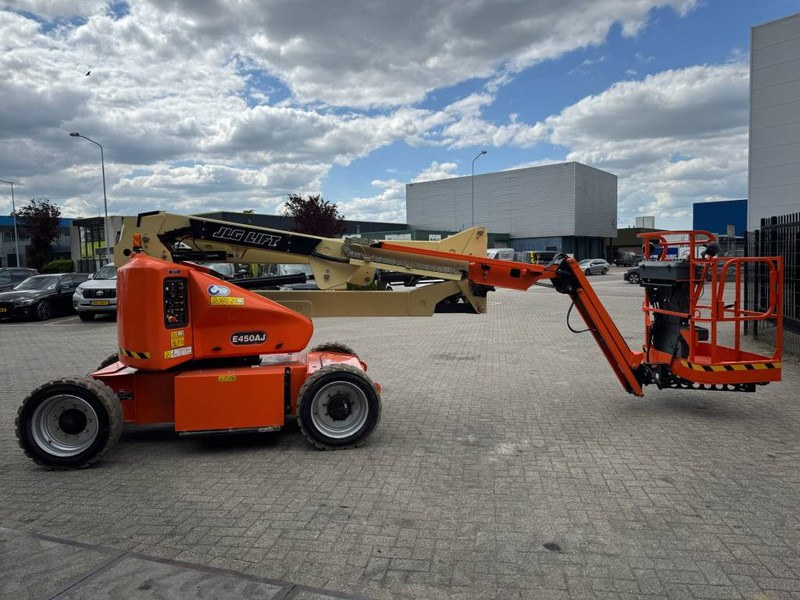

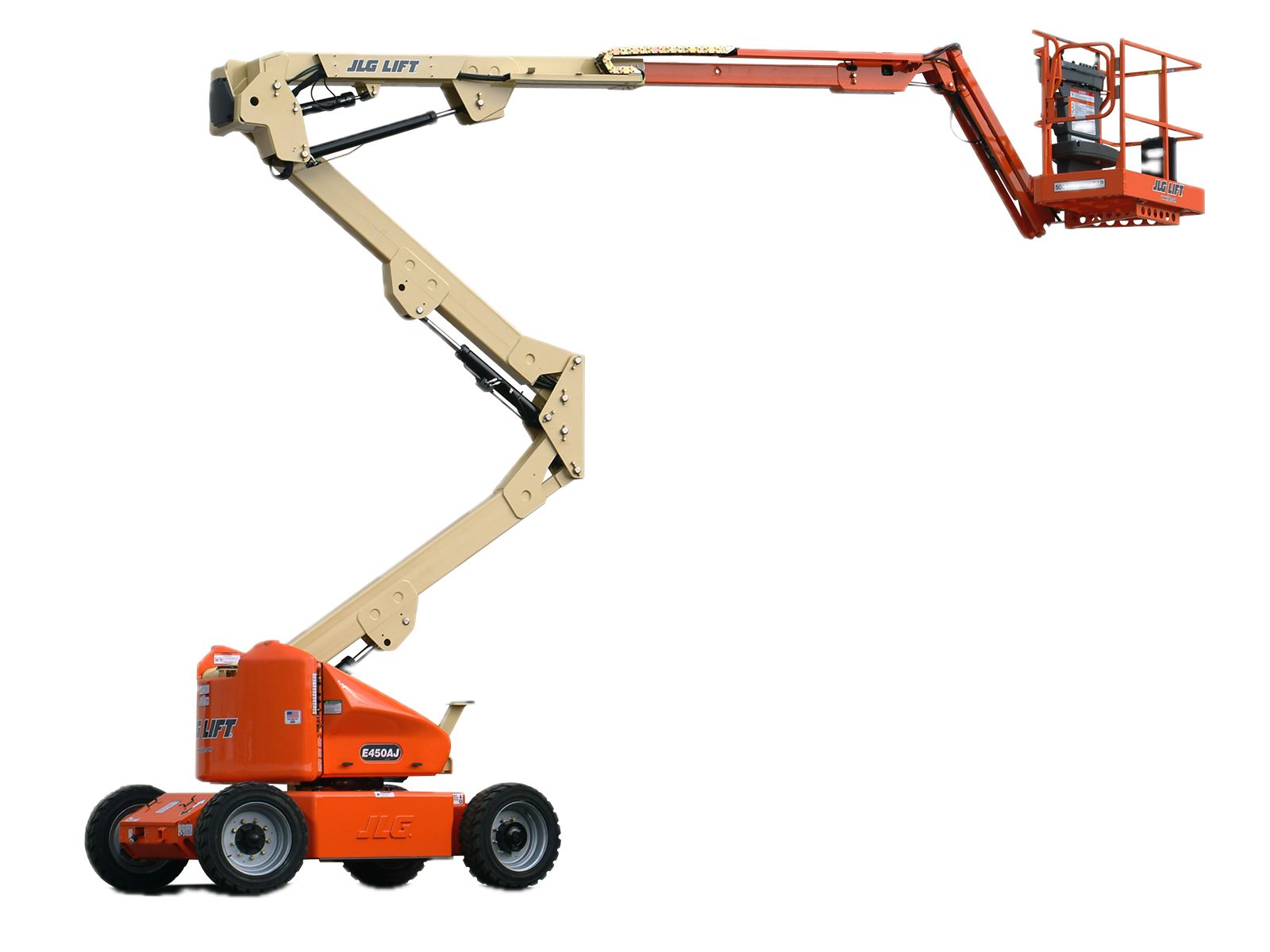

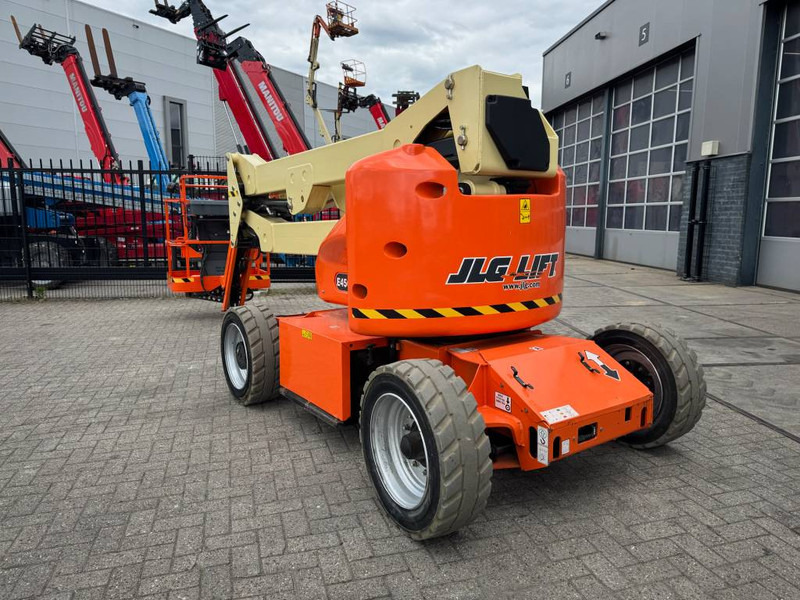

The E450 is an electric articulating boom lift designed for both interior and exterior use, ideal for jobs requiring up-and-over reach around obstacles.
~13.72 m (45 ft) platform height
~7.24 m (23 ft 9 in) horizontal reach
unrestricted platform capacity is ~227 kg (500 lb)
machine weight is ~6,532 kg (14,400 lb)
JLG E450 Technical specifications
Engine
Battery amps
370 Amh
Number of batteries
8
General
Gradeability
30 º
Max horizontal reach
7280 mm
Max working height
13.72 m
Operating weight
6,532 kg
Platform rotation
180 º
Operating voltage
48 V
Tire size
240/55-17.5
Dimensions
Ground clearance
22.86 cm
Overall Length
5.39 m
Overall Width
1.8 m
Stowed height
2.04 m
Turning radius
3.17 m
Wheelbase
2.04 m
Service refill capacities
Hydraulic fluid cap
15.14 liter
Performance
Jib Range of Motion - Horizontal
141 º
Platform Capacity - Unrestricted
226.8 kg
Drive Speed - Platform Lowered
5.31 kph

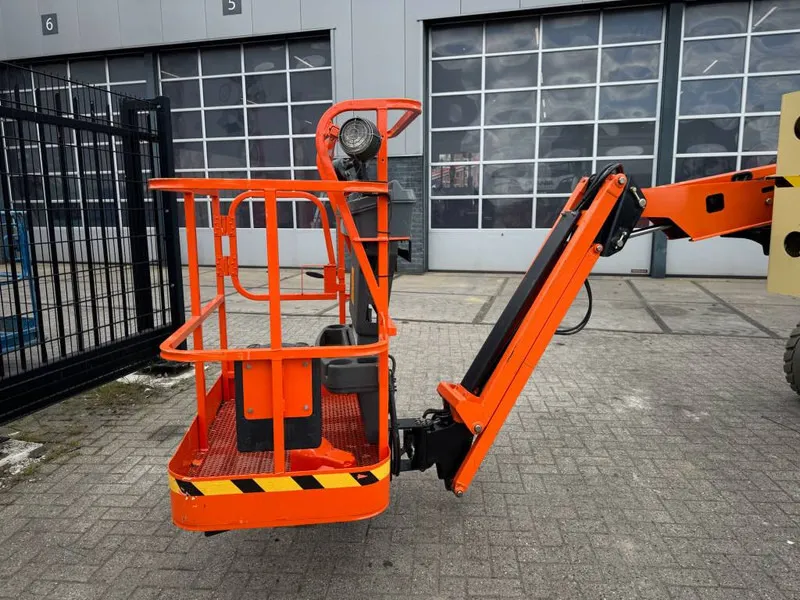

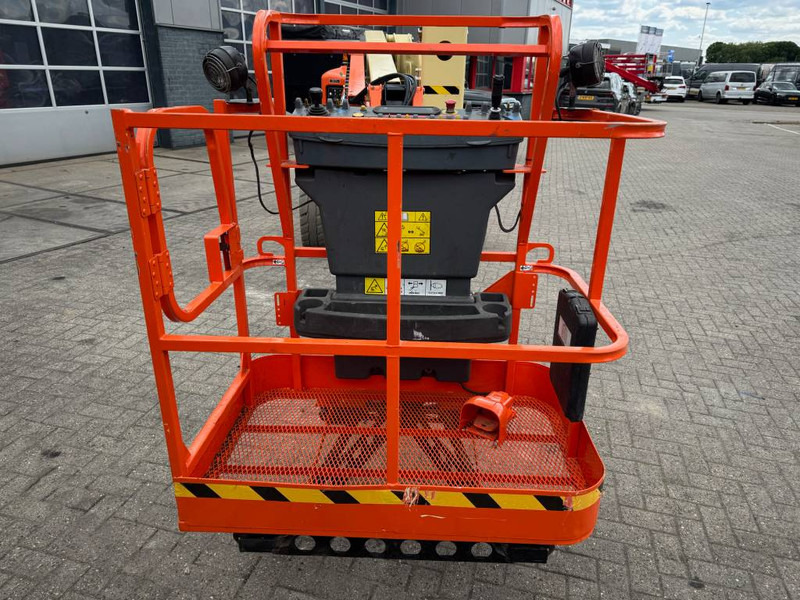

Platform
Platform Dimension A
0.79 m
Platform Dimension B
1.52 m
Operating specifications
Swing
360 º
Tire Type
pneumatic
JLG E450 expert review
Overview
The E450 is an electric articulating boom lift built for both indoor and outdoor use, ideal for tasks needing up-and-over reach around obstacles. It runs on a 48 V battery system (zero emissions) and offers quieter operation compared to combustion booms. It may include a jib (~141° articulation) for added flexibility in tight access areas.
Good reach and articulation (jib + up-and-over clearance) provide flexibility.
Limited payload capacity—heavy loads push reach or safety margins.
Performance & Efficiency
Drive speed is ~7.2 km/h in 4WD. Gradeability ~30 % in 2WD; higher in 4WD models. Up-and-over clearance ~7.7 m. The jib adds articulation in vertical movement (~+86/–55°). These help with positioning over obstacles with precise control.
In Comparison
Compared to combustion booms, the E450 trades off noise/emissions for battery limits. Against smaller booms, you get extra reach and flexibility. Versus larger machines, you lose on payload and brute lift capacity.
Verdict
For sites that require quiet, clean overhead work and obstacle navigation, the JLG E450 is a practical choice. It won’t handle heavy lifting, but when reach and accessibility matter, it performs well. Take care with battery strategy and always stay inside its capacity envelope.
