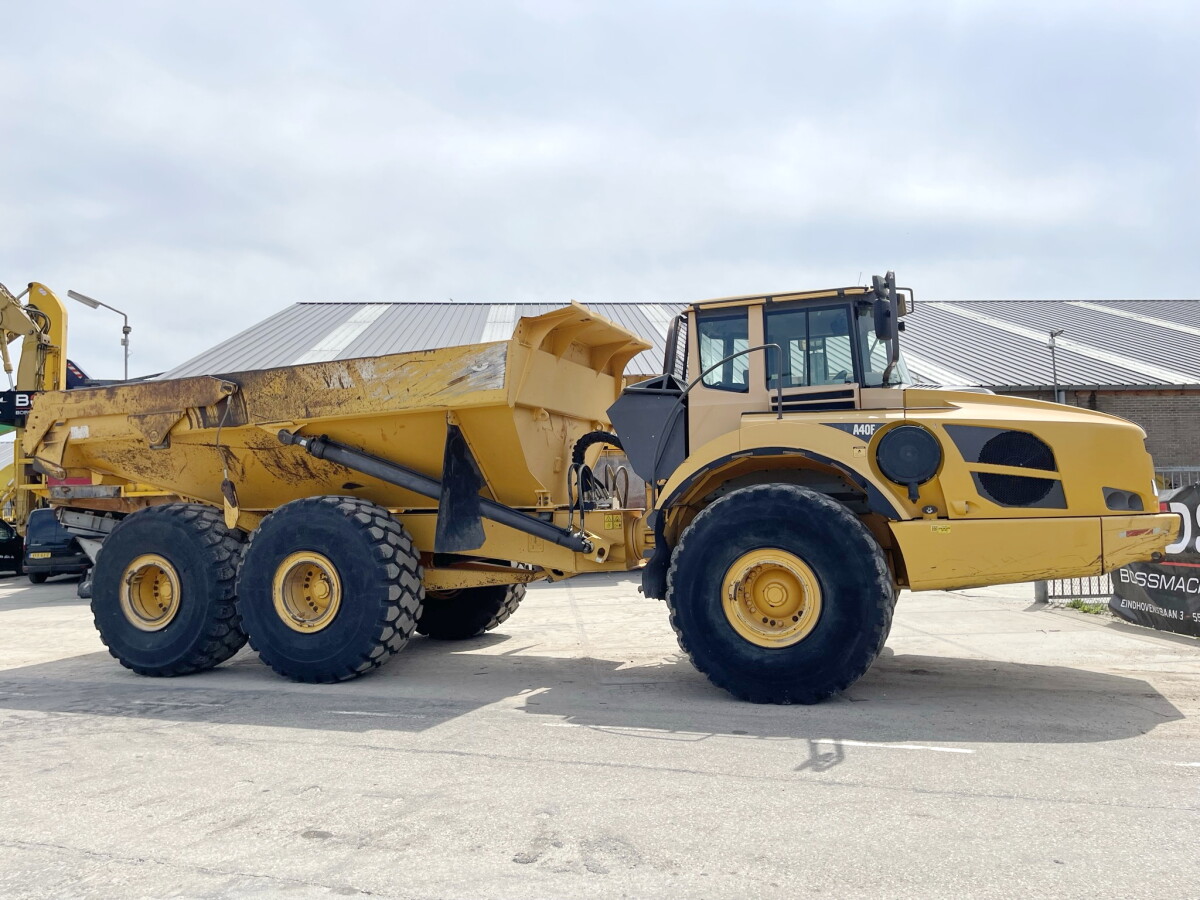

Volvo A40 Articulated dump trucks
100K+ machines in details.

Volvo A40 Articulated dump trucks tech specs

makana img
video play button
Video[1]

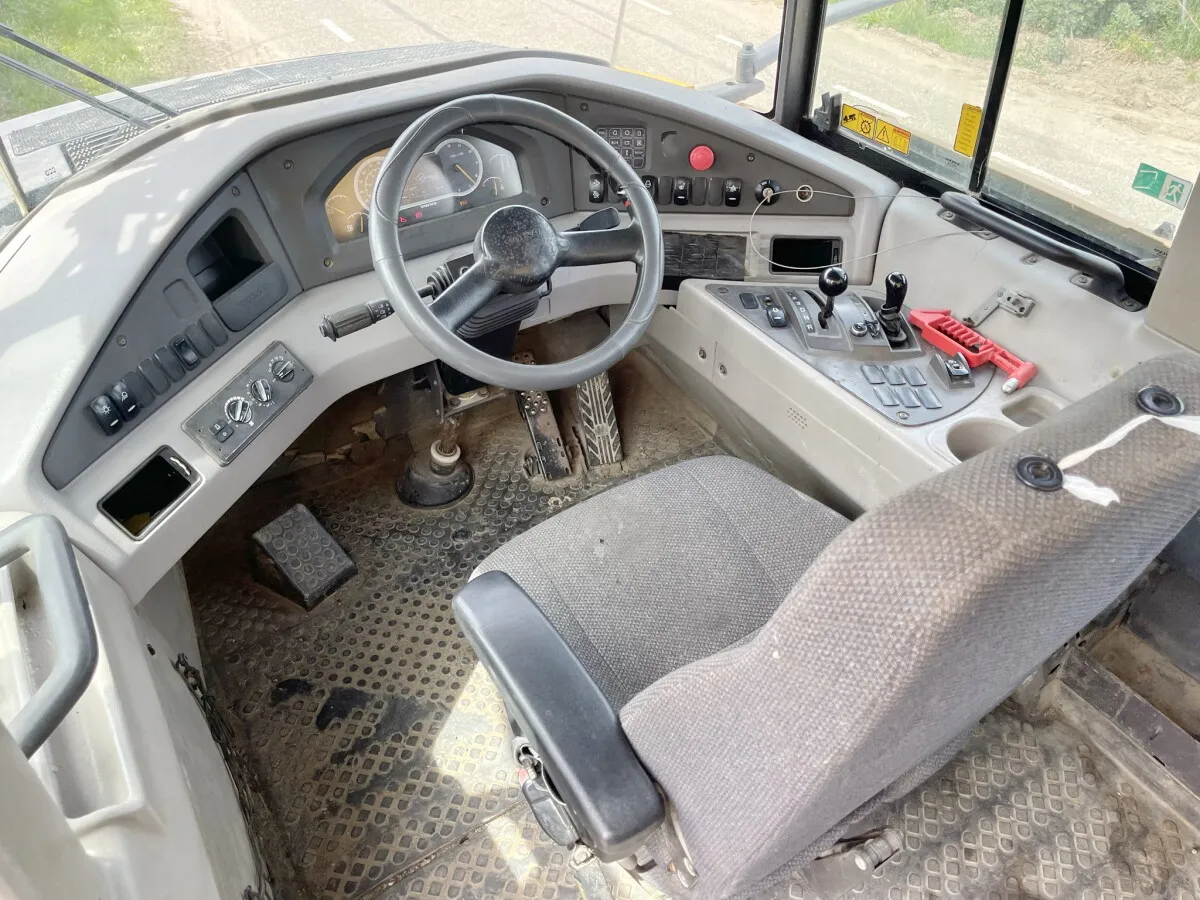

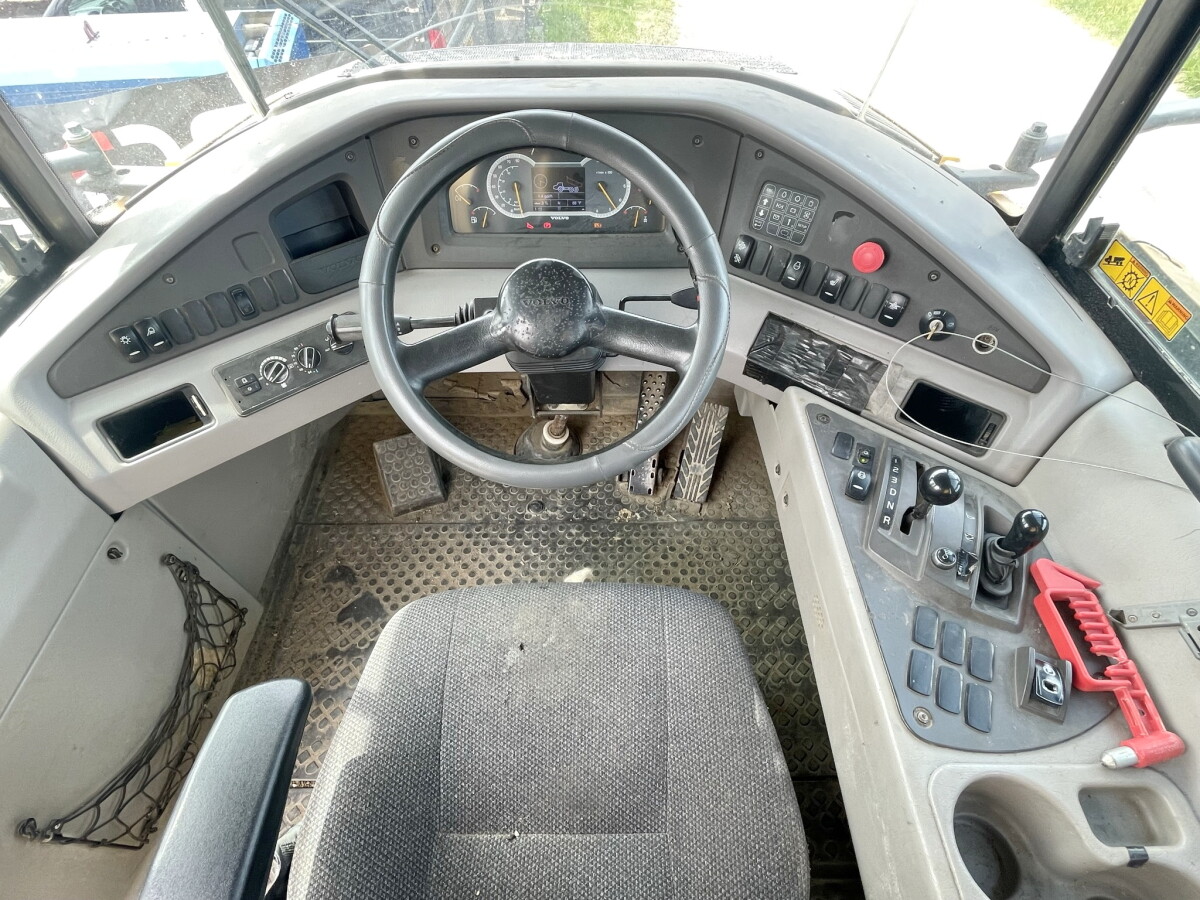

Interior [2]
Exterior [4]
Attachments [2]
2019-2023
Volvo D16F Engine model
30,600 kg Operating weight
39,000 kg Payload
347 kw Net power
29.5R25 Tire size
30,600 kg Empty weight

Volvo’s A40 series bridges heavy-duty hauling with agile articulation. The A40F (2019–2021) packs ~476 hp, handles ~39 t, and runs a spacious 24 m³ heaped body. The A40G (2021–2023) jumps to ~469 hp (~465 hp net), lifts ~39 t, and stretches the body to 31.4 yd³—plus it’s Tier 4f ready, with smart onboard systems.

~469 hp gross (~465 hp net, Volvo D13J)

~39 t payload, 24 m³ heaped body volume

speed up to ~57 km/h

telematics, onboard weighing, long service intervals

Show features

Makana rating

Owner rating

 | 1

Market average

AED 750,000

Starting from

AED 400,000

Volvo A40 technical specifications

Highlight differences

Volvo A40F

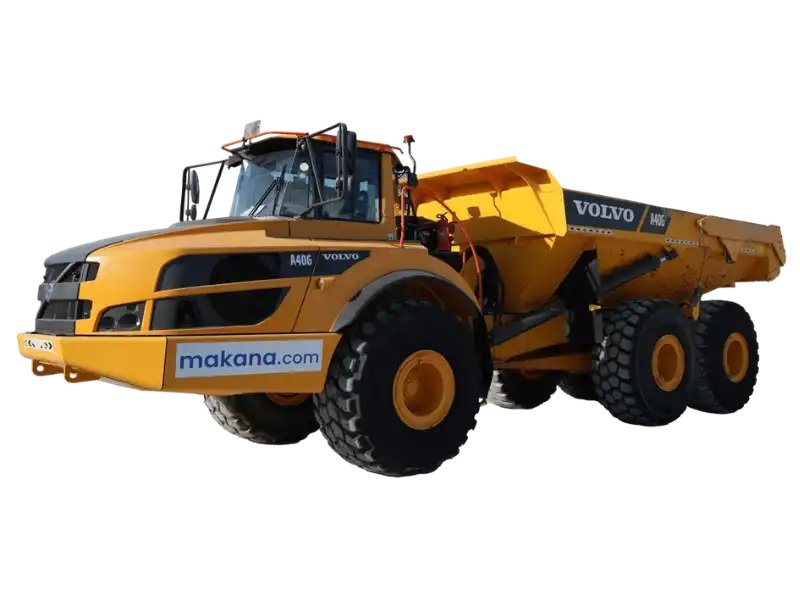

Volvo A40G

General
Engine model Volvo D16F
Engine model Volvo D13G
Operating weight 30,600 kg
Operating weight 37,200 kg
Transmission type PT2519
Transmission type Automatic (6-speed)
Payload 39,000 kg
Payload 38,000 kg
Max speed forward 57 kph
Max speed forward 52 kph
Tire size 29.5R25
Tire size 24.00-35
Years 2019-2023
Years 2019-2023
Market Average AED 750,000
Market Average AED 750,000
Price AED 400,000
Price AED 400,000
Service refill capacities
Fuel cap 480 liter
Fuel cap 510 liter
Transmission fluid cap 45.8 liter
Transmission fluid cap 45 liter
Engine
Displacement 16,100 cu cm
Displacement 12,800 cu cm
Max torque 1,050 Nm
Max torque 2,400 Nm
Net power 347 kw
Net power 353 kw
Hydraulic system
Relief valve pressure 250 bar
Relief valve pressure 240 bar
Operating specifications
Lower time 10 seconds
Lower time 12 seconds
Raise time 12 seconds
Raise time 10 seconds
Empty weight 30,600 kg
Empty weight 37,200 kg
Download datasheets
OEM product brochure

Volvo A40 expert review

Overview

Both models use Volvo’s trusted 6×6 articulation. A40F is all muscle; A40G adds cleaner emissions, data tools, and lower running costs.

Pros A40F: high payload, speed, and reliability.
A40G: efficient, emissions-clean, full of uptime-enhancing tech.
Cons Large footprint limits single-load transport flexibility.
A40G’s tech layer can be expensive to repair.

Performance & Efficiency

The A40F delivers strong cycle performance. The A40G optimizes fluids, service intervals, and uptime via integrated digital support.

In Comparison

Outclasses 35-ton ADTs with no massive transport penalty; the A40G adds next-gen efficiency and data insight.

Verdict

Choose A40F if haul horsepower and simplicity are priorities. Choose A40G if you want smarter, cleaner uptime without sacrificing load size.

Read more

Volvo A40 owner rating

Volvo A40 Articulated dump trucks [2019-2023]

2019-2023

Overall rating

Based on 0 ratings

5.0
5 stars

100 %

4 stars

0 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Read more

Volvo A40 similar models

Highlight differences
Volvo A40F
A40F
Cat 740
740
Cat 740B
740B
General
Engine model Volvo D16F
Engine model Cat C15 ACERT
Engine model Cat C15 ACERT
Operating weight 30,600 kg
Operating weight 38,500 kg
Operating weight 39,800 kg
Transmission type PT2519
Transmission type Cat 7-speed Auto
Transmission type Cat 7-speed Auto
Payload 39,000 kg
Payload 40,000 kg
Payload 40,200 kg
Max speed forward 57 kph
Max speed forward 60 kph
Max speed forward 60 kph
Tire size 29.5R25
Tire size 21.00-35
Tire size 21.00-35
Years 2019-2023
Years 2006-2025
Years 2006-2015
Market Average AED 750,000
Market Average AED 1,800,000
Market Average AED 800,000
Price AED 400,000
Price AED 500,000
Price AED 400,000
Service refill capacities
Fuel cap 480 liter
Fuel cap 530 liter
Fuel cap 530 liter
Transmission fluid cap 45.8 liter
Transmission fluid cap 42 liter
Transmission fluid cap 42 liter
Engine
Displacement 16,100 cu cm
Displacement 15,200 cu cm
Displacement 15,200 cu cm
Max torque 1,050 Nm
Max torque 2,746 Nm
Max torque 2,746 Nm
Net power 347 kw
Net power 348 kw
Net power 348 kw
Hydraulic system
Relief valve pressure 250 bar
Relief valve pressure 250 bar
Relief valve pressure 250 bar
Operating specifications
Lower time 10 seconds
Lower time 12 seconds
Lower time 12 seconds
Raise time 12 seconds
Raise time 11 seconds
Raise time 11 seconds
Empty weight 30,600 kg
Empty weight 38,500 kg
Empty weight 39,800 kg
