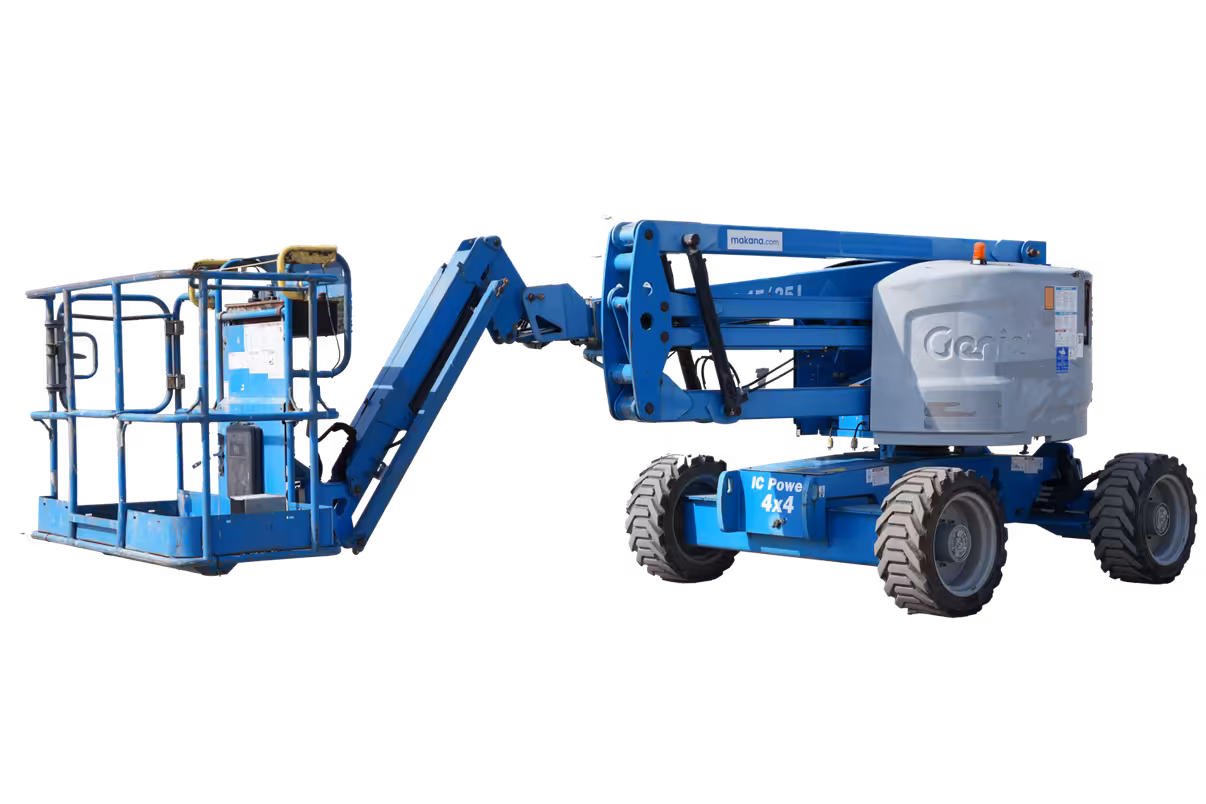

Genie Z-45 Boom lifts tech specs

Video[1]

Interior [2]

Attachments [1]

Exterior [4]

2012-2021

6,515 kg Operating weight

315/55 D20 Tire size

7,520 mm Max horizontal reach

15.86 m Max working height

35.8 kw Gross power

227 kg Platform Capacity - Unrestricted

A compact articulated boom lift built for versatile access work, the Genie Z-45 delivers a 15.86 m maximum working height with precise articulation and solid rough-terrain capability. Powered by a Deutz D2011 diesel engine producing 35.8 kilowatt, it fits construction, maintenance, and industrial sites where reach, maneuverability, and reliability matter.

Max working height 15.86 m

Max horizontal reach 7.52 m

Platform capacity 227 kg (unrestricted)

Engine power 35.8 kilowatt (Deutz D2011 diesel)

Articulated boom with 355° swing

Platform rotation 160°

Operating weight 6,515 kg

Rough-terrain tires

Makana rating

Owner rating

| 3

Market average

AED 165,000

Starting from

AED 105,900

Genie Z-45 technical specifications

Highlight differences

Genie Z-45/25J RT

Genie Z-45/24

Genie Z-45/25

Genie Z-45/25 Bi

Genie Z-45/25 Elec

Genie Z-45/25 RT

Genie Z-45/25 RT 4wd

Genie Z-45/25J Bi

Genie Z-45/25J Elec

Genie Z-45/25J RT 4wd

General

Engine model

Engine model Deutz D2011

Engine model DSG-423

Engine model -

Engine model DSG-423

Engine model -

Engine model DSG-423

Operating weight

Operating weight 6,515 kg

Operating weight 7,700 kg

Operating weight 7,598 kg

Operating weight 7,190 kg

Operating weight 6,963 kg

Operating weight 6,203 kg

Operating weight 6,294 kg

Operating weight 7,394 kg

Operating weight 6,577 kg

Fuel type

Fuel type Diesel

Fuel type -

Gradeability

Gradeability 24 %

Gradeability -

Tire size

Tire size 315/55 D20

Tire size 9x14.5

Tire size 355/55 D625

Tire size 9x14.5

Tire size 355/55 D625

Operating voltage

Operating voltage 12

Operating voltage -

Operating voltage 48 V

Operating voltage -

Operating voltage 48 V

Operating voltage -

Max horizontal reach

Max horizontal reach 7,520 mm

Max horizontal reach 7.65 m

Max horizontal reach 7.62 m

Max horizontal reach 7.65 m

Max working height

Max working height 15.86 m

Max working height 15.94 m

Max working height 15.88 m

Max working height 16 m

Max working height 15.94 m

Max working height 16.09 m

Platform rotation

Platform rotation 160 degrees

Platform rotation 180 º

Wheelbase

Wheelbase 2.03 mm

Wheelbase 2.04 m

Wheelbase -

Wheelbase 2.04 m

Max speed forward

Max speed forward -

Max speed forward 4.83 kph

Max speed forward 8.05 kph

Max speed forward 4.83 kph

Max speed forward 8.05 kph

Years

Years 2012-2021

Market Average

Market Average AED 165,000

Price

Price AED 105,900

Engine

Gross power

Gross power 35.8 kw

Gross power 55.93 kw

Gross power 8.95 kw

Gross power -

Gross power 55.93 kw

Gross power 8.95 kw

Gross power -

Gross power 55.93 kw

Battery amperage

Battery amperage -

Battery amperage 350 Amh

Battery amperage -

Battery amperage 350 Amh

Battery amperage -

Number of batteries

Number of batteries -

Number of batteries 8

Number of batteries -

Number of batteries 8

Number of batteries -

Dimensions

Ground clearance

Ground clearance 37 cm

Ground clearance -

Ground clearance 0.24 m

Ground clearance 0.39 m

Ground clearance 0.24 m

Ground clearance 0.39 m

Turning radius

Turning radius 4.5 m

Turning radius 4.27 m

Turning radius 4.51 m

Turning radius 4.27 m

Turning radius 4.51 m

Stowed height

Stowed height 2.13 mm

Stowed height 2.01 m

Stowed height 2.13 m

Stowed height 2.01 m

Stowed height 2.13 m

Axle Oscillation

Axle Oscillation 0.15 m

Axle Oscillation -

Overall Length

Overall Length 6.65 m

Overall Length 0.57 m

Overall Length 0.46 m

Overall Length 0.57 m

Overall Length 0.46 m

Overall Width

Overall Width 2.29 m

Overall Width 1.8 m

Overall Width 2.32 m

Overall Width 1.8 m

Overall Width 2.32 m

Service refill capacities

Fuel cap

Fuel cap 64 liter

Fuel cap 64.72 liter

Fuel cap 34.44 liter

Fuel cap 64.72 liter

Fuel cap 34.44 liter

Fuel cap 64.72 liter

Hydraulic fluid cap

Hydraulic fluid cap 83 liter

Hydraulic fluid cap 90.84 liter

Hydraulic fluid cap 30.28 liter

Hydraulic fluid cap 90.84 liter

Hydraulic fluid cap 30.28 liter

Hydraulic fluid cap 90.84 liter

Operating specifications

Swing

Swing 355 degrees

Swing -

Swing type

Swing type non-continuous

Swing type -

Tire Type

Tire Type Rough Terrain

Tire Type Foam filled

Tire Type -

Tire Type Foam filled

Tire Type -

Performance

Platform Capacity - Unrestricted

Platform Capacity - Unrestricted 227 kg

Platform Capacity - Unrestricted 227.02 kg

Drive Speed - Platform Lowered

Drive Speed - Platform Lowered 5 kph

Drive Speed - Platform Lowered -

Platform

Platform Dimension A

Platform Dimension A 0.76 m

Platform Dimension A 76.2 cm

Platform Dimension B

Platform Dimension B 1.83 m

Platform Dimension B 183.13 cm

Download datasheets

OEM product brochure

Genie Z-45 expert review

Reviewed by Marcis V. on February 9, 2026

Overview

The Genie Z-45 (2012–2021) is a compact articulated boom lift designed for versatile access work. It delivers a 15.86 m maximum working height with good obstacle clearance and stable rough-terrain performance.

Expert rating: 5 stars

Pros Articulated reach, compact footprint, dependable site performance.

Cons Swing is not fully continuous.

Performance & Efficiency

The 35.8 kilowatt Deutz engine provides reliable power for lift and drive operations, while a 5 km/h stowed drive speed supports efficient repositioning.

In Comparison

Sinoboom AB15: Comparable reach with different chassis setup.
JLG E300: Electric and quieter for indoor use.
Genie Z-45: Balanced articulated solution for mixed environments.

Final Verdict

Rated 5 stars, the Genie Z-45 is a solid articulated boom lift in the AED 105,900–165,000 range.

Show less

Genie Z-45 owner rating

Genie Z-45 Boom lifts [2012-2021]

2012-2021

Overall rating

Based on 3 ratings

4.7

performance

4.7

comfort

4.3

fuel efficiency

5.0

safety

4.7

features

4.0

5 stars

67 %

4 stars

33 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Pros

Easy to maneuver around obstacles with reliable articulated reach.

Cons

Swing range is not fully continuous.

Submitted by on Feb 9, 2026 / Genie Z-45 Boom lifts / Purchased on Apr, 2016

performance

4.0

comfort

4.0

fuel efficiency

5.0

safety

5.0

features

4.0

Valuation

Last 12 month

2016

2017

Genie Z-45 similar models

Highlight differences

Genie Z-45/25J RT

Sinoboom AB15J

JLG E300AJP

General

Engine model

Engine model Deutz D2011

Engine model Yanmar 4TNV88C-DFLT

Engine model -

Operating weight

Operating weight 6,515 kg

Operating weight 7,280 kg

Operating weight 7,098 kg

Fuel type

Fuel type Diesel

Fuel type -

Gradeability

Gradeability 24 %

Gradeability 21 %

Gradeability 25 º

Tire size

Tire size 315/55 D20

Tire size 315/55D20

Tire size 25 x 7 x 12

Operating voltage

Operating voltage 12

Operating voltage 48 V

Max horizontal reach

Max horizontal reach 7,520 mm

Max horizontal reach 8.5 mm

Max horizontal reach 6,130 mm

Max working height

Max working height 15.86 m

Max working height 21.8 m

Max working height 8.99 m

Platform rotation

Platform rotation 160 degrees

Platform rotation 180 º

Wheelbase

Wheelbase 2.03 mm

Wheelbase 2,030 mm

Wheelbase 1.68 m

Years

Years 2012-2021

Years 2021-2024

Years 1999-2025

Market Average

Market Average AED 165,000

Market Average AED 363,000

Market Average AED 135,000

Price

Price AED 105,900

Price AED 210,000

Price AED 92,000

Engine

Gross power

Gross power 35.8 kw

Gross power 35.49 kw

Gross power -

Battery amps

Battery amps -

Battery amps 370 Amh

Number of batteries

Number of batteries -

Number of batteries 8

Dimensions

Ground clearance

Ground clearance 37 cm

Ground clearance 32 cm

Ground clearance 10.16 cm

Turning radius

Turning radius 4.5 m

Turning radius 1.8 m

Turning radius 3.11 m

Stowed height

Stowed height 2.13 mm

Stowed height 2,220 mm

Stowed height 2.04 m

Axle Oscillation

Axle Oscillation 0.15 m

Axle Oscillation 0.1 m

Axle Oscillation -

Overall Length

Overall Length 6.65 m

Overall Length 7.35 m

Overall Length 4.6 m

Overall Width

Overall Width 2.29 m

Overall Width 2.26 m

Overall Width 1.22 m

Service refill capacities

Fuel cap

Fuel cap 64 liter

Fuel cap 55 liter

Fuel cap -

Hydraulic fluid cap

Hydraulic fluid cap 83 liter

Hydraulic fluid cap 90 liter

Hydraulic fluid cap 11.73 liter

Operating specifications

Swing

Swing 355 degrees

Swing 350 º

Swing type

Swing type non-continuous

Swing type Non-continuous

Swing type -

Tire Type

Tire Type Rough Terrain

Tire Type Foam-filled

Tire Type Non-marking

Performance

Platform Capacity - Unrestricted

Platform Capacity - Unrestricted 227 kg

Platform Capacity - Unrestricted 250 kg

Platform Capacity - Unrestricted 226.8 kg

Drive Speed - Platform Lowered

Drive Speed - Platform Lowered 5 kph

Drive Speed - Platform Lowered 4.83 kph

Jib Range of Motion - Horizontal

Jib Range of Motion - Horizontal -

Jib Range of Motion - Horizontal 144 º

Platform

Platform Dimension A

Platform Dimension A 0.76 m

Platform Dimension A 1.83 m

Platform Dimension A 0.79 m

Platform Dimension B

Platform Dimension B 1.83 m

Platform Dimension B 0.85 m

Platform Dimension B 1.22 m

Genie Z-45 gallery

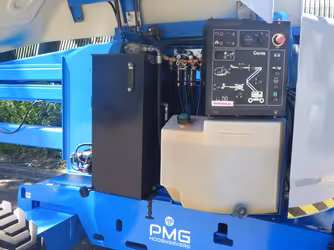

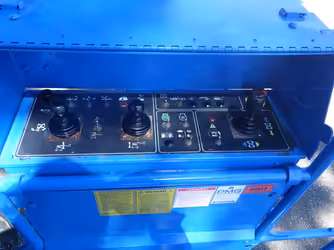

Generation-Genie Z-45 Boom lifts-interior

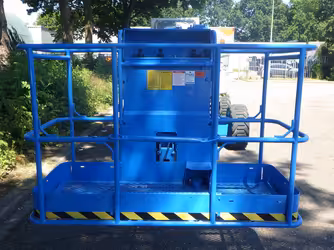

Generation-Genie Z-45 Boom lifts-attachments
