Excavator dozer blade: 5 functions every operator should know

A dozer blade on an excavator is a flat steel plate attached to the front of the undercarriage that moves vertically and sometimes tilts, controlled from the cab. It is a standard feature on most mini excavators and serves a different purpose from the main bucket arm.

Models like the Hitachi ZX33U-6 CLR, the Volvo ECR50D, the Kubota U27-4, and the XCMG XE60G Pro all come equipped with it.

This article covers what the dozer blade actually does, how its blade width and hydraulic range affect performance, and which machines carry the best blade configurations for urban and utility work.

Applications of dozer blade on an excavator

The dozer blade on an excavator handles tasks that the bucket arm cannot do efficiently. It does not replace a dedicated crawler dozer for bulk earthmoving, but it makes the excavator far more self-sufficient on site.

Here are the five primary functions.

1. Backfilling after excavation

This is the most common use. After the excavator digs a trench for a cable, pipe, or foundation, the dozer blade pushes the excavated material back into the trench. Without a blade, the operator must either wait for a separate machine or use manual labor. With the blade, the backfilling cycle is part of the same operation.

2. Leveling and surface grading

After backfilling, the surface around the excavation is uneven. The dozer blade levels that area before the machine repositions or the site is handed over. The Volvo ECR50D, the blade works alongside its load-sensing hydraulic system, which adjusts power distribution automatically. This means grading passes are smoother and use less fuel than on machines with fixed hydraulic output. Leveling with the blade requires less precision than finish grading, but it significantly reduces manual cleanup work after excavation.

For a more technical look at excavation depth and reach specs, it covers how digging geometry affects how much area a blade can realistically grade in one position.

3. Machine stability on slopes and uneven ground

When an excavator works on a slope or embankment, side loads push against the undercarriage and can cause track lift. Lowering the dozer blade into the ground at the downhill side creates a ground anchor that stabilizes the machine during digging. This is particularly important for mini excavators, where the operating weight is lower and the stability margin is tighter.

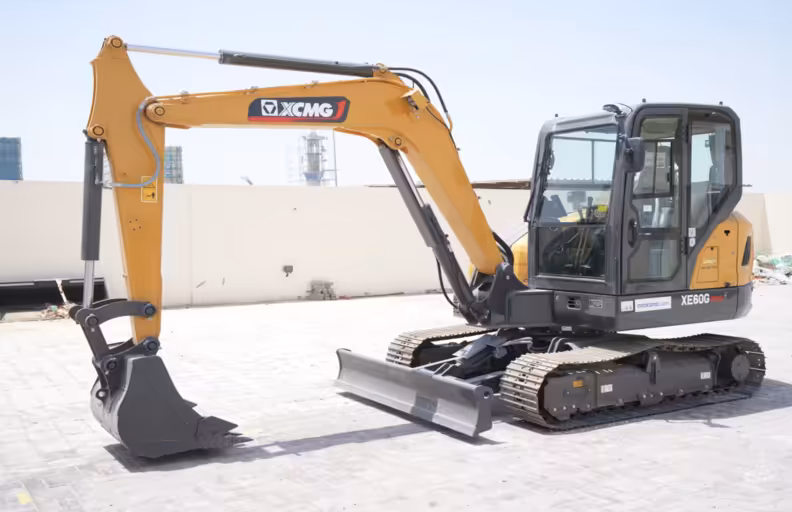

The XCMG XE60G Pro at 6,000 kg uses its integrated dozer blade for this on sloped access sites, particularly during foundation and drainage work.

Understanding how tipping load works on excavators helps explain why the blade position directly affects how safely the machine can reach and lift loads.

4. Pushing loose material away from the work zone

Excavation generates a lot of spoil material around the machine. Piles that build up near the tracks reduce maneuverability and can cause the machine to tip when rotating. The dozer blade keeps the immediate work zone clear by pushing loose soil, gravel, or debris aside without stopping the excavation cycle. This is a minor but continuous function that improves site safety and reduces repositioning time over a full shift.

Machines with zero-tail-swing designs, like the Hitachi ZX33U-6 CLR and Kubota U27-4, benefit most from this since they operate in tight spaces where material piles are harder to avoid.

5. Ground anchoring for heavy lifts

When an excavator lifts a heavy load, a concrete pipe section, a manhole ring, or a stone block, the rear of the machine tends to rise if the load is near the maximum capacity. Pressing the dozer blade against the ground at the front adds counterweight effect that keeps the machine balanced during the lift. This extends the practical lifting capacity slightly beyond what the machine can do without the blade engaged, without exceeding its structural limits.

For more on how lifting capacity is calculated on excavators, see the lifting capacity guide.

How blade width and hydraulic range affect dozer blade performance

Not all dozer blades on excavators perform the same way. Two specs define how useful a blade actually is: blade width and hydraulic vertical range (how far the blade can lower below track level and raise above it).

Blade width determines how much material the blade moves in a single pass. A wider blade reduces the number of passes needed to backfill a trench or level a surface.

On Hitachi ZX33U-6 CLR mini excavator, the 1,550 mm blade width matches the machine’s track width closely, which means it covers the full ground disturbed by the tracks in a single reverse pass.

Smaller machines like the Kubota U27-4 have narrower blades proportional to their 2,665 kg frame, which still covers the work area efficiently given the machine’s smaller operating footprint.

Hydraulic range controls whether the blade can dig slightly into the surface or just float above it. A blade that can lower below track level, typically 300 to 450 mm on most mini excavators, can scrape loose material from the surface rather than just pushing it. This makes a significant difference for finish grading work.

XCMG XE60G Pro mini excavator, with its Kubota V2607 engine at 46.9 hp powering the hydraulic circuit, delivers consistent blade pressure across the full vertical range without the pressure drop that affects smaller engines under combined load.

Mini excavators with dozer blades available on Makana

Makana currently stocks mini excavators with dozer blades, spanning 2.5 to 6 tons, including the Hitachi ZX33U-6 CLR, Volvo ECR50D, Kubota U27-4, and XCMG XE60G Pro. All mini excavators with dozer blades are low-hours, customs-paid and fully inspected.

Here is a quick comparison across the key specs:

You can compare models directly using the Makana comparison tool, or review detailed tech specs in the expert reviews section.

You can inspect any machine remotely via virtual 3D tour or visit the yard in Jebel Ali Free Zone, Dubai in person.

Frequently asked questions

Do all mini excavators come with a dozer blade

Most mini excavators in the 1 to 6 ton class come with a dozer blade as standard equipment. Some larger compact excavators list it as optional. It is worth confirming at purchase since a machine without a blade requires a separate grading tool or manual labor for backfilling, which increases site costs significantly.

What is the difference between a dozer blade and a tilt blade on a mini excavator

A standard dozer blade moves only vertically, raising and lowering. A tilt blade adds the ability to angle one side lower than the other, which allows slope grading without repositioning the machine. Tilt blades are more common on larger compact excavators and tracked dozers. Most mini excavators use a fixed-angle blade that moves vertically only.

How wide should the dozer blade be on a mini excavator

As a general rule, the blade width should match or slightly exceed the track width. On the Hitachi ZX33U-6 CLR, the 1,550 mm blade matches the machine’s track width. This allows the blade to cover the full ground footprint in one pass. A blade narrower than the tracks leaves strips of undisturbed material that require additional passes.

Does using the dozer blade increase fuel consumption on a mini excavator

Yes, but the increase is small when the blade is used for light tasks like backfilling and leveling. The hydraulic circuit draws additional power from the engine during blade operation, but the work cycle is usually brief. Machines with load-sensing hydraulics, like the Volvo ECR50D, manage this more efficiently than those with fixed-flow systems.

Can the dozer blade on a mini excavator be used for rough grading

Yes, within limits. The dozer blade on a mini excavator can handle rough grading of loose soil, gravel, and backfill material. It is not suited for cutting into hard-compacted ground or moving large volumes over long distances. For those tasks, a dedicated compact dozer or motor grader is the right choice. The excavator blade works best for finishing the area directly around the excavation zone.
