Excavator digging depth explained: depth, reach, and safety limits

When picking an excavator, people usually focus on things like engine power, size, or how big the bucket is. But one important detail that's often missed is how deep it can dig.

If the machine can't reach the right depth, you could run into problems, like unfinished work, extra costs, or needing to bring in another machine.

In this article, we'll look at why digging depth matters, what affects it, how it differs from digging reach, and how to choose the right excavator for the job based on what's really needed, not just what's written in the specs.

What is digging depth and why does it matter?

Digging depth refers to the maximum vertical distance the excavator bucket can reach below the ground surface. It's a core performance metric, particularly in applications like trenching for utilities, foundation excavation, basement construction and drainage installation.

Inadequate reach can result in unfinished trenches, sloped excavation (not vertical) and multiple repositionings of the machine.

On the flip side, over-specifying depth can lead to higher costs and underutilization of machine capability. Therefore, understanding what influences an excavator's digging depth is essential for selecting the right machine and optimizing its performance on the job site.

Key factors affecting an excavator's digging depth

Several technical and mechanical elements determine how deep an excavator can dig. These must be carefully assessed before selection or purchase.

1. Boom and arm configuration

The boom and arm (also called dipper or stick) determine the geometry of the digging arc. Long-reach arms provide extended digging depth but reduce lifting capacity.

• Standard boom + short arm: Better for lifting, faster cycle times.
• Long boom + long arm: Ideal for deep trenching, canals, or marine applications.

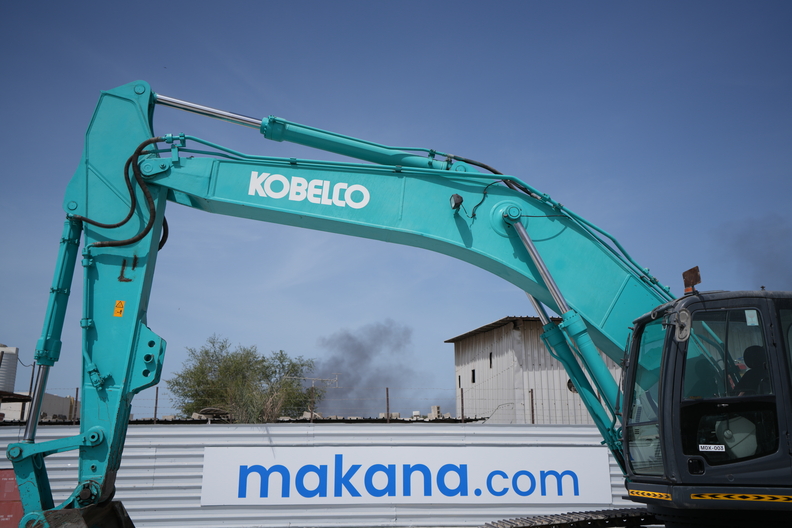

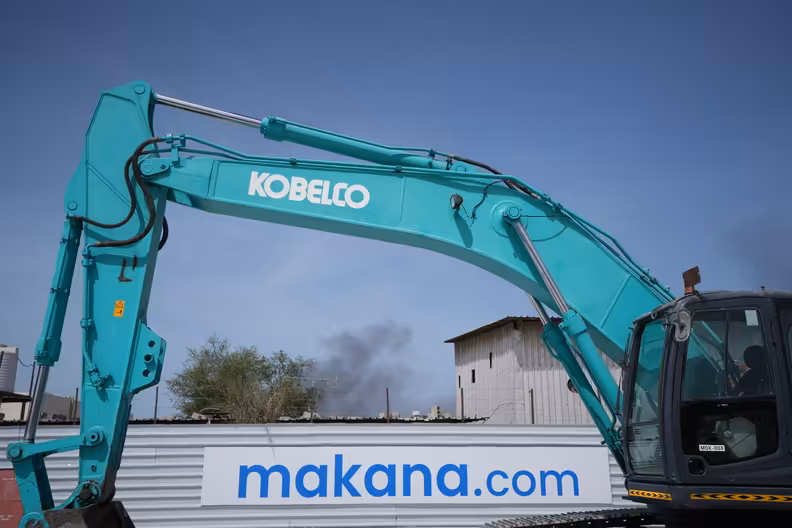

For instance, the Kobelco SK350LC-10 medium excavator has a maximum digging depth of 7.56 meters when equipped with the standard 6.5-meter boom and a standard arm. This depth is suitable for medium to large-scale excavation tasks, such as foundation work, utility trenching, and road construction. Browse medium excavators on Makana in this depth range.

2. Machine size class

Excavators are broadly classified as:

• Mini excavators (1 to 6 tons): max depth: 1.5m to 4m
• Midi or compact excavators (6 to 10 tons): max depth: 3.5m to 5.5m
• Standard/medium excavators (10 to 40 tons): max depth: 5.5m to 7.5m
• Large excavators (40+ tons): max depth: 7.5m to 10m+
• Long-reach or specialty excavators: custom setups can dig over 15m

Selecting the wrong machine size can lead to poor performance or unnecessary costs. For example, a large excavator is powerful, perfect for major earthworks or deep trenching, but too large and heavy for small-scale jobs like residential sewer lines. In those cases, a mini excavator would be a better fit due to its compact size and maneuverability.

3. Undercarriage stability and counterweight

Digging depth is only effective if the machine remains stable. Long-arm setups require heavier counterweights and reinforced undercarriage. Large excavators built for deep excavation come with reinforced undercarriages and heavy counterweights that ensure stability, even with long-reach arms or under full load conditions. You can browse large excavators on Makana built for this kind of work.

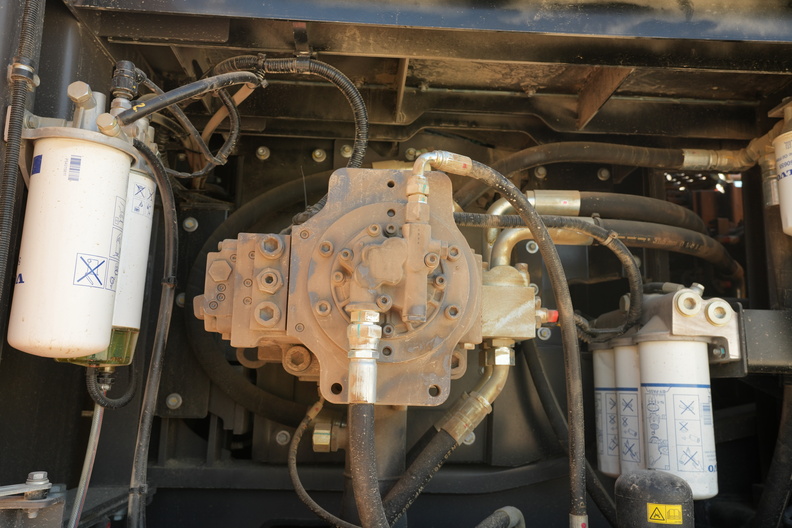

4. Hydraulic system pressure and flow

Even if the geometry allows deep digging, the hydraulic system must support the force required to cut and lift material at full reach. Systems must maintain power at maximum extension, especially in hard soil.

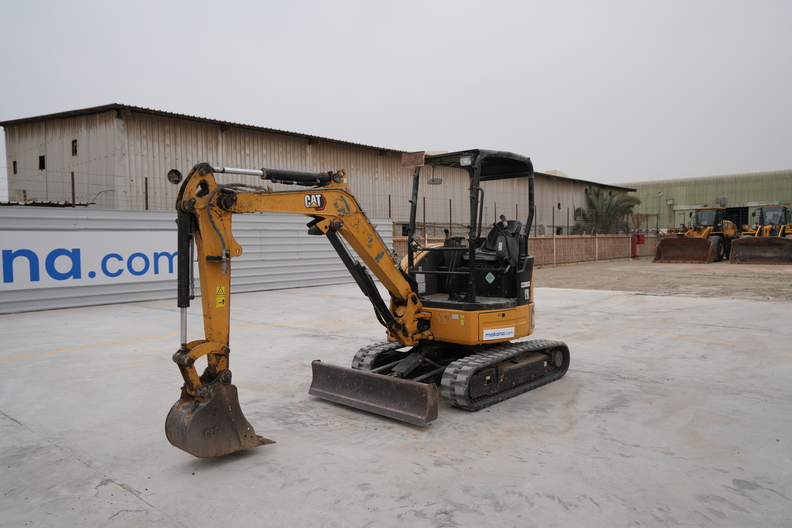

How deep can a mini excavator dig?

Mini excavators (generally 1 to 6 tons) are the machine most people picture when they ask "how deep can an excavator dig," since they're the most common size on residential and small commercial sites. Digging depth scales closely with weight class:

• 1 to 2 ton mini excavators: typically dig 1.5 to 2 meters deep, ideal for landscaping, small utility work, and tight residential access.
• 2 to 4 ton mini excavators: typically dig 2.5 to 3.2 meters deep. A 3-tonne digger in this range is a common choice for foundation trenches and drainage lines on residential and light commercial jobs.
• 4 to 6 ton mini excavators: typically dig 3.5 to 4 meters deep, closing the gap toward compact/midi excavators while still fitting through standard gate access.

Many modern mini excavators also include a vertical digging system (VDS), a feature that automatically adjusts the boom and arm angle so the bucket stays vertical when digging on a slope, without needing to reposition the entire machine. This matters for depth accuracy specifically, since digging on an angle without VDS can make it harder to reach true vertical depth and keep trench walls straight. If you're working sloped or uneven sites often, it's worth checking whether a mini excavator model includes this feature. Explore mini excavators on Makana to compare depth specs across weight classes.

How to evaluate the right digging depth for your project?

Before selecting a machine on makana.com or anywhere else, contractors typically assess project-specific factors. Here's what they look at:

1. Project type and excavation design

A trench for telecom cables may need just 1.2 meters depth, while a commercial building foundation could require 5 meters or more. Always match machine capability with the approved excavation drawings.

2. Soil conditions

Soft clay is easier to dig through than compacted rock or frozen ground. The harder the soil, the more power is required at depth.

Tip: use certified 75+ point inspection reports to check if the machine's hydraulics have been tested under full load.

3. Space constraints on site

Urban sites often have tight access, restricting swing radius and positioning. Mini excavators with lesser depth might be more productive due to maneuverability. A mini excavator digging up to around 2.6 meters is a great fit for tight urban jobs where space is limited. In contrast, a large excavator can reach over 7.5 meters, but needs much more room to operate due to its size and swing radius.

4. Slope or bench requirements

If the ground isn't strong enough to dig straight down, workers need to dig in steps or layers (benches) instead, kind of like stairs. Because of this, the excavator arm might need to reach further to dig deep enough from a safe distance. This consideration highlights the importance of distinguishing between two key concepts in excavation operations: digging depth and digging reach.

Depth of reach: how digging depth and digging reach work together

Digging depth and digging reach are often confused, but they mean different things, and both matter when choosing the right excavator. Together, they define what's often referred to as a machine's depth of reach, the combined vertical and horizontal working envelope of the bucket.

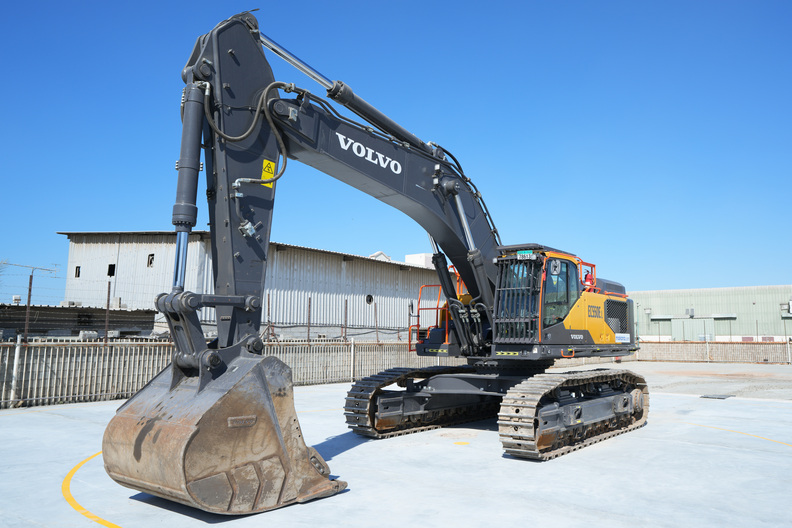

• Digging depth is how far down the bucket can go from ground level when fully extended. A large excavator can dig over 7.5 meters deep, making it ideal for large foundations or deep trenching. The Kobelco SK350LC-10 also offers solid depth, around 7.3 meters, suited for general construction.
• Digging reach is how far the bucket can stretch out horizontally from the center of the machine. This is important when you can't reposition the excavator easily, like working next to a road, a building, or inside narrow sites. A mini excavator has a smaller reach but works well in tight urban spaces where maneuverability matters more than depth.

Here's a tip: always check both depth and reach, together, against your site plan before choosing a machine, rather than looking at either spec in isolation.

What is an excavator depth limiter, and why does it matter for safety?

An excavator dig depth limiter is a safety feature, mechanical or hydraulic, that restricts how far the bucket can descend below a set point. It's commonly used on:

• Utility and trenching work, where digging past a certain depth risks striking buried gas, water, or electrical lines.
• Sites with strict excavation safety plans, where a supervisor sets a maximum approved depth and the machine is configured not to exceed it.
• Repetitive trenching jobs, like pipe-laying, where a consistent depth needs to be maintained across a long run without relying on the operator to judge it by eye each time.

Depth limiters don't reduce a machine's maximum digging depth capability, they cap it for a specific task. This is a key part of excavator dig depth safety: even on a machine capable of digging 7 meters deep, a depth limiter might be set to stop the bucket at 1.5 meters if that's what the job and site safety plan call for. When inspecting a used excavator, it's worth checking whether the depth limiter (if equipped) is functioning correctly, since a faulty one is both a safety issue and a sign the hydraulic system may need attention.

Which excavator has the deepest digging depth in the world?

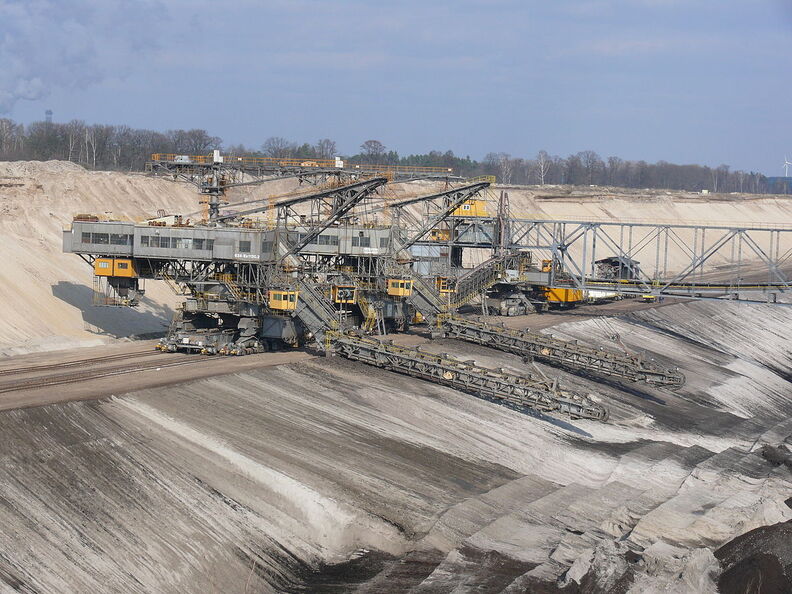

When it comes to extreme digging performance, the Type Es 3750 bucket-chain excavator, developed by TAKRAF, holds the record for the deepest digging depth among all machines, reaching up to 31.2 meters.

This machine isn't used in conventional construction, but rather in open-pit mining where ultra-deep excavation is required.

For more recognizable equipment types, the Bagger 288, a bucket-wheel excavator and one of the world's largest heavy machinery, offers a digging depth of around 30 meters, though it operates on a different excavation principle.

In the category of hydraulic long-reach excavators, commonly seen in construction and marine works, long-reach models can deliver a maximum digging depth of over 13 meters, placing them among the top-performing machines in their class for reach-focused applications.

These extremes highlight the vast range of excavator configurations and underscore why specifying depth correctly matters; overestimating or underestimating can drastically affect productivity, fuel use, and even site safety.

How to inspect used excavators for digging depth capability?

When buying a used excavator, it's important to verify that the machine's digging depth specs are still valid. Key checks include:

• Cylinder stroke test: Fully extend the boom and arm; check for smooth operation without jerks.
• Linkage play: Excess movement in bucket linkages can reduce effective digging depth.
• Hydraulic pressure test: Confirms the machine can maintain force at full extension.
• Undercarriage balance: Worn tracks or uneven sprockets can destabilize the unit during deep trenching.

For a broader checklist beyond just depth, see our full guide on things nobody tells you about buying a used excavator.

Frequently asked questions

How deep can a mini excavator dig?

Most mini excavators dig between 1.5 and 4 meters deep depending on weight class, with 1 to 2 ton models reaching around 1.5 to 2 meters and 4 to 6 ton models reaching closer to 3.5 to 4 meters.

What is depth of reach on an excavator?

Depth of reach describes the combined working envelope of an excavator's bucket, how deep it can dig (digging depth) and how far it can extend horizontally (digging reach). Both need to be checked together against a site plan, since a machine can have plenty of depth but not enough reach to work around obstacles, or vice versa.

What is an excavator depth limiter?

A depth limiter is a mechanical or hydraulic safety feature that restricts the bucket from digging past a set depth, commonly used on utility and trenching jobs to prevent striking underground lines or to enforce a site's approved excavation depth.

Is there a safety limit on excavator digging depth?

There's no single universal limit, a machine's maximum digging depth depends on its size class and boom/arm configuration. What's regulated on many job sites is the approved working depth for a specific task, which is enforced using depth limiters and site-specific excavation safety plans, not the machine's absolute maximum.

What is a vertical digging system (VDS)?

A vertical digging system is a feature, mostly found on mini excavators, that automatically adjusts the boom and arm so the bucket digs straight down even when the machine itself is positioned at an angle or on a slope, helping maintain accurate depth and straight trench walls without repositioning.

Conclusion

Digging depth is not just a number, it's a performance boundary that defines what an excavator can achieve on-site. Evaluating it goes far beyond brochures. Contractors need to consider geometry, hydraulics, attachments, site conditions, safety limiters, and real-world machine condition.

When browsing machines on Makana, use certified inspection reports or book a virtual tour to ensure that the machine's configuration and condition meet your digging depth requirements, saving you both time and costly missteps.
